Easy MODS for your Radiomaster TX16S Transmitter

by muteFPV | February 27, 2021 | (1) Posted in How To

The Radiomaster TX16S radio has become very popular and for a good reason: you get a lot of radio for its price. As with almost everything related to our hobby though, there is always room for improvement.

If you already own the TX16S or TX16S MAX radio (or the Jumper T16), definitely check these out. I have been working on this for quite a while, I hope you like it as much as I do!

In the videos and screengrabs below you will find all the necessary information for the following tasks and mods:

PART 1:

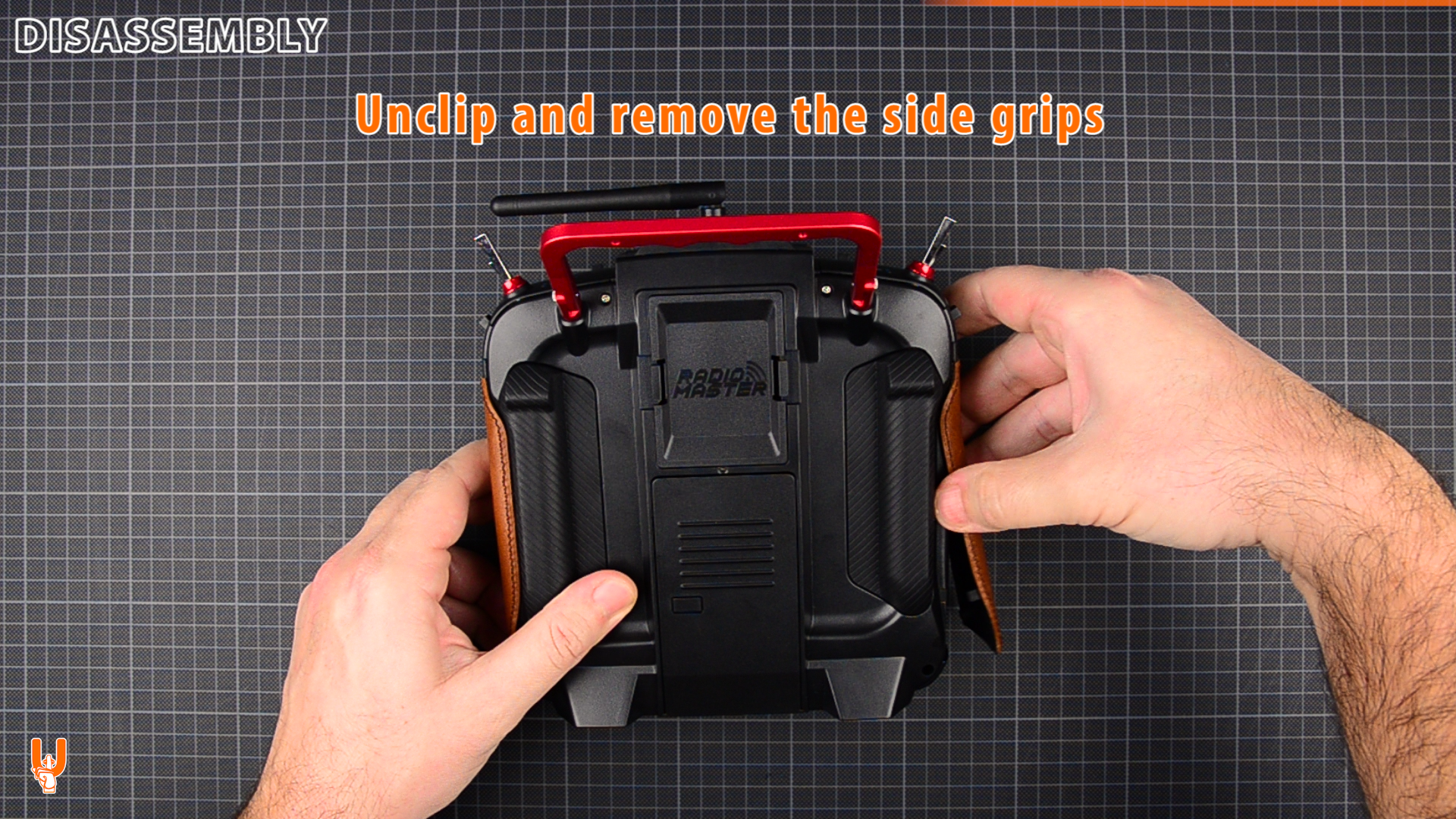

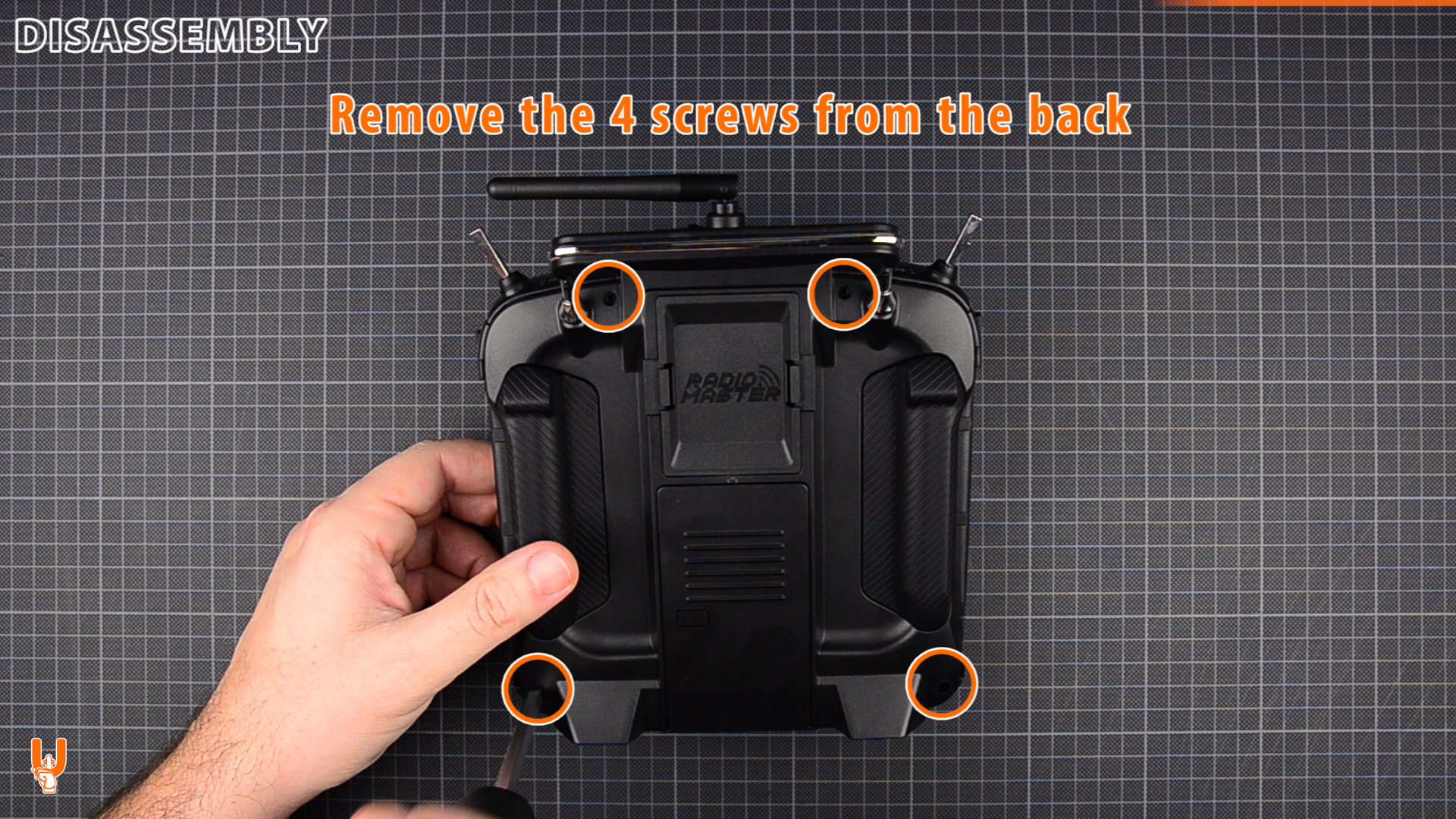

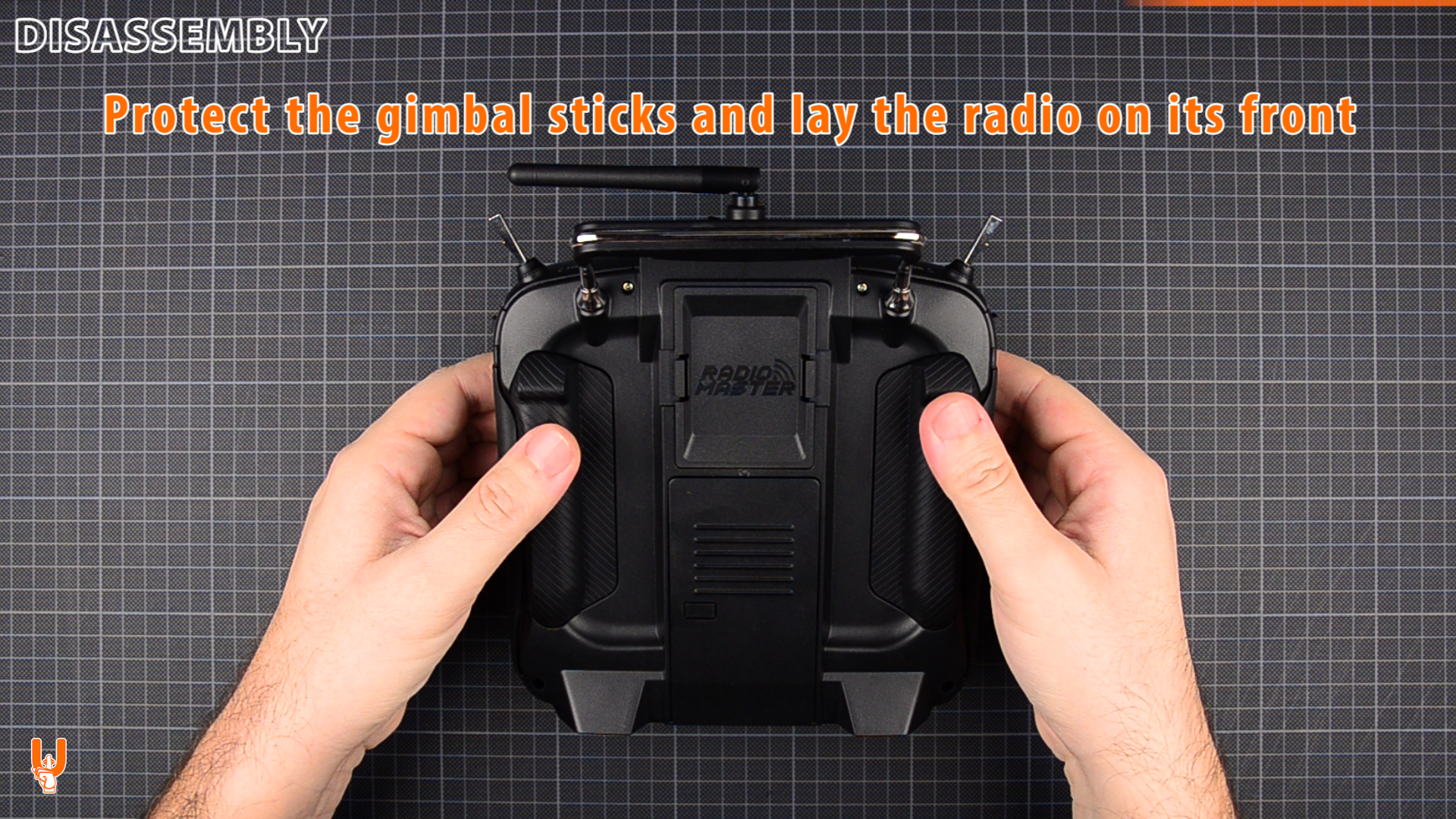

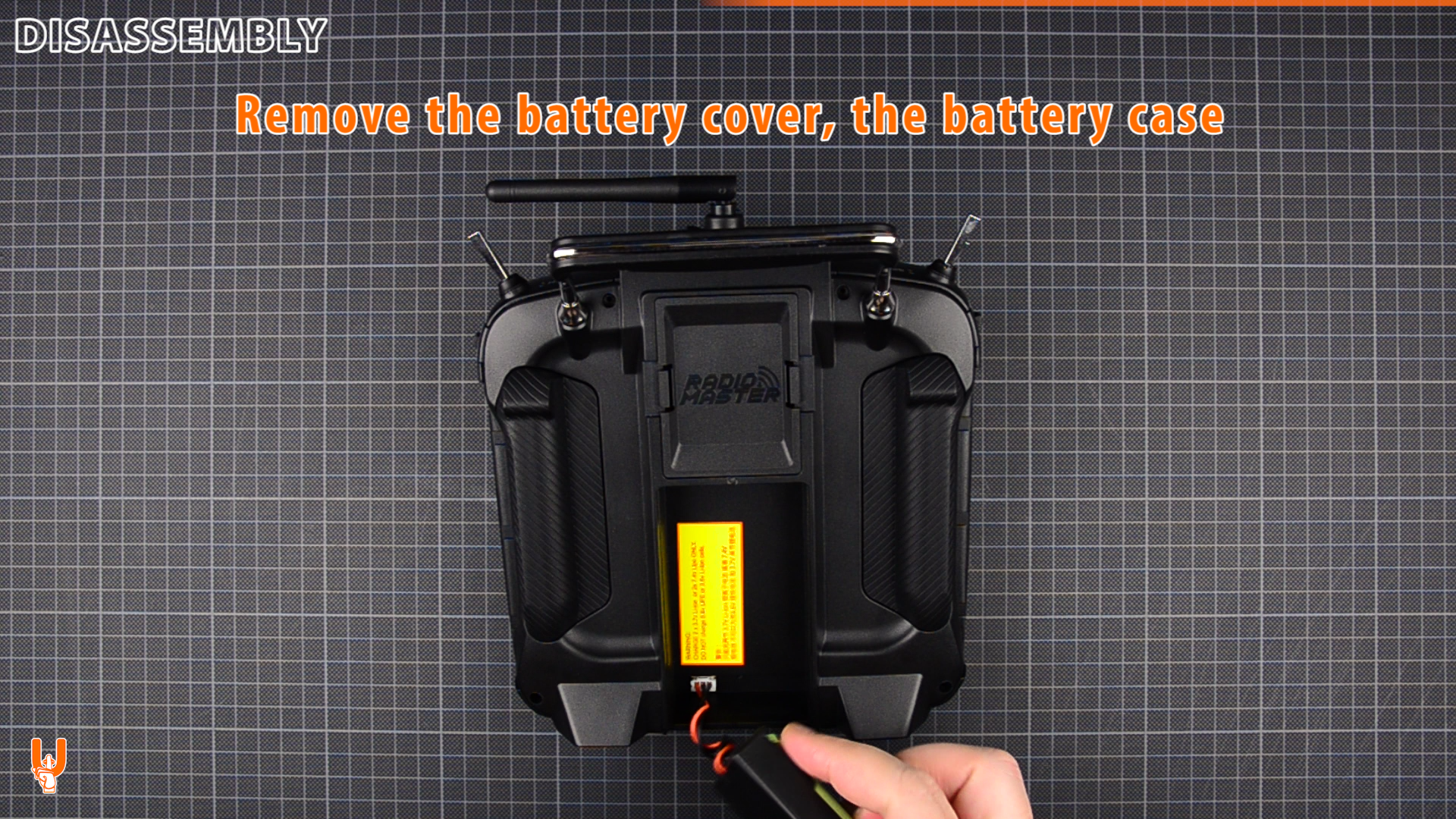

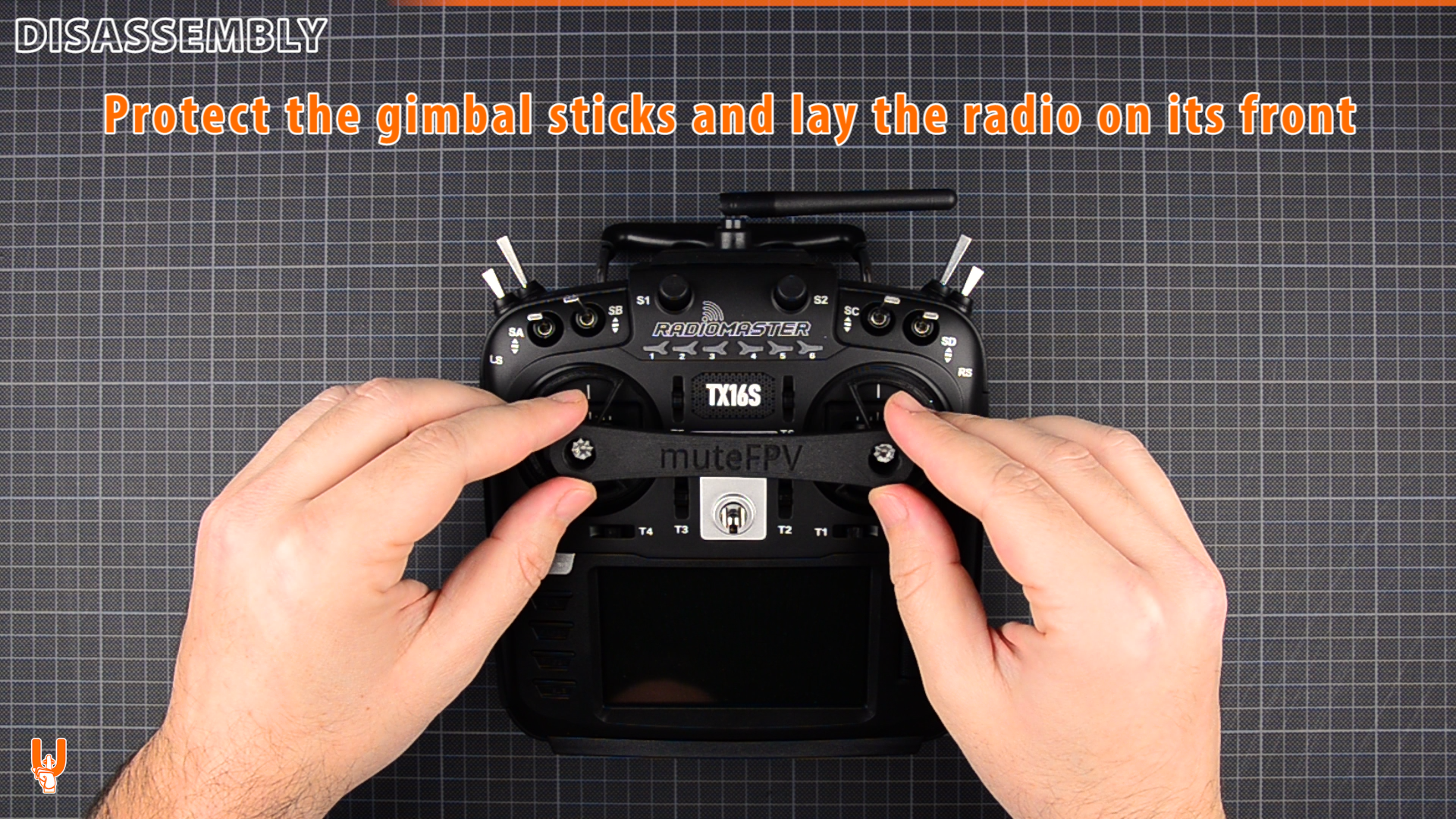

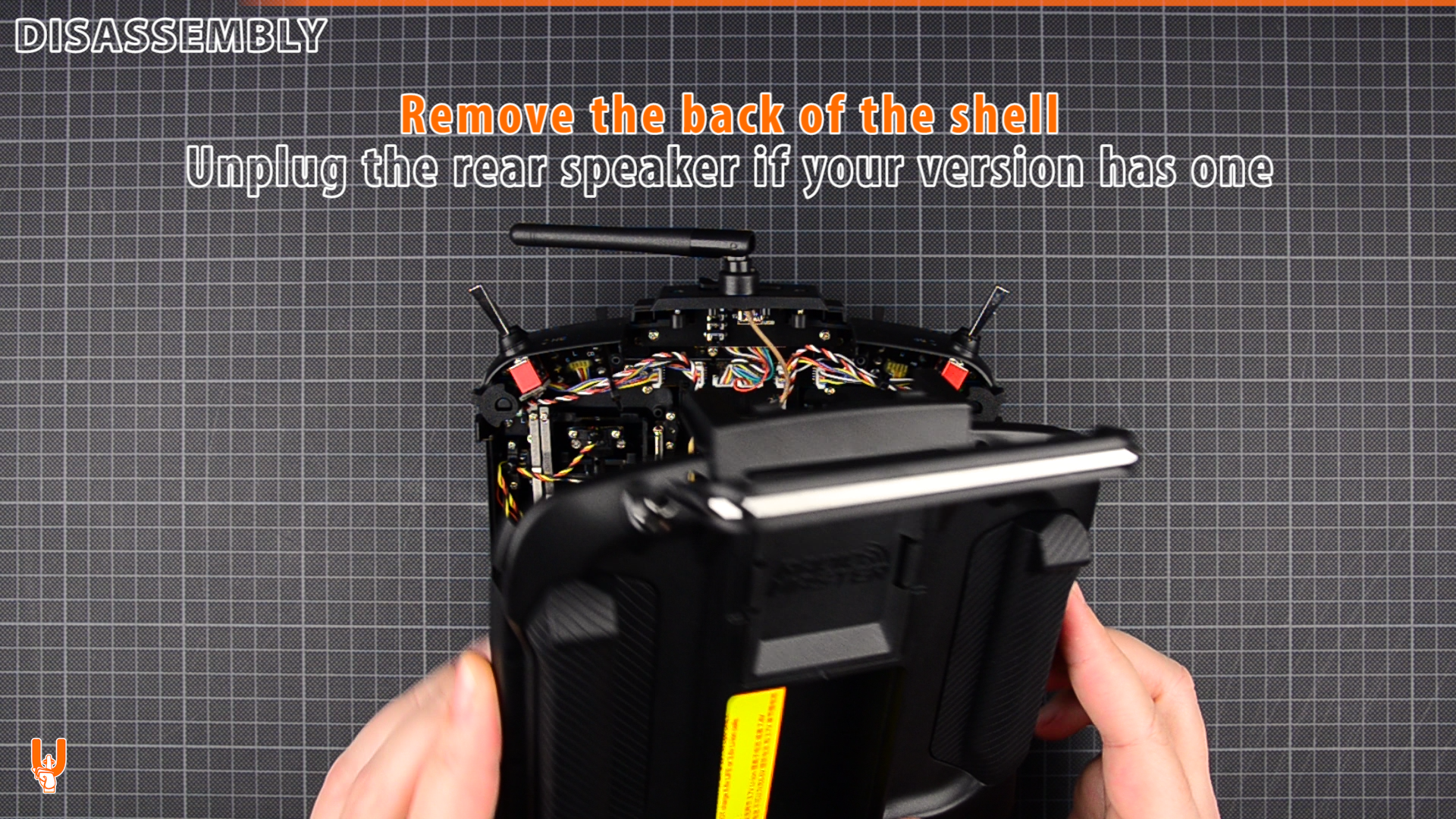

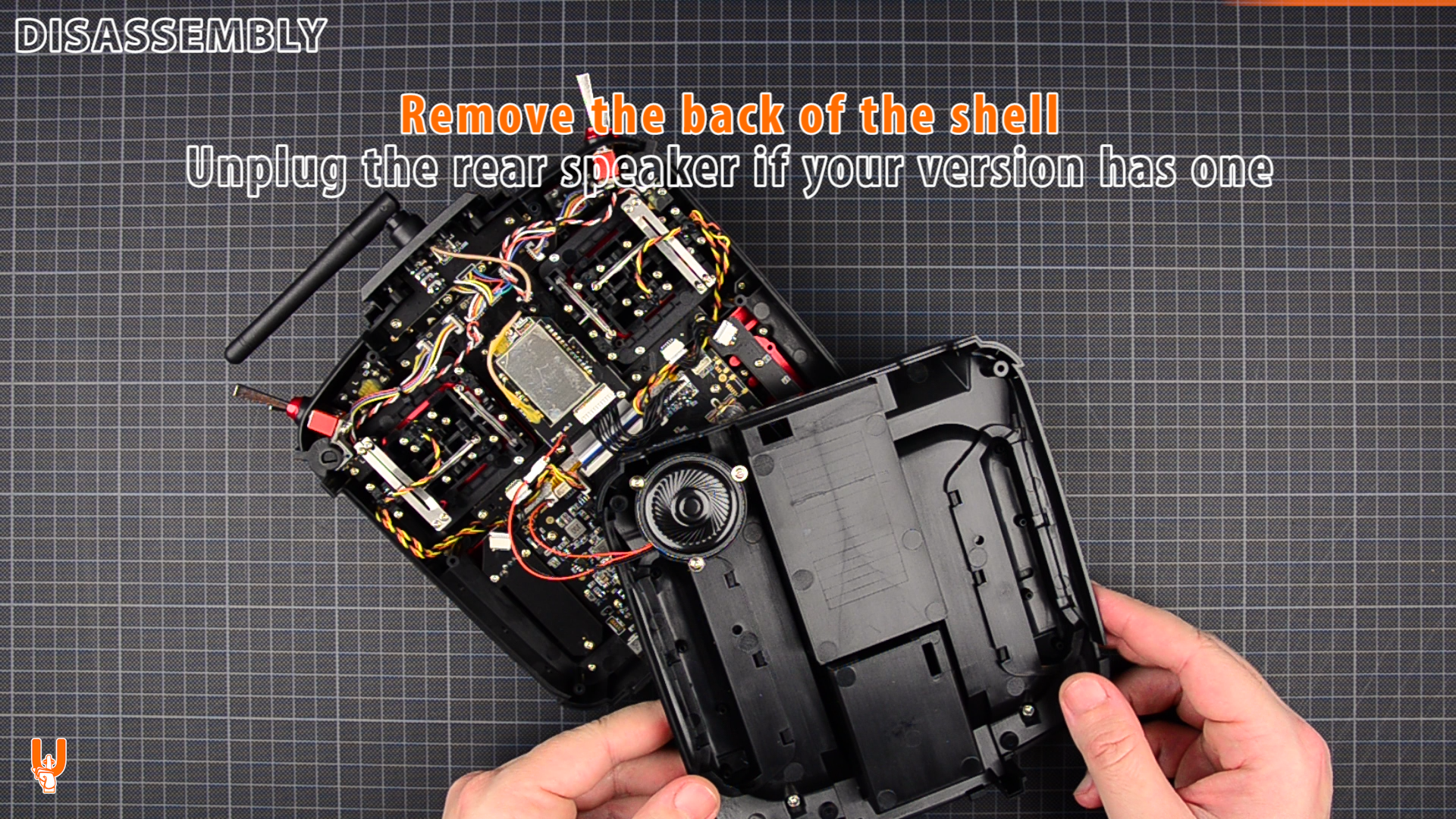

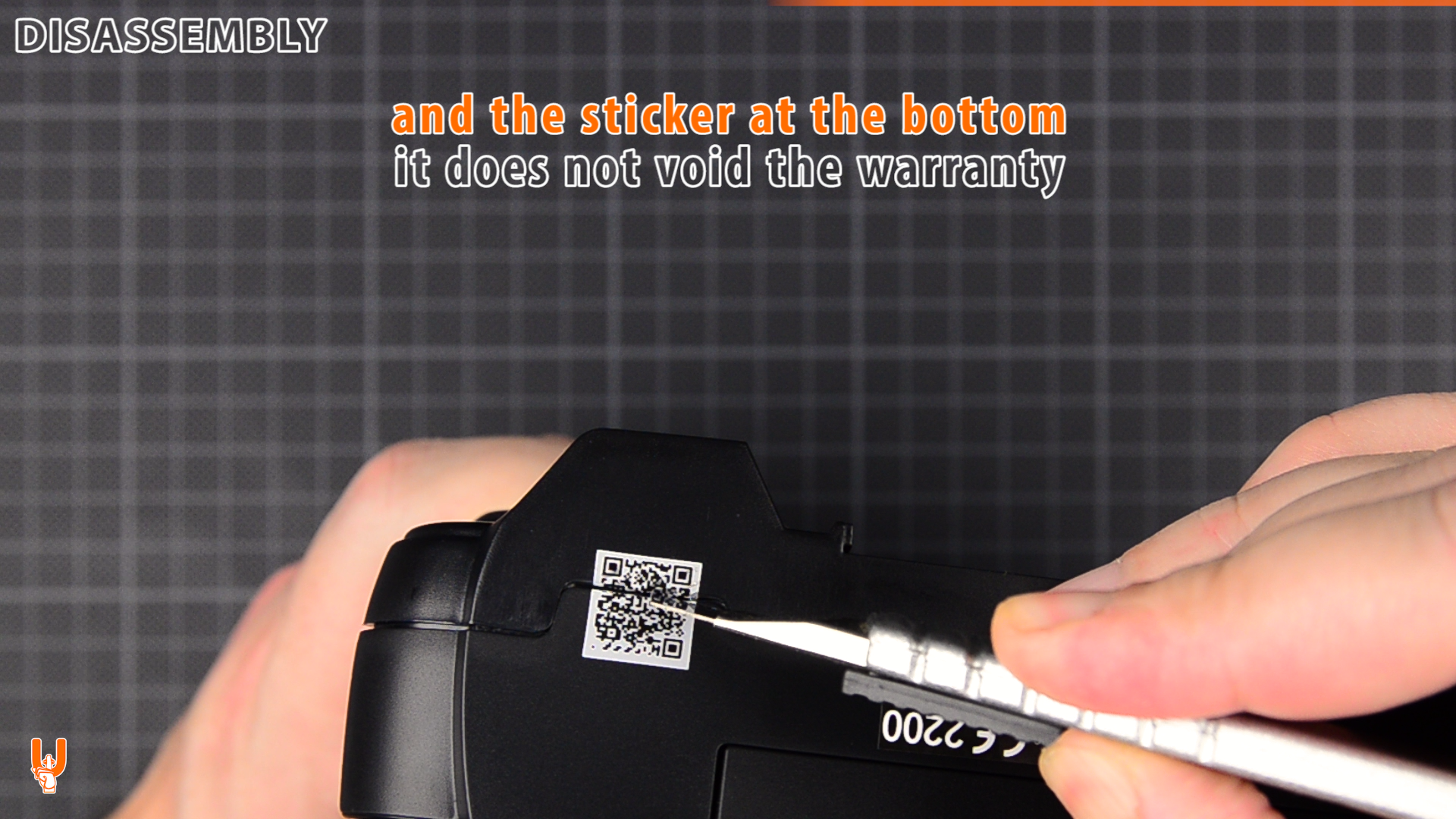

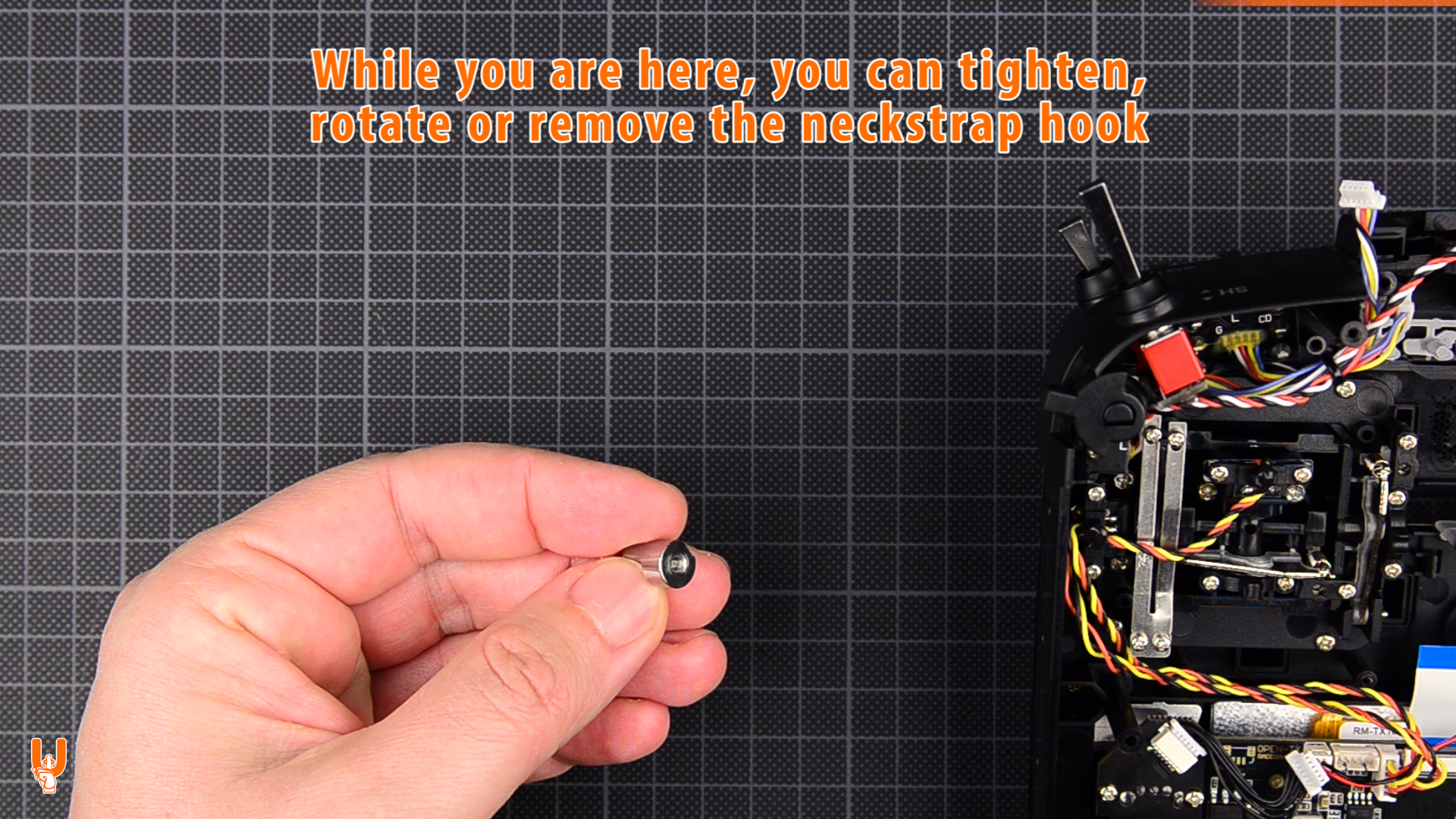

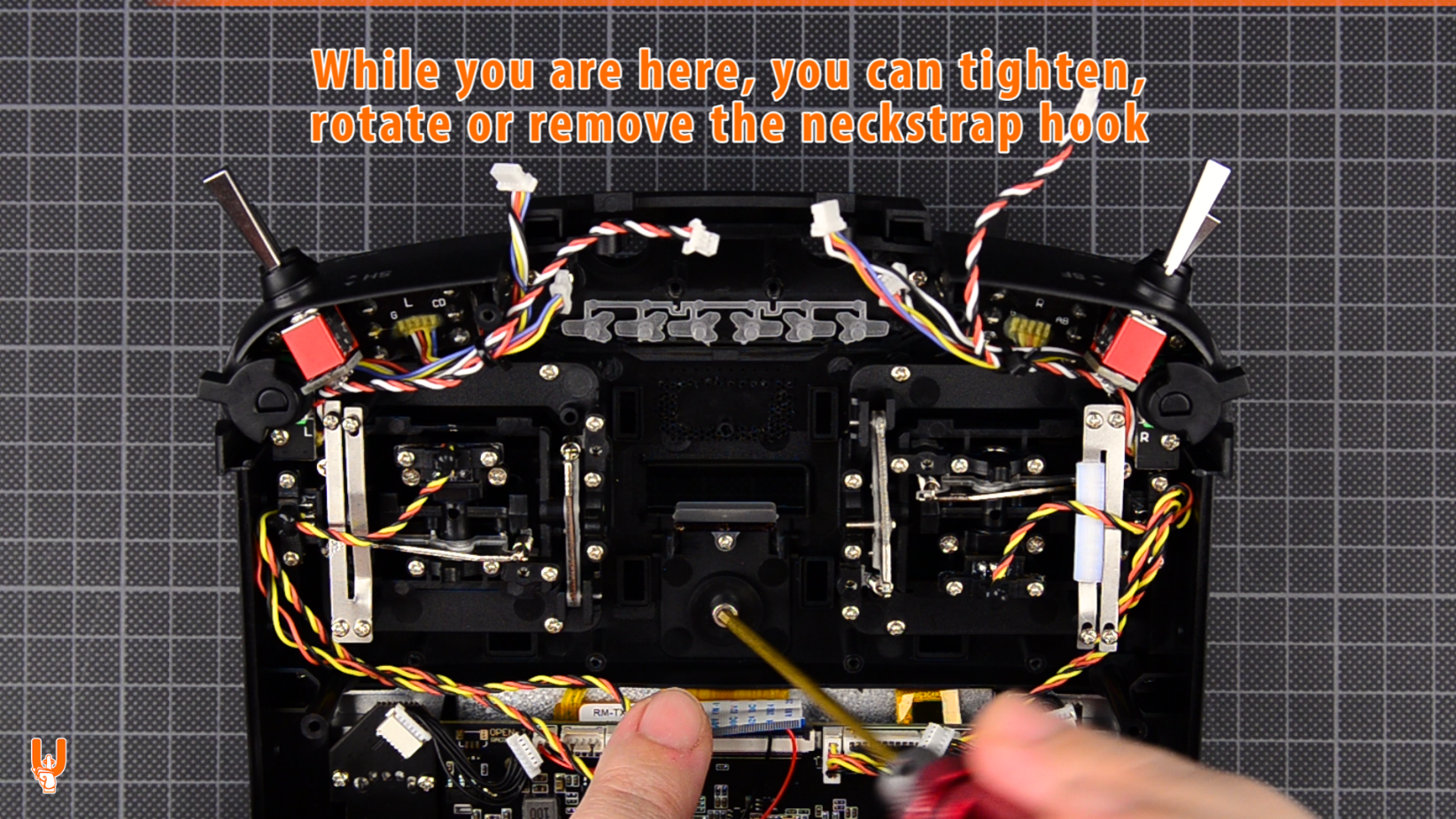

Disassembly

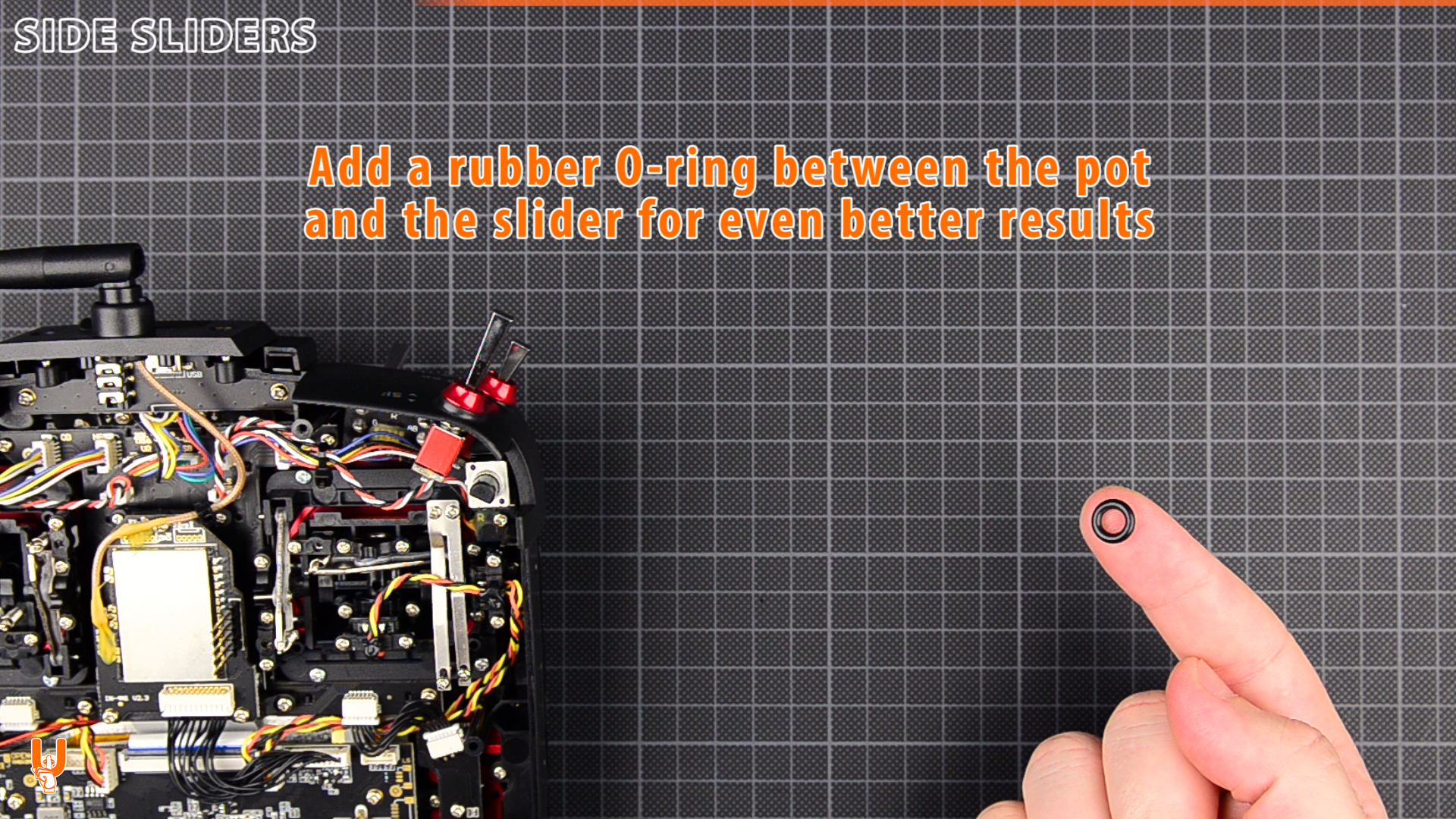

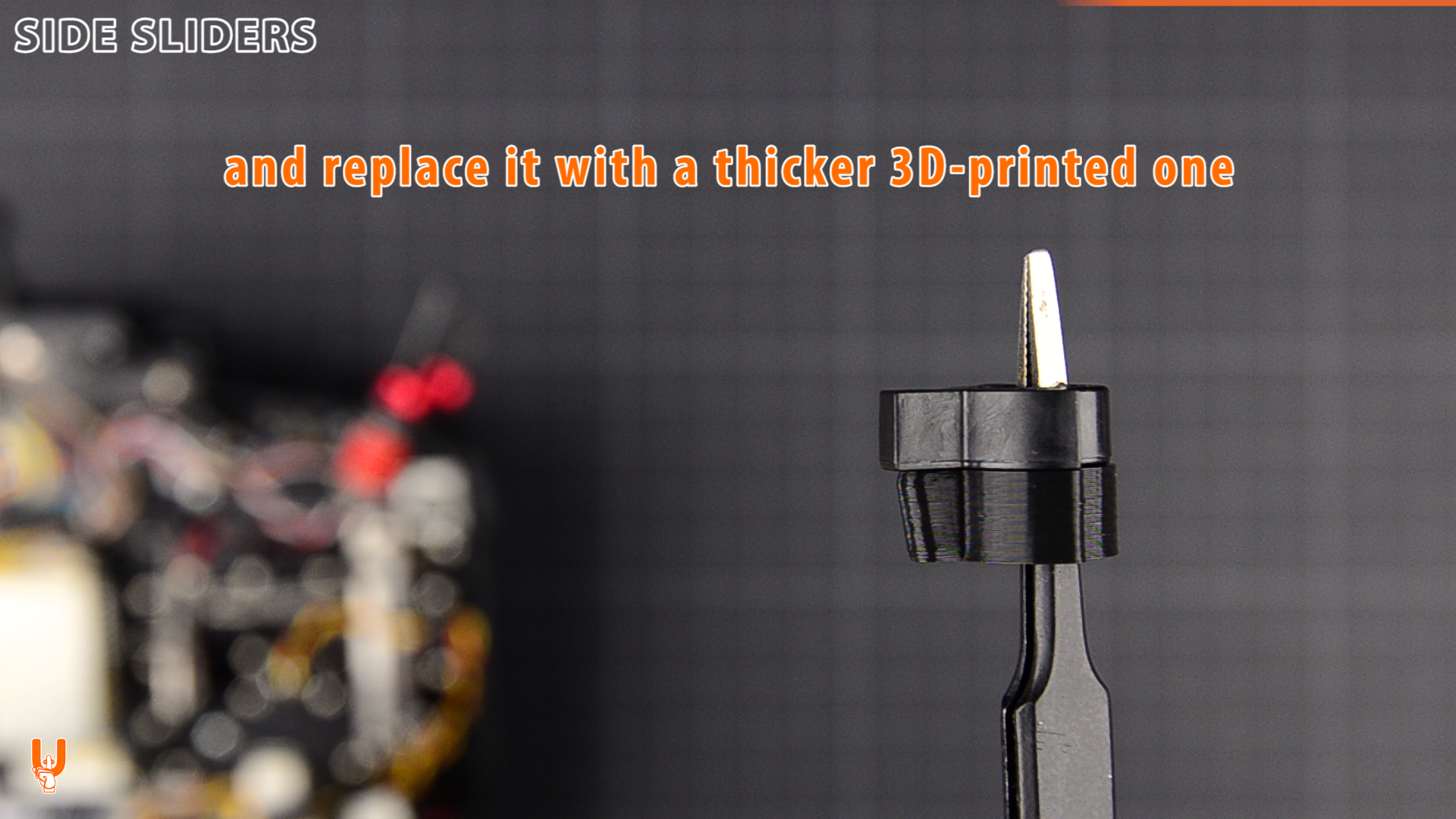

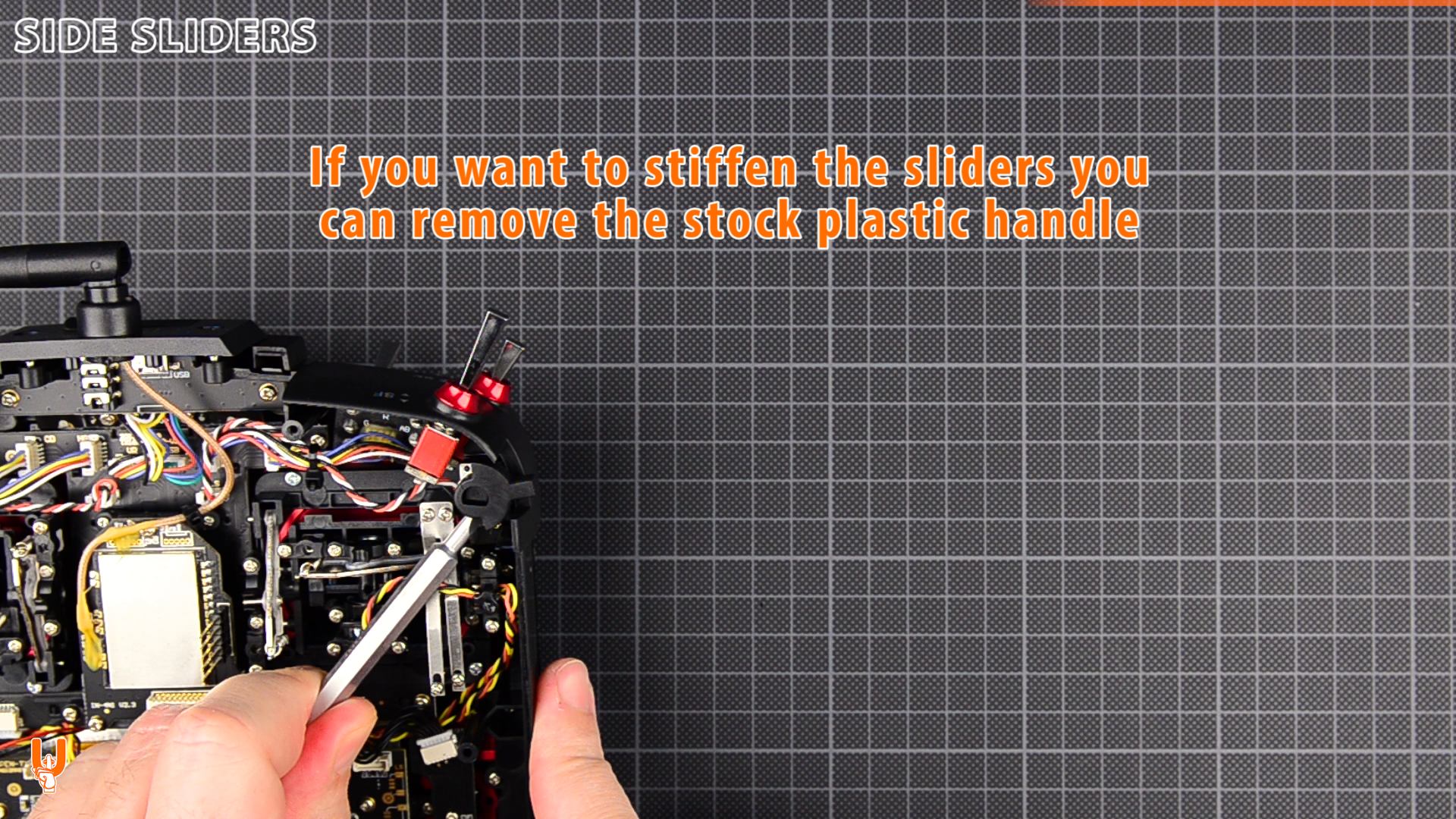

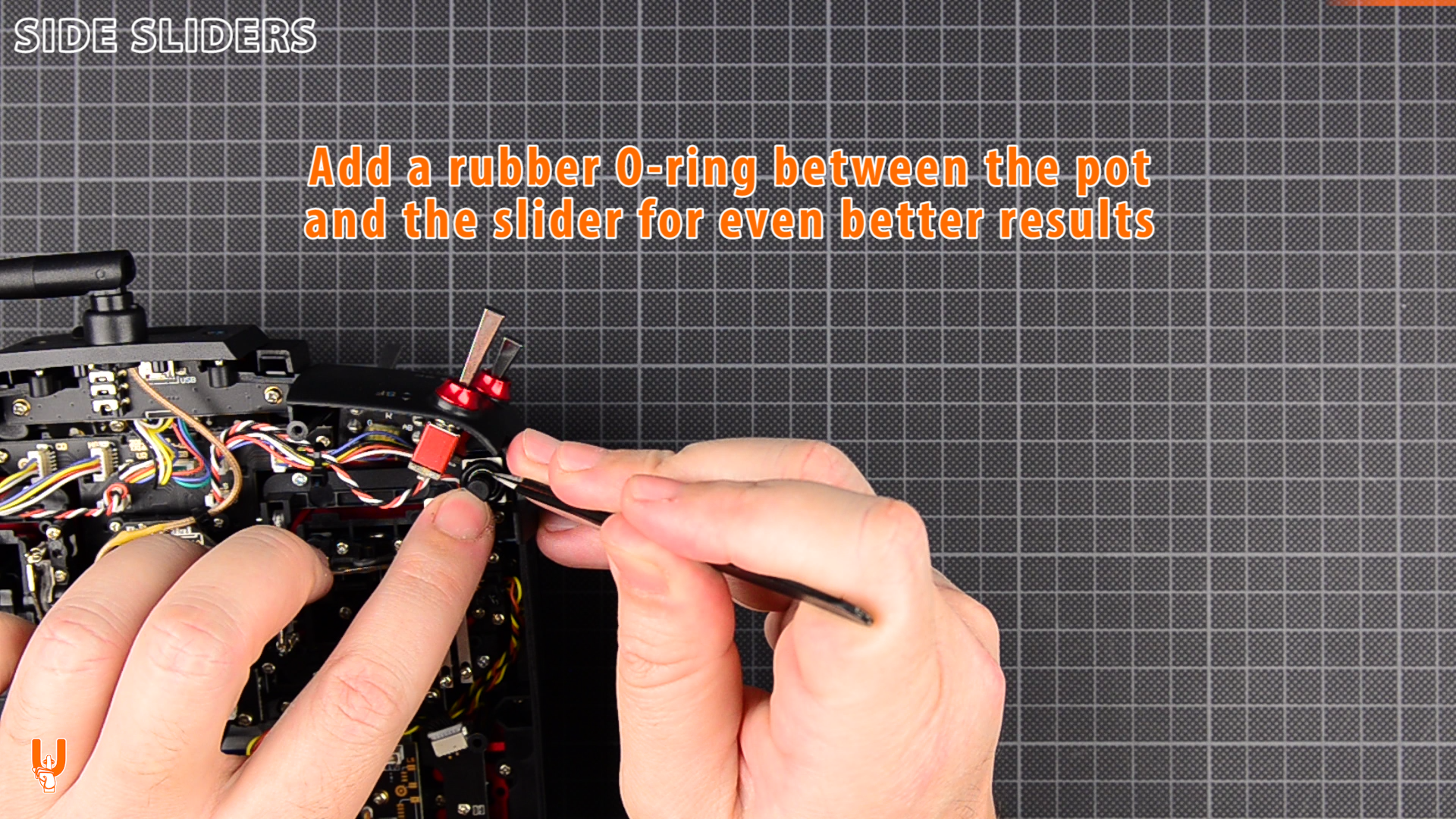

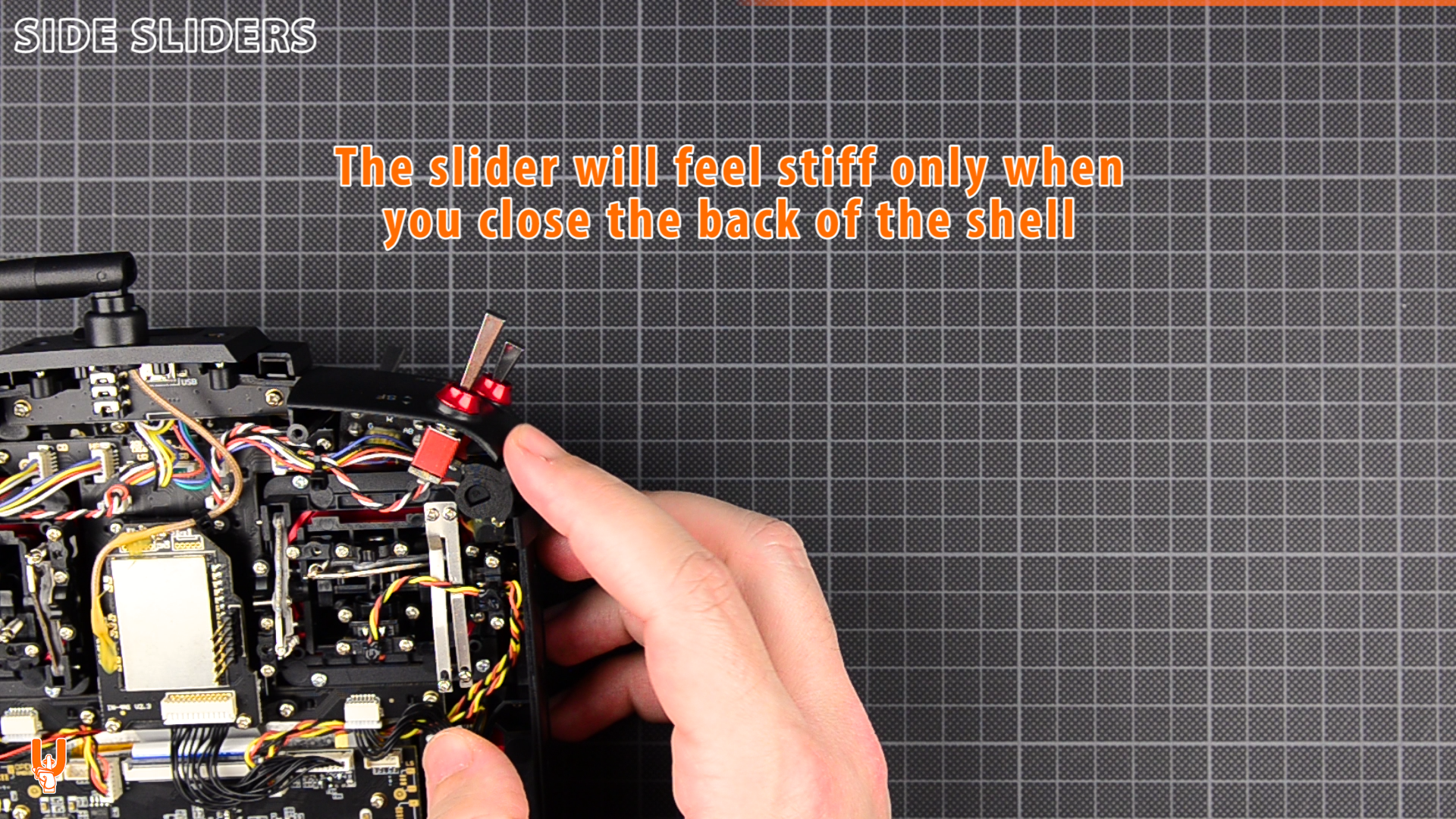

Side sliders

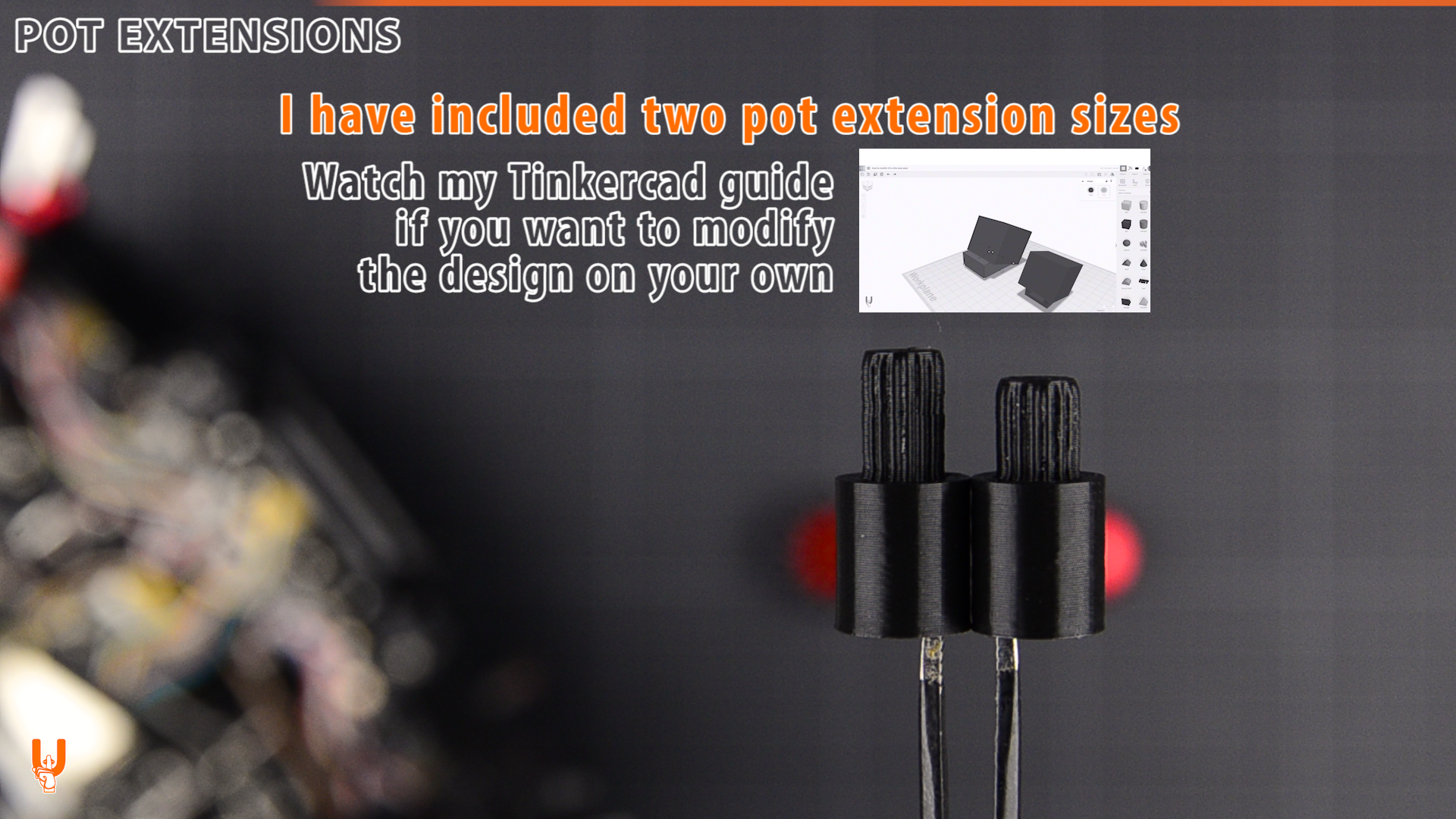

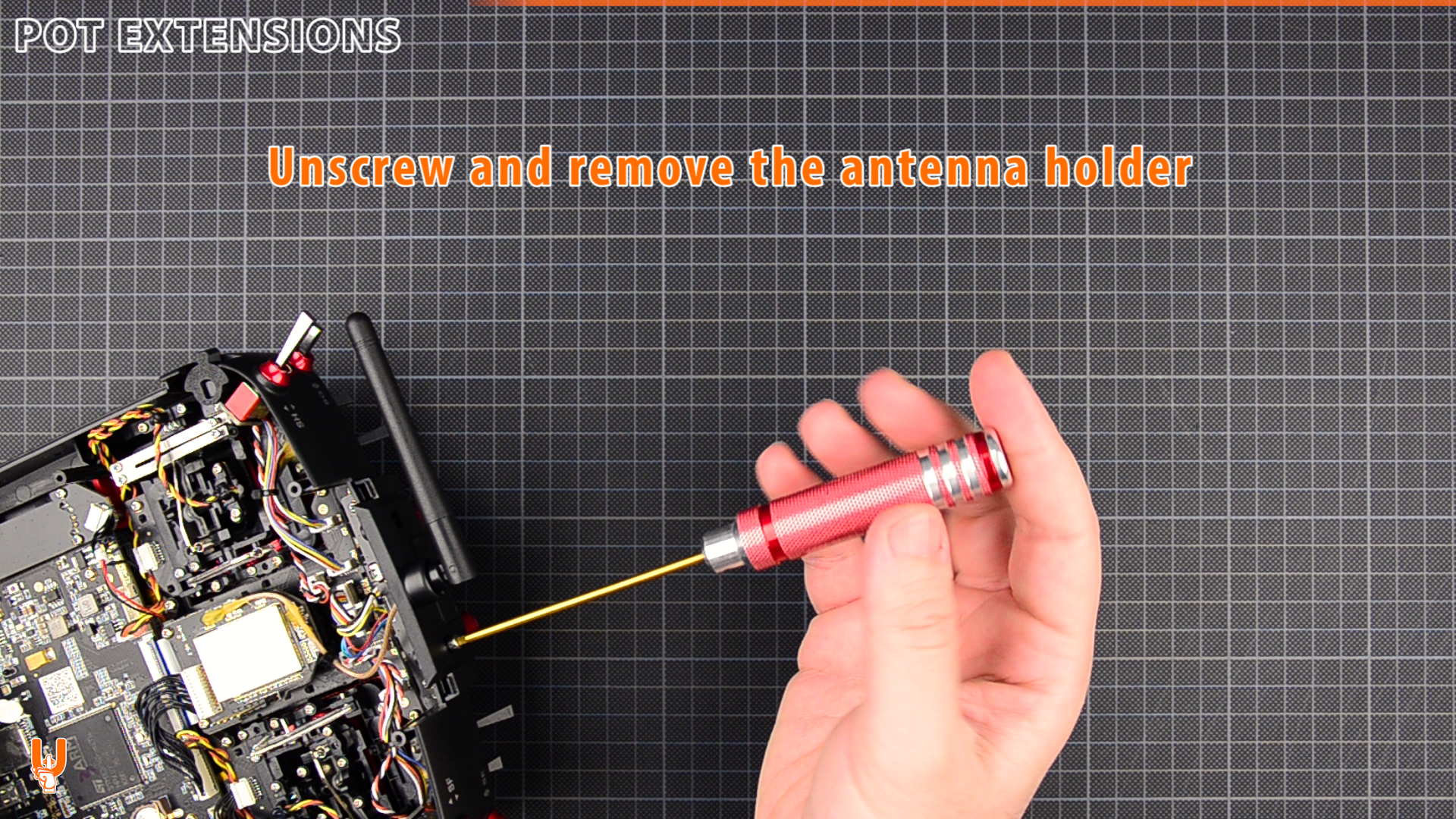

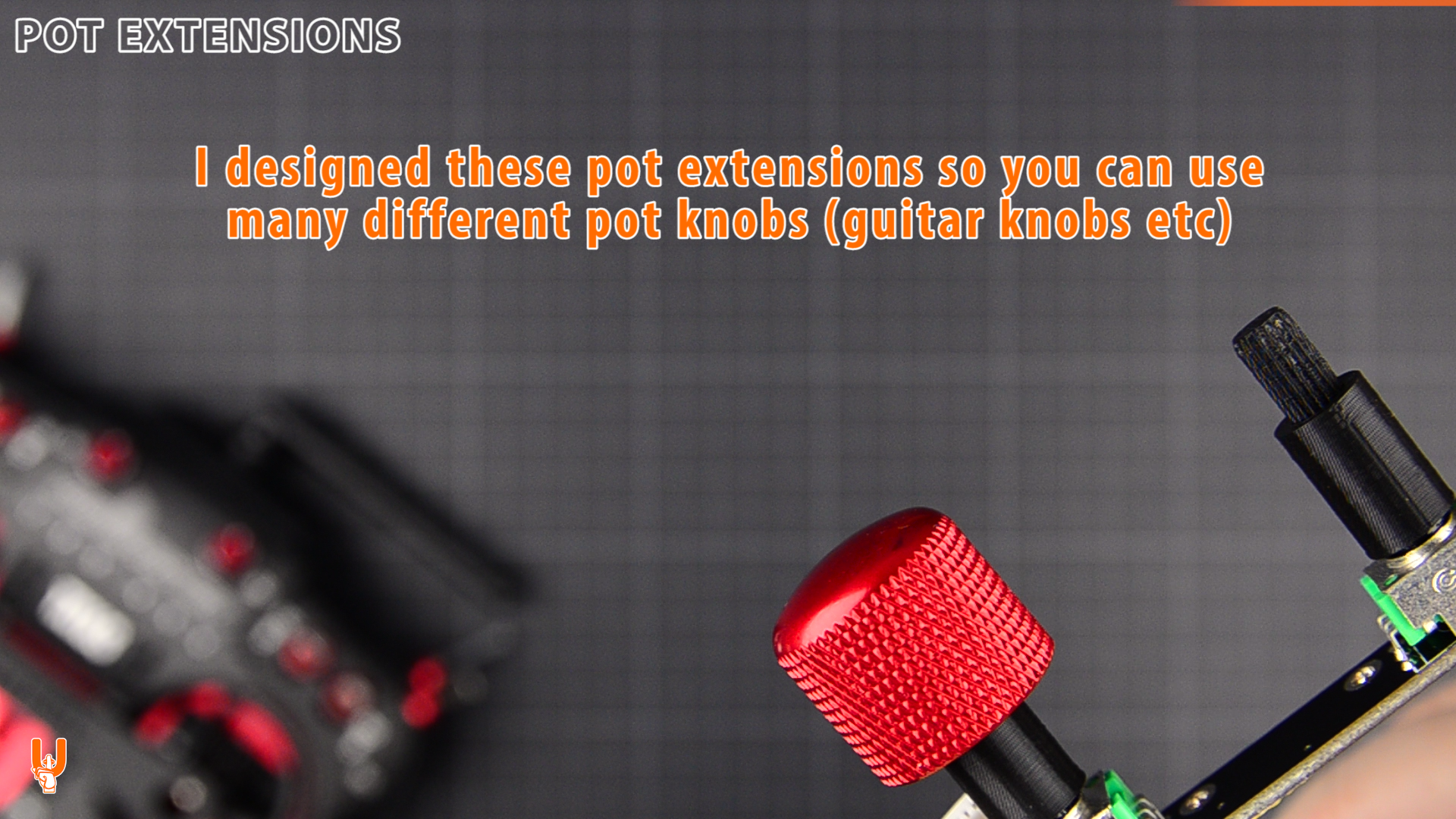

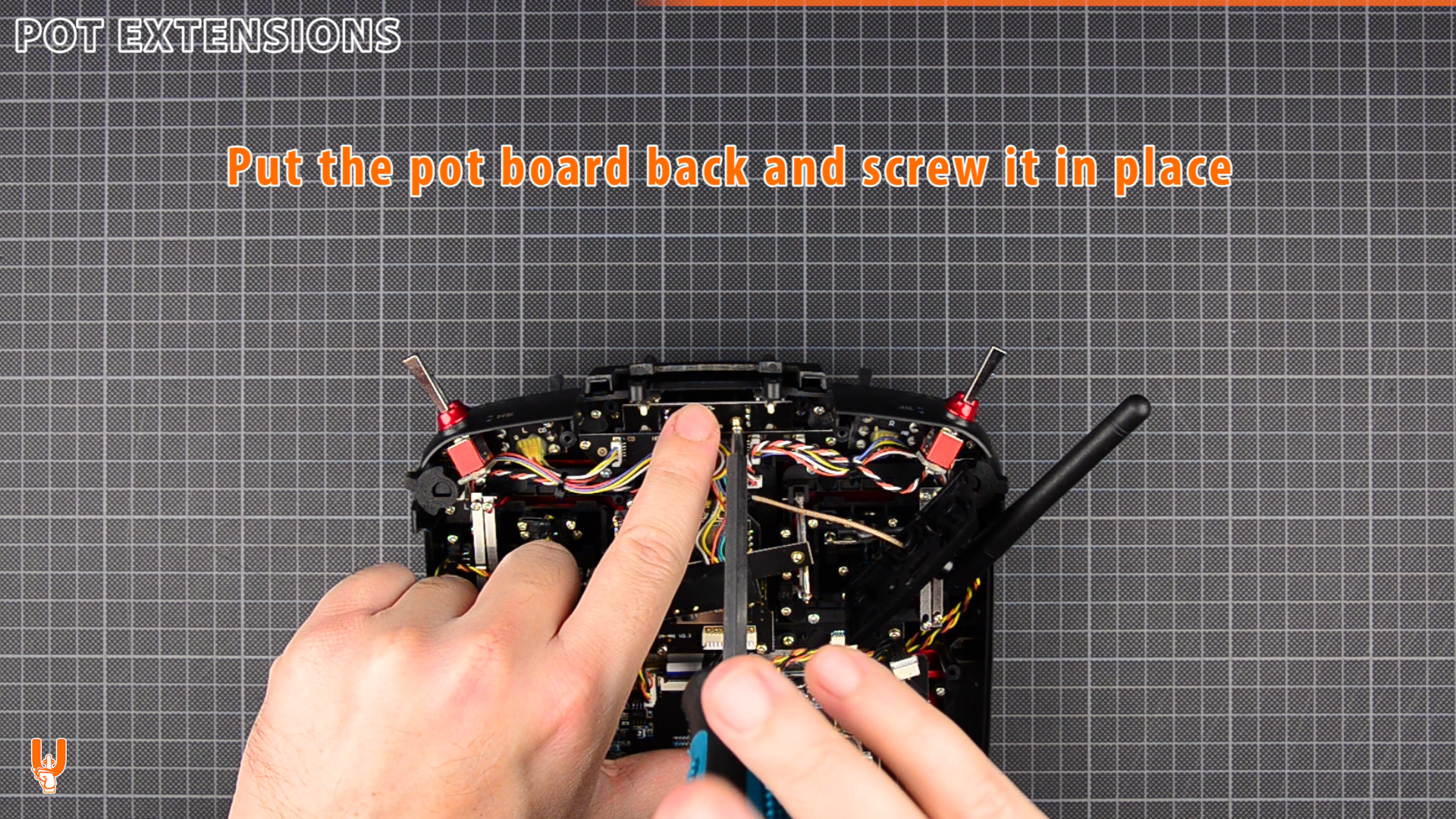

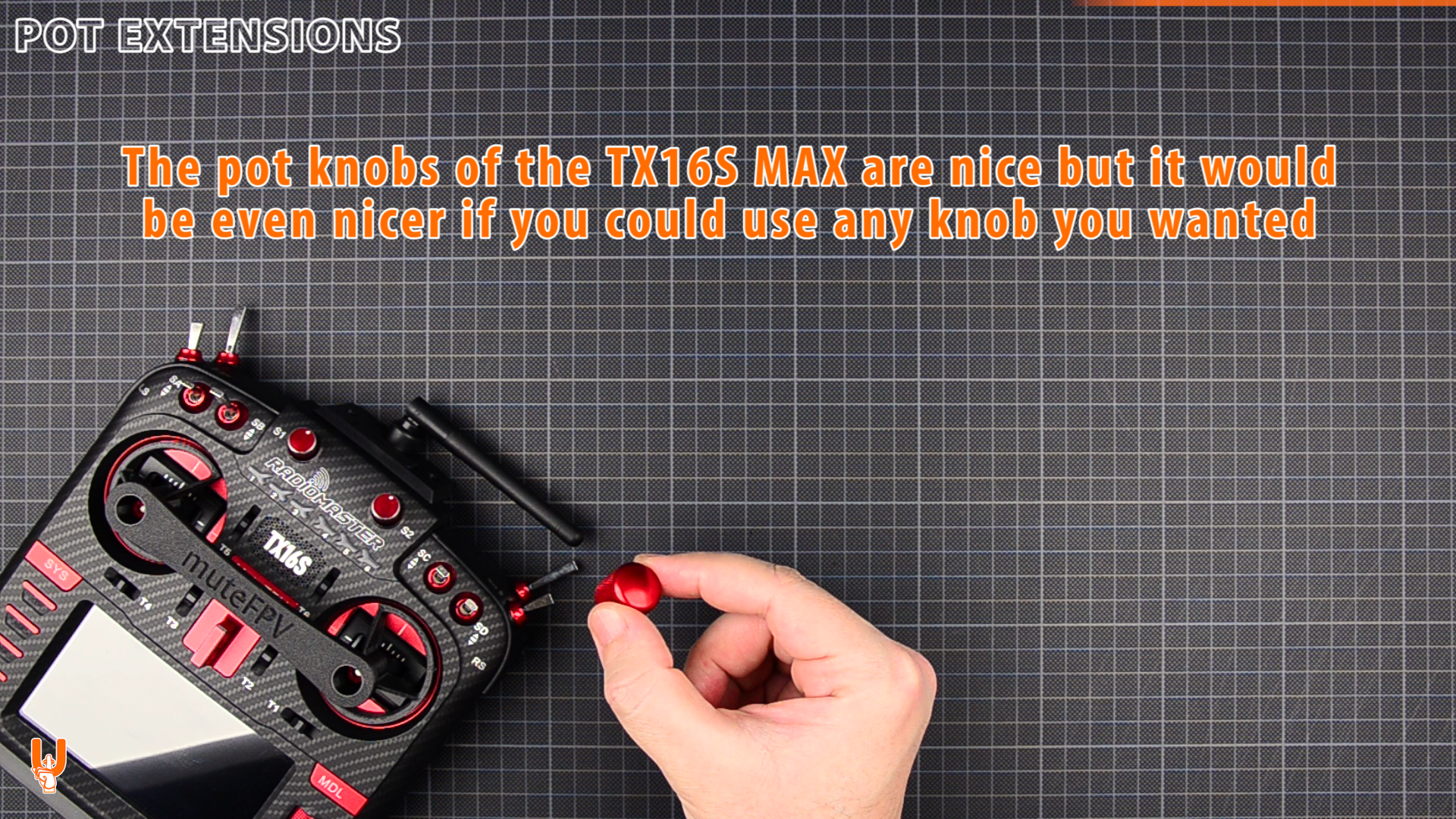

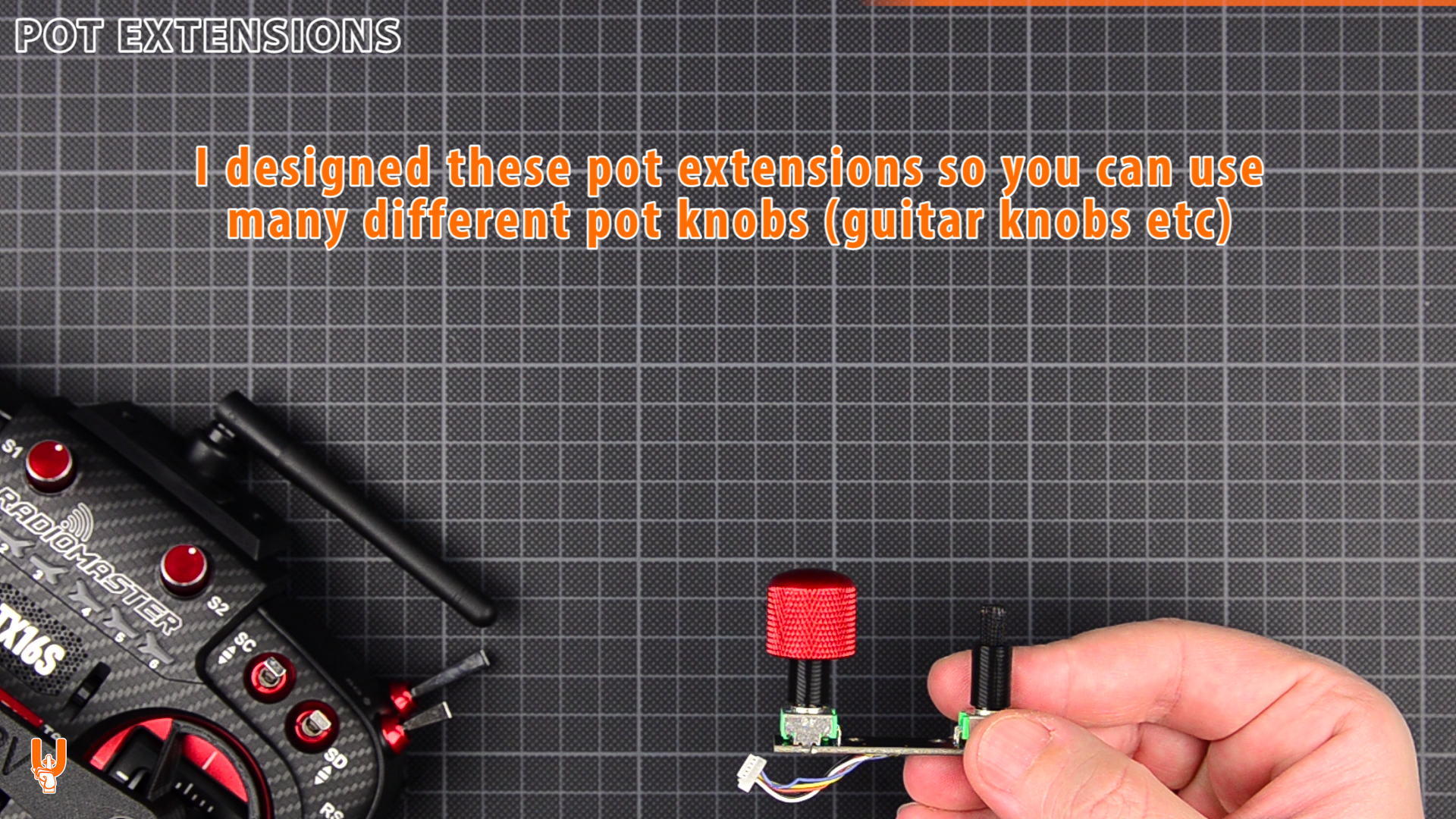

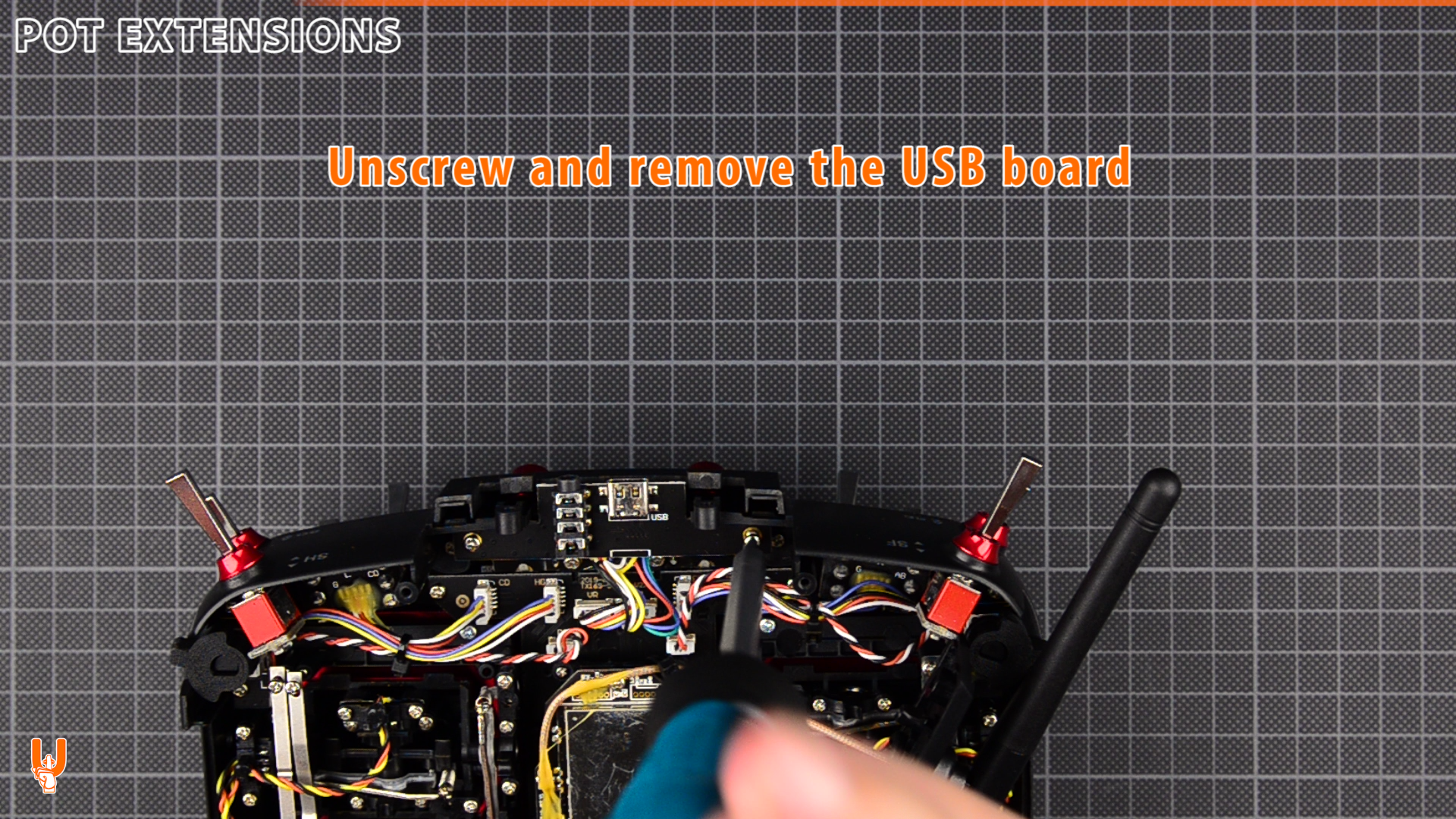

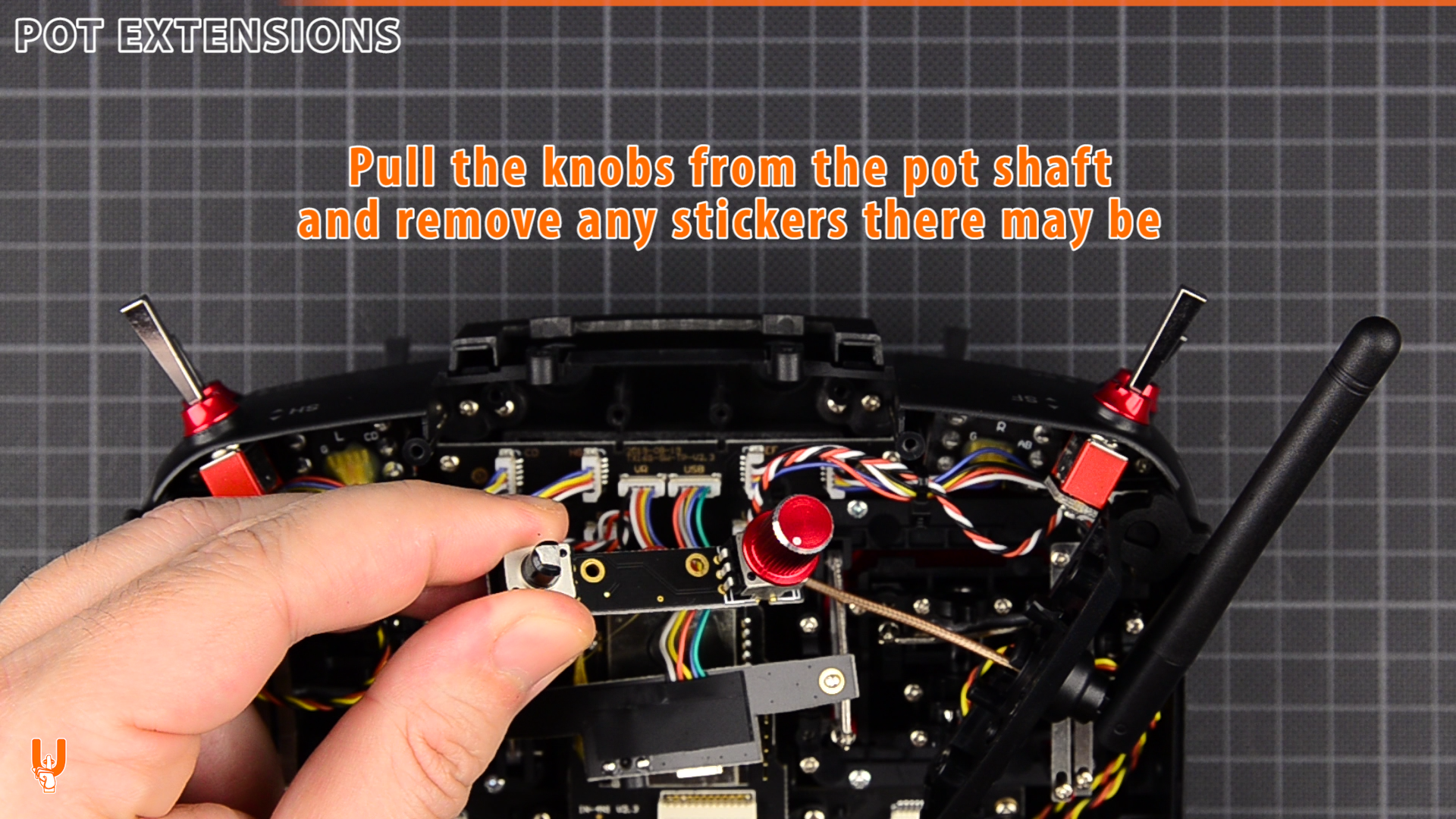

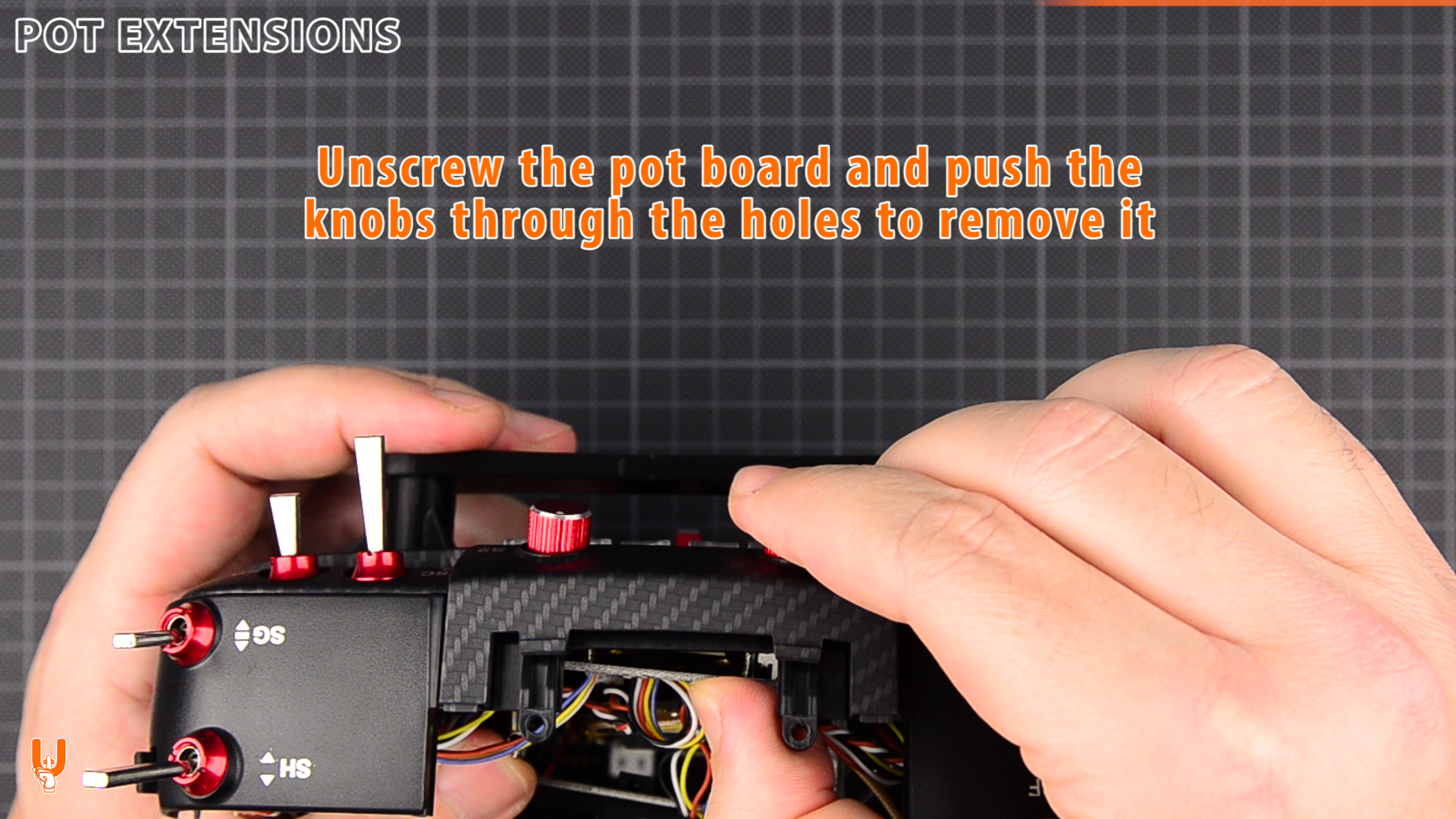

Potentiometer extensions

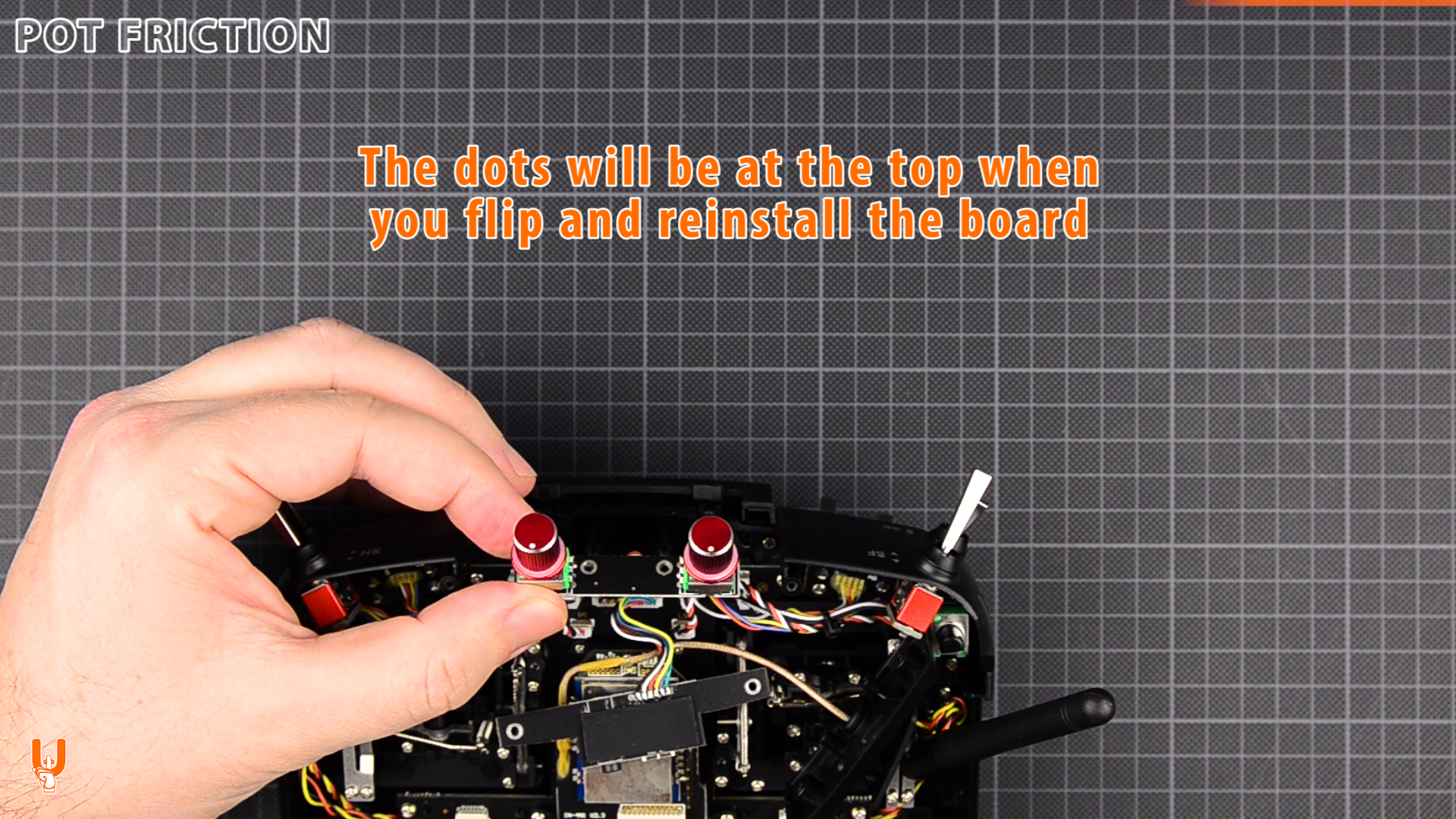

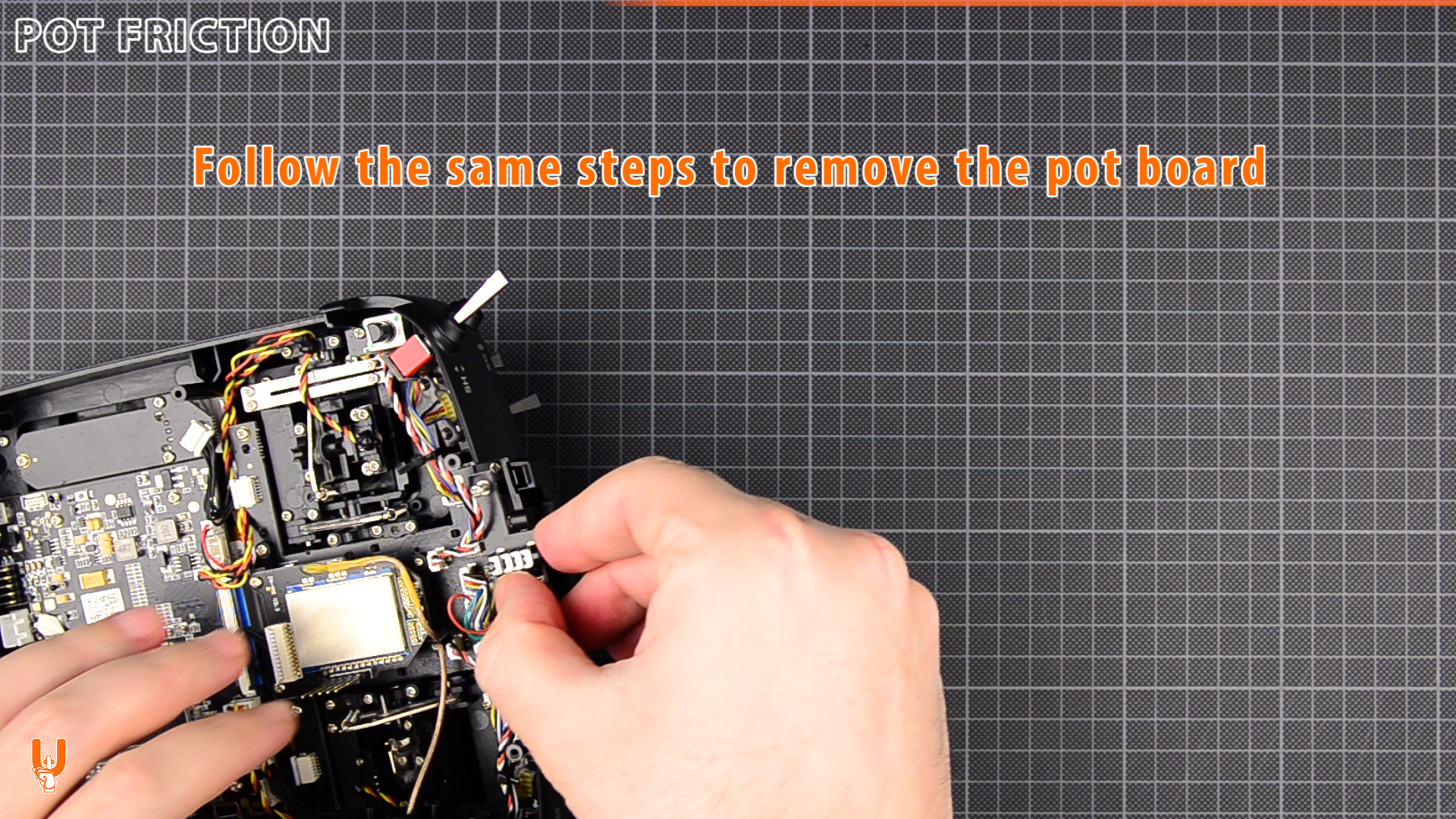

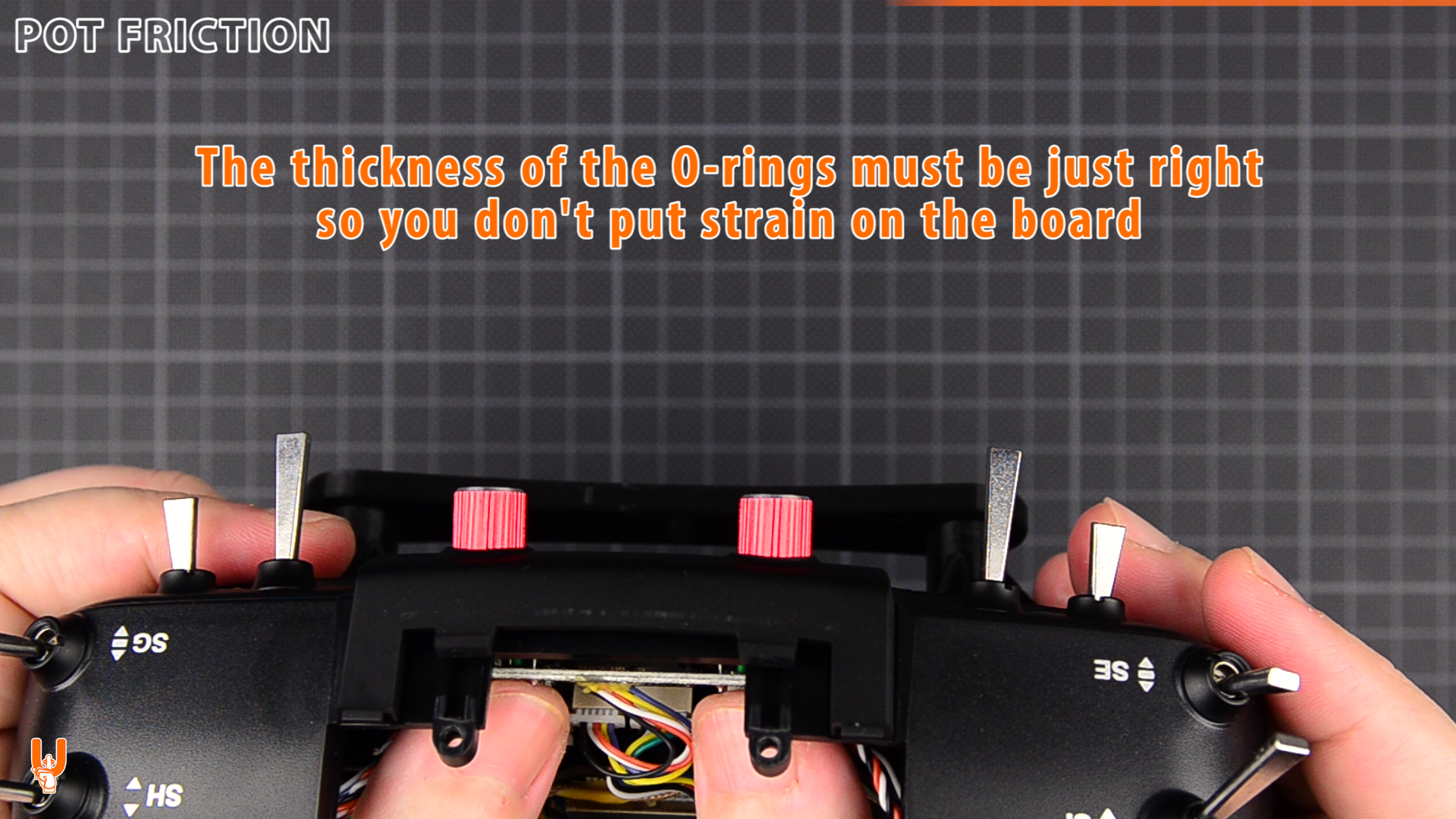

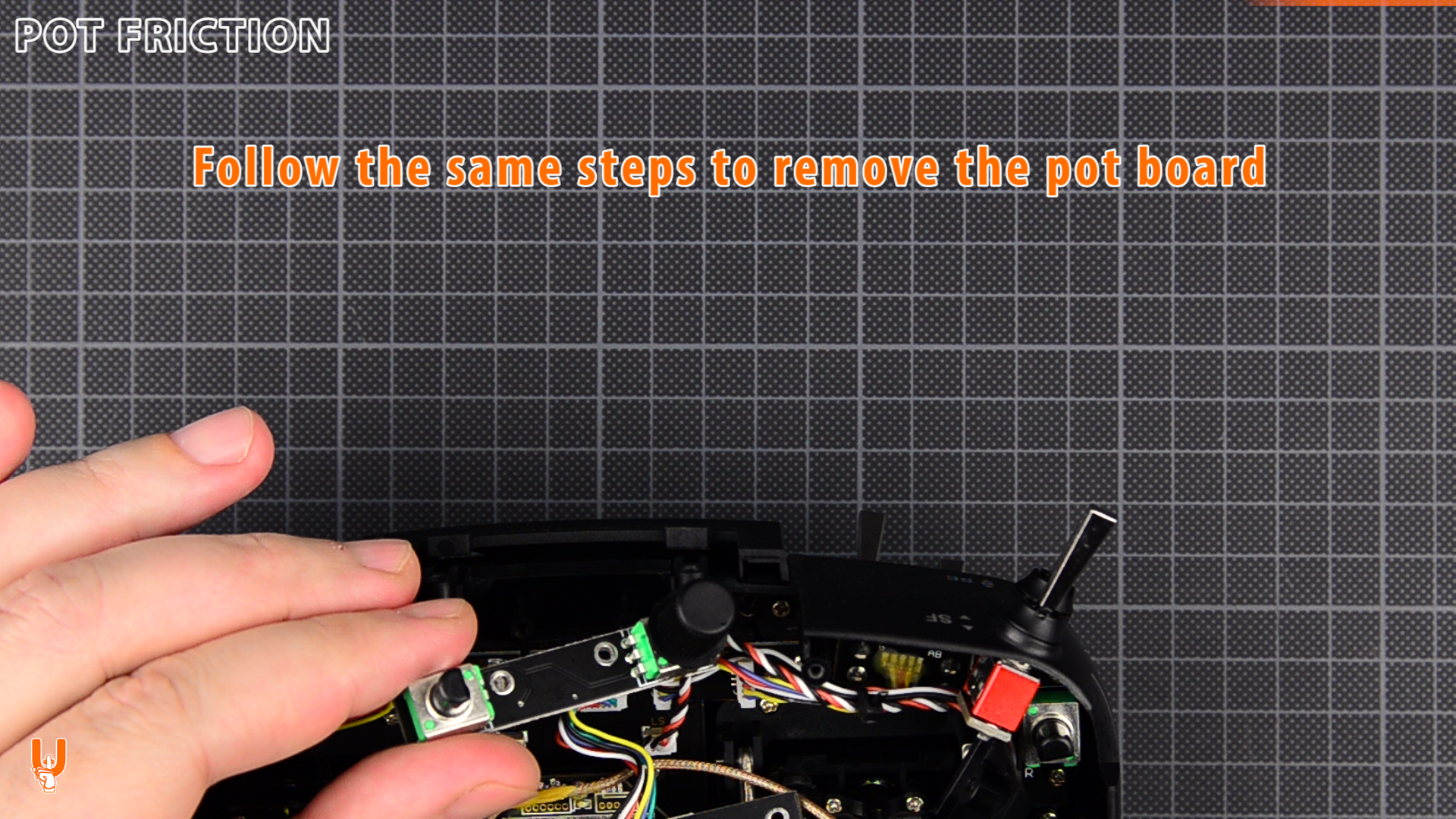

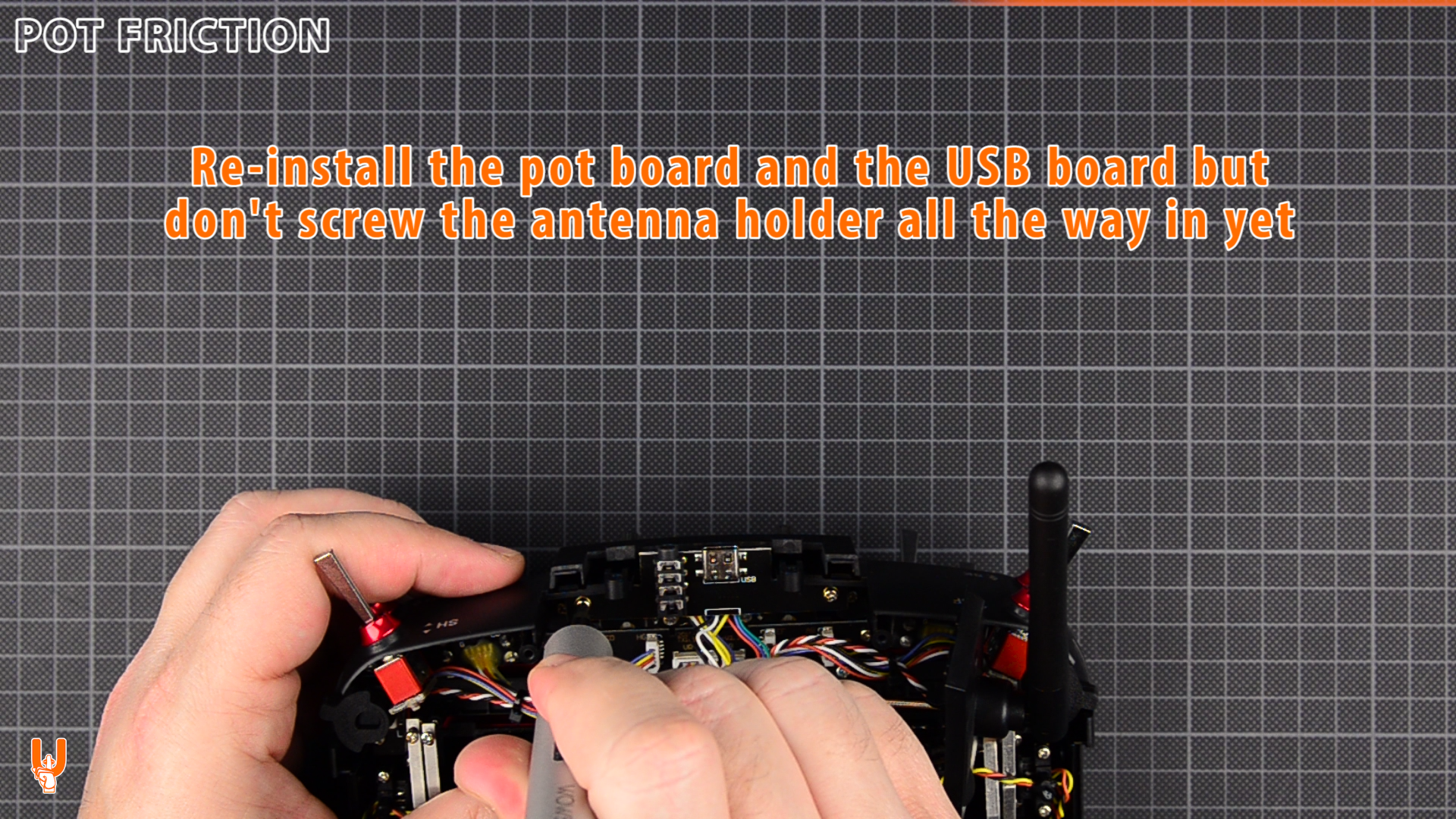

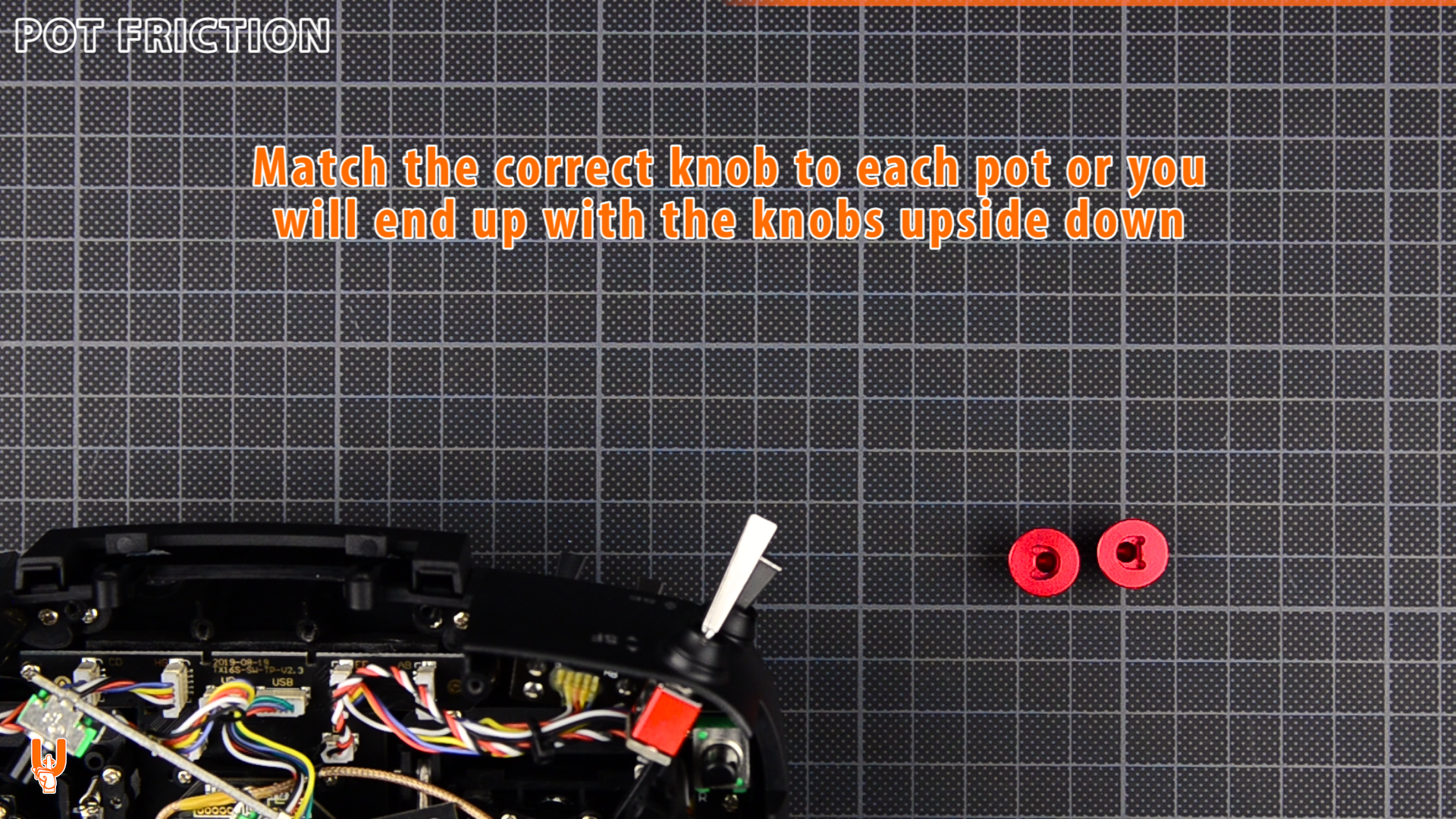

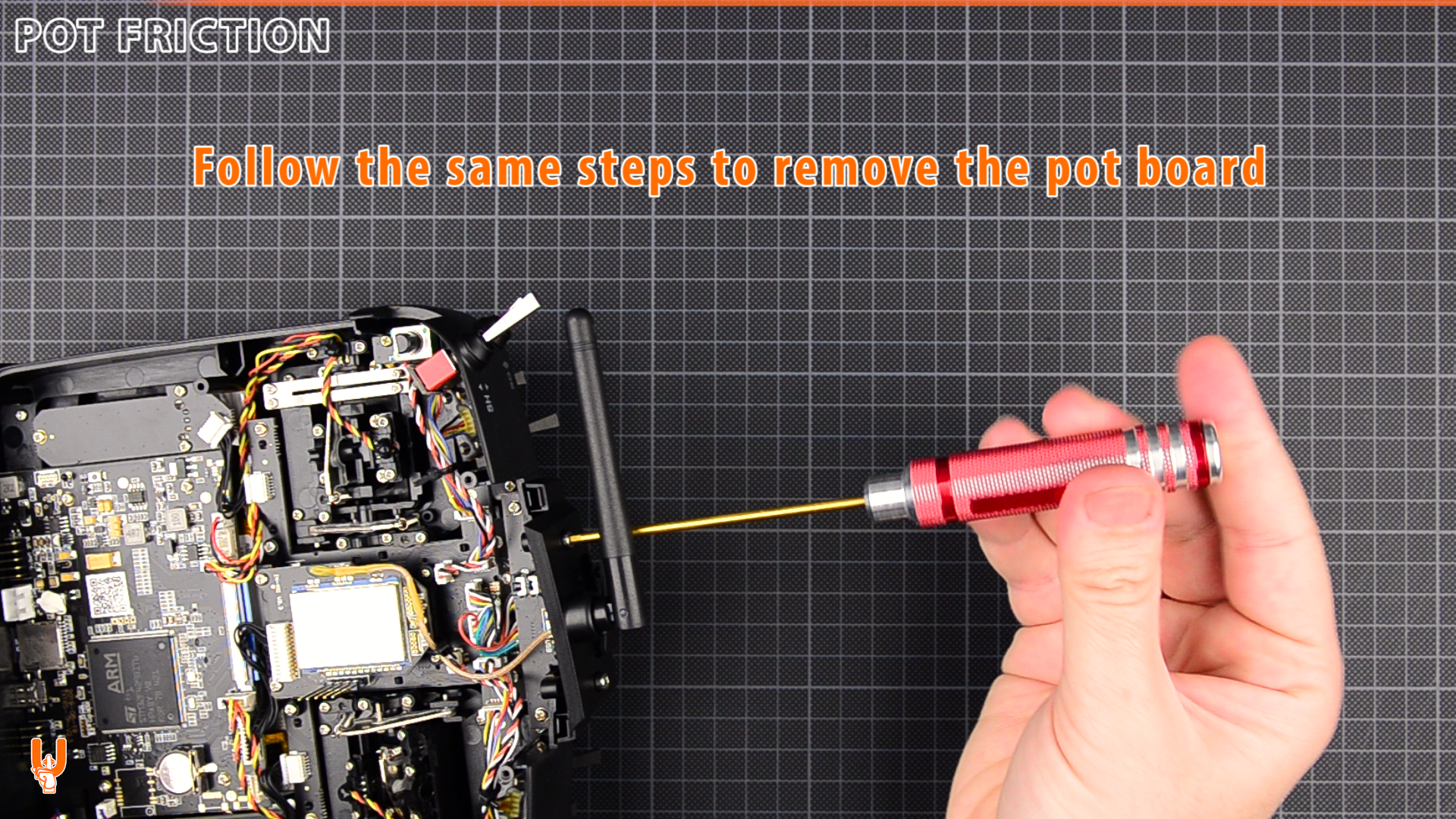

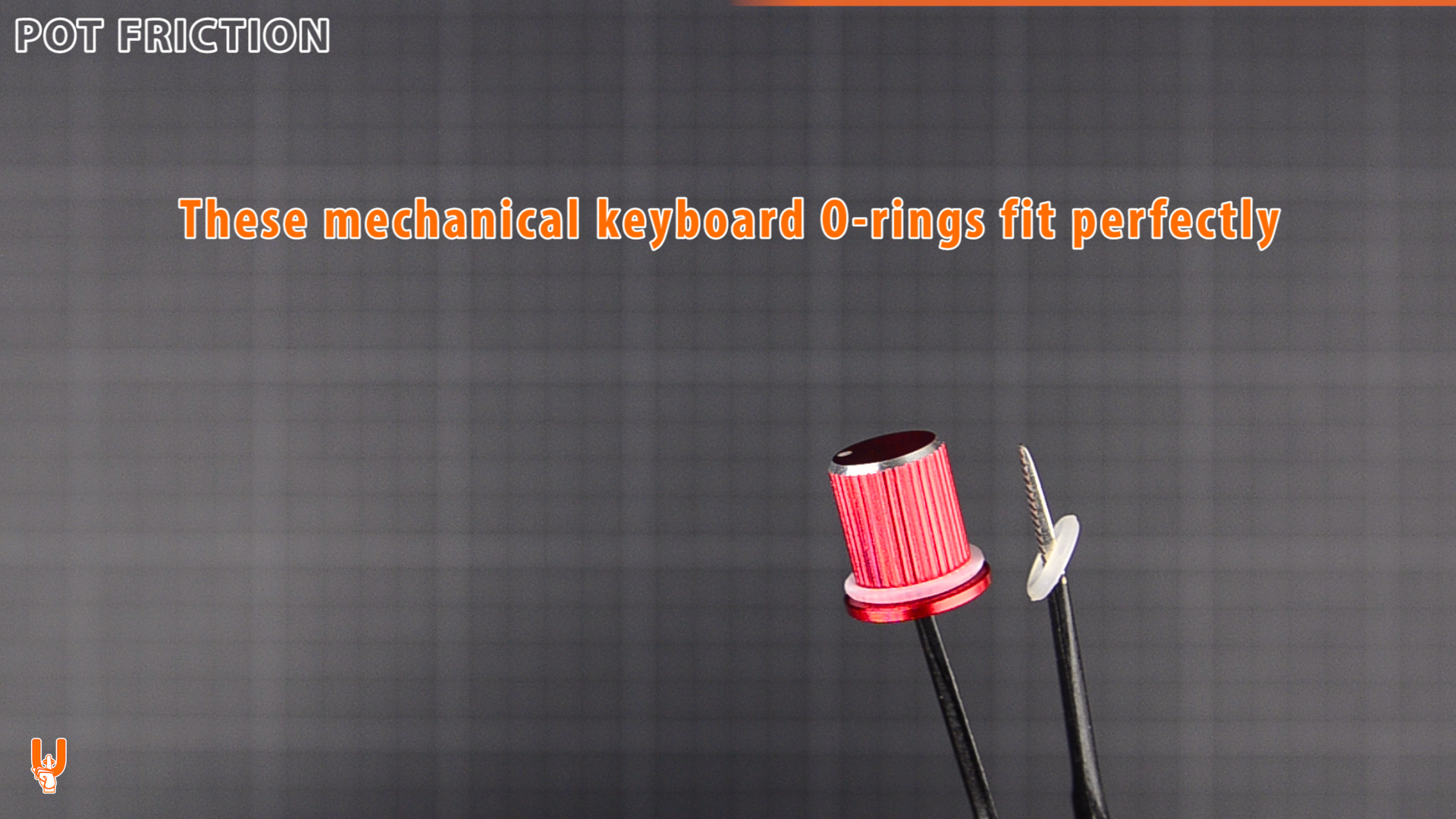

Potentiometer friction

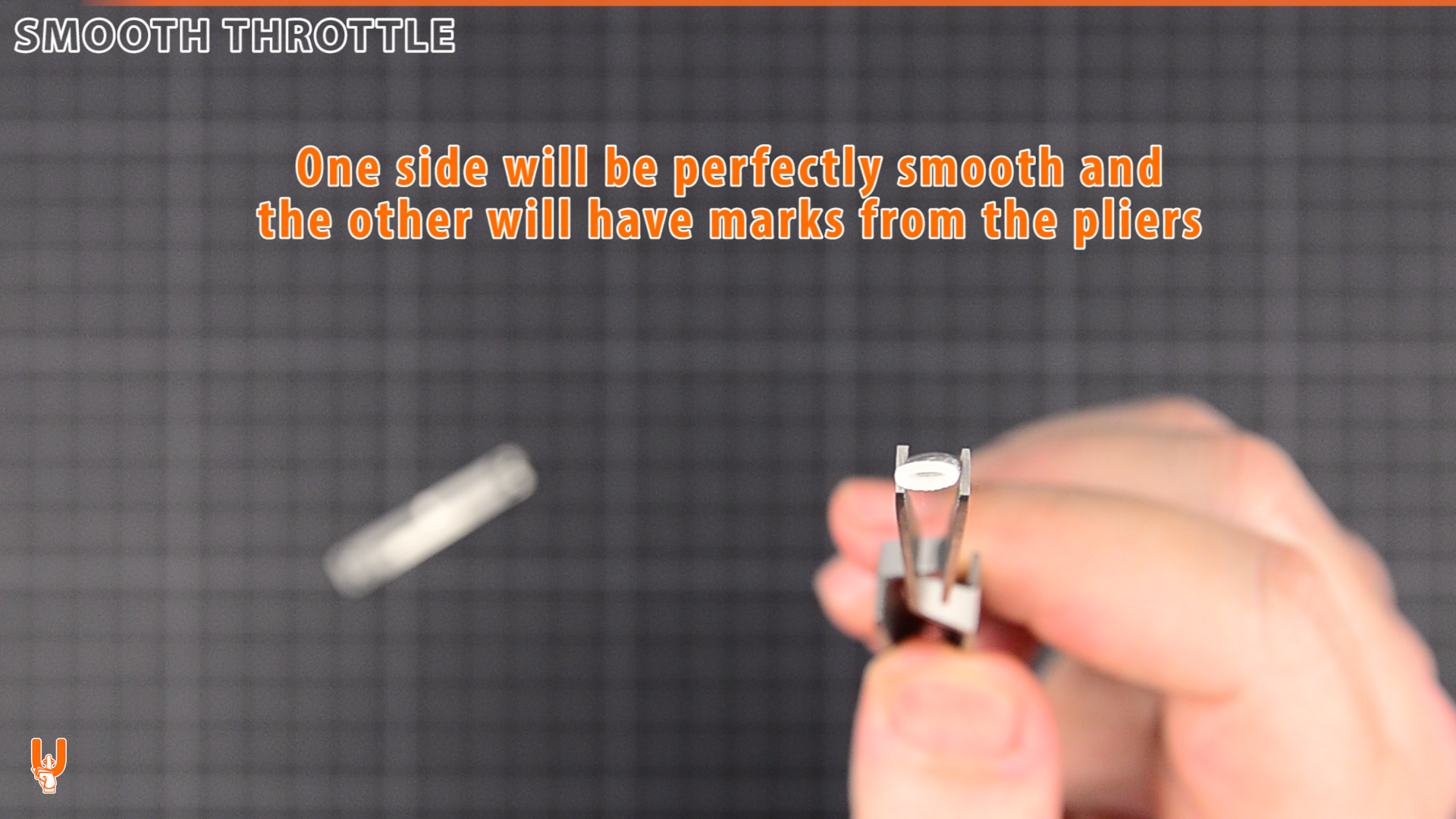

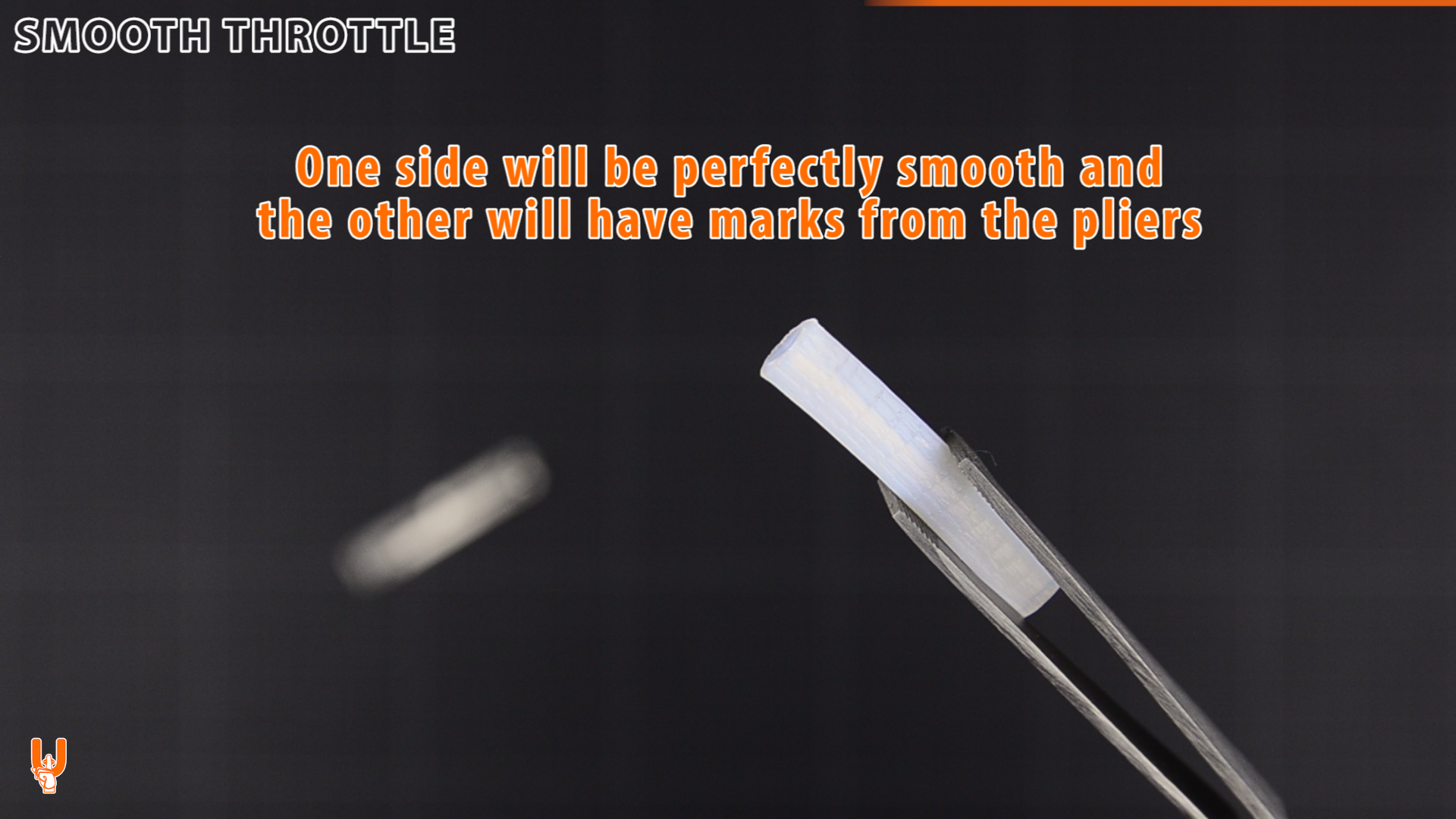

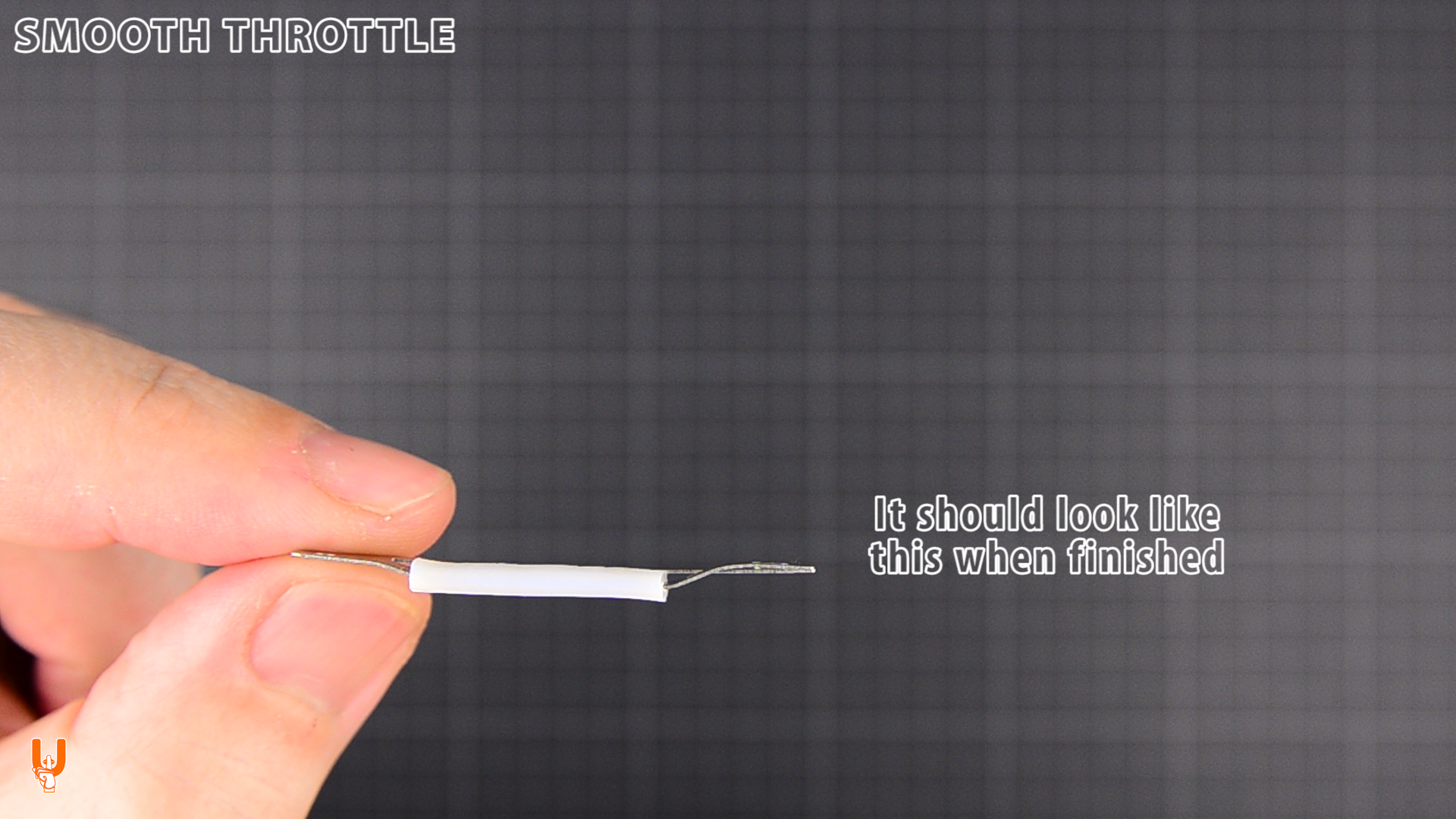

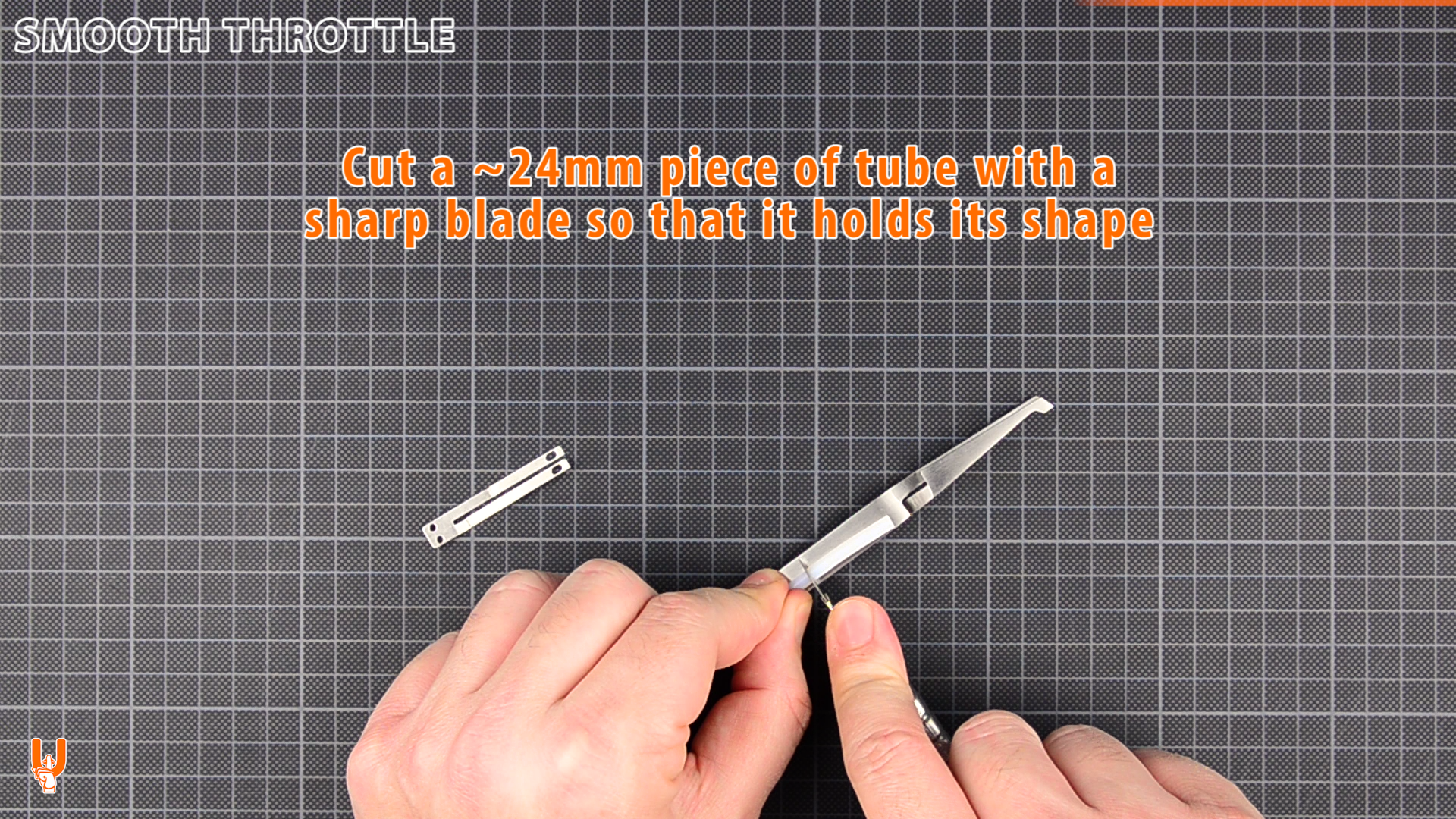

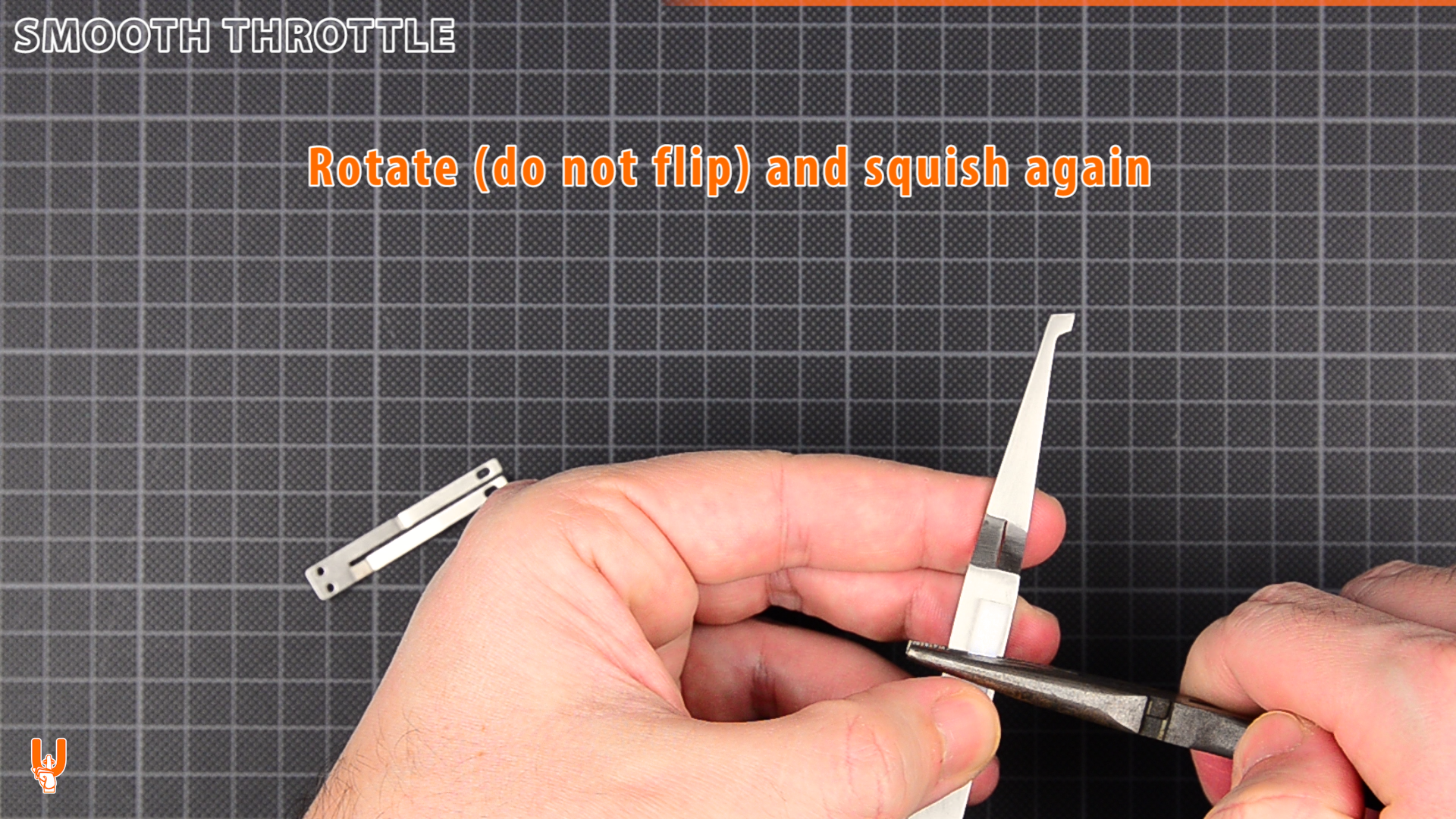

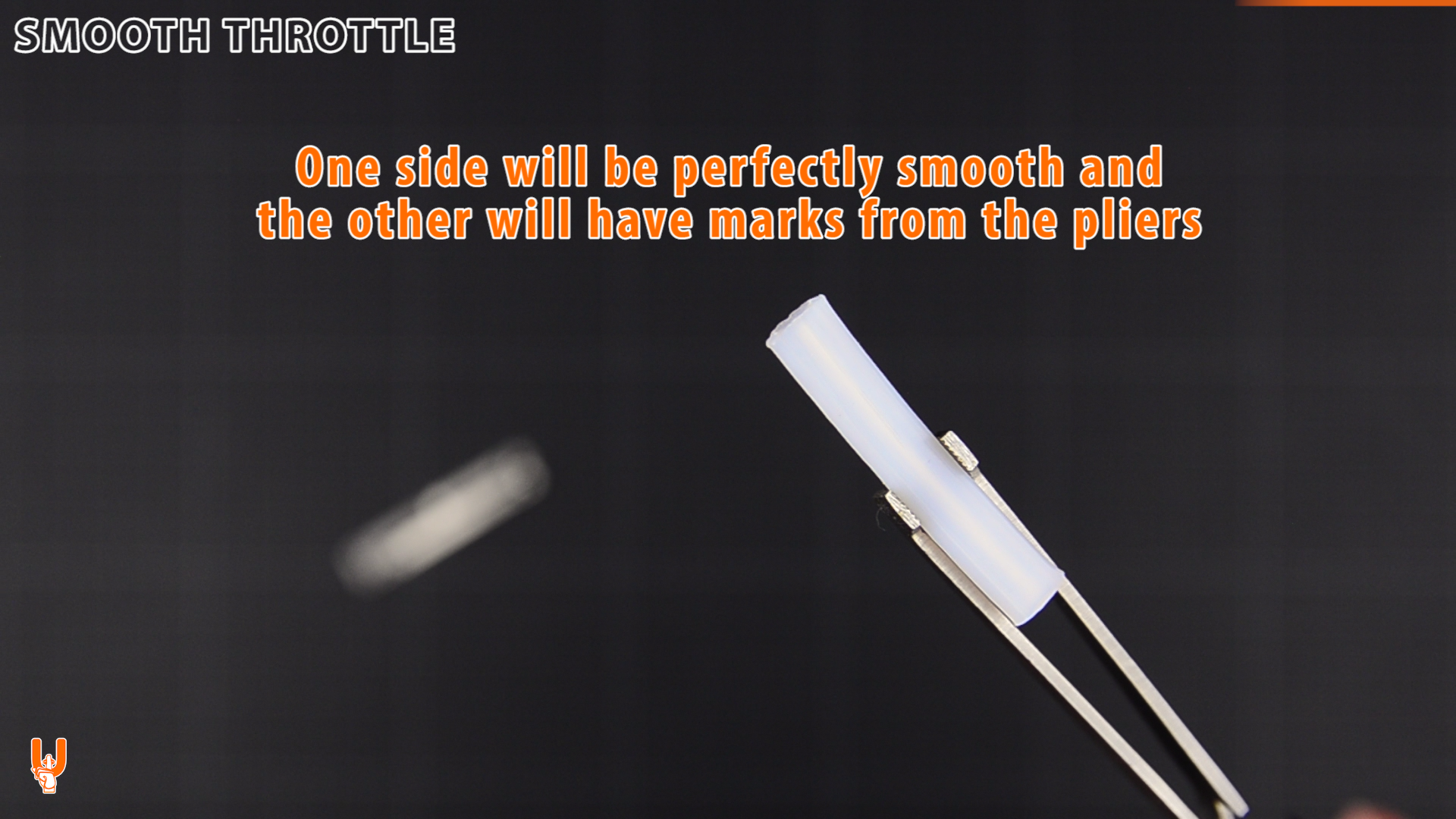

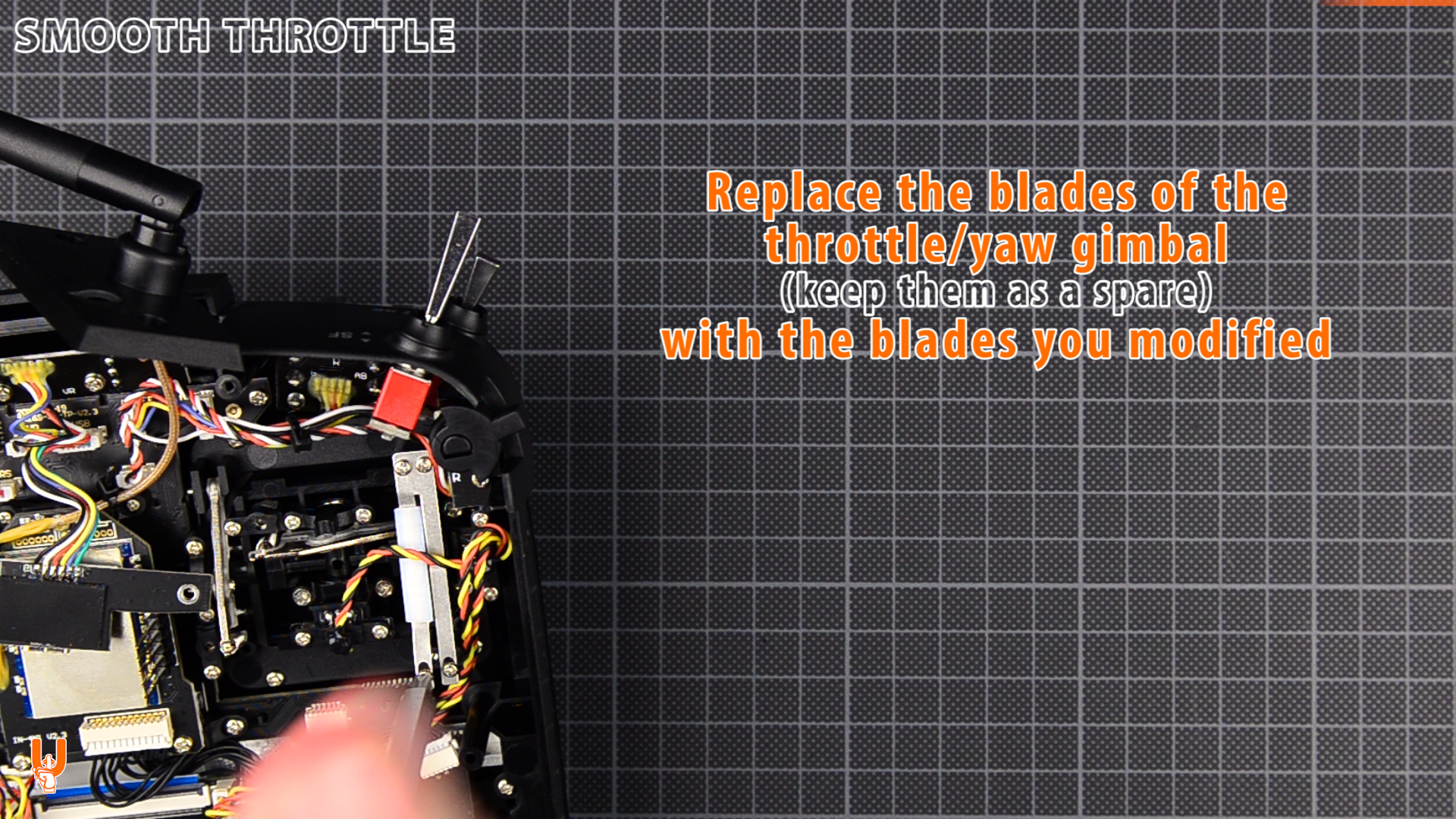

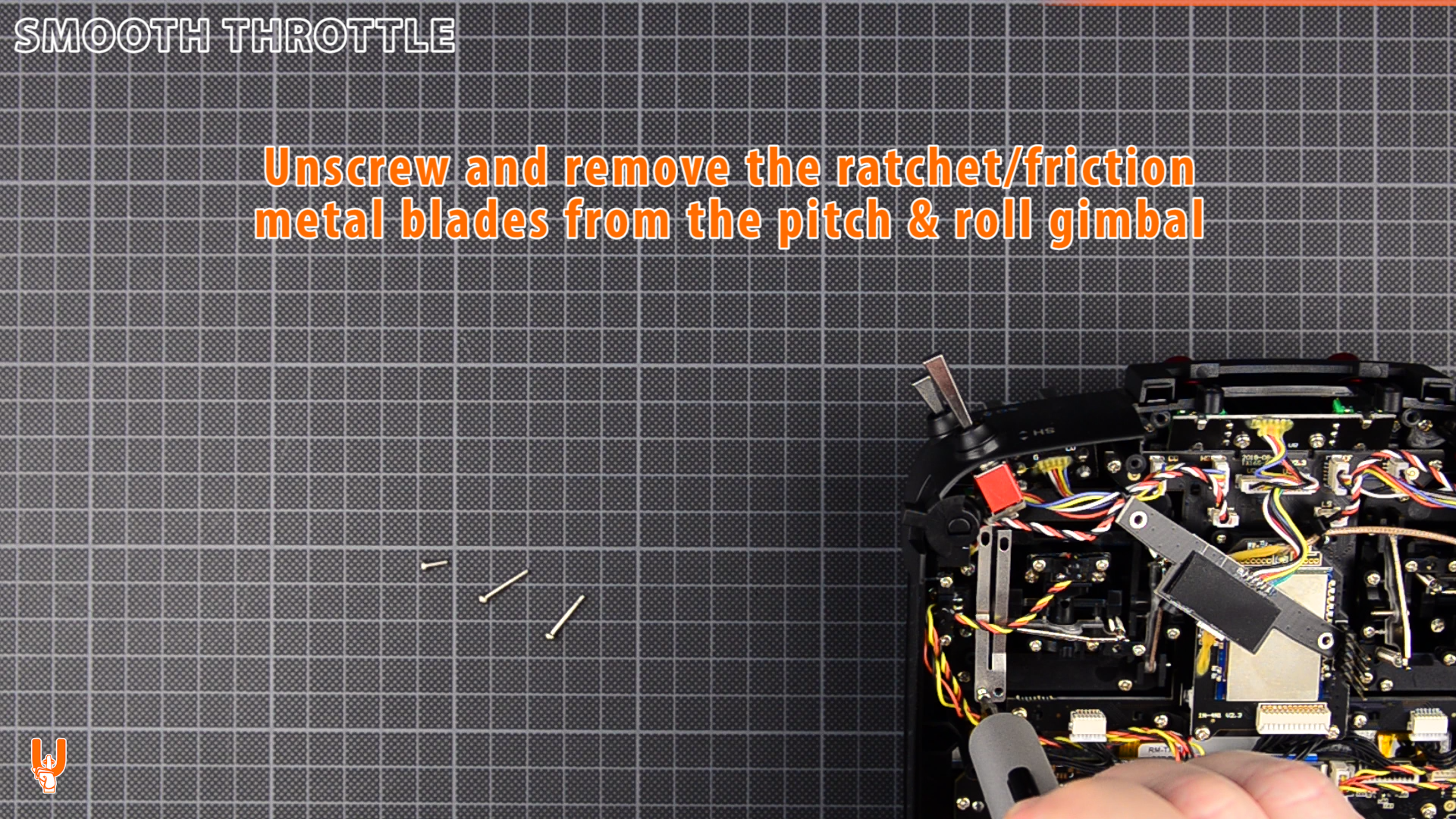

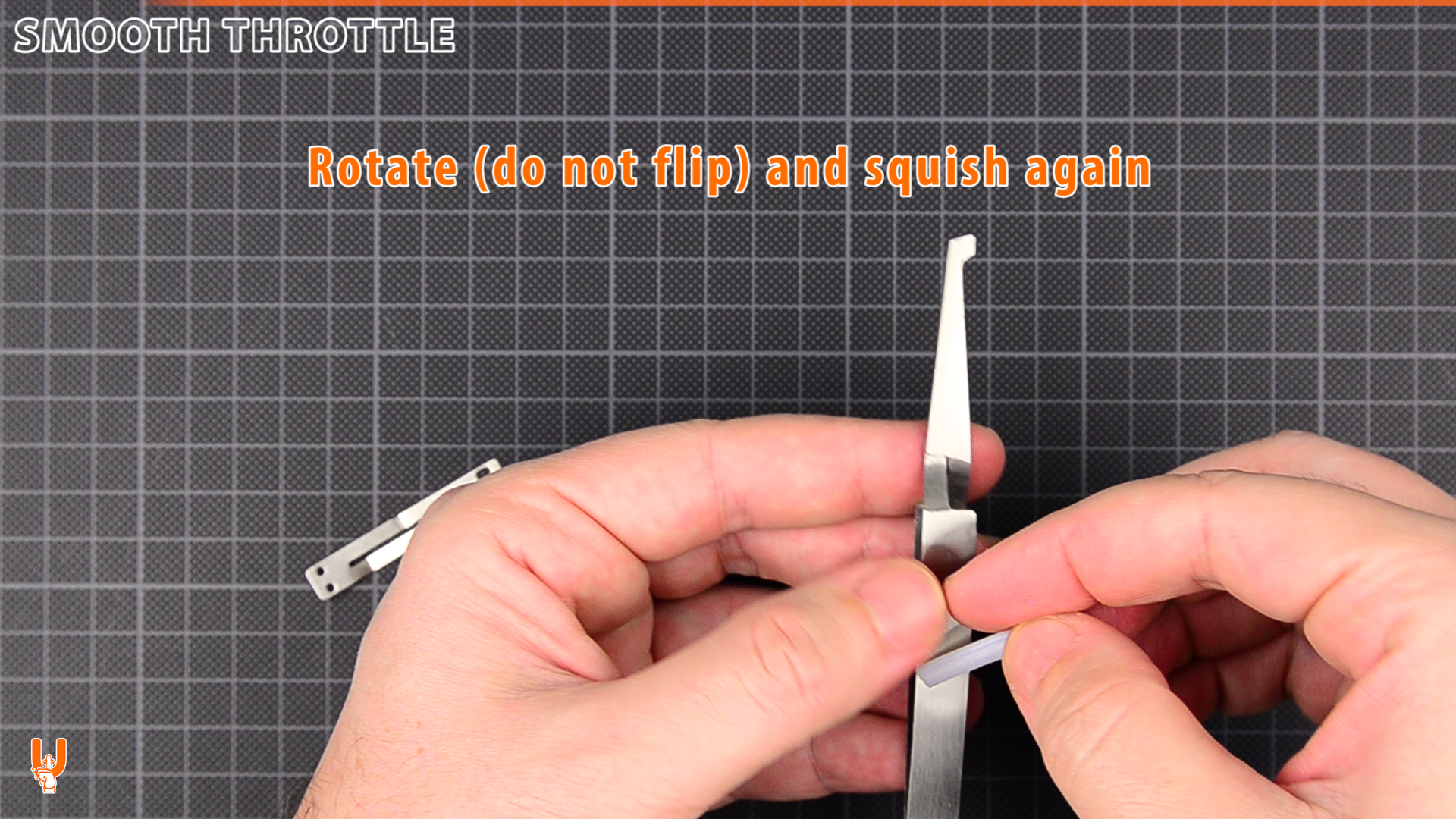

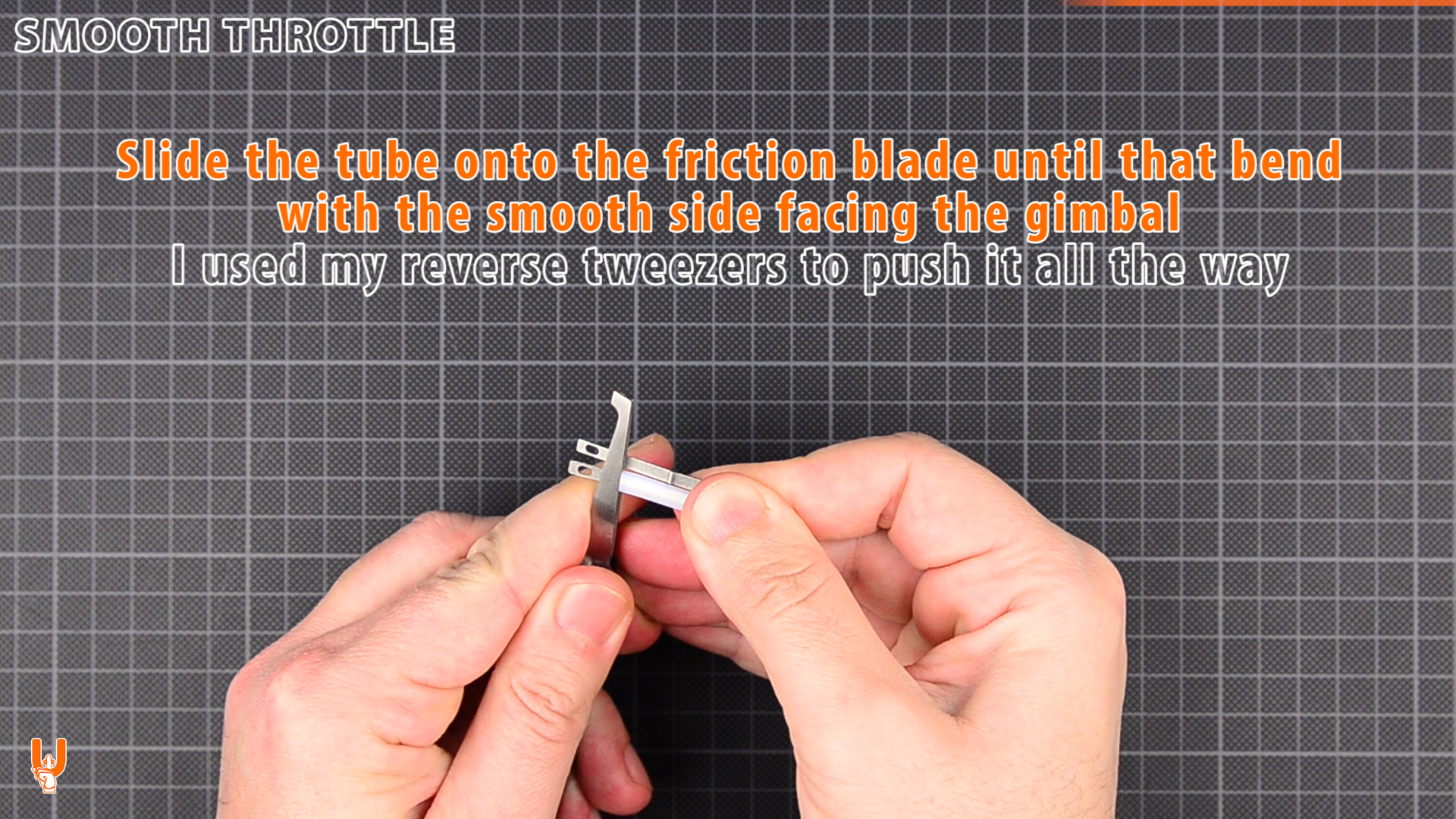

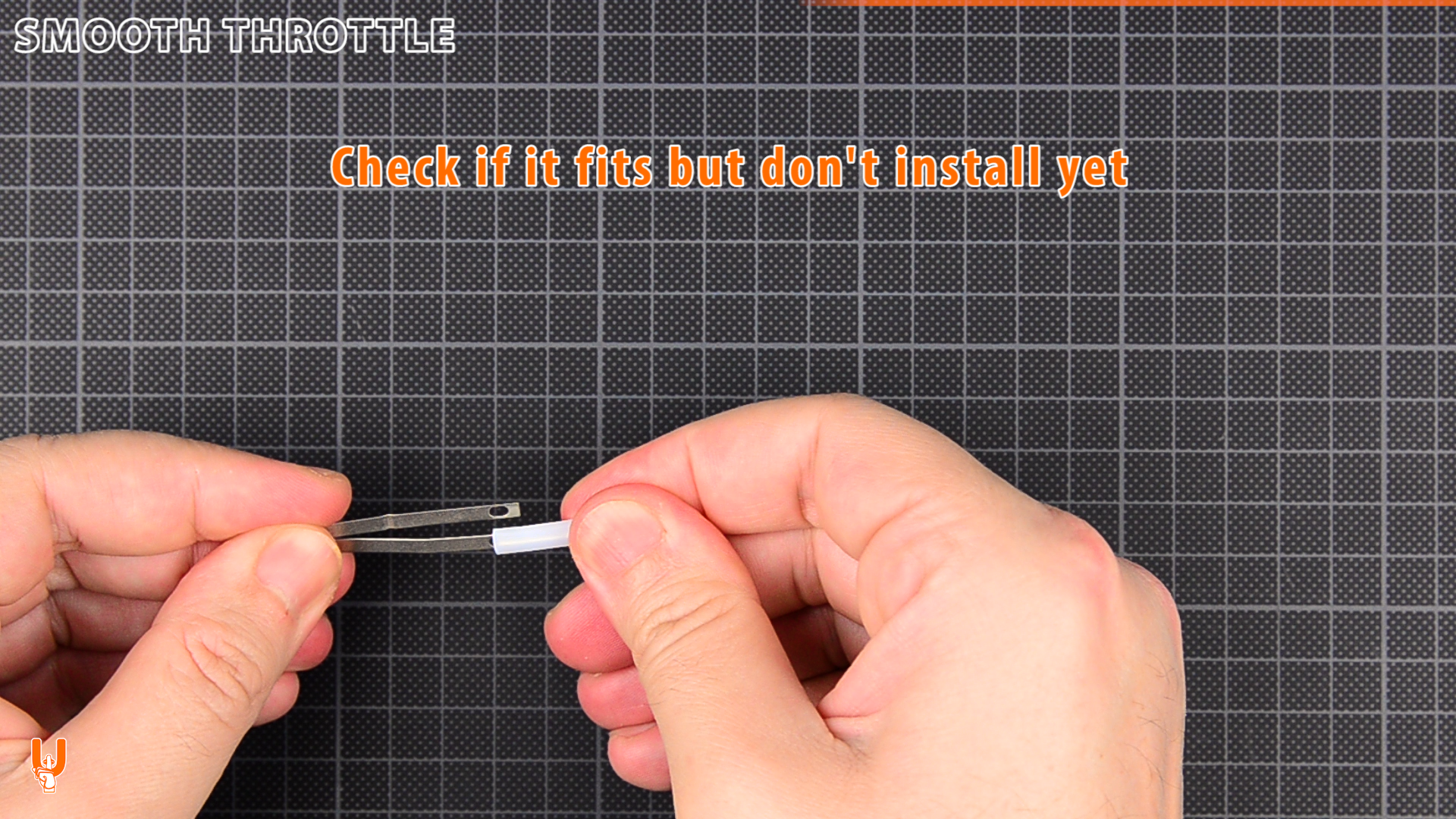

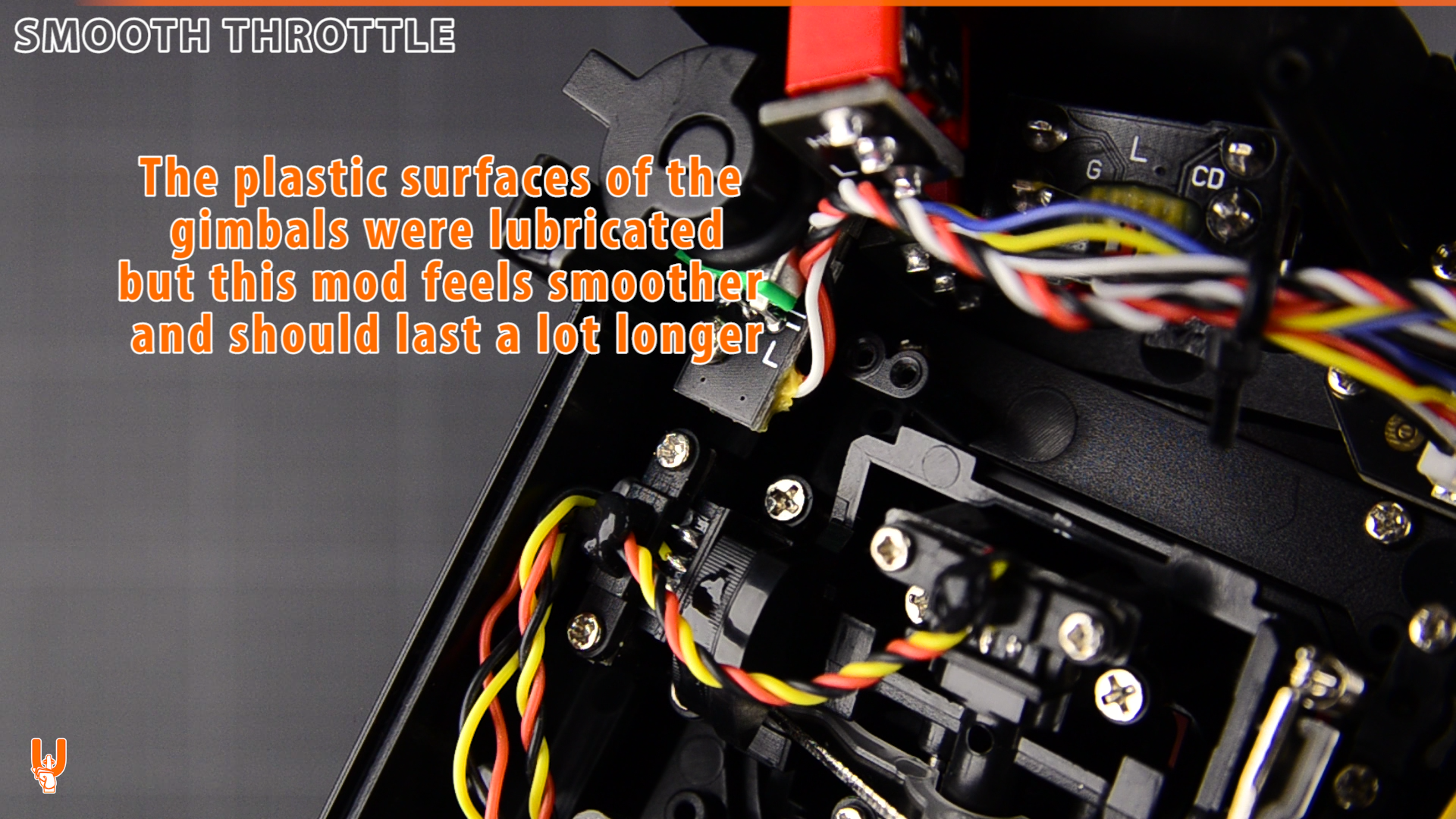

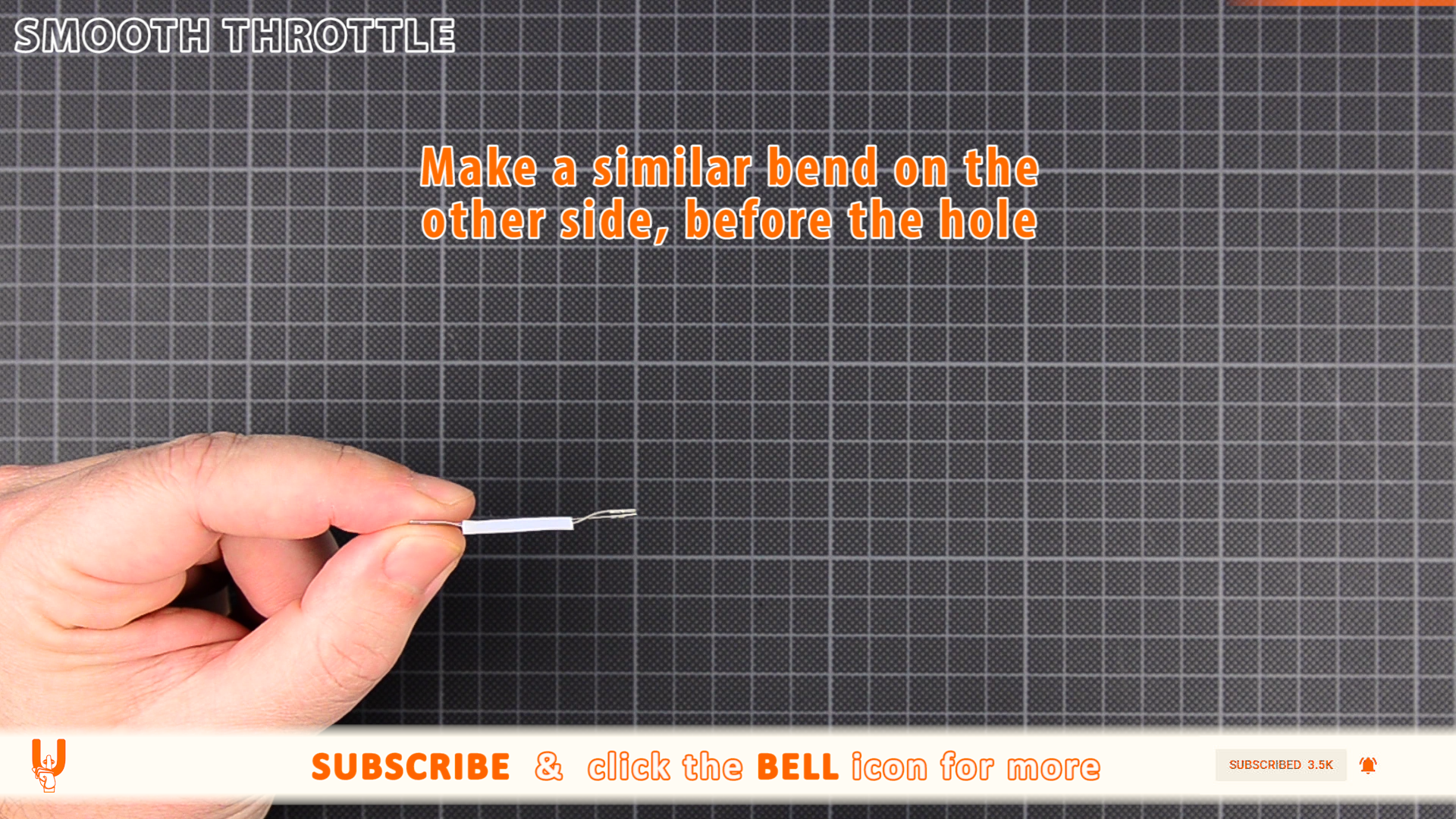

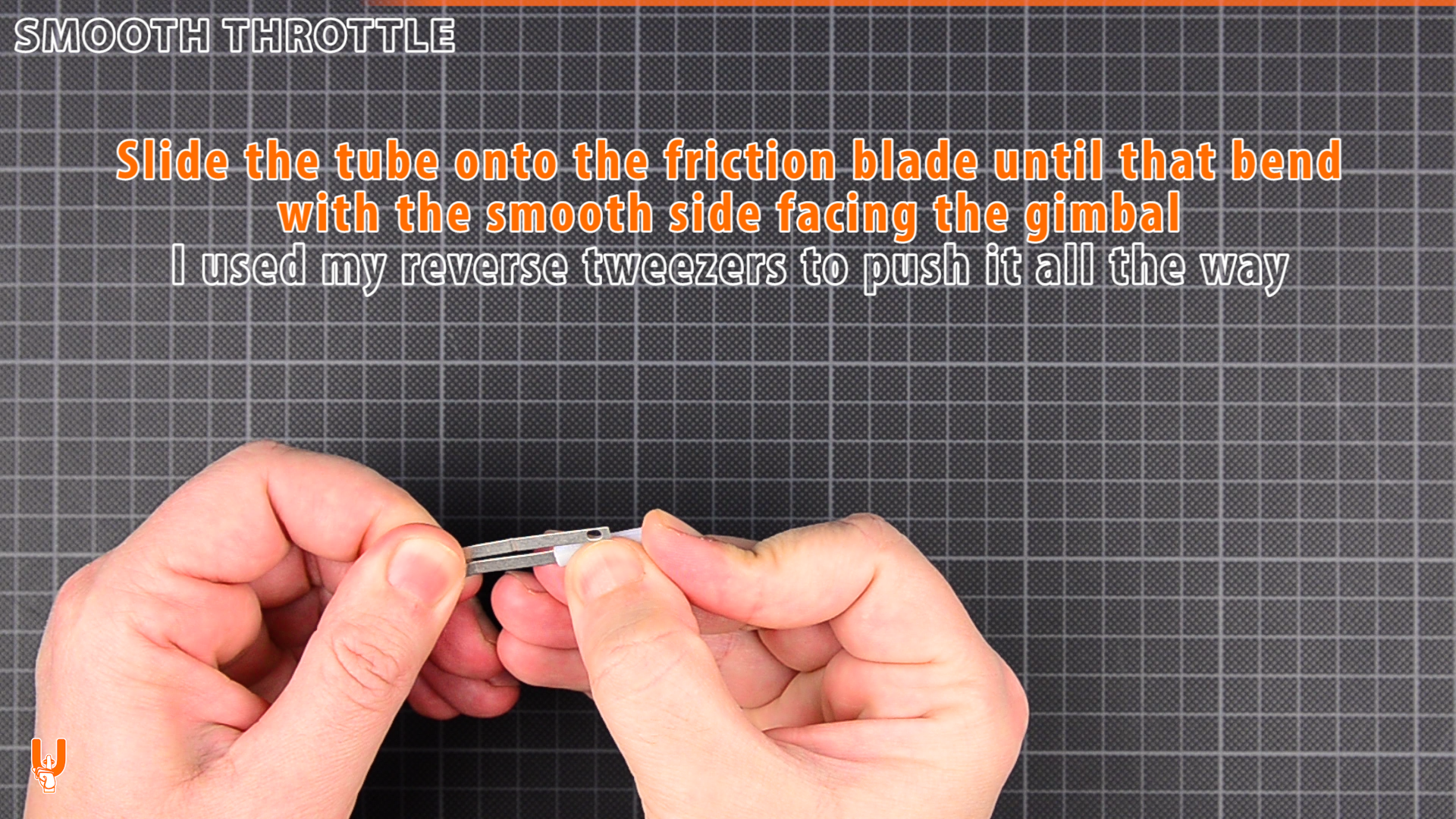

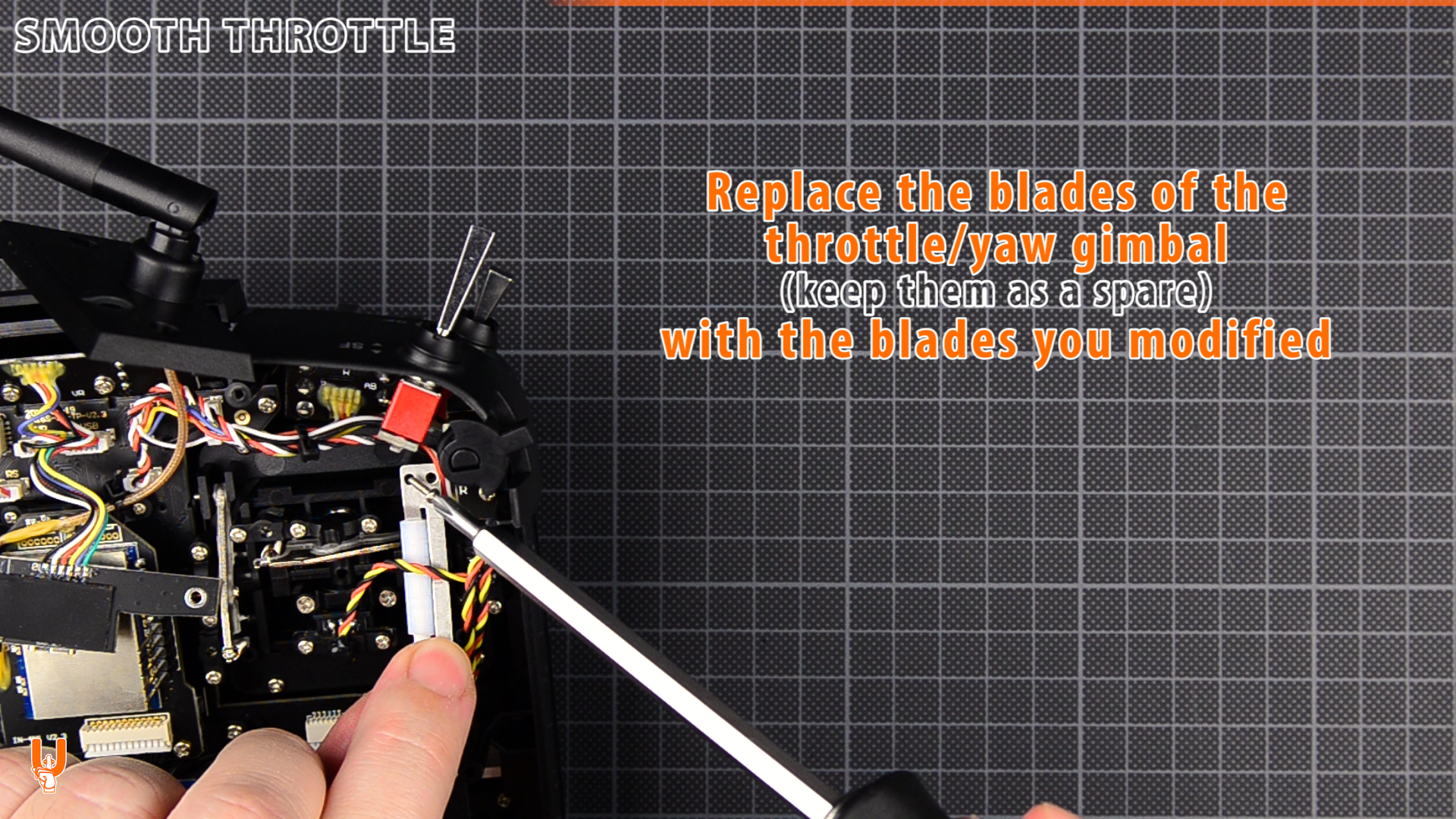

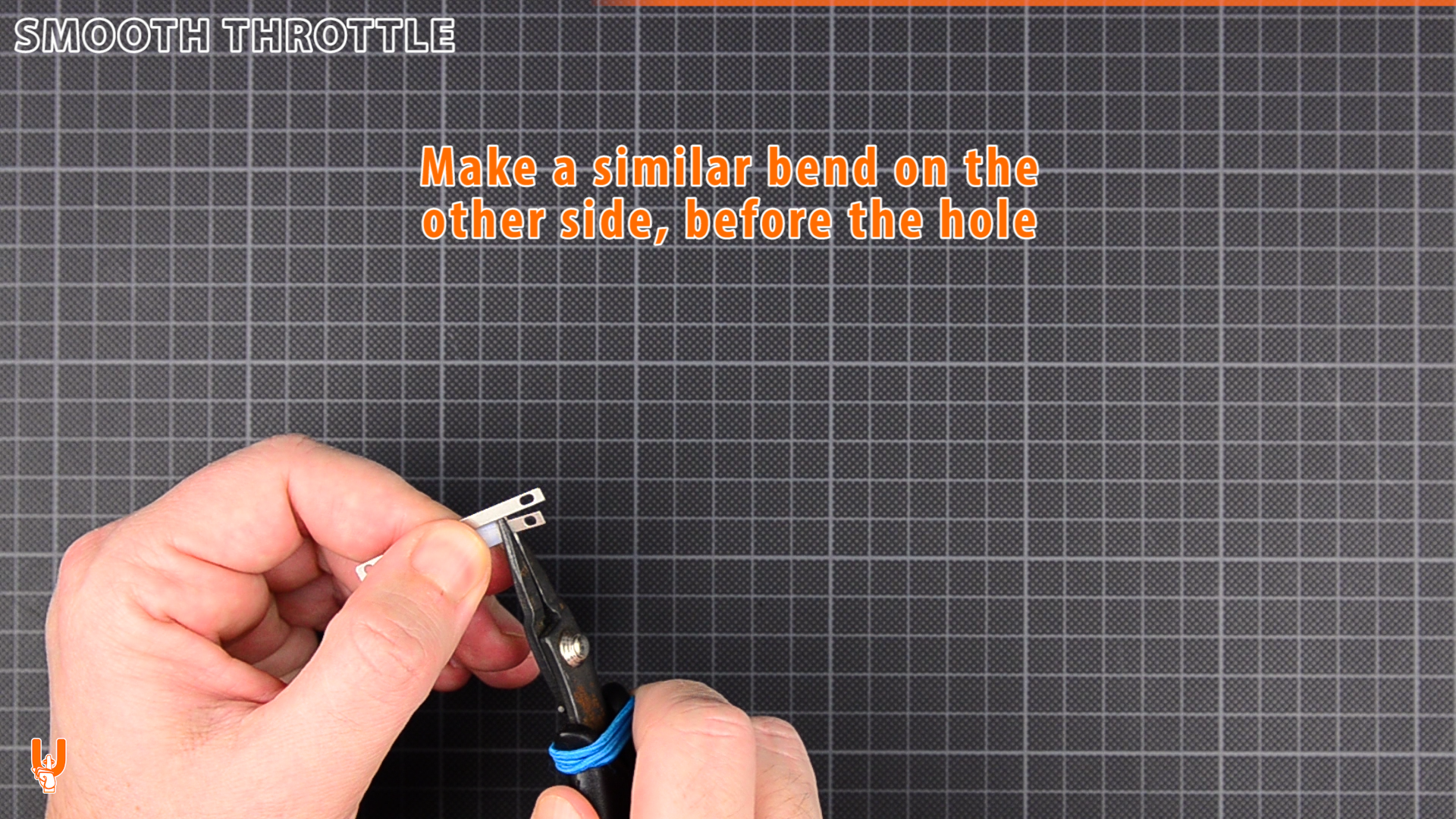

Smooth throttle

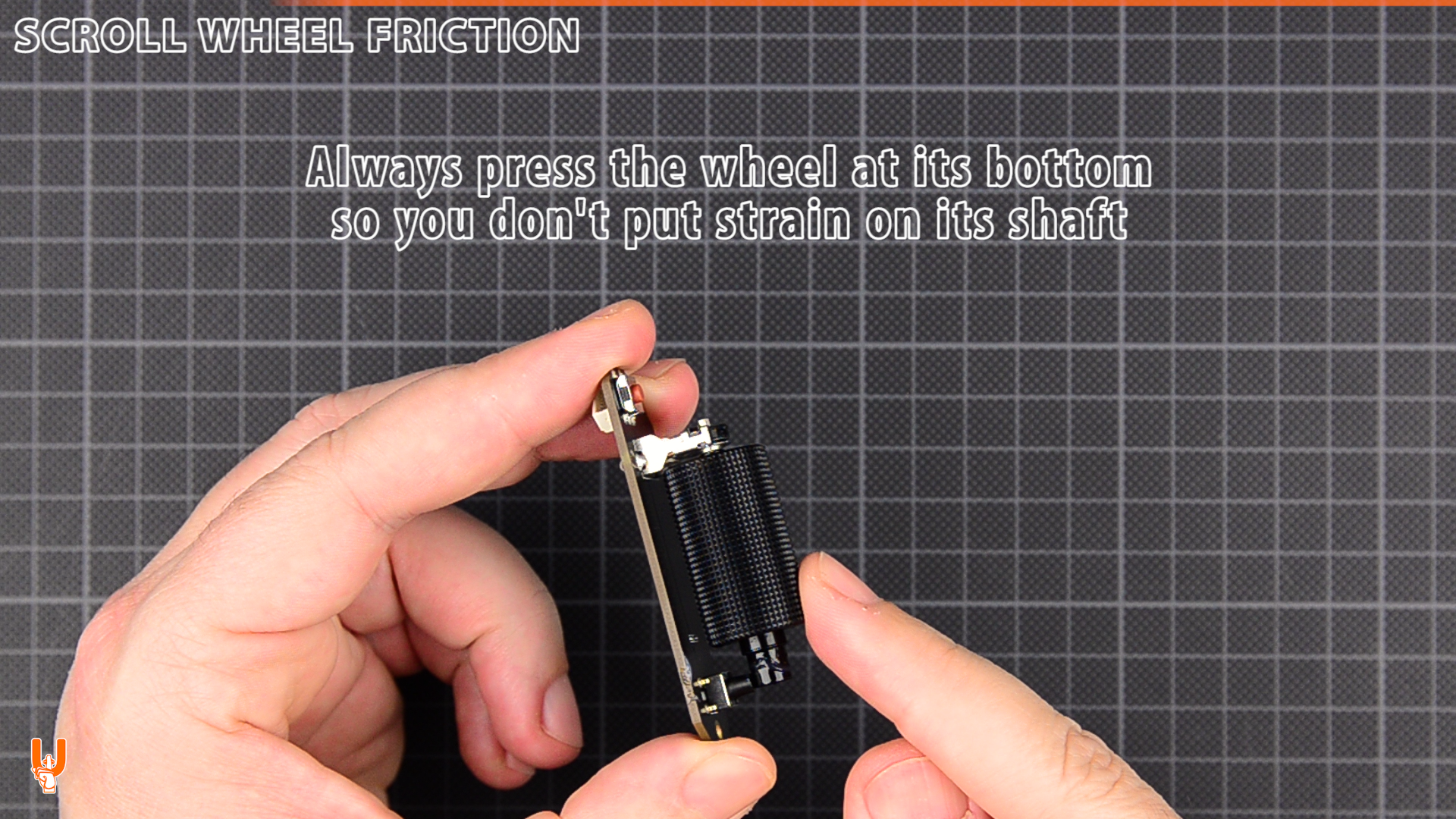

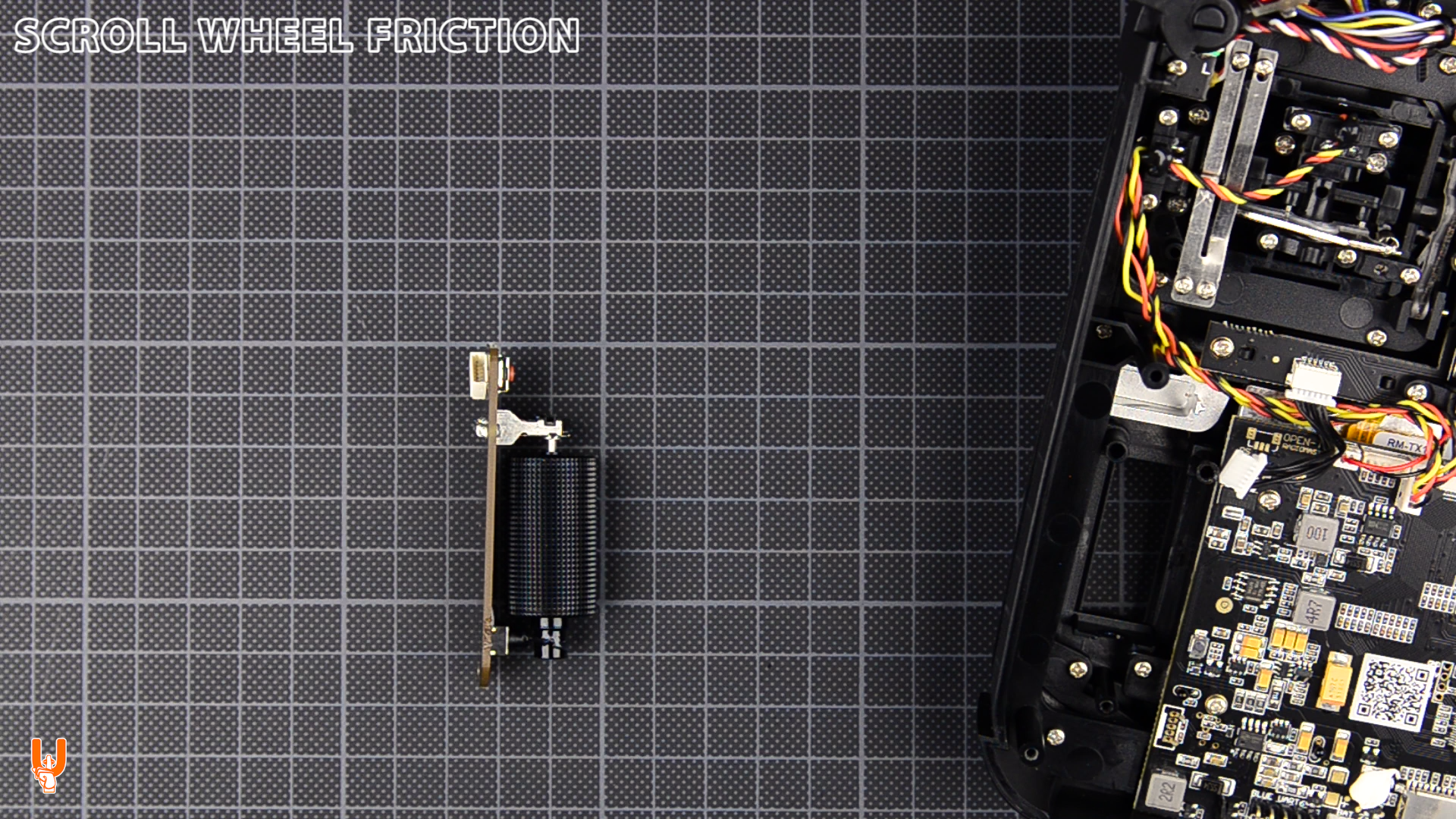

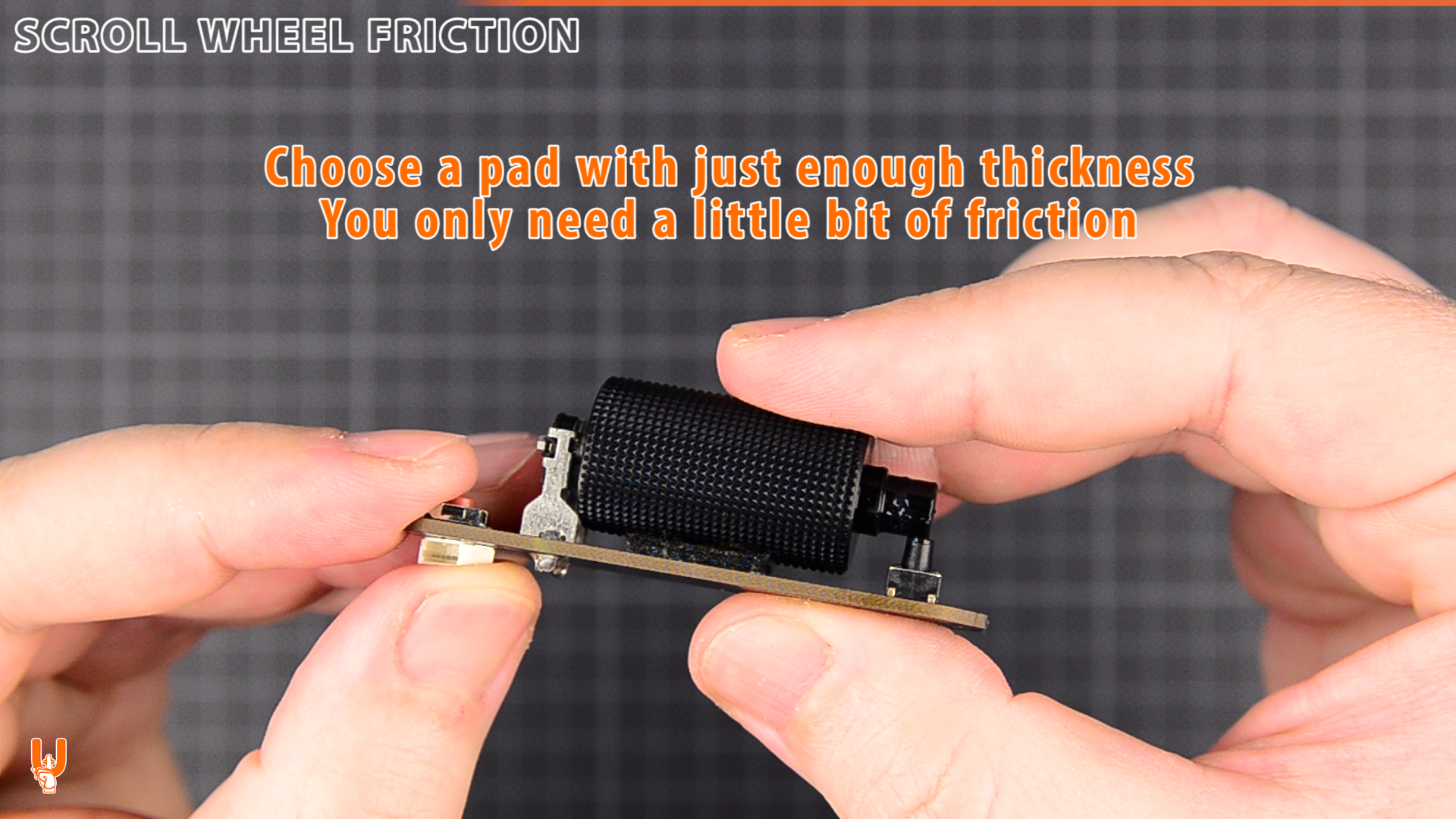

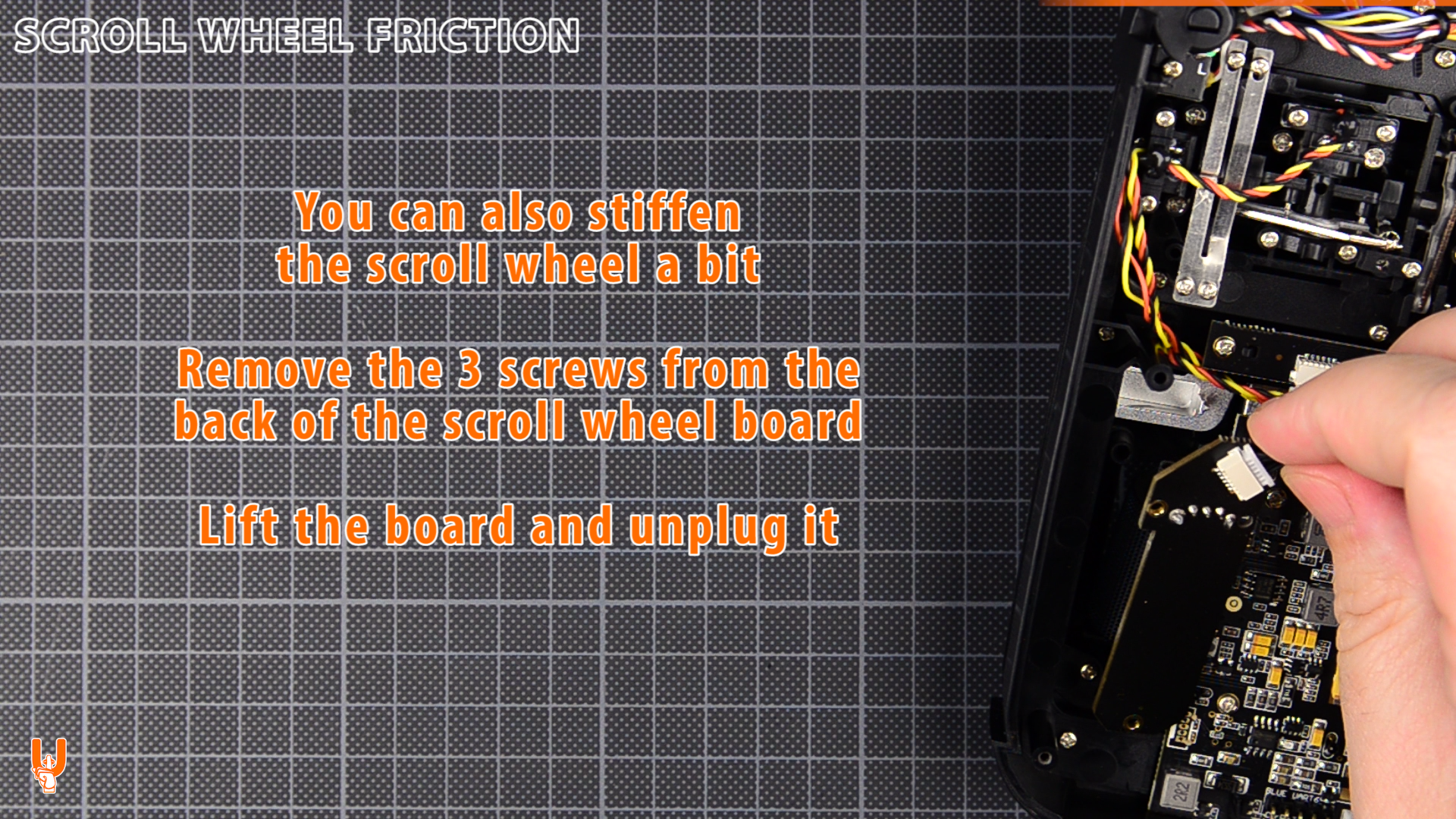

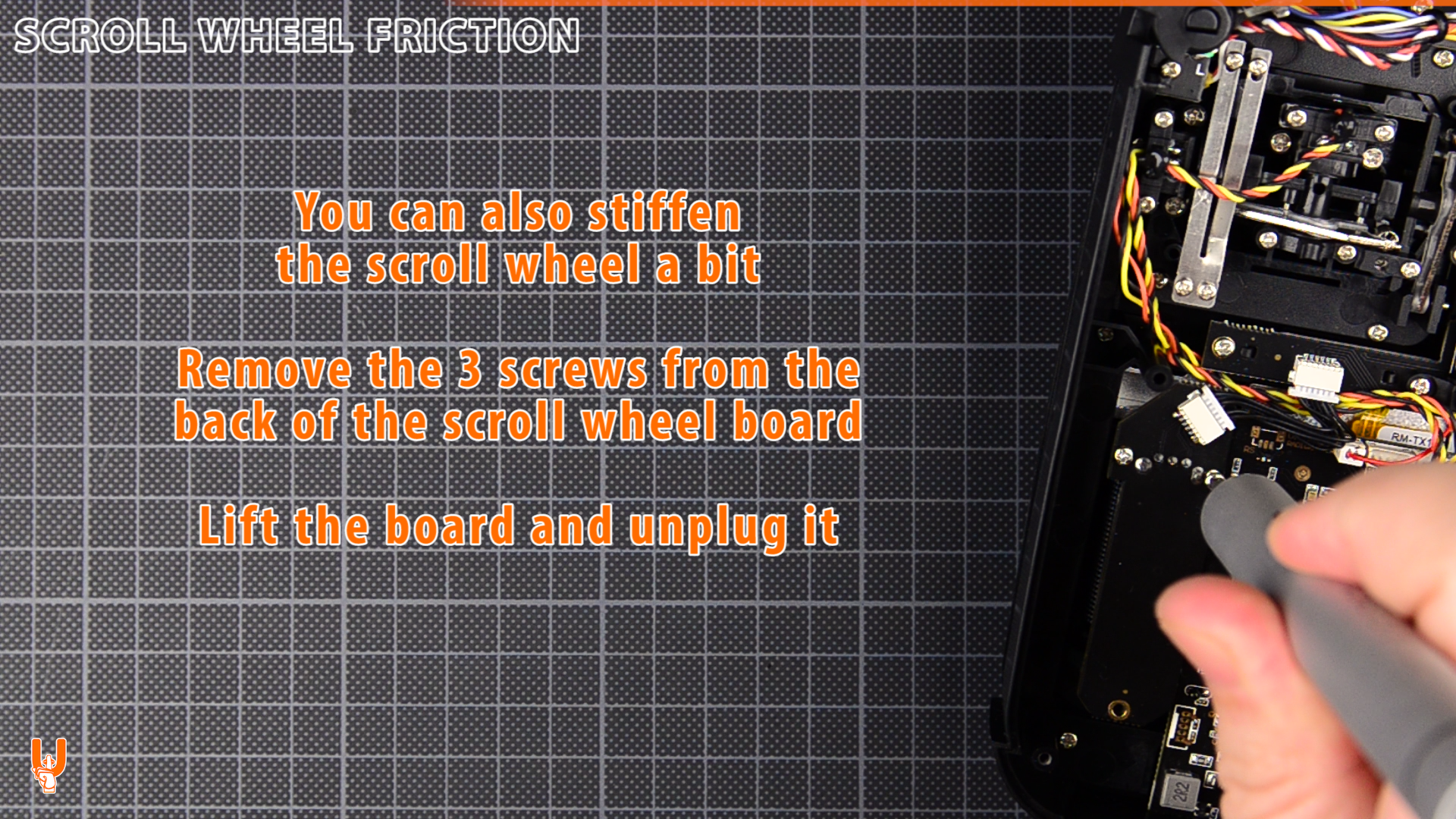

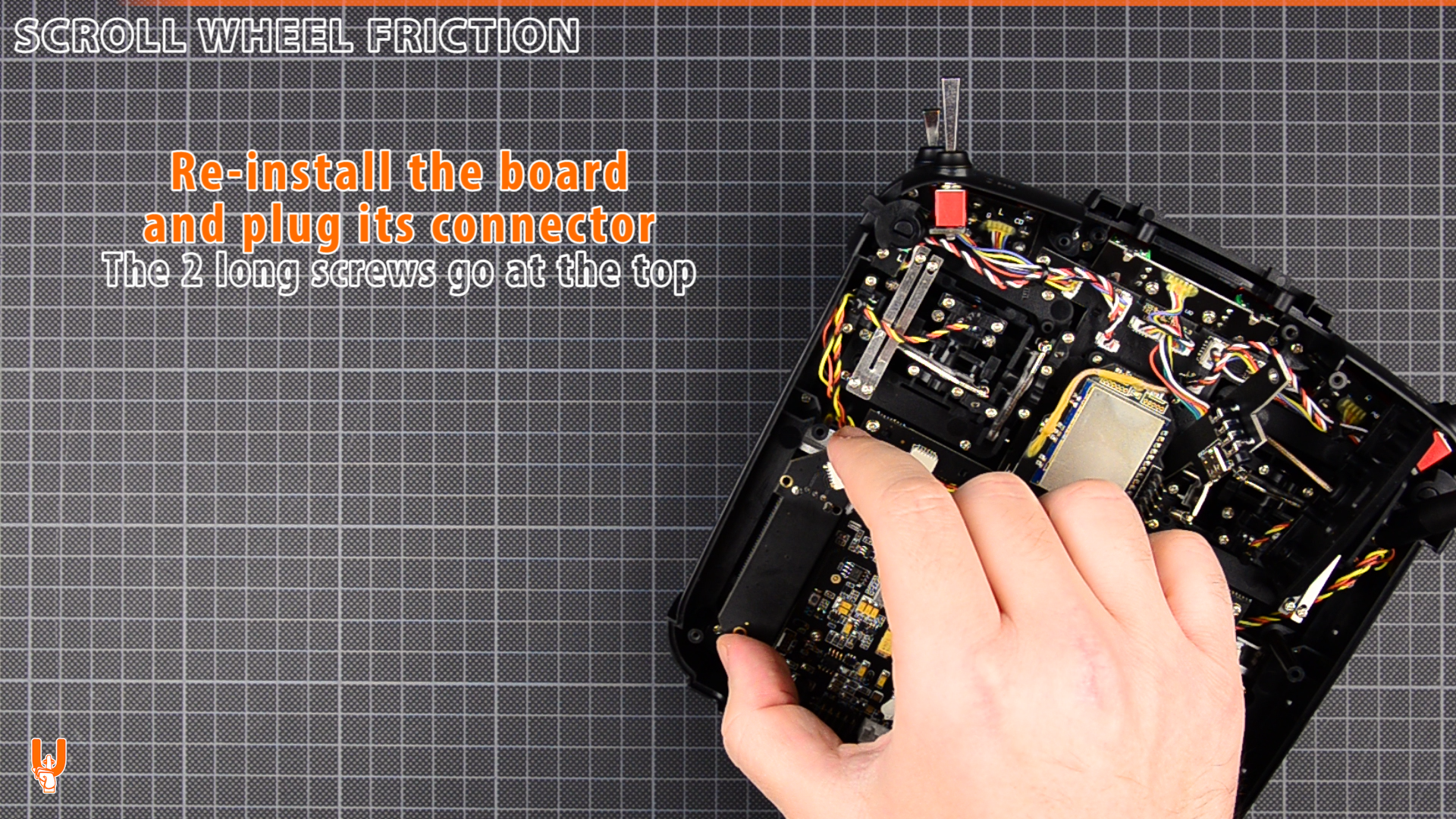

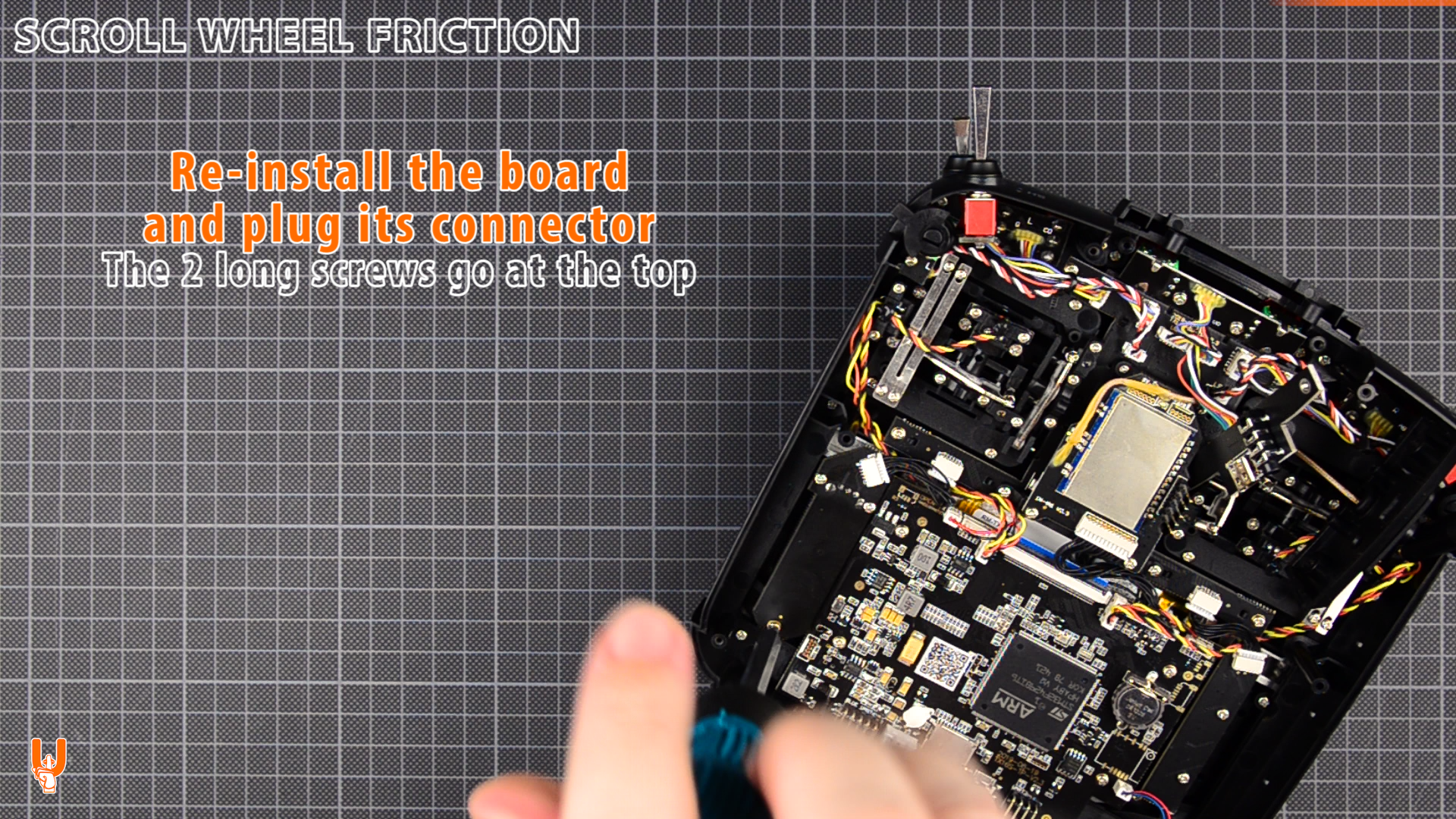

Scroll wheel friction

PART 2:

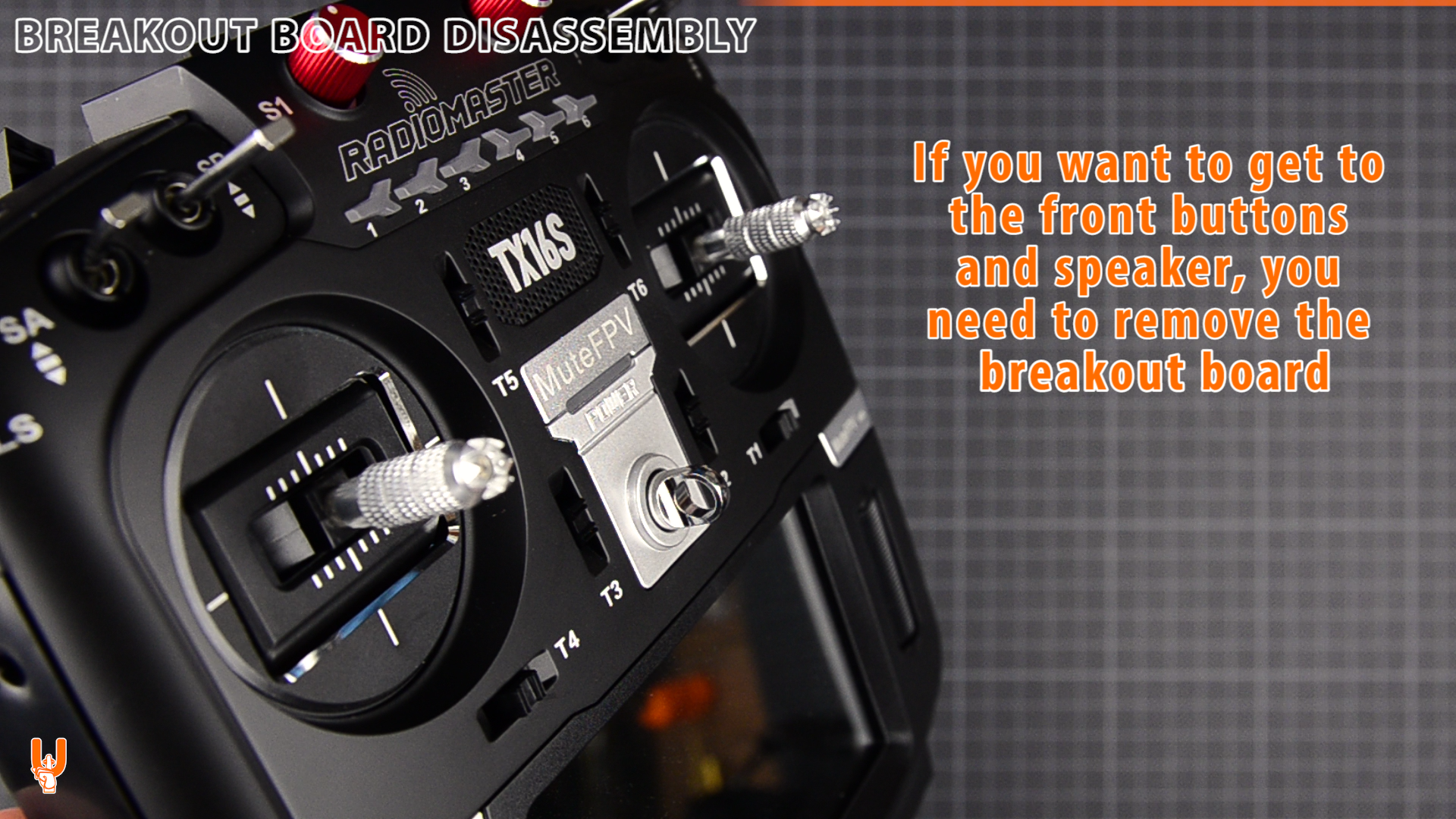

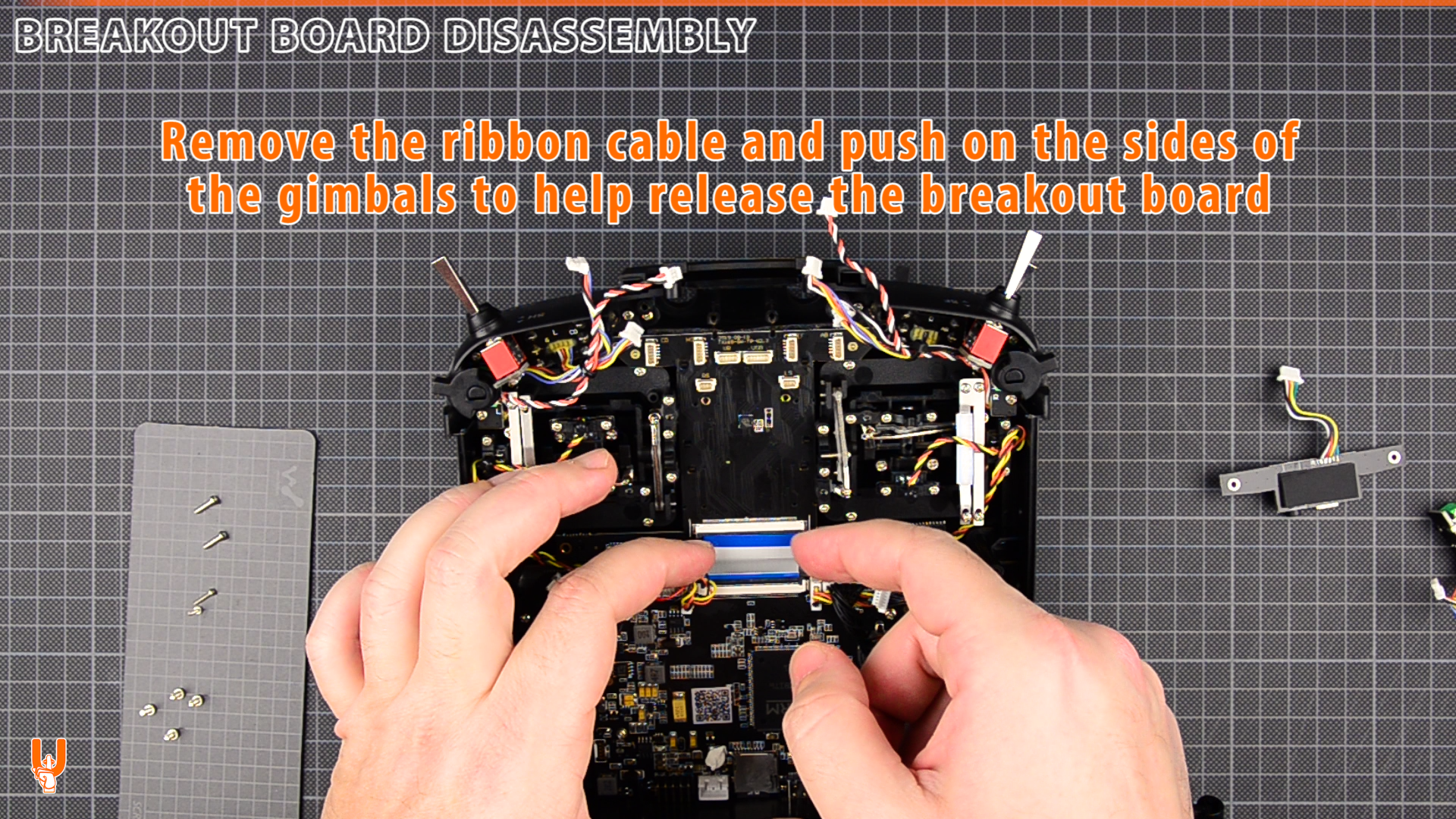

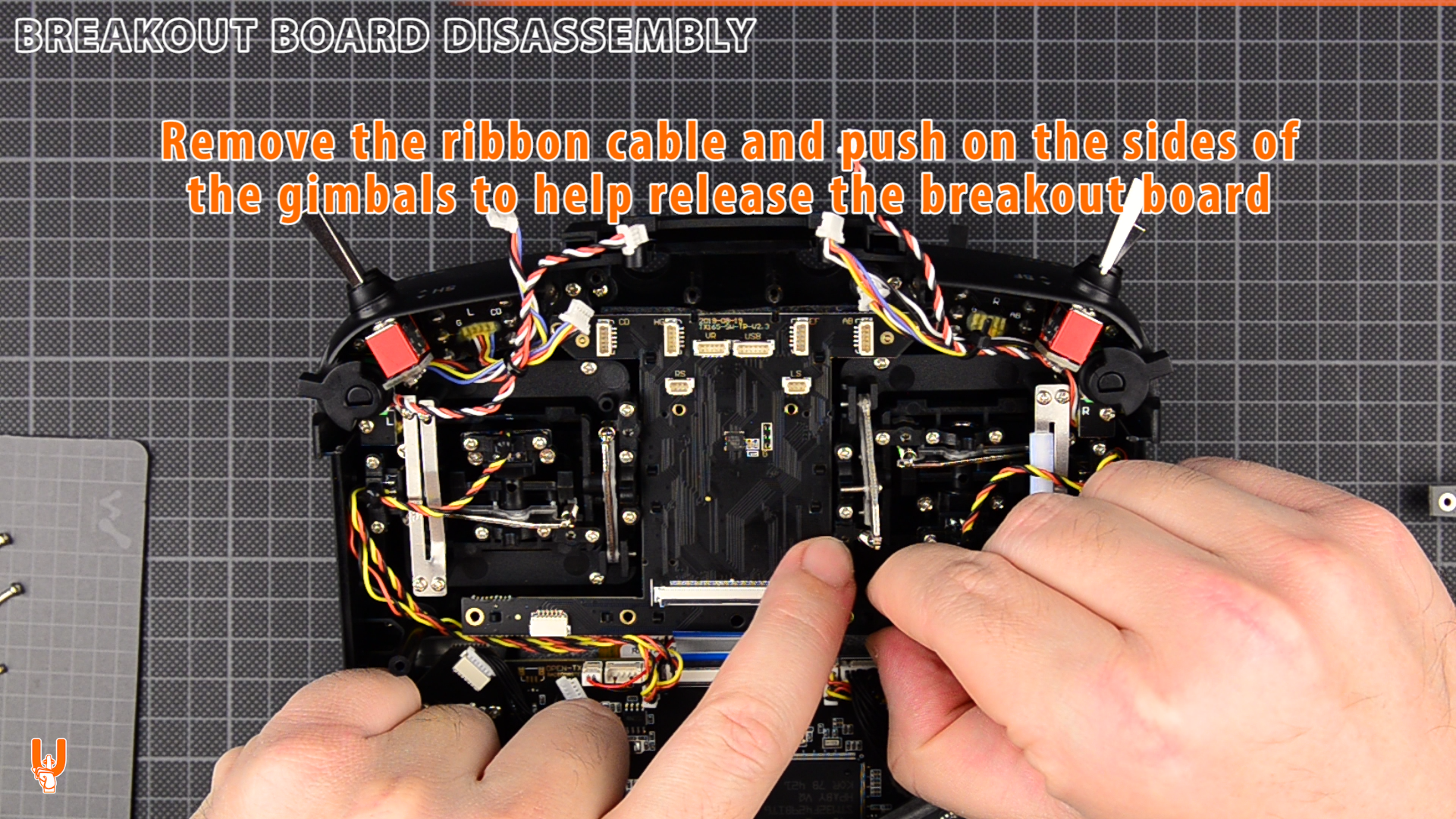

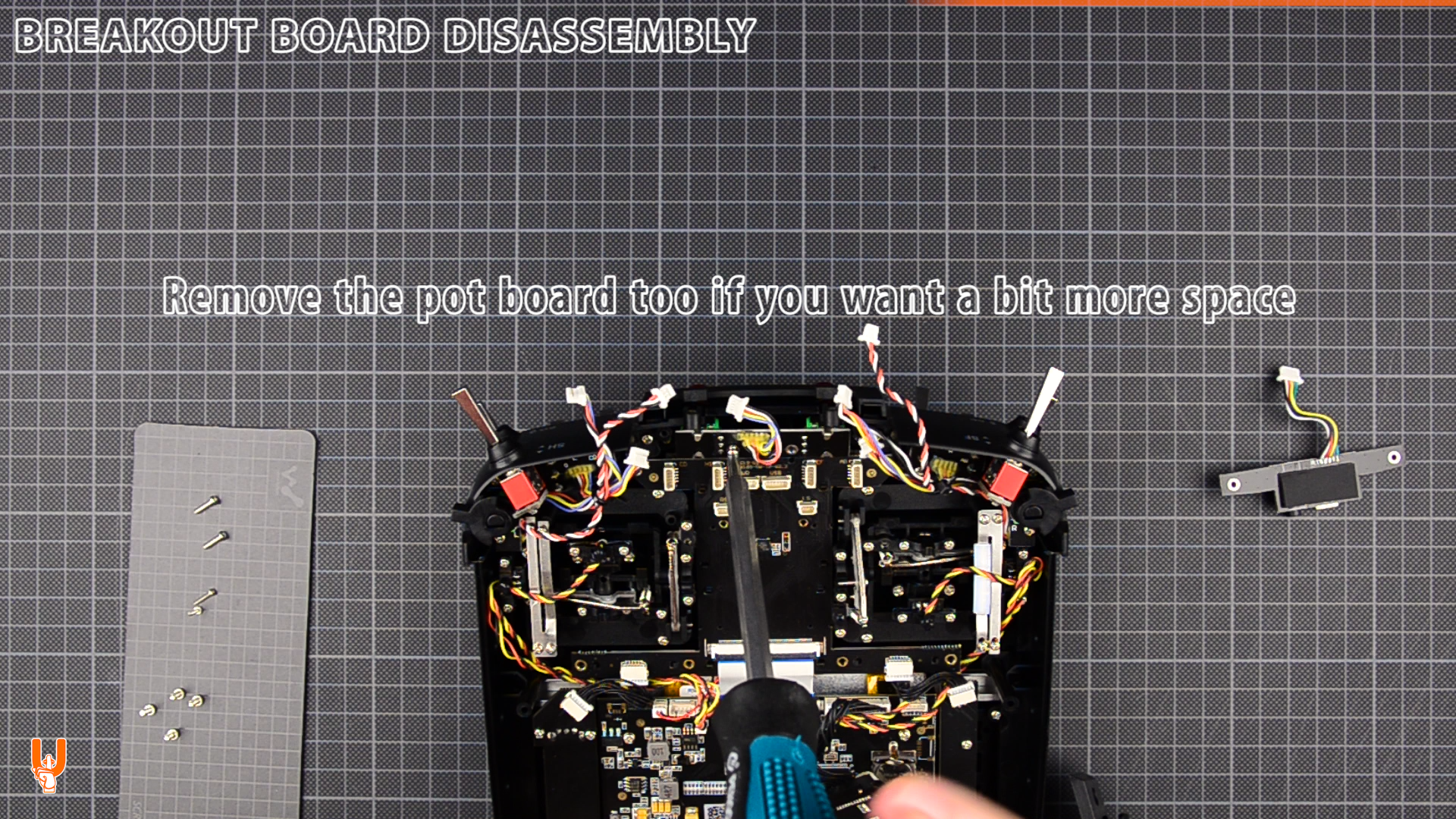

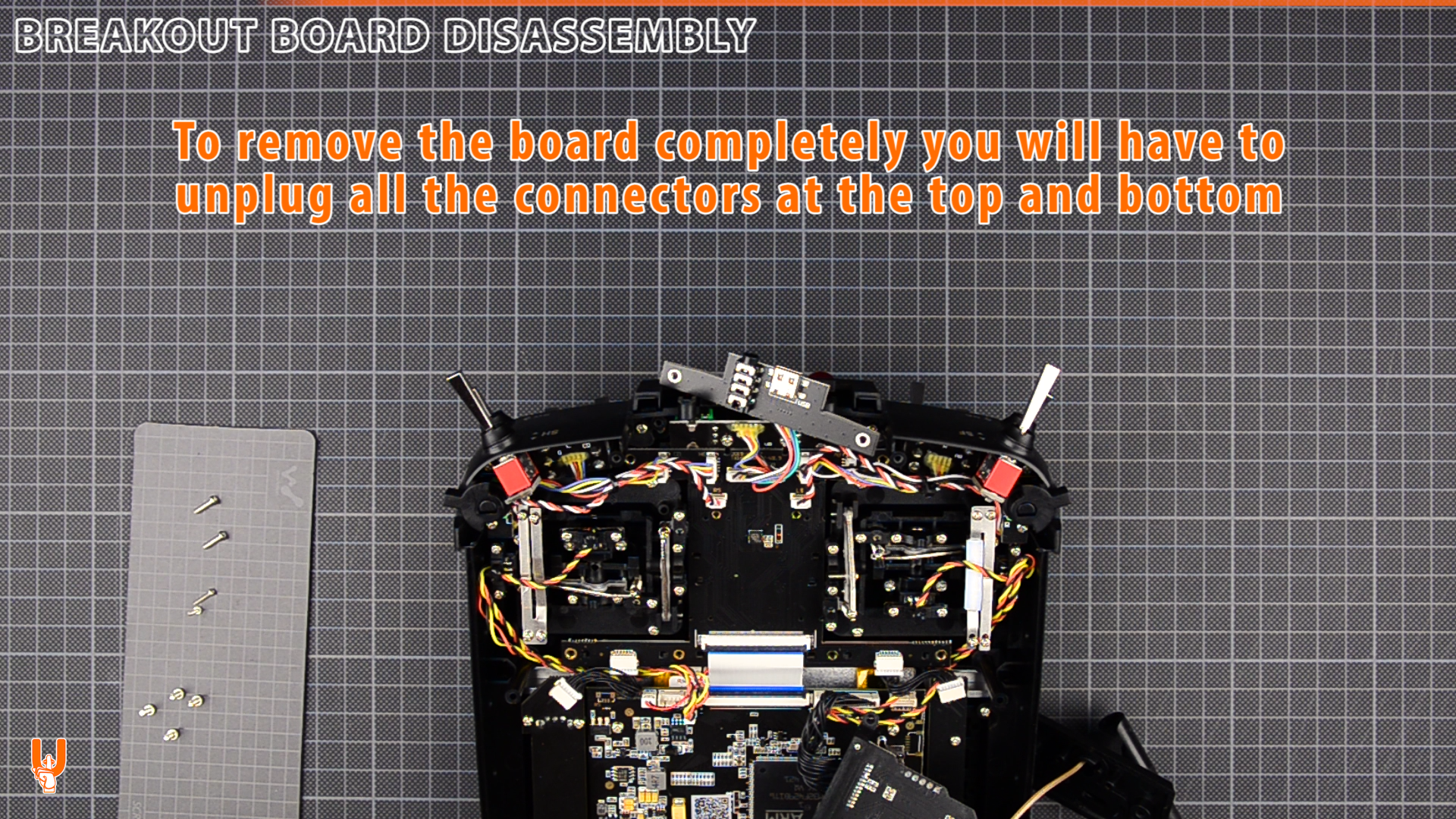

Breakout board disassembly

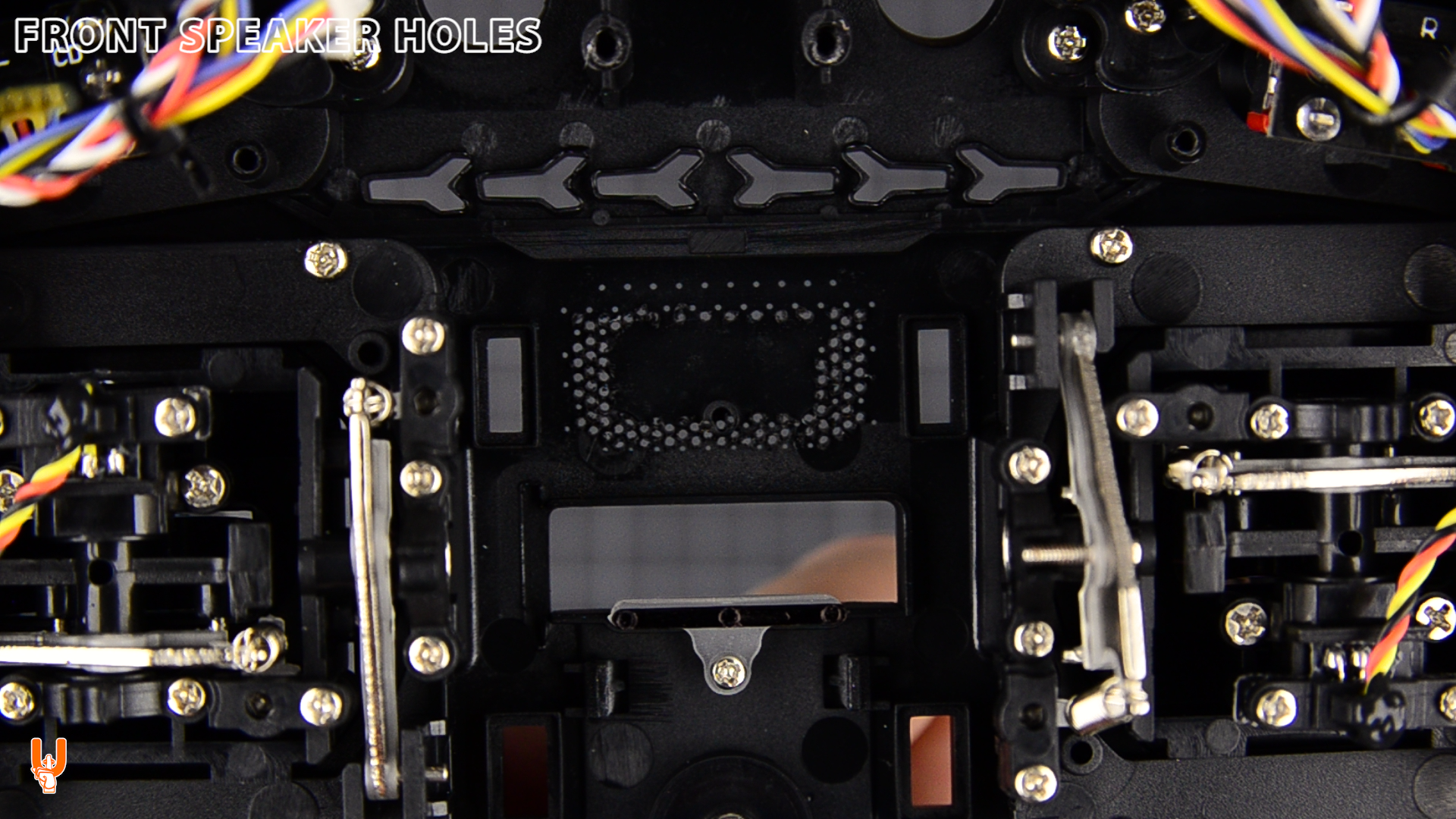

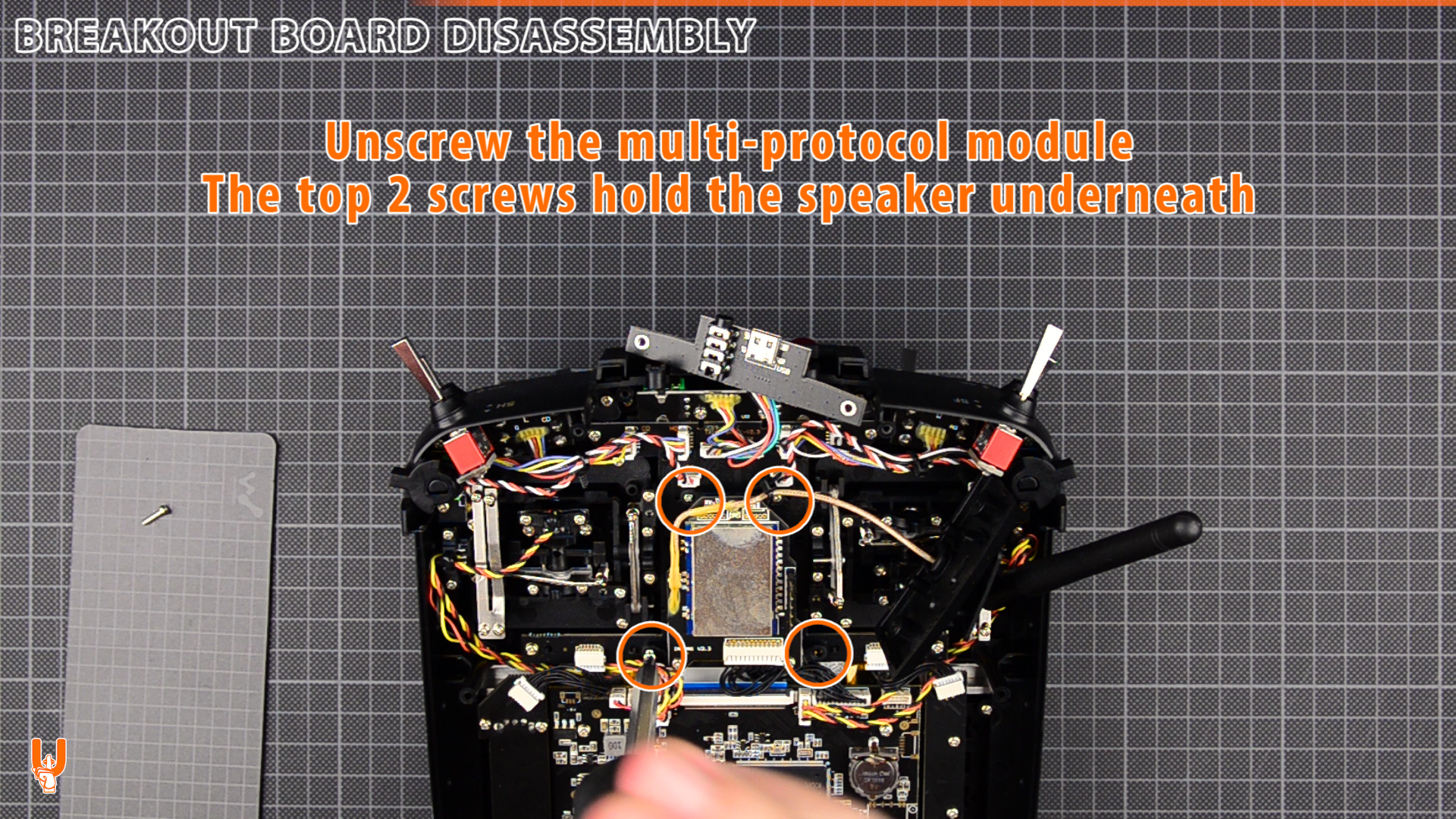

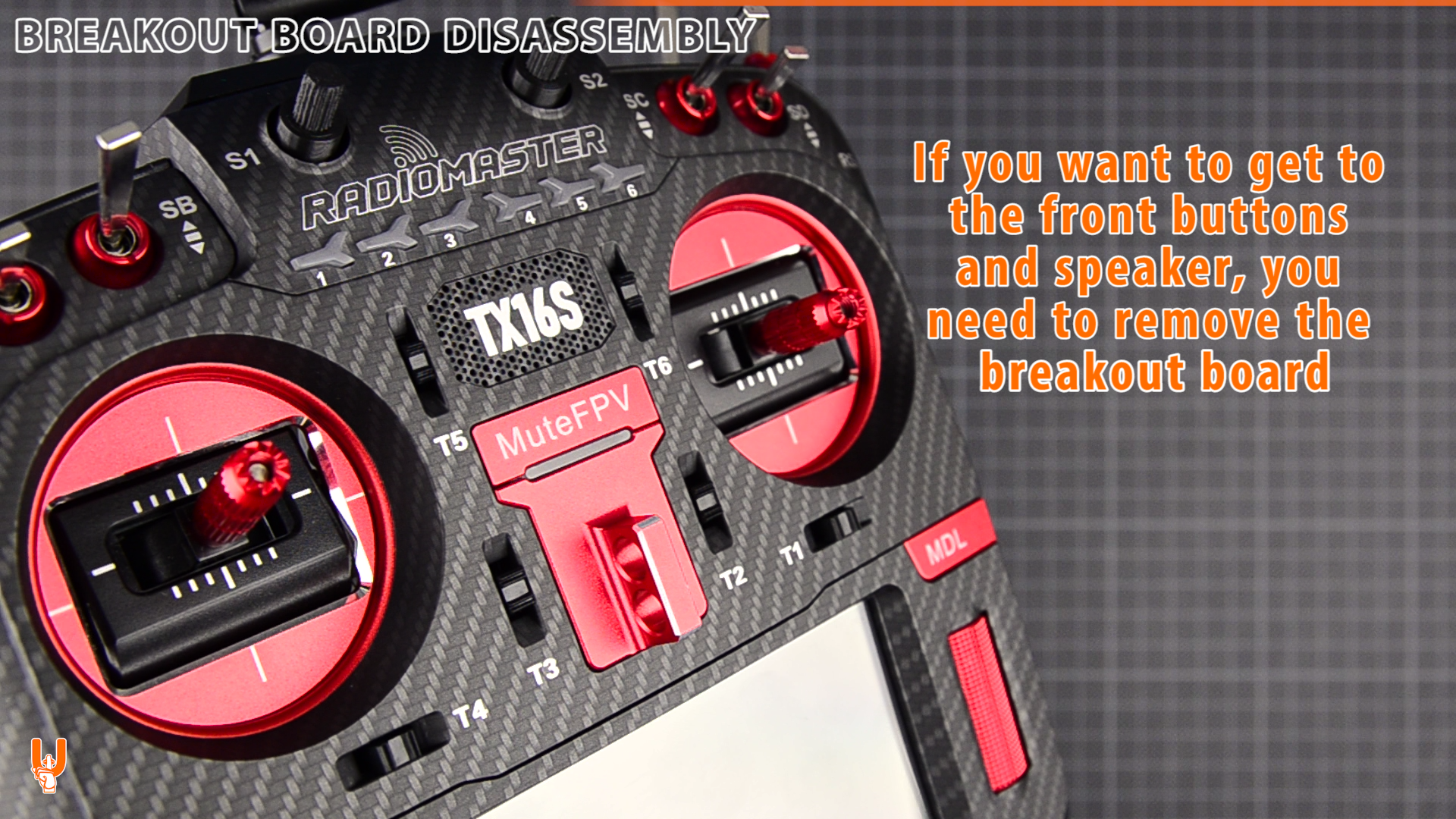

Front speaker holes

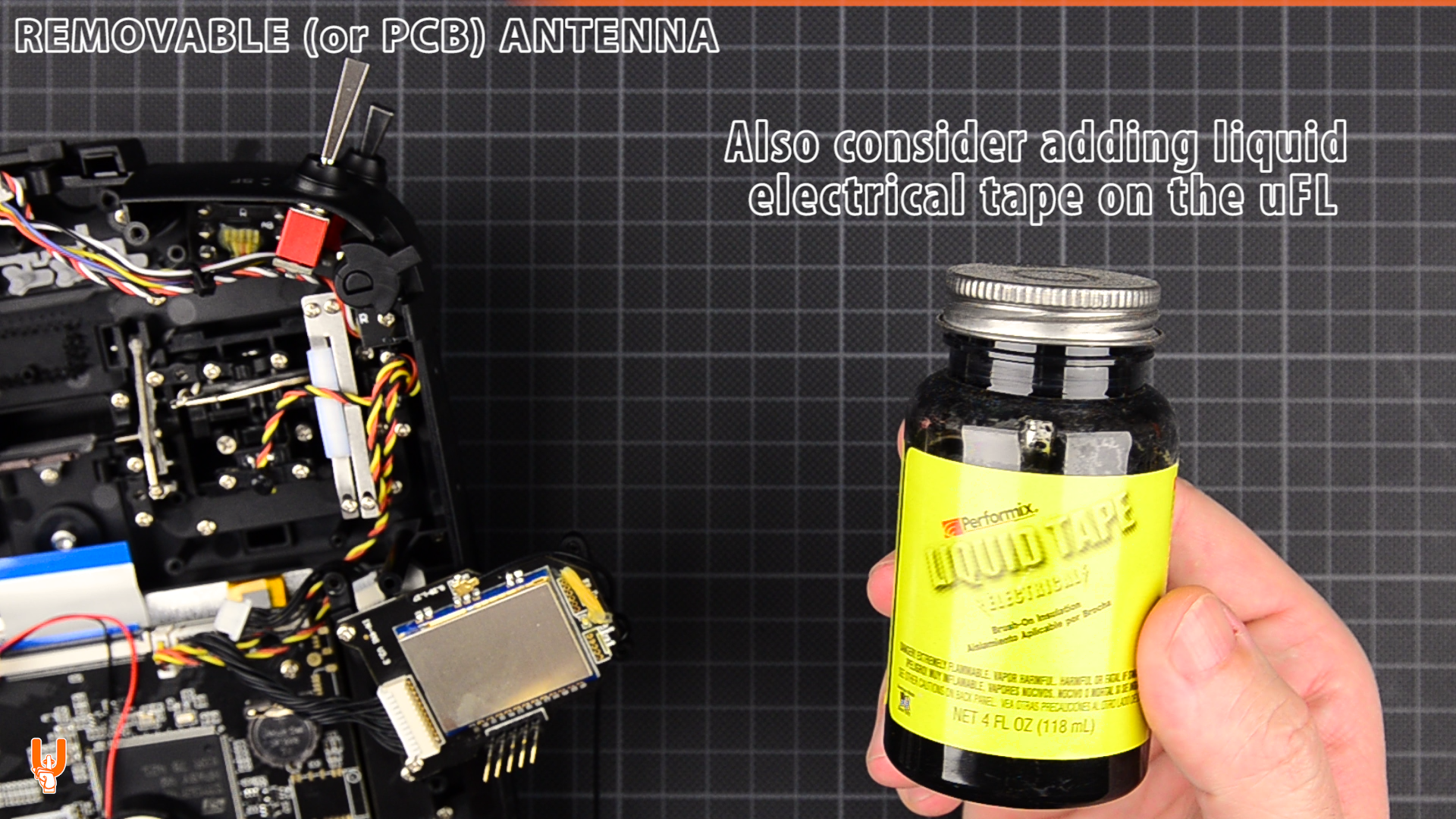

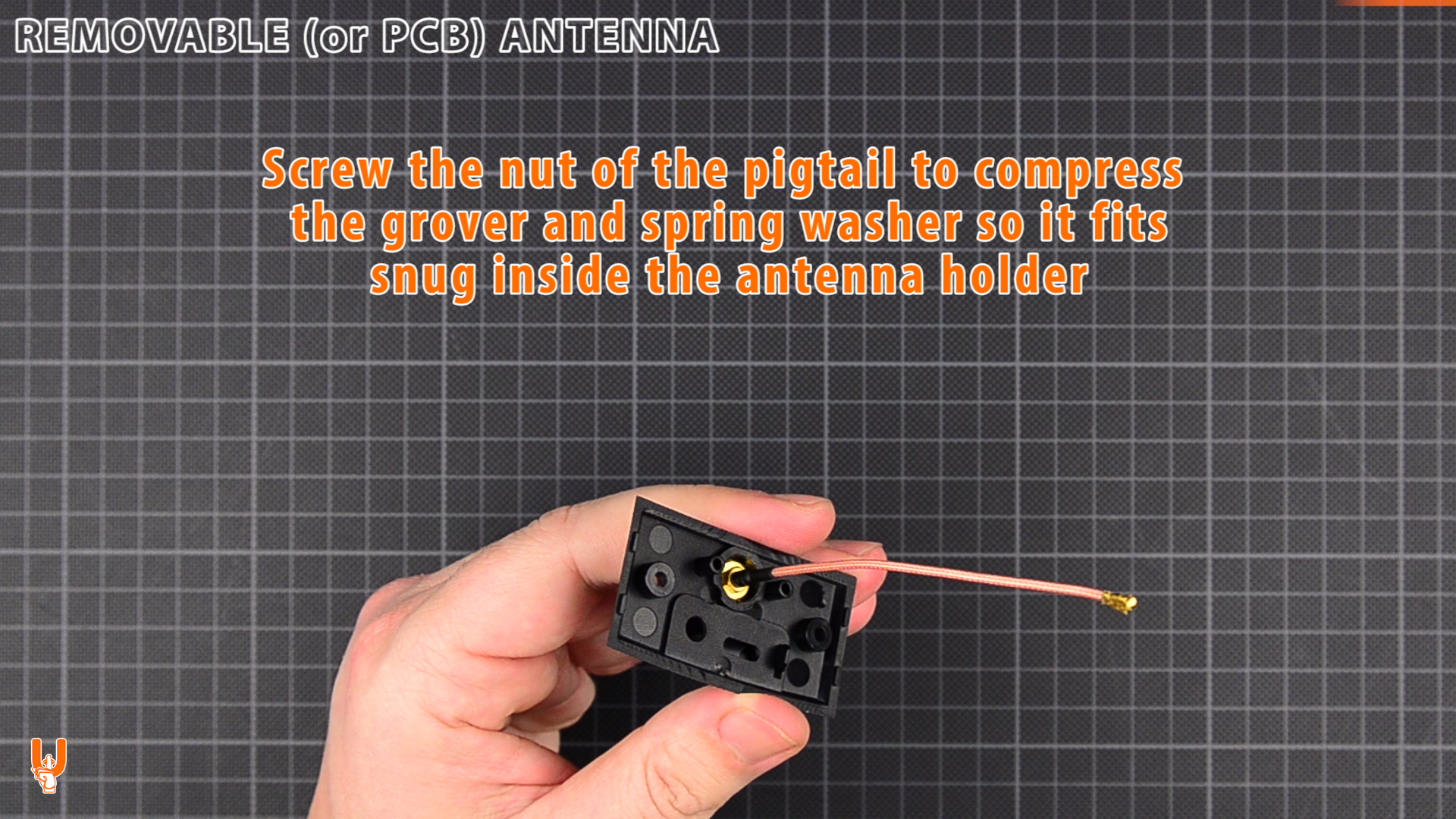

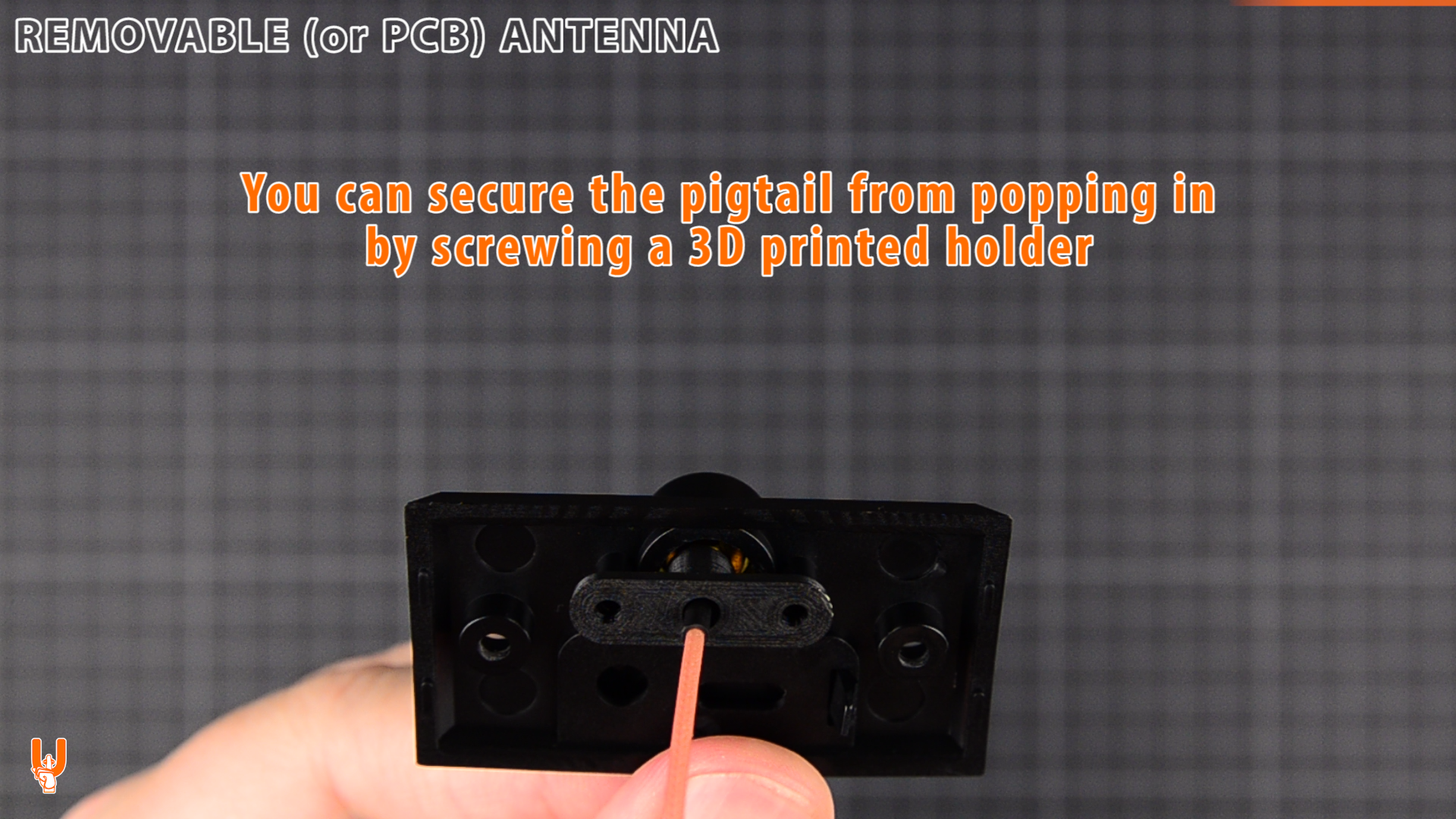

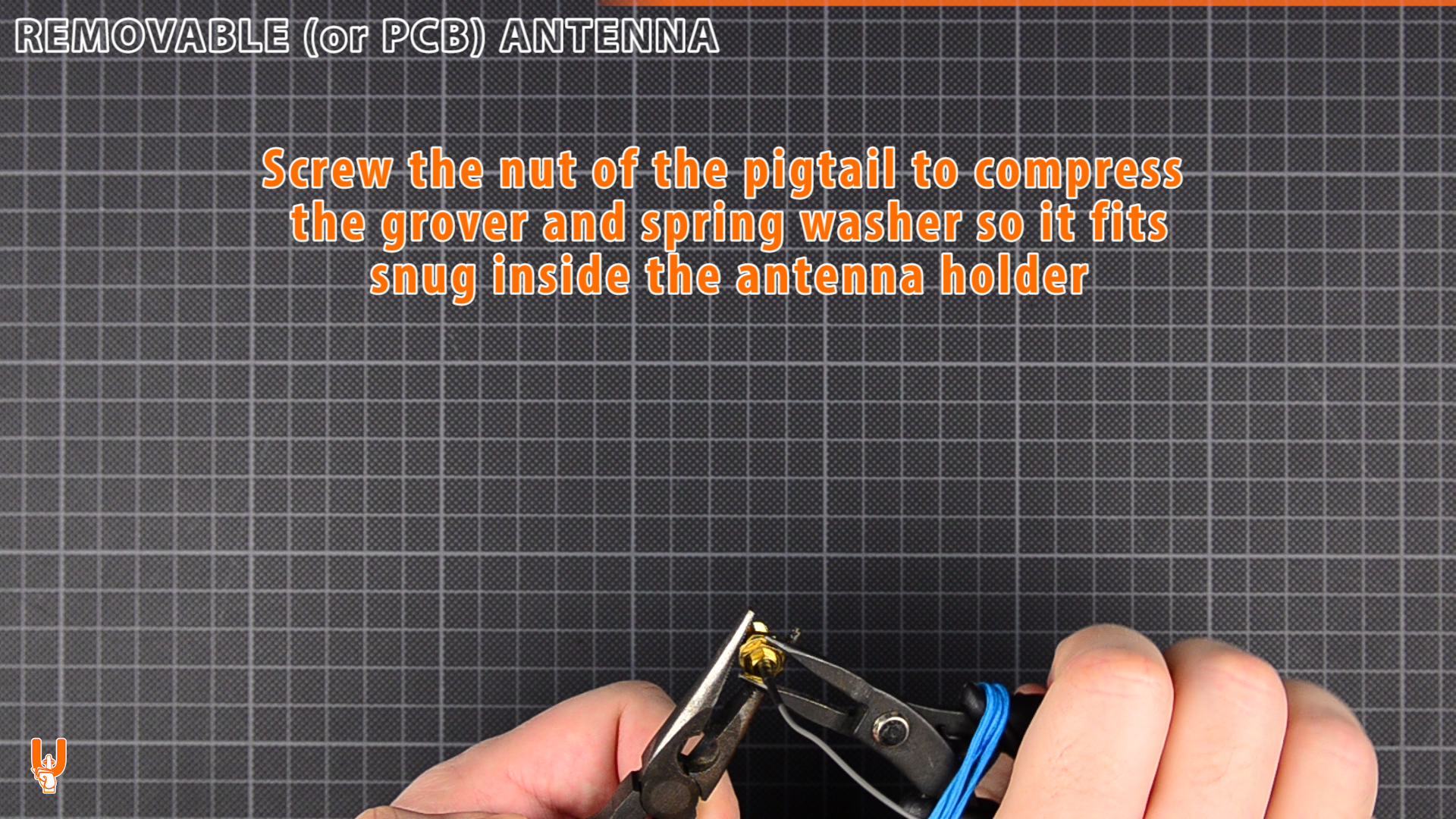

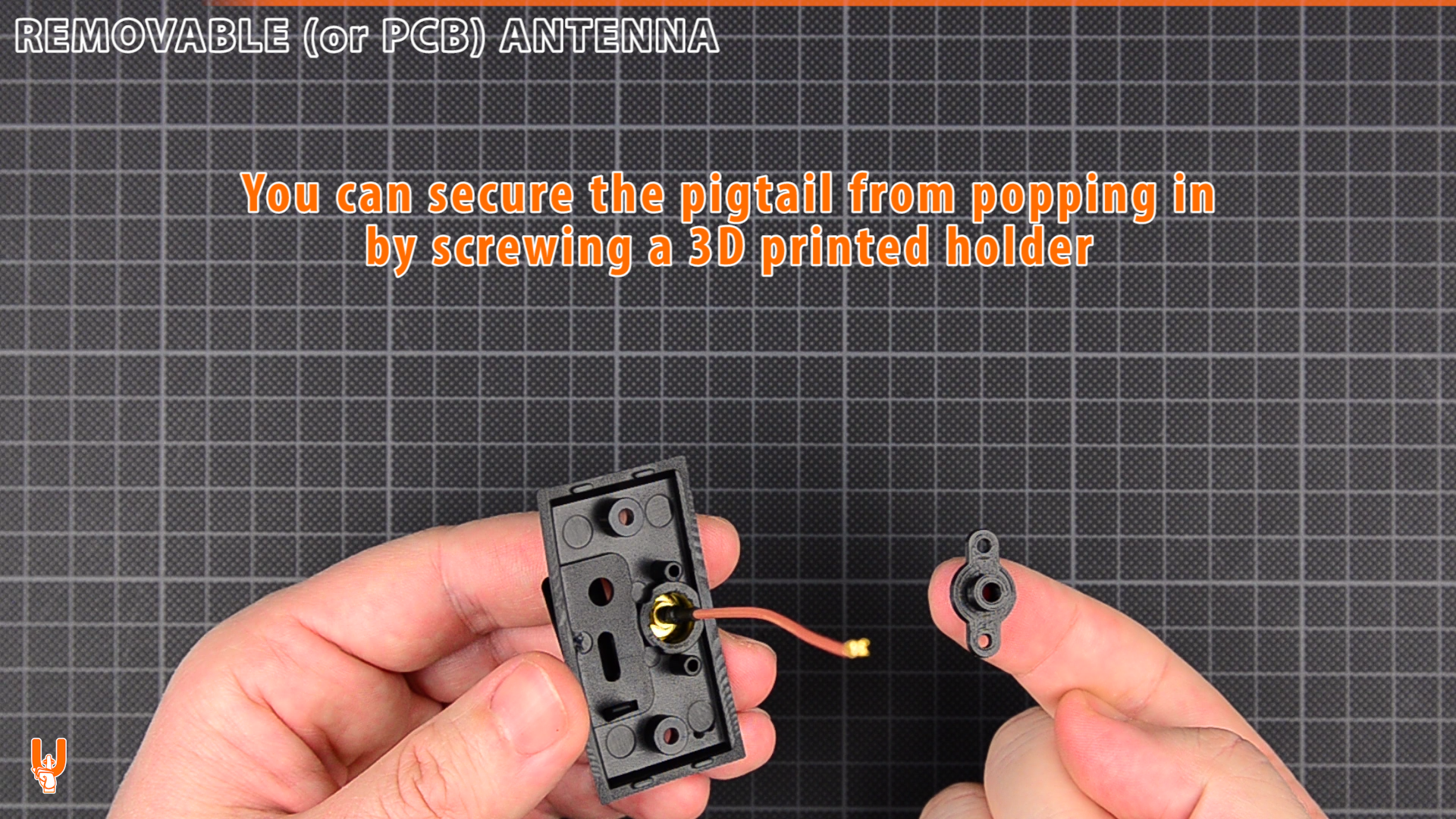

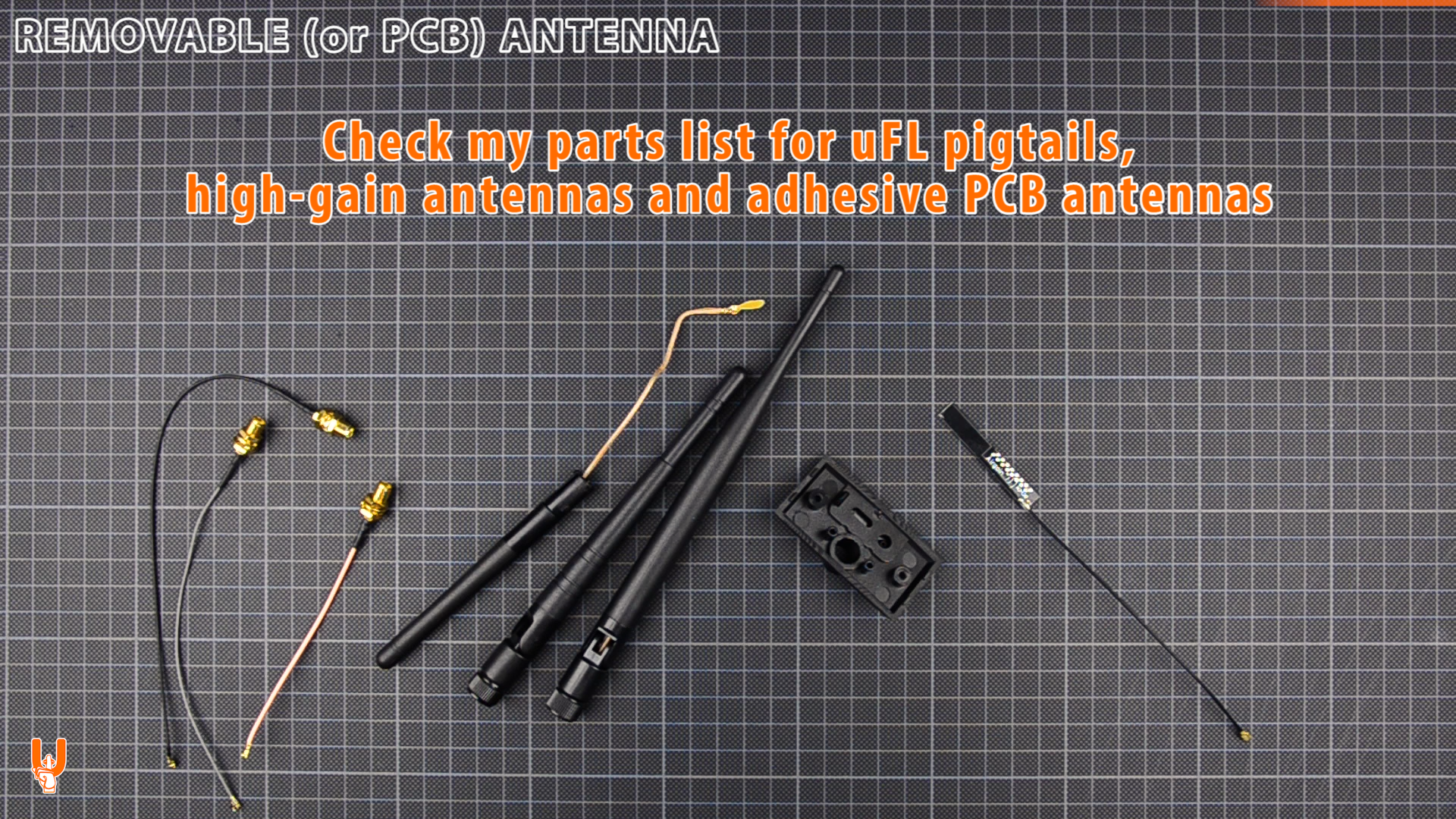

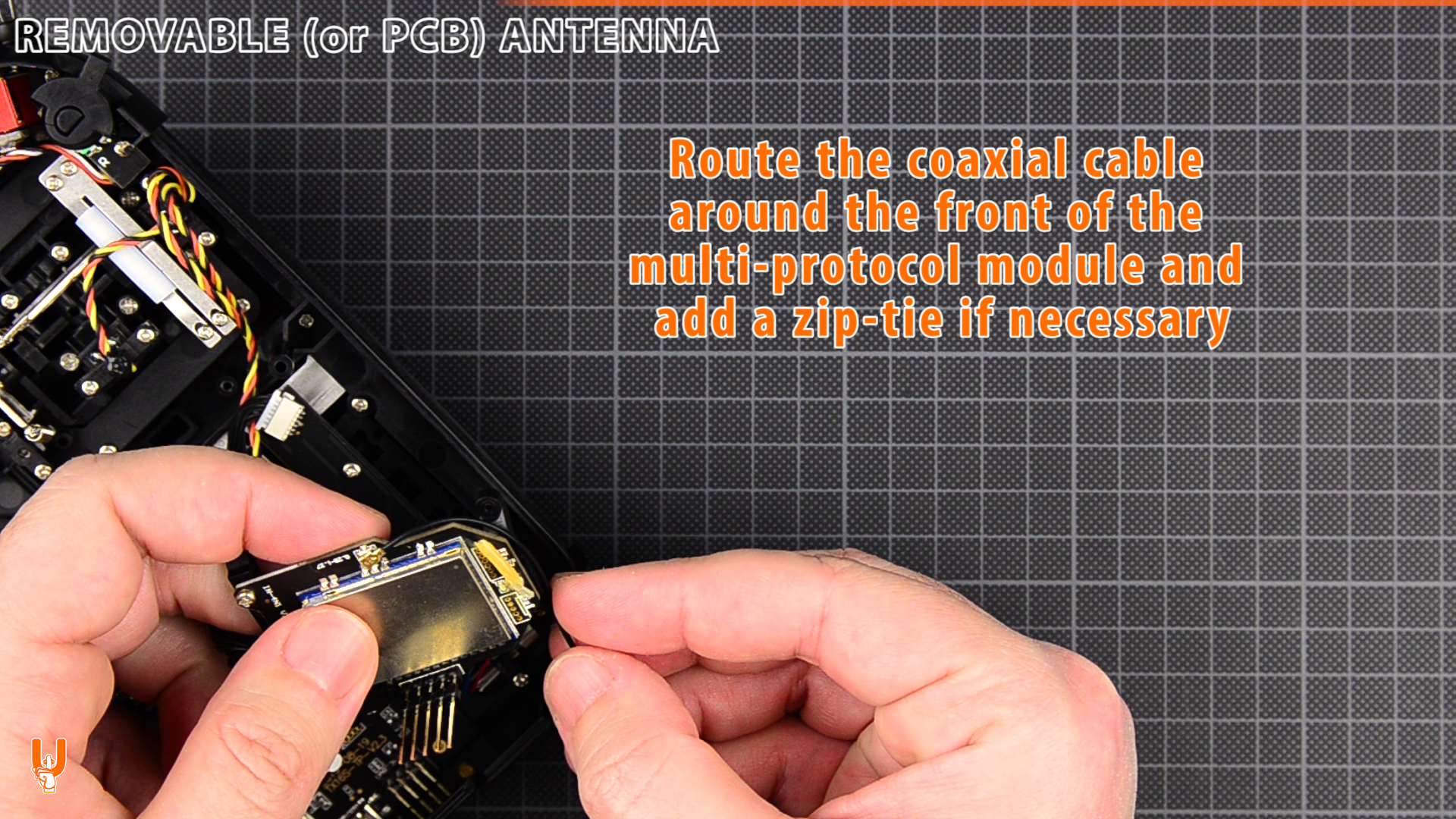

Removable antenna

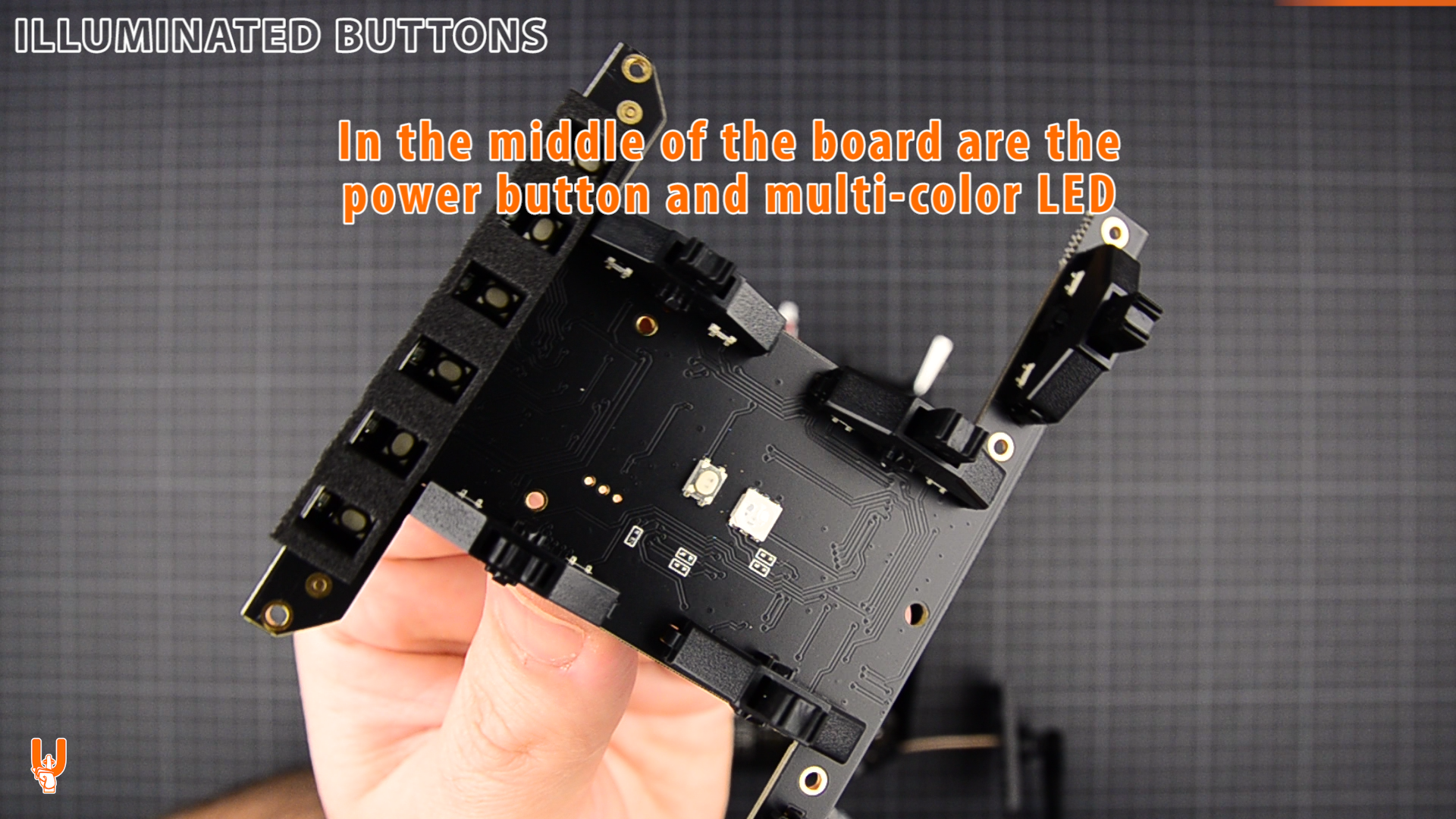

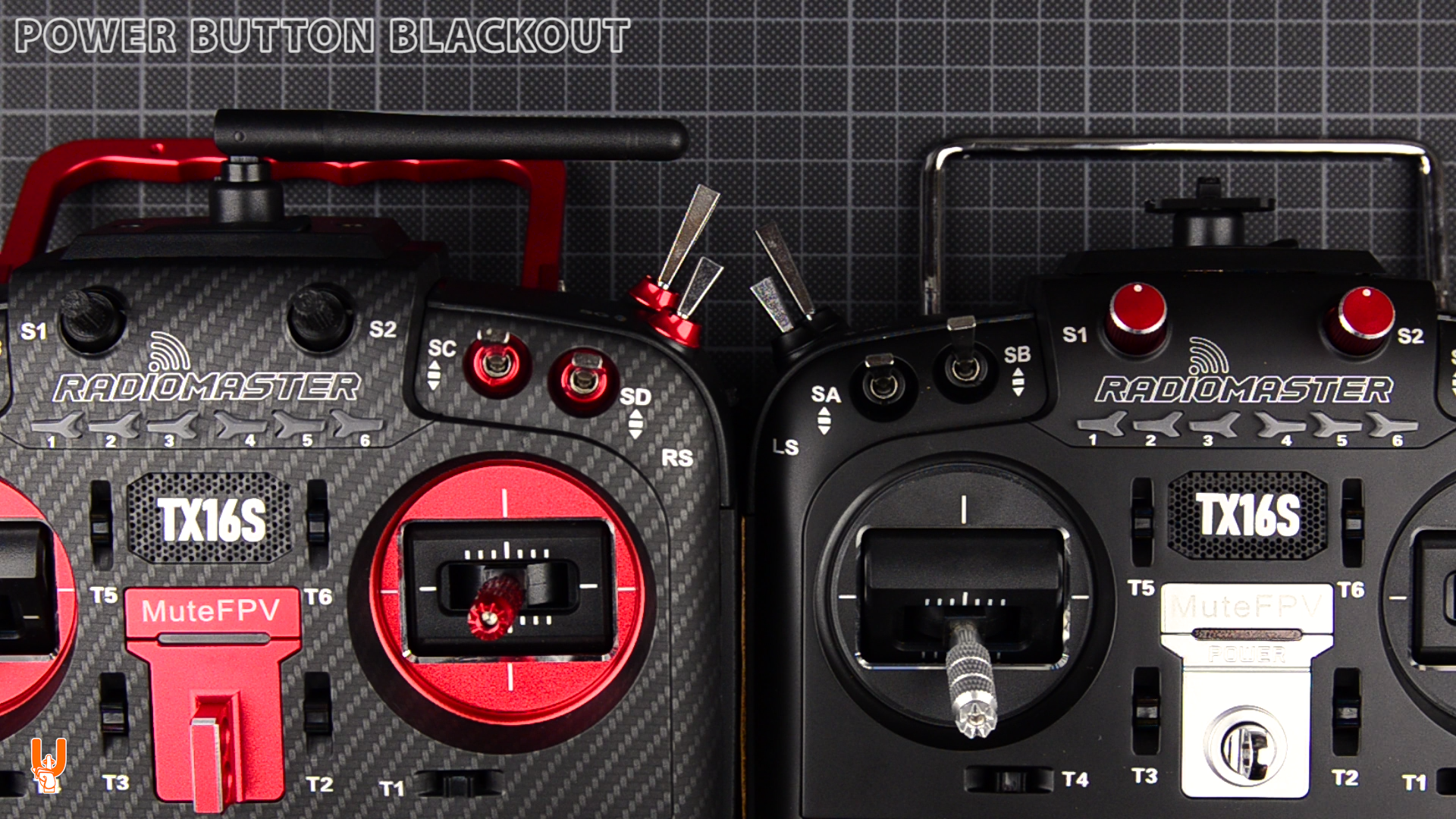

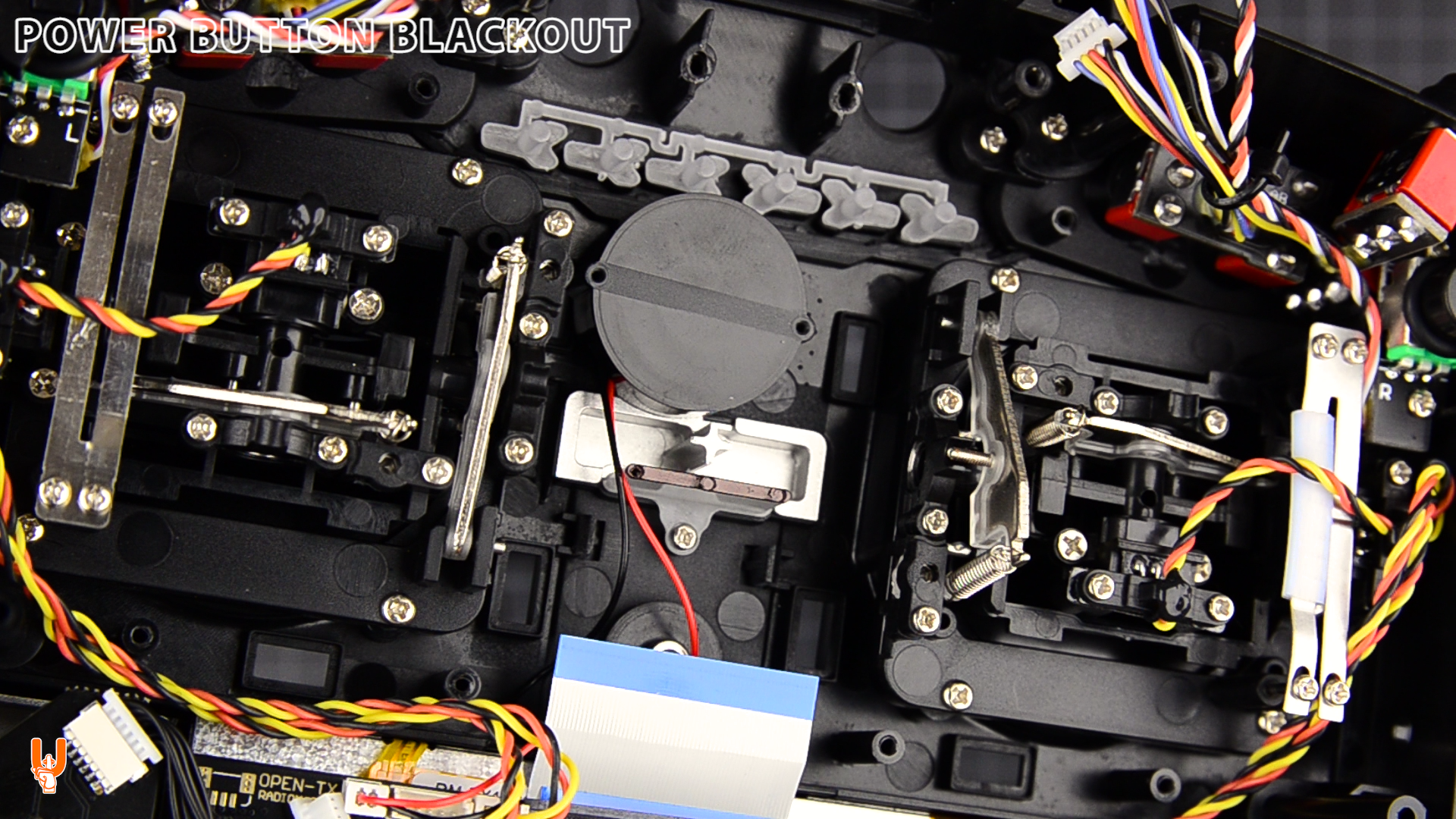

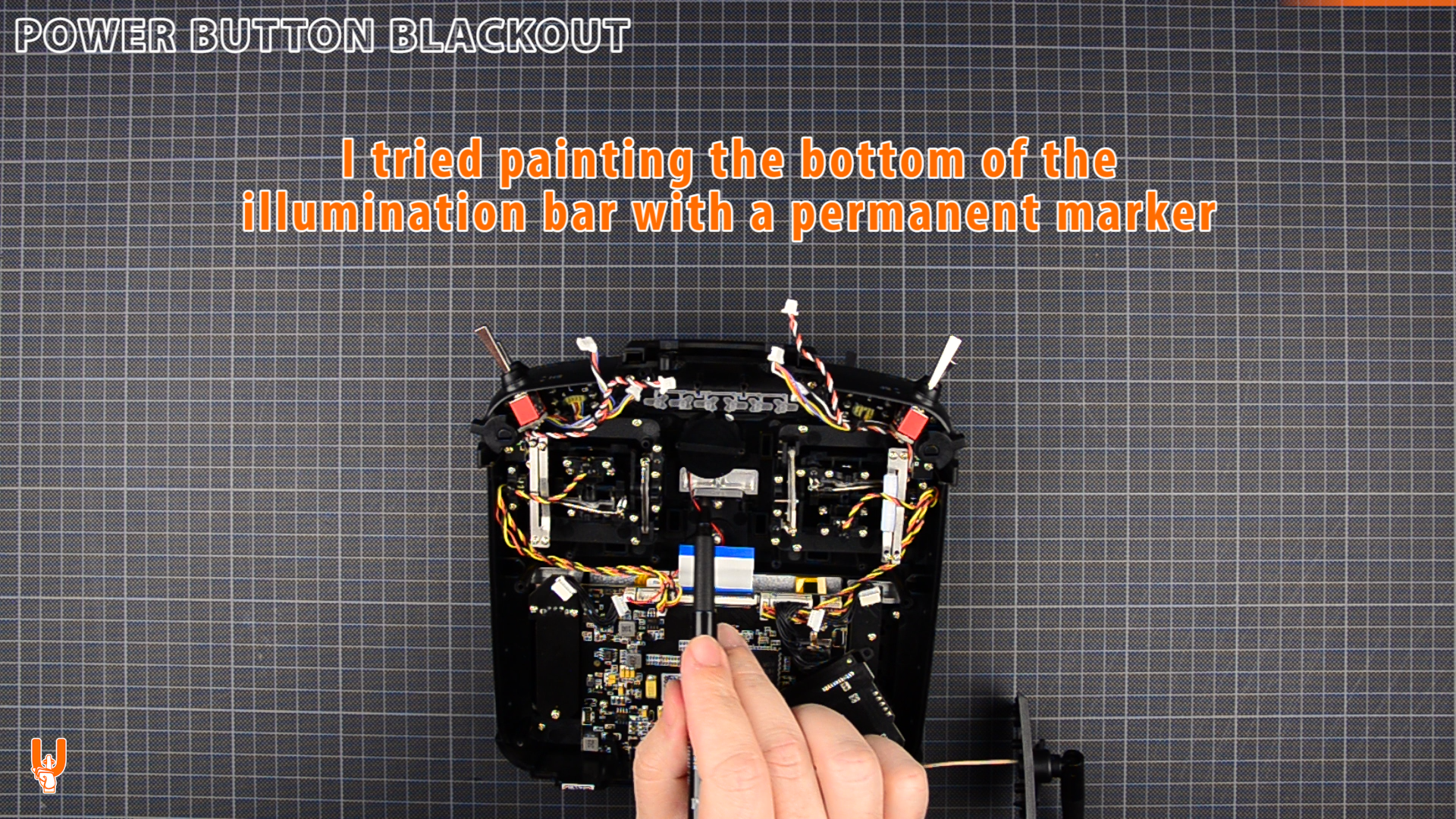

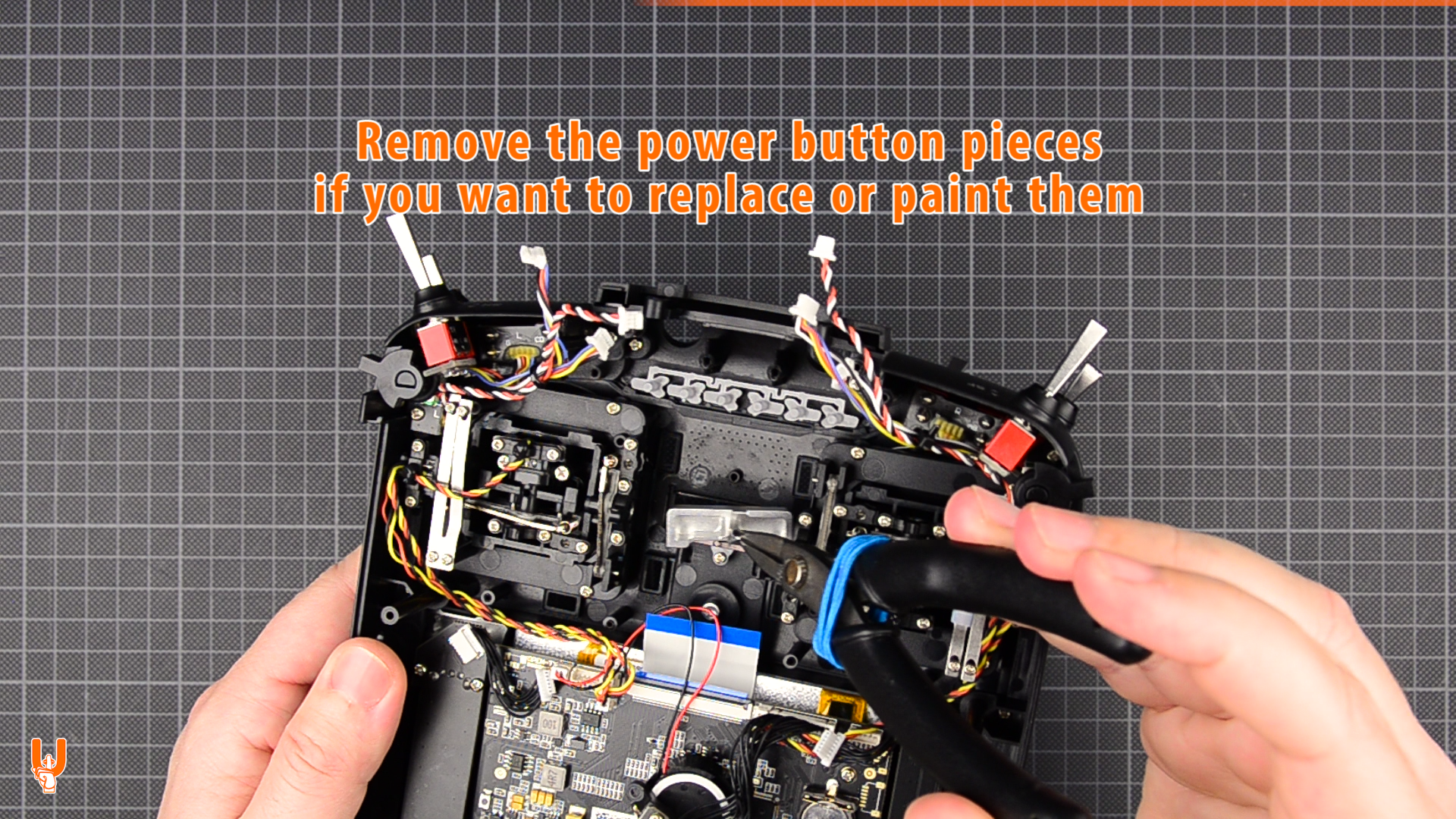

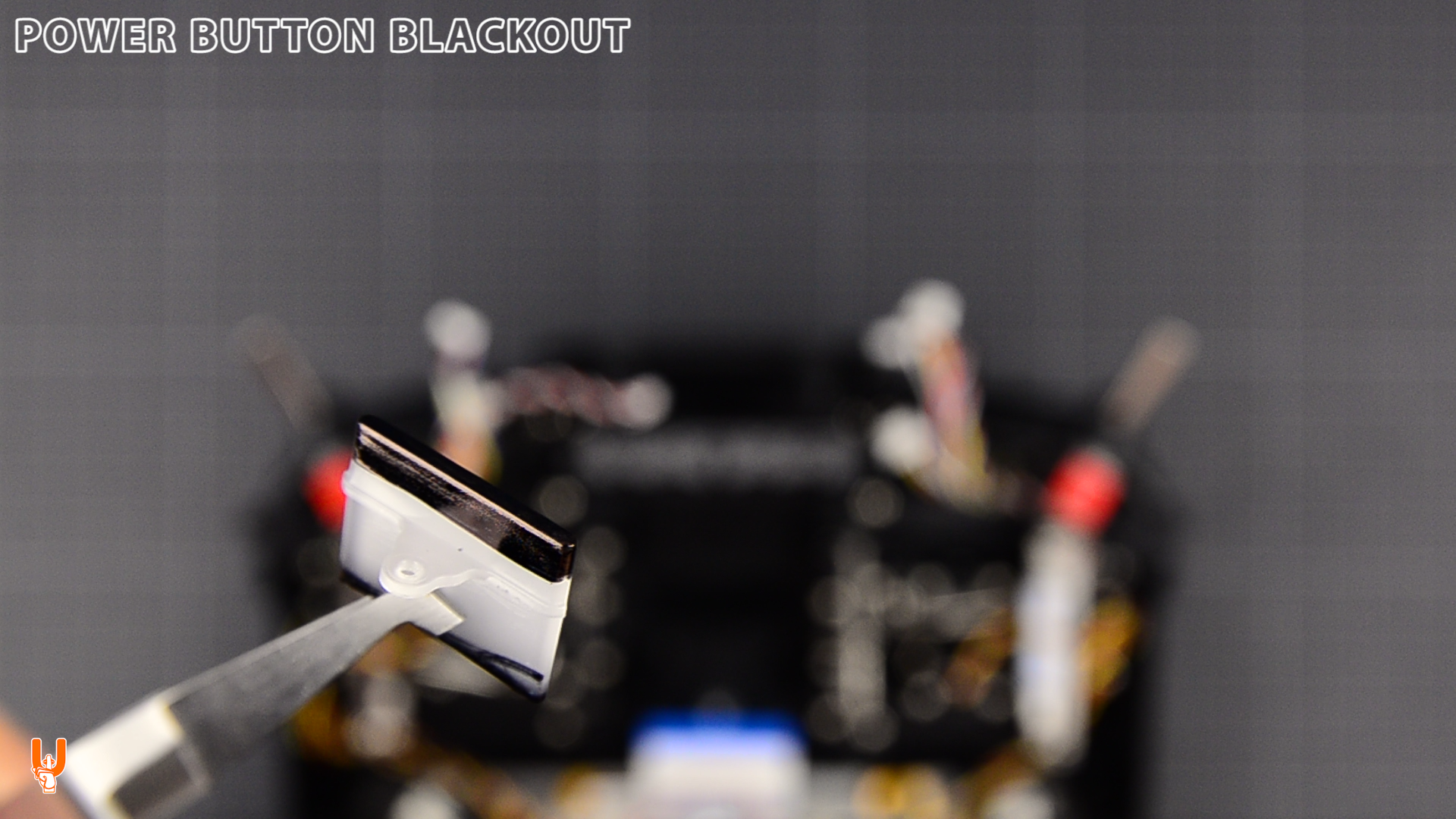

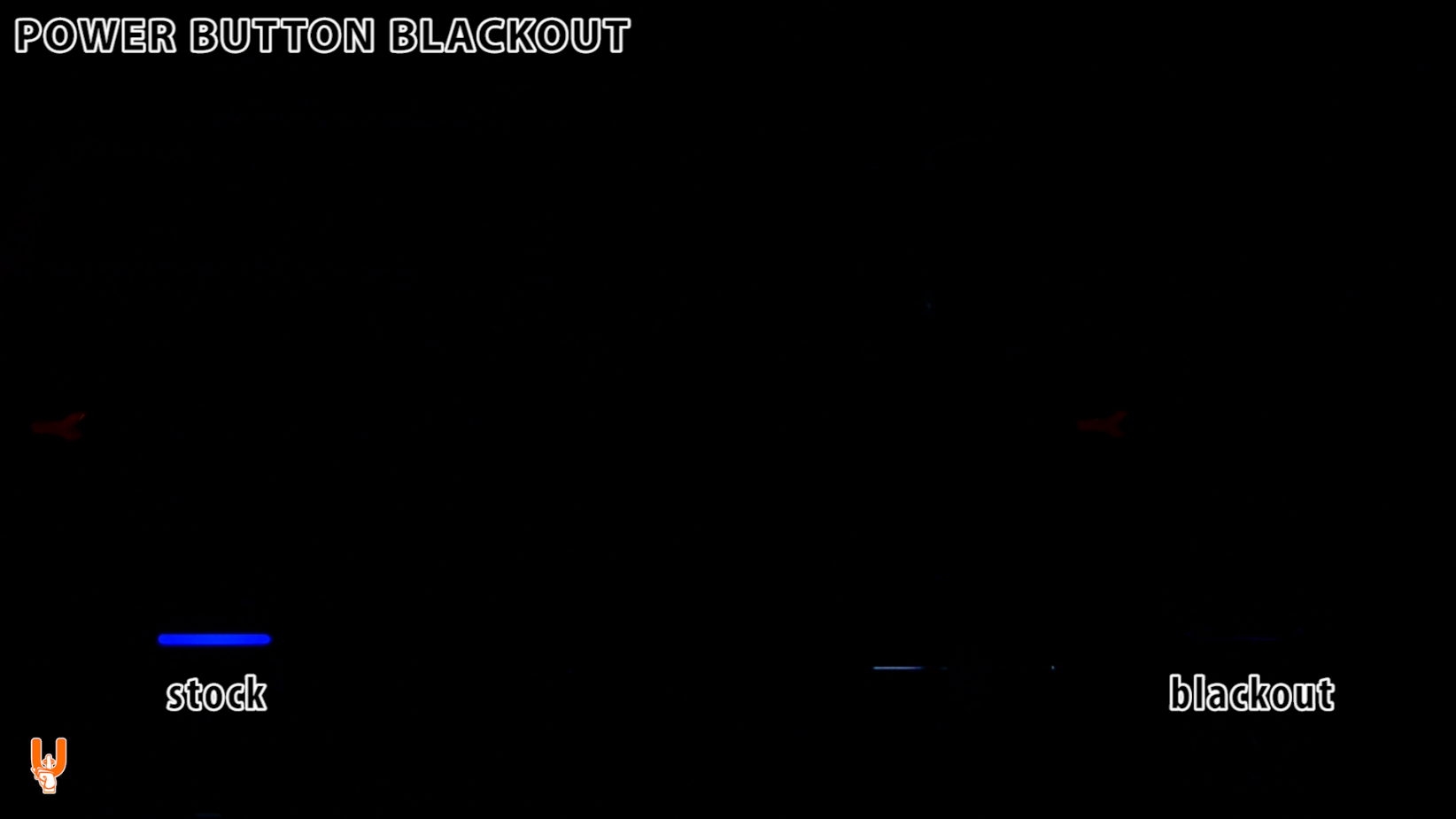

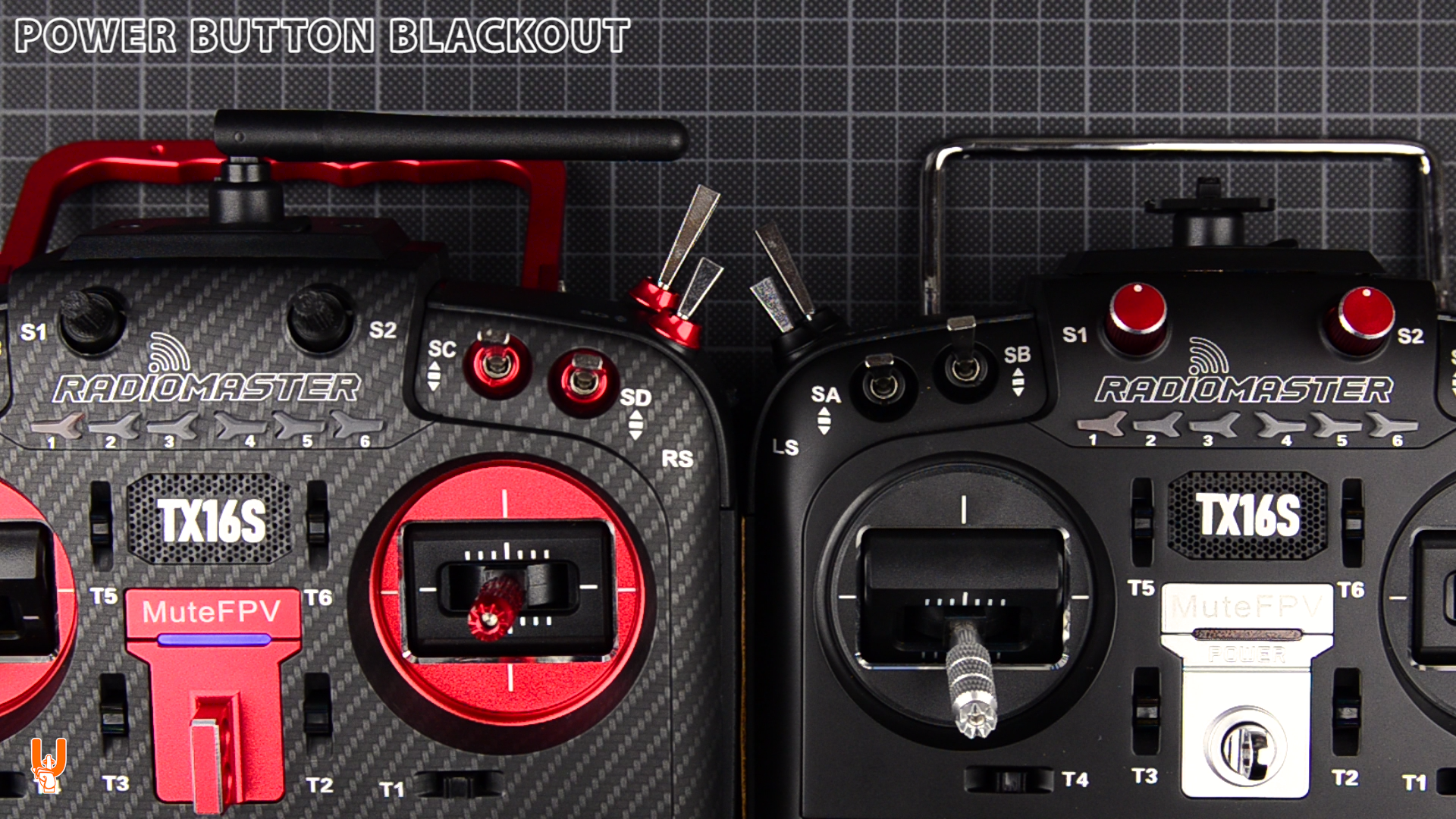

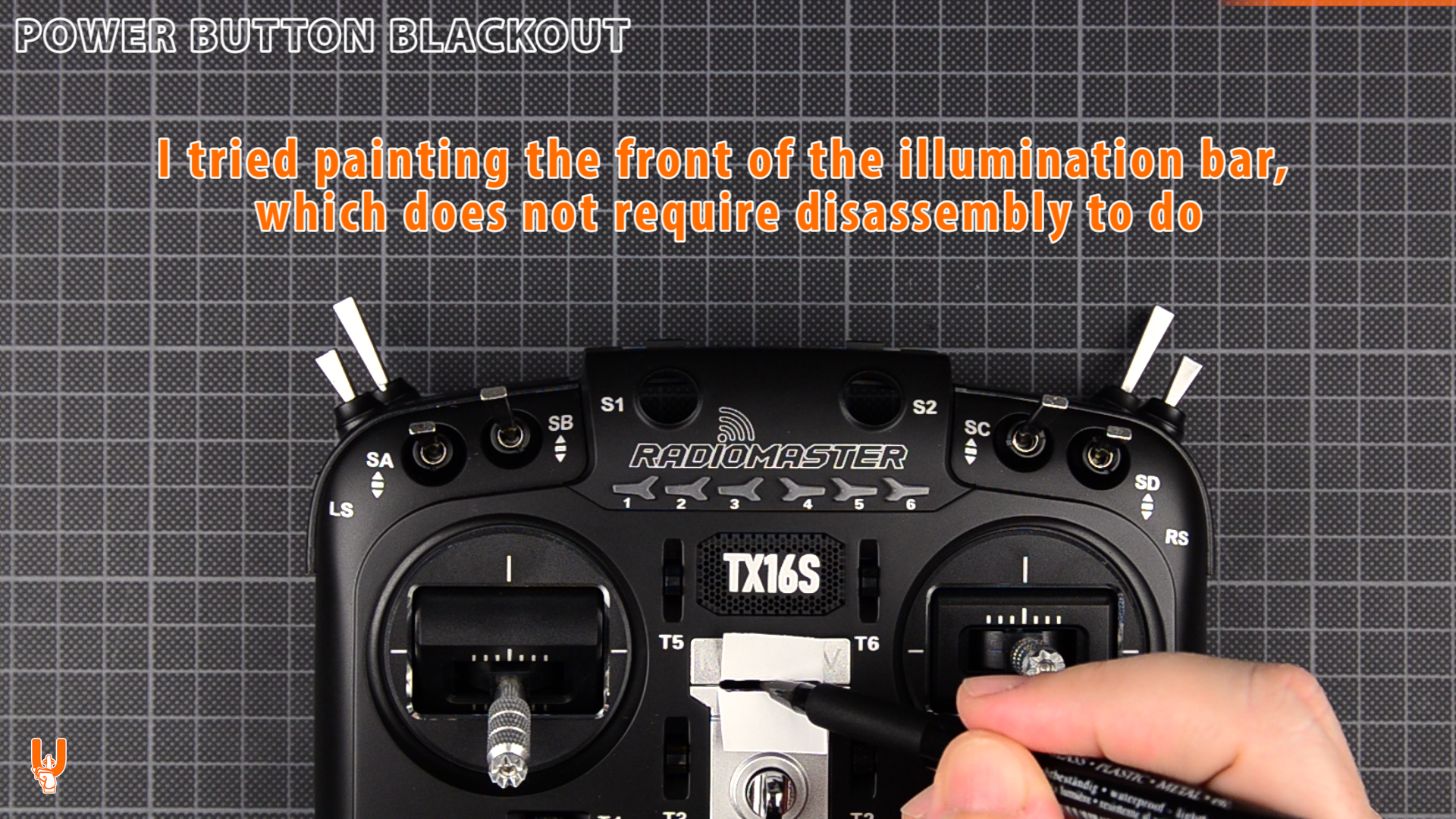

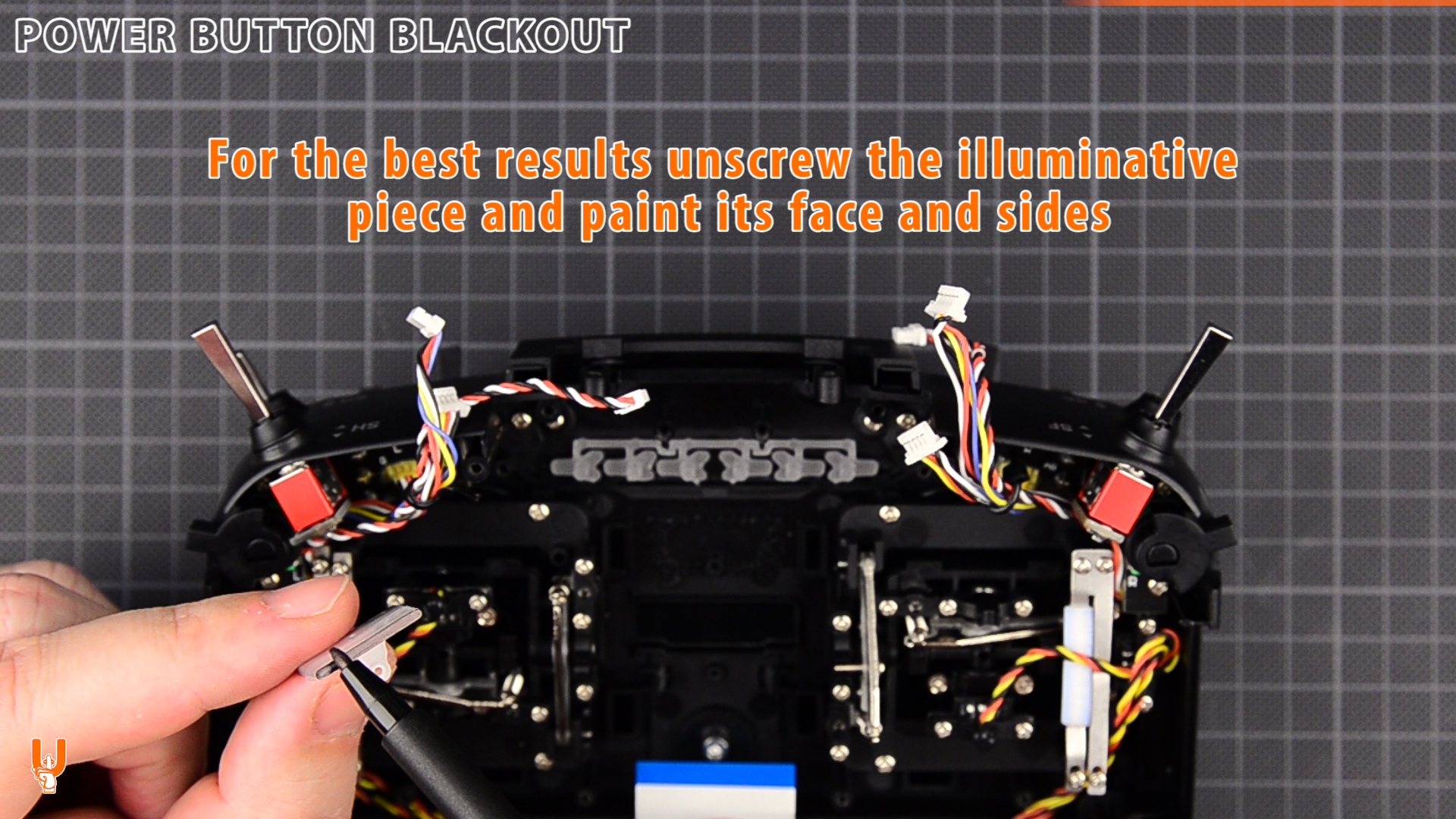

Power button blackout

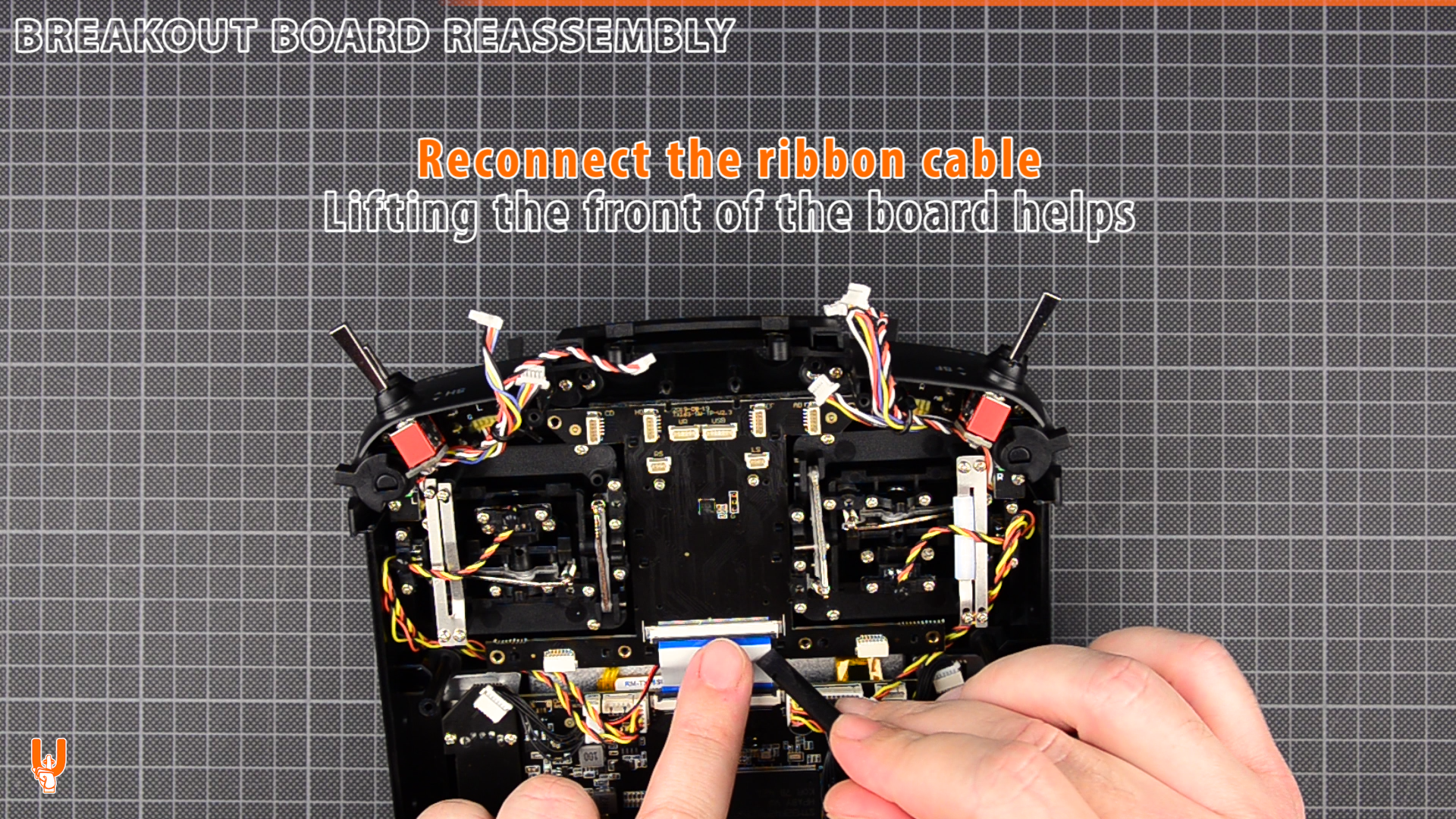

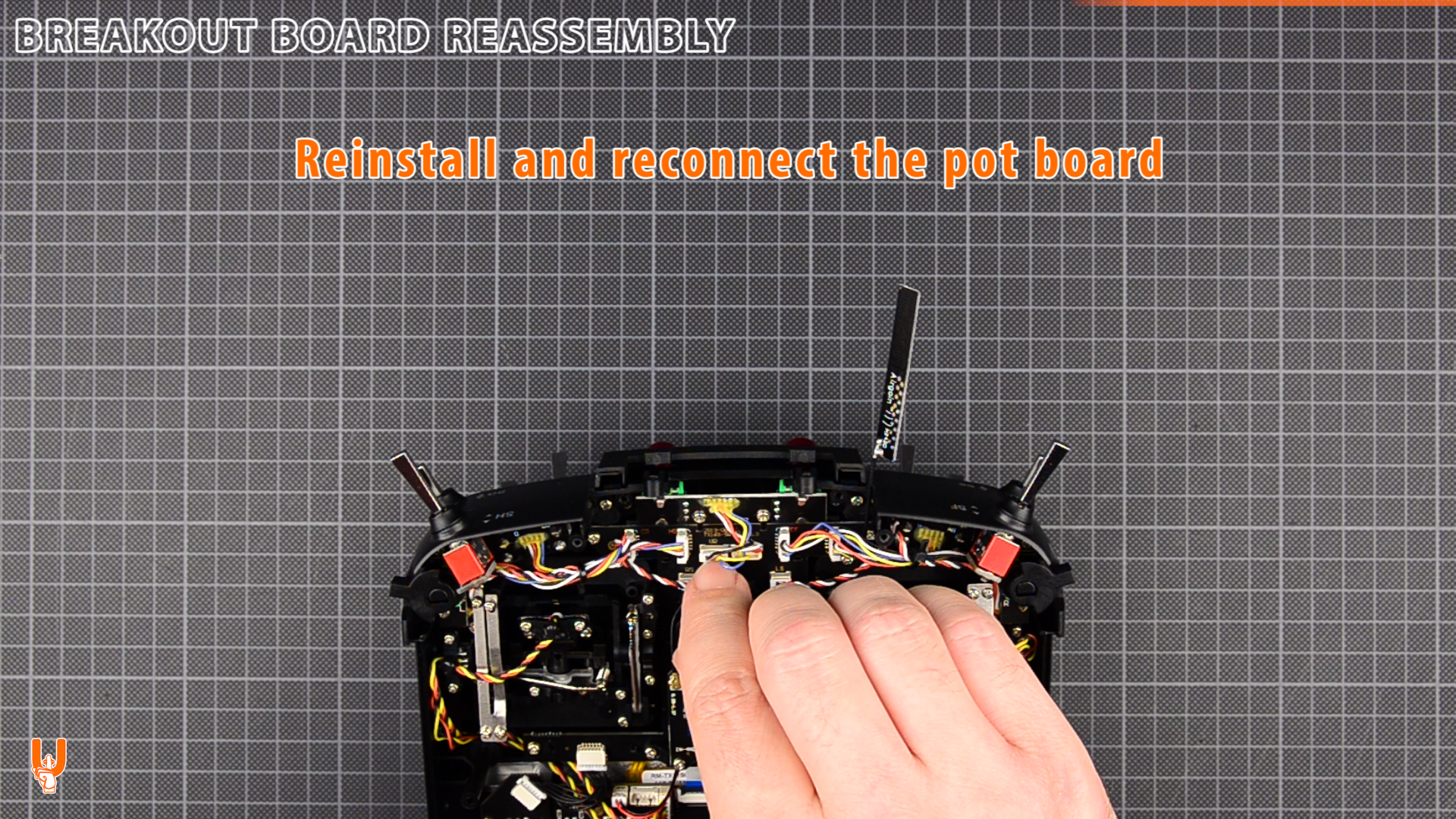

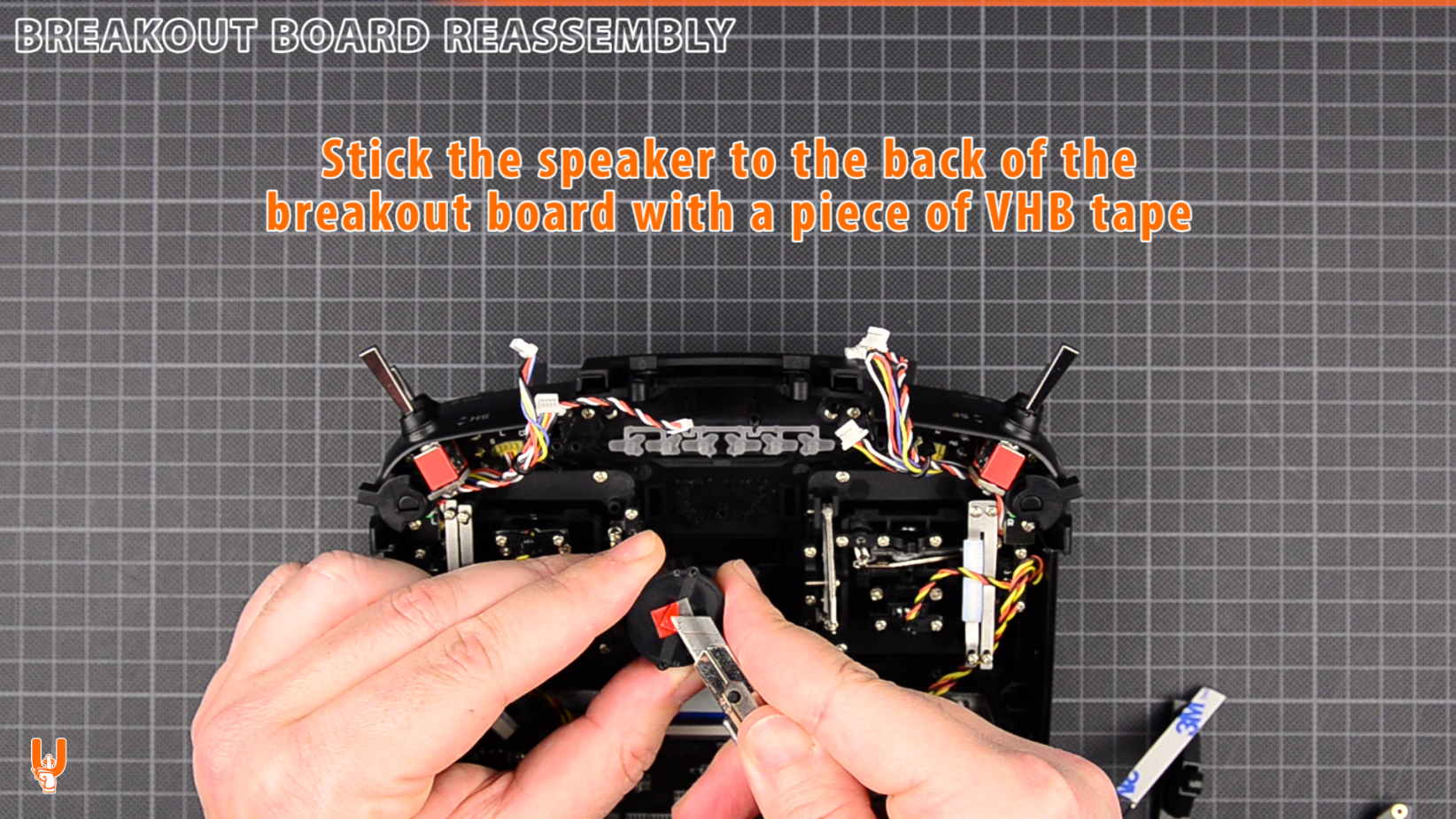

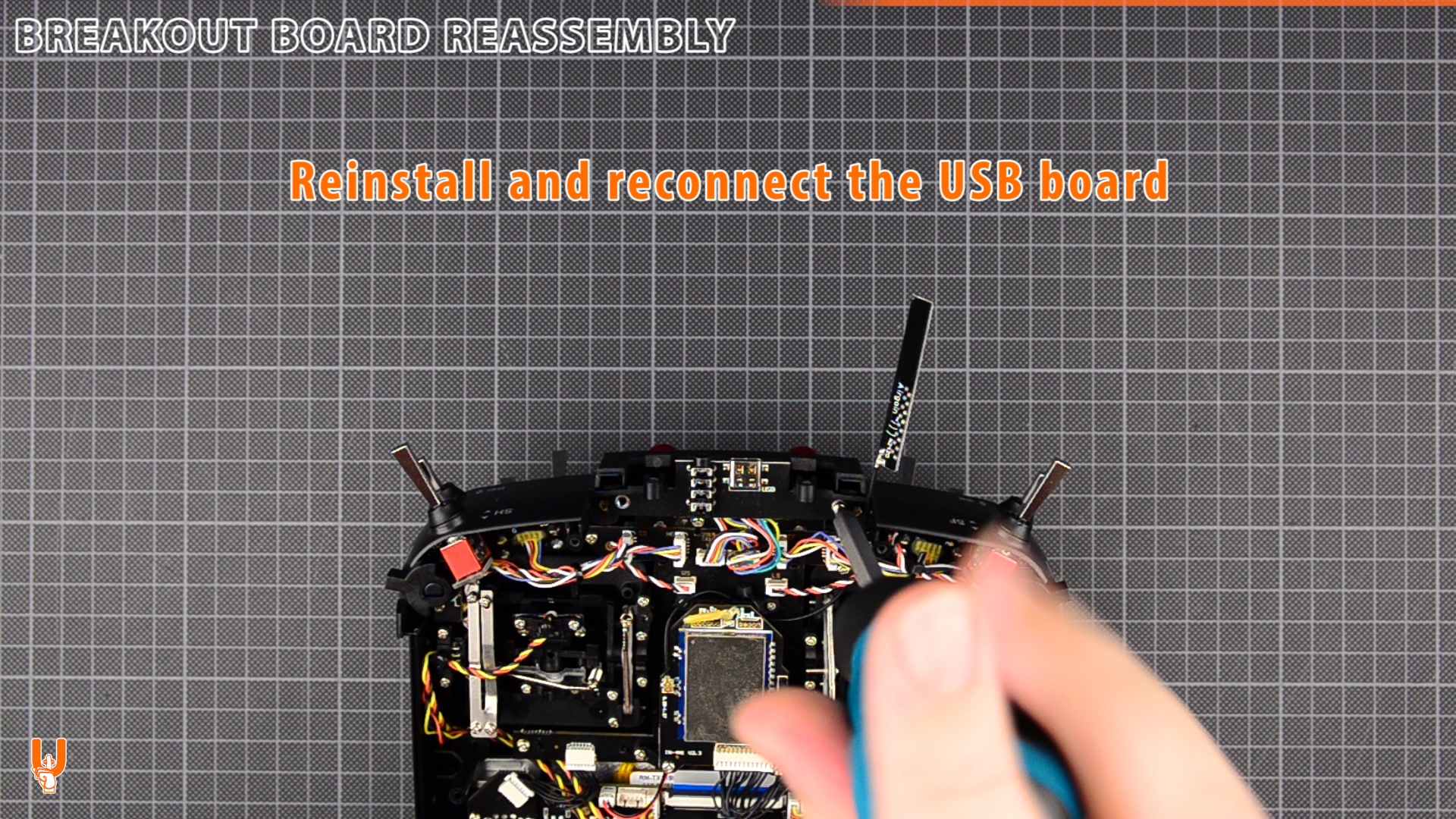

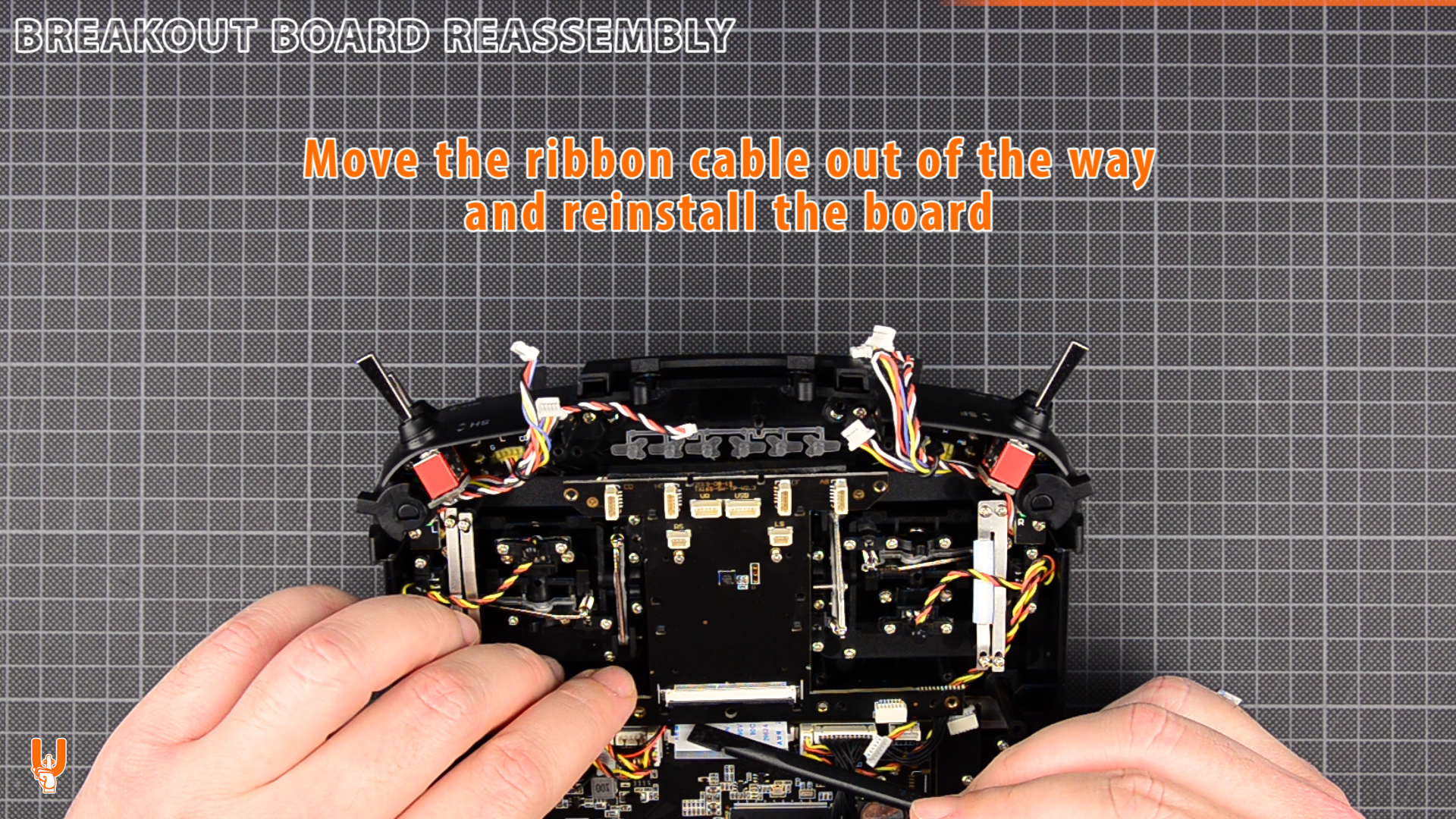

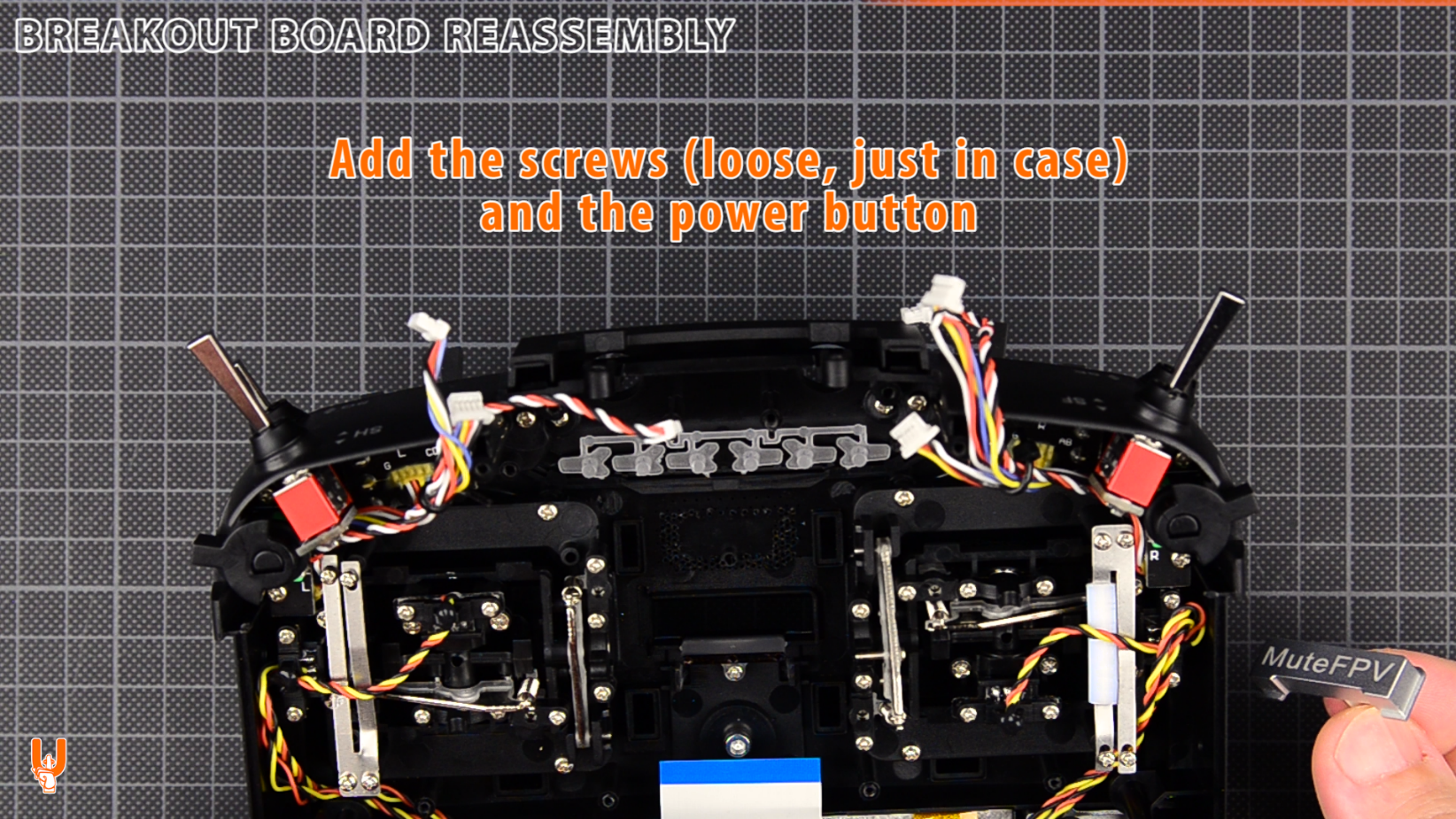

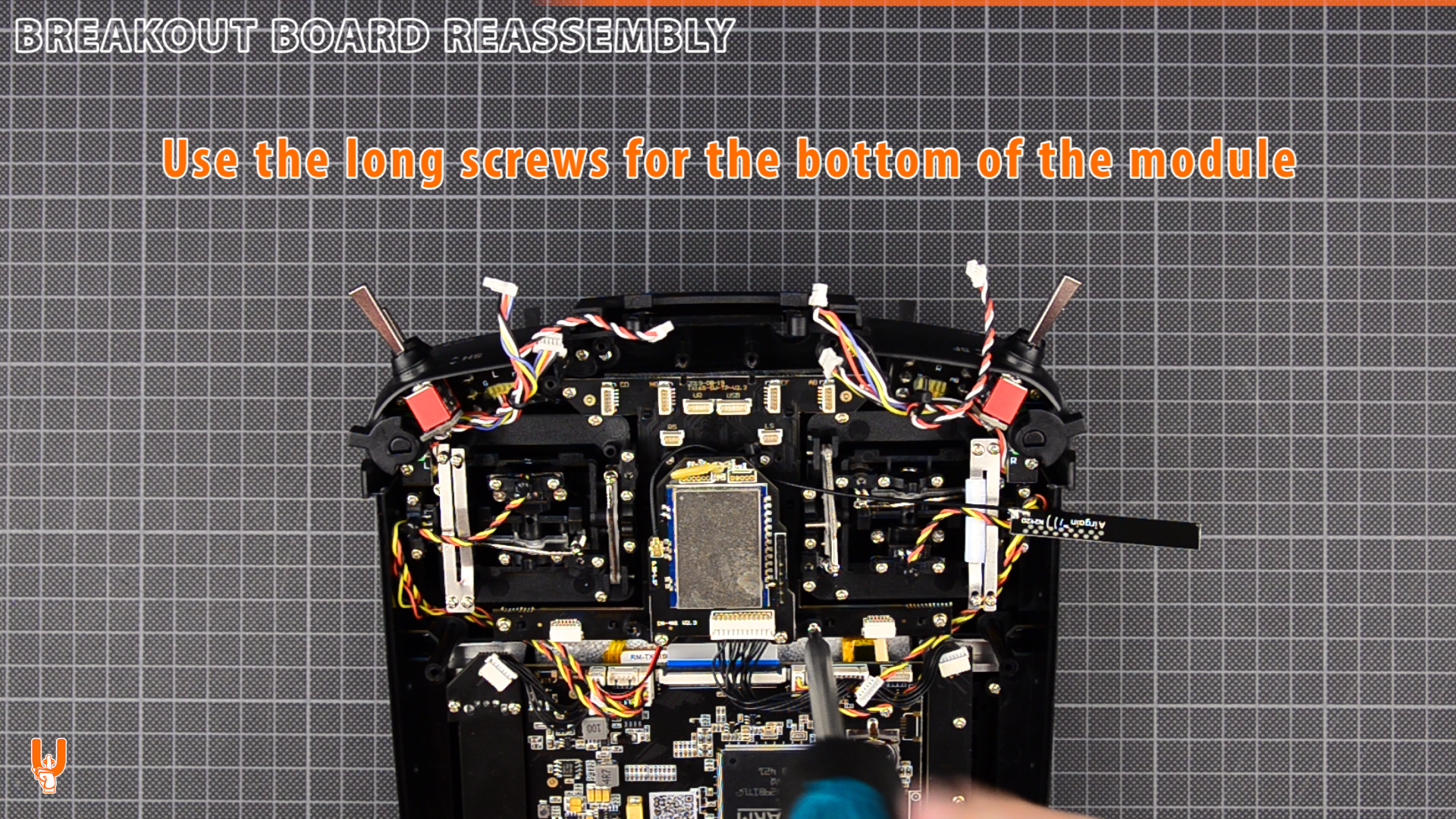

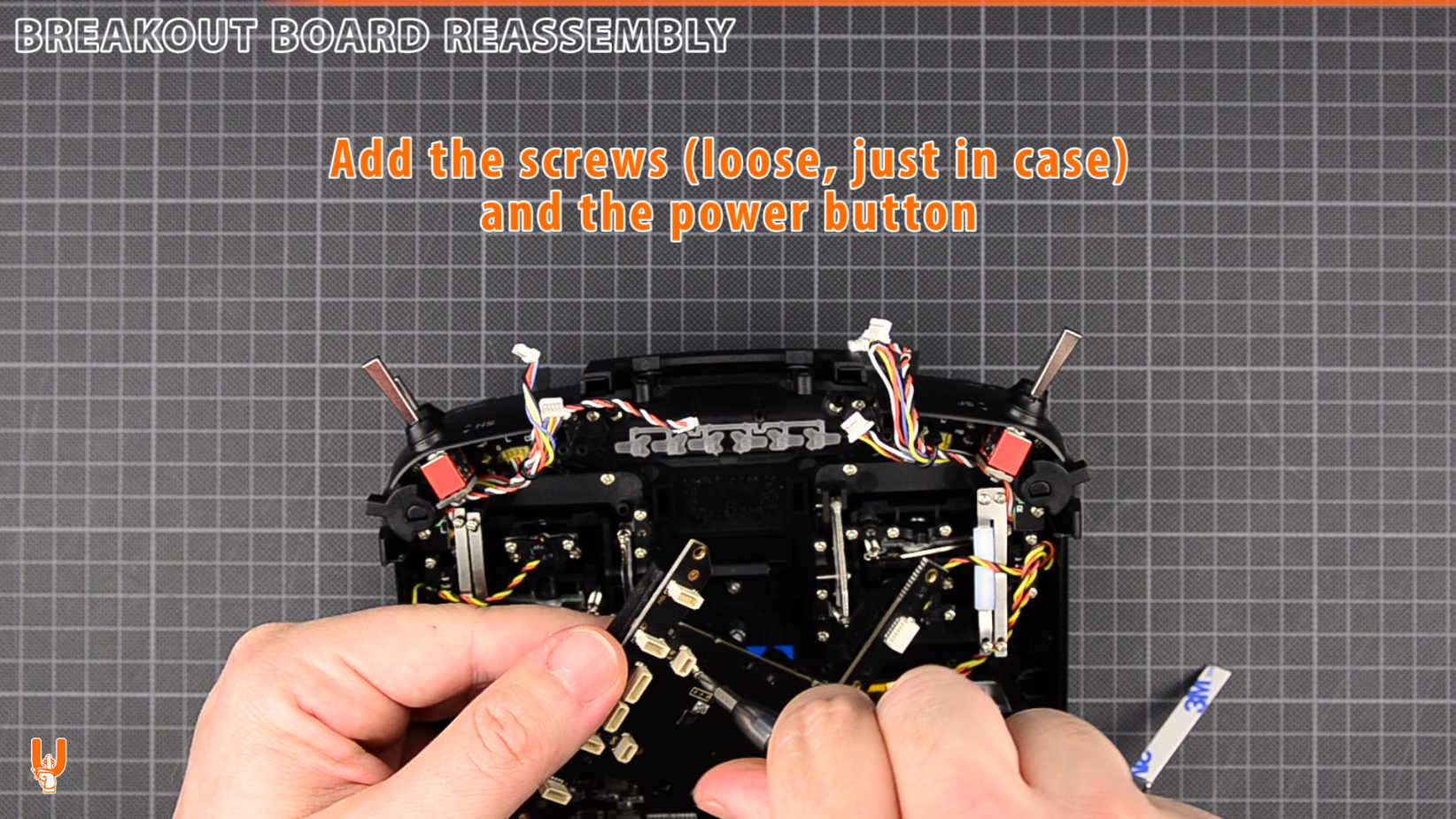

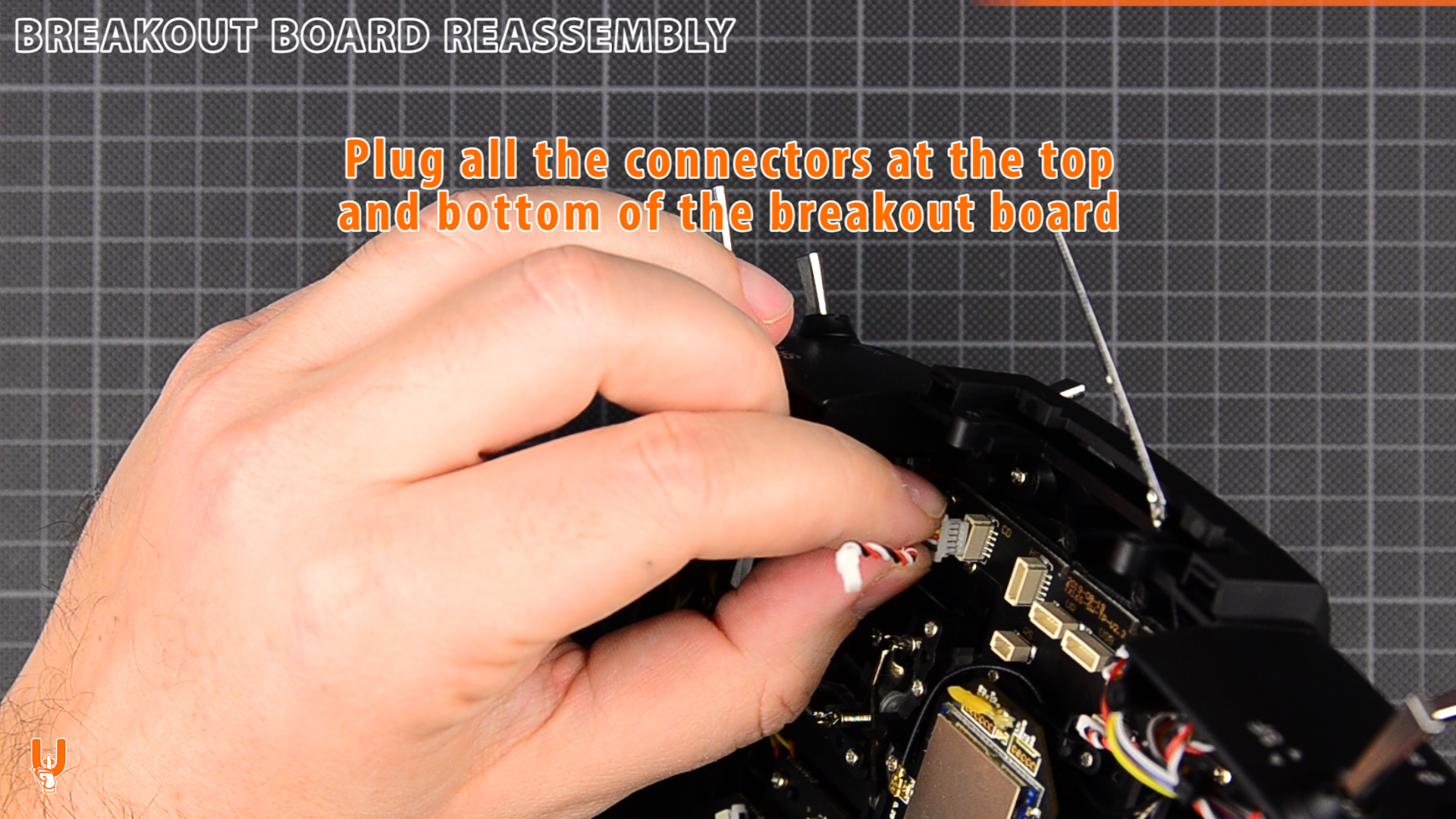

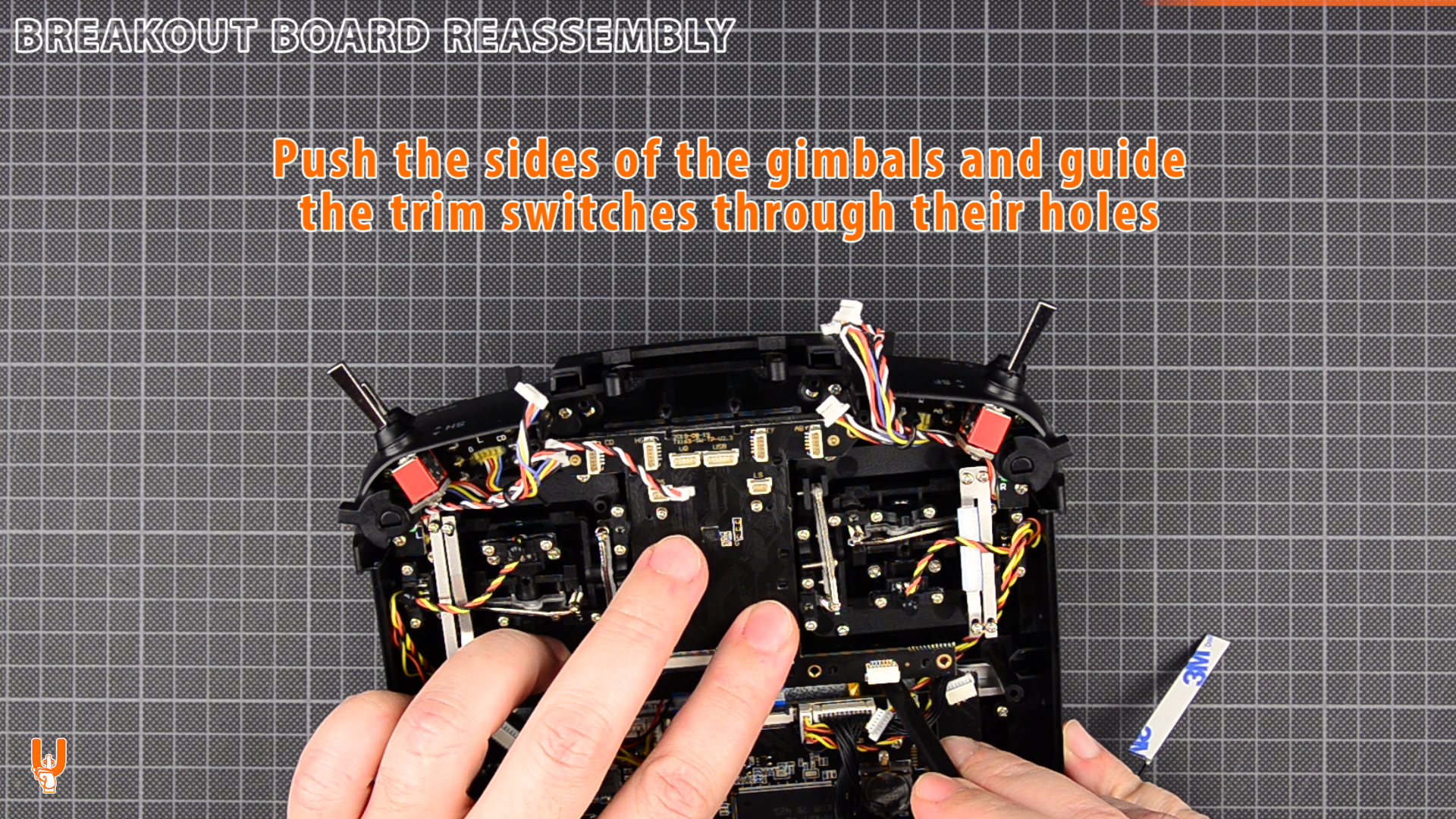

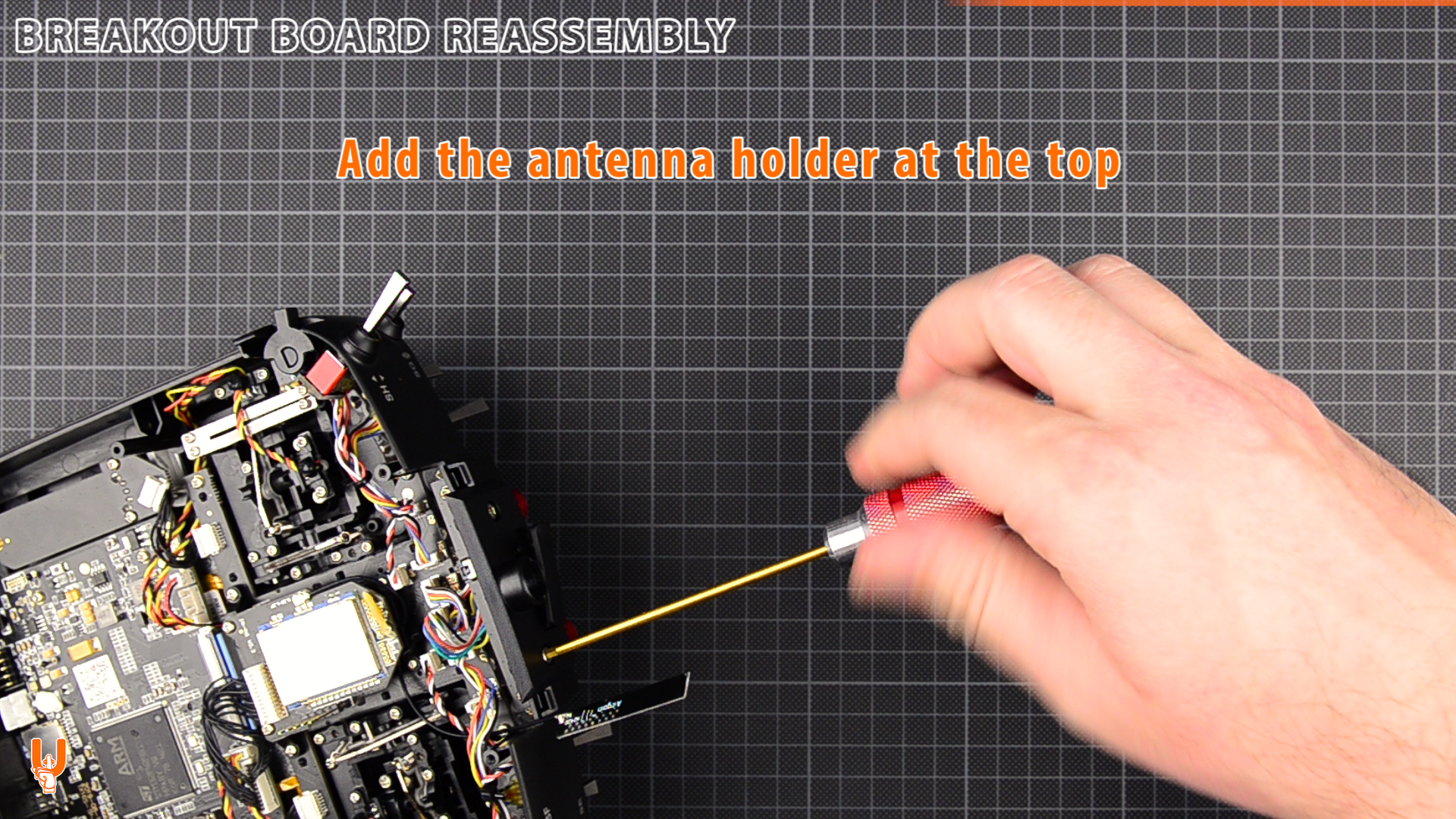

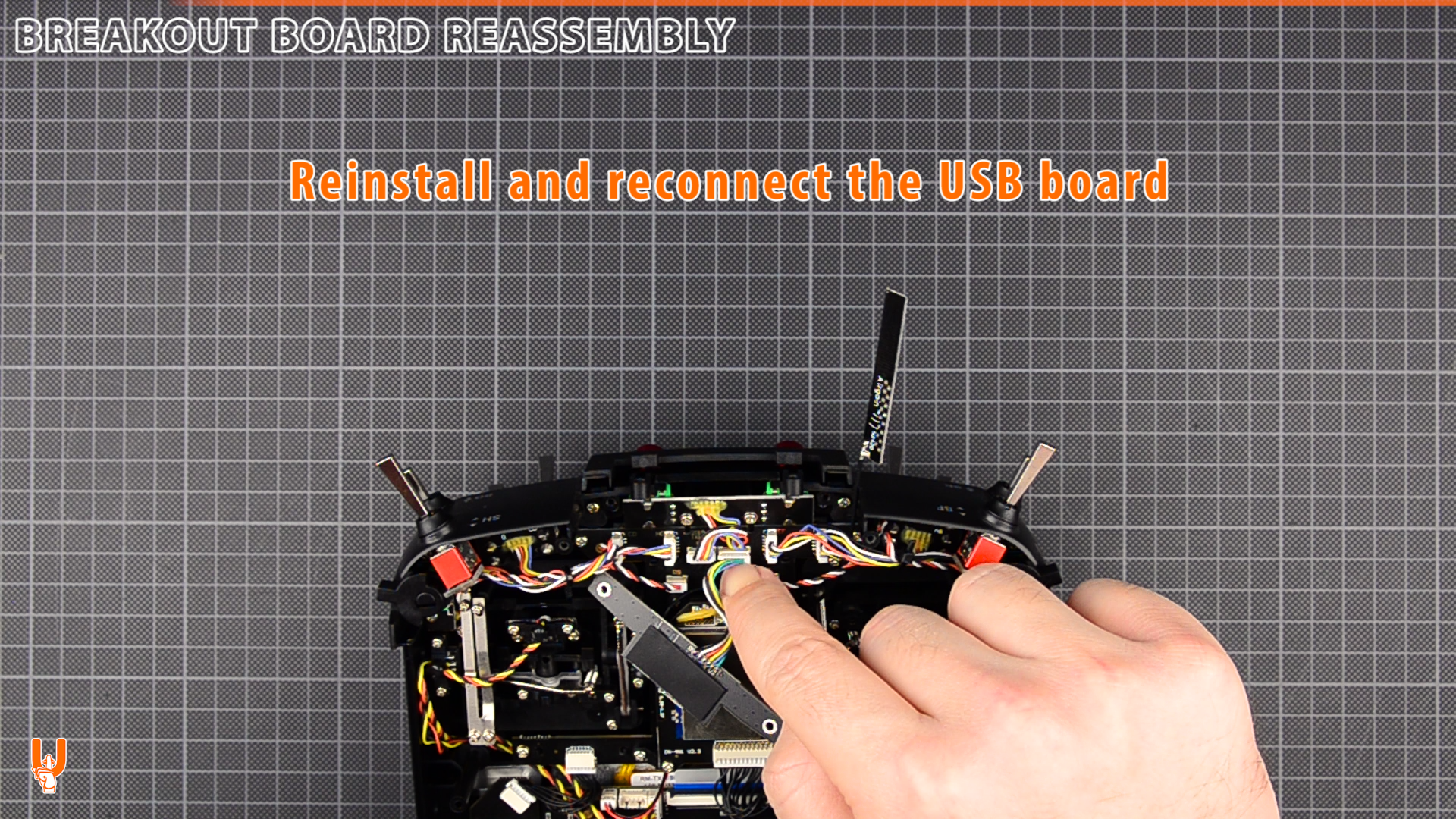

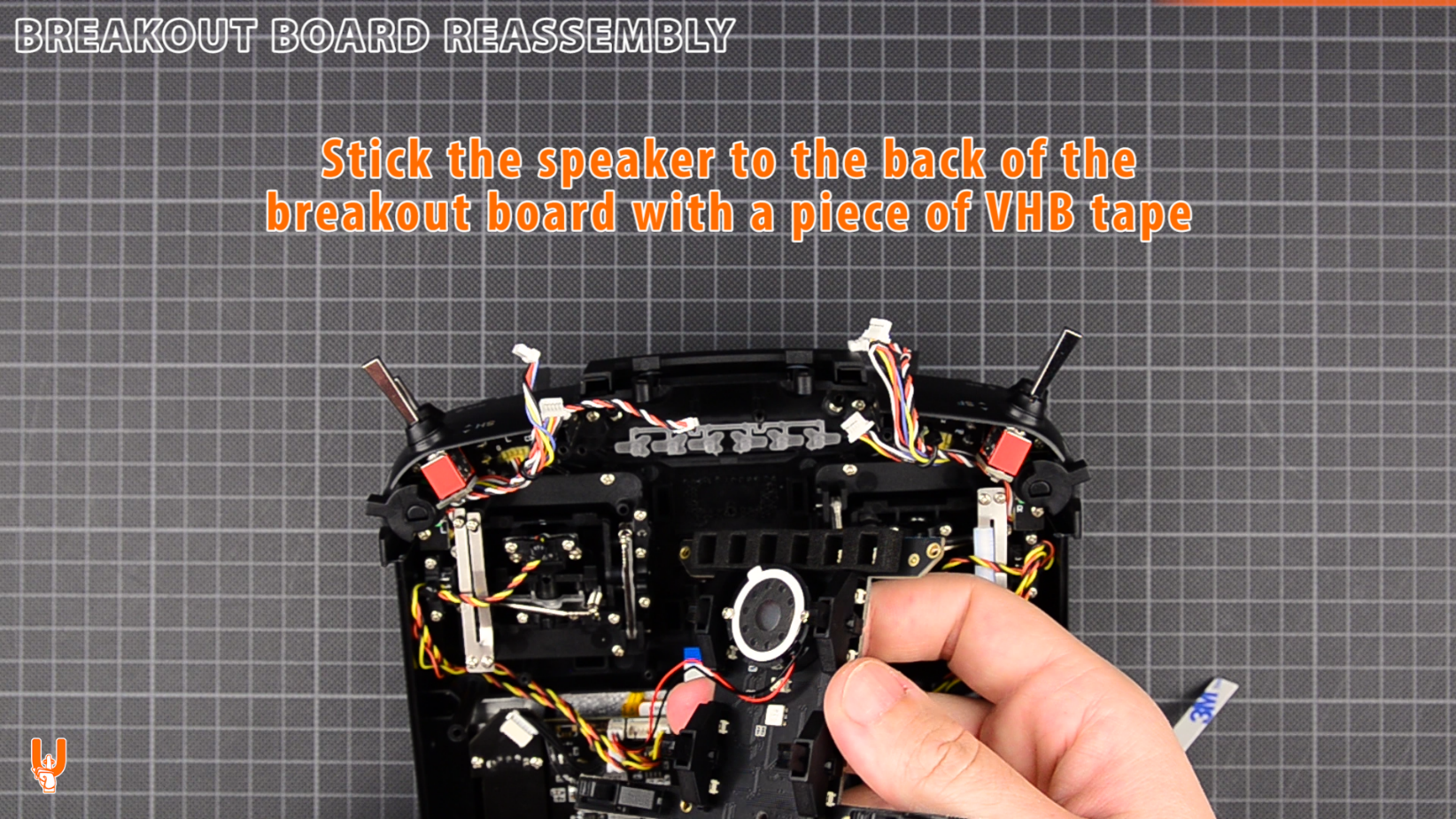

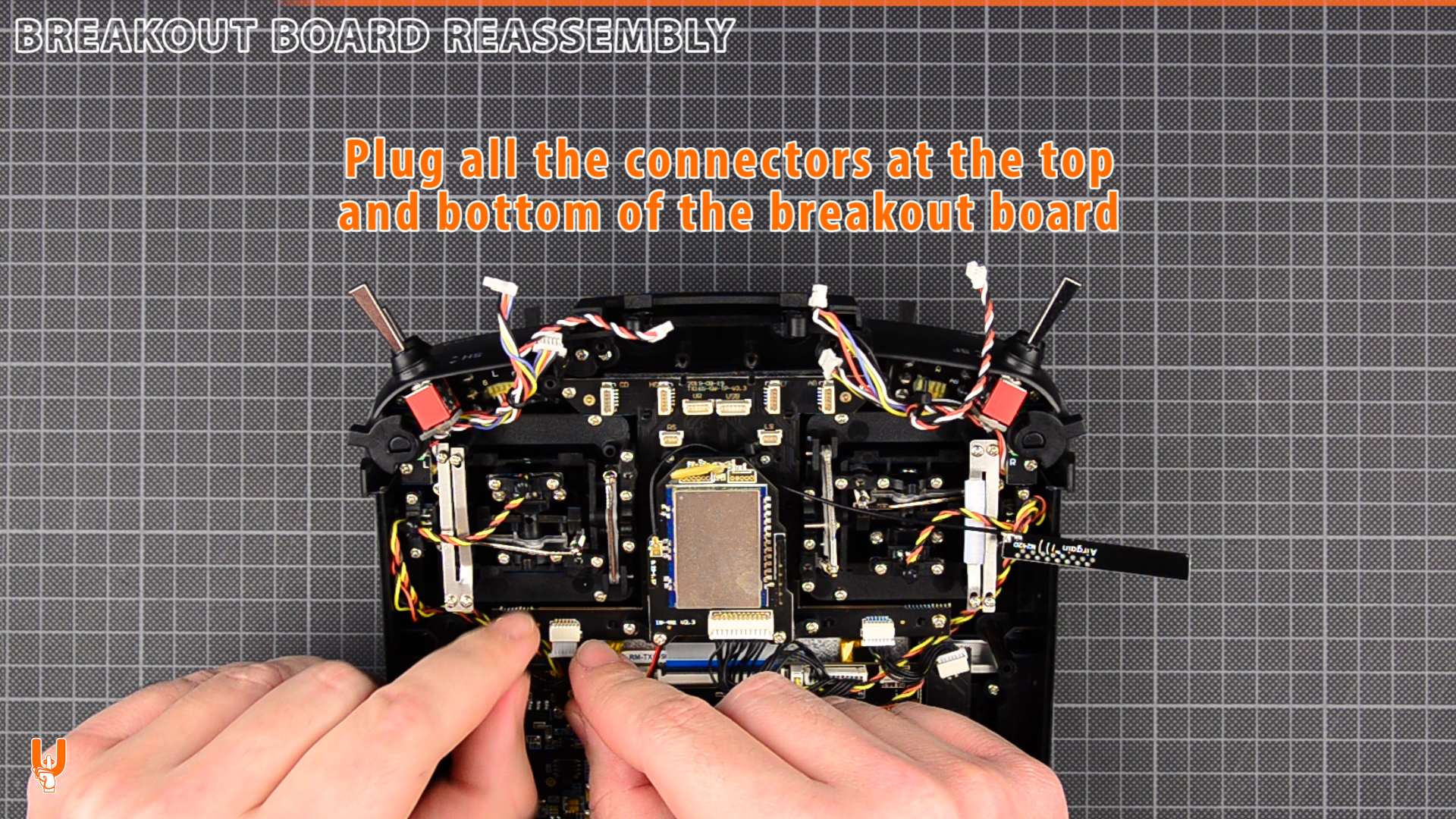

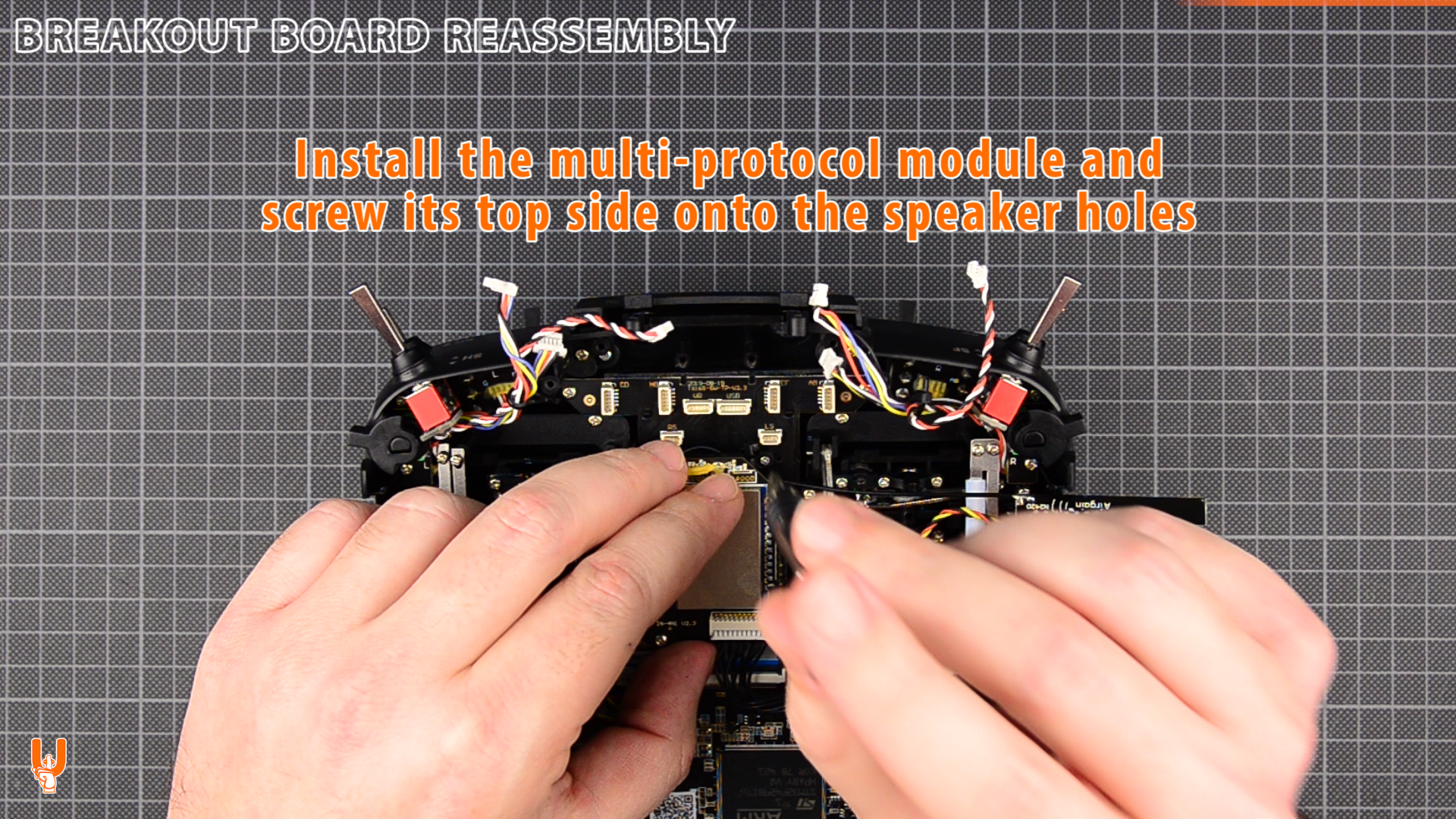

Breakout board reassembly

PART 3:

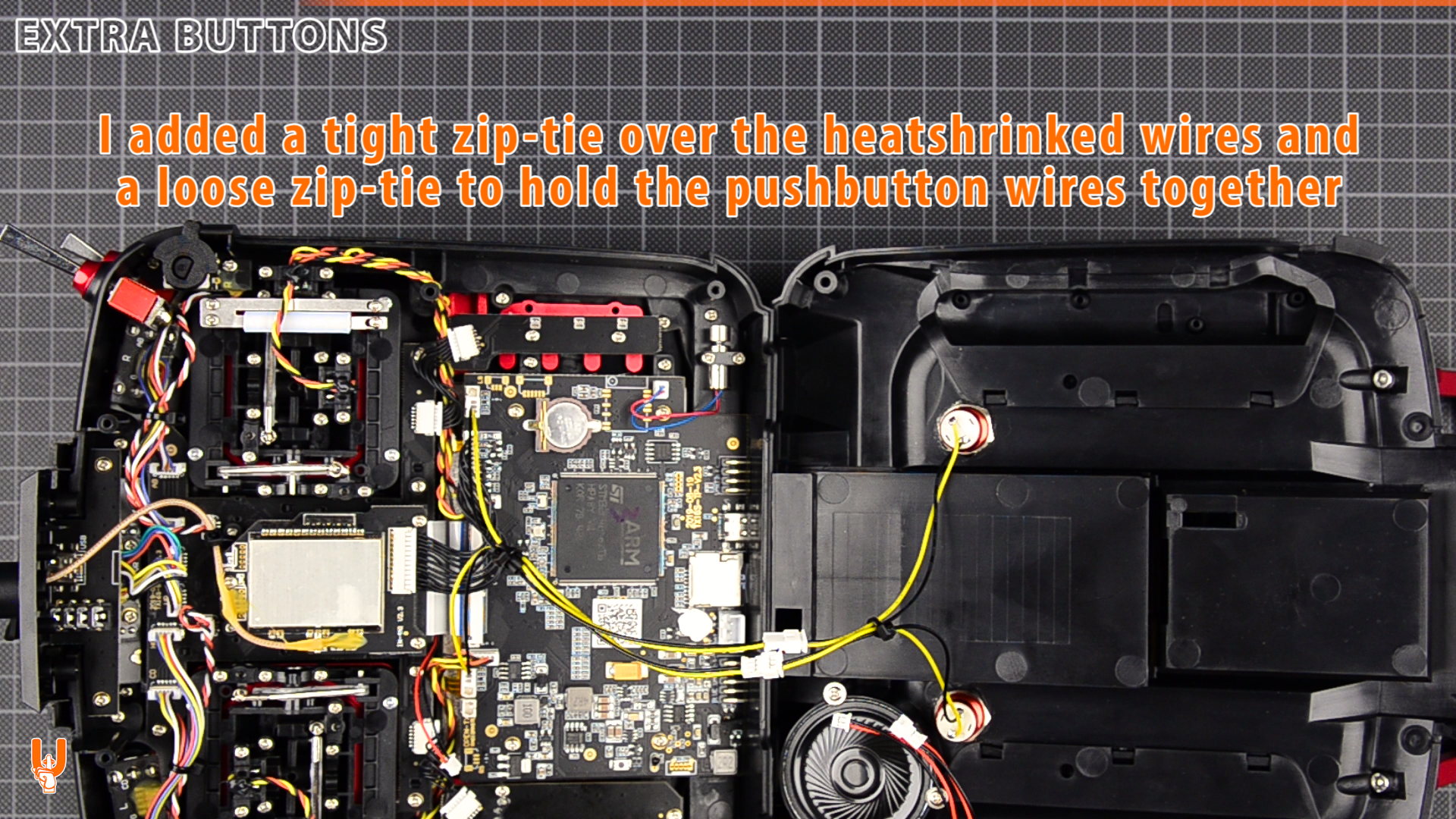

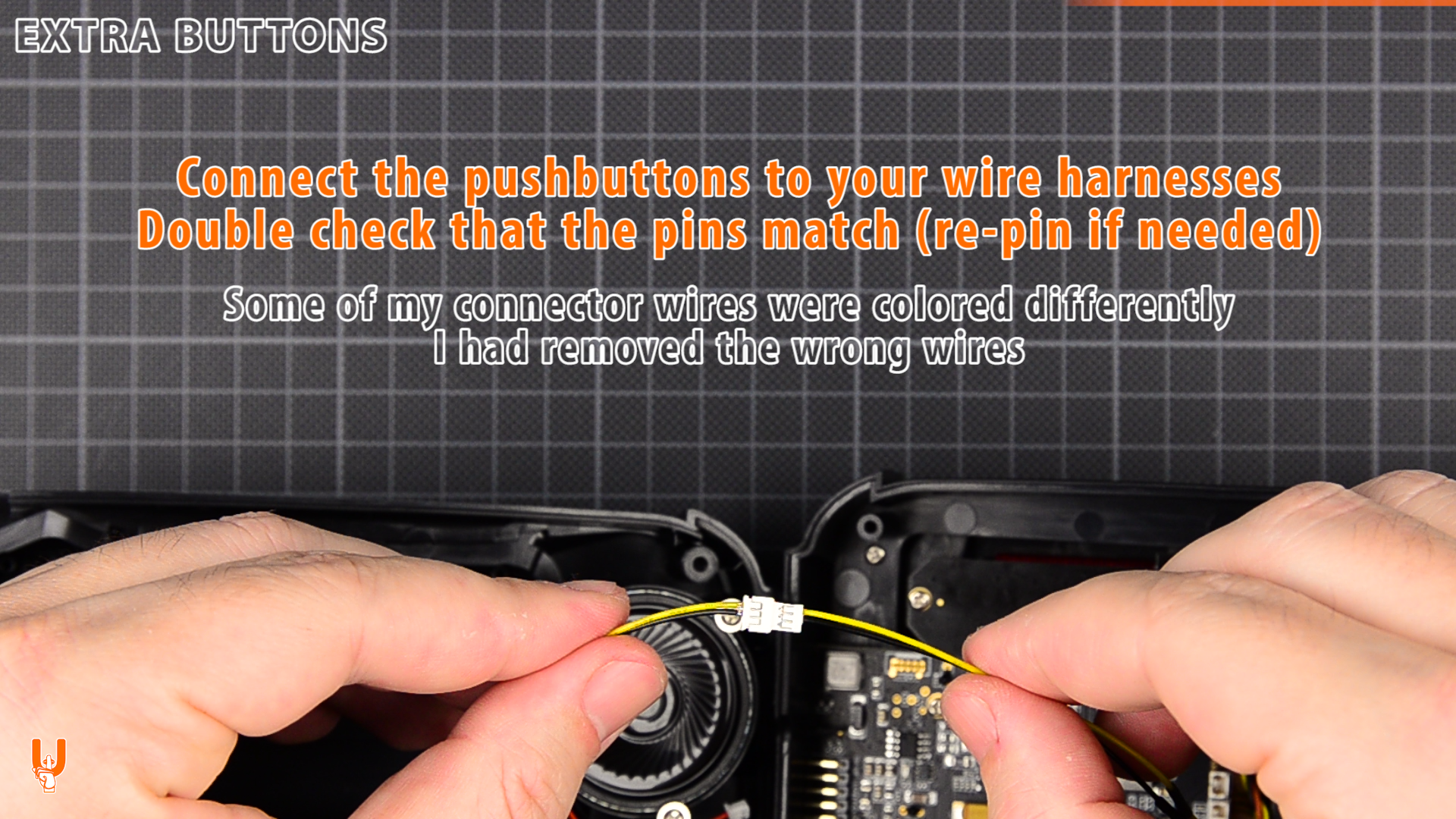

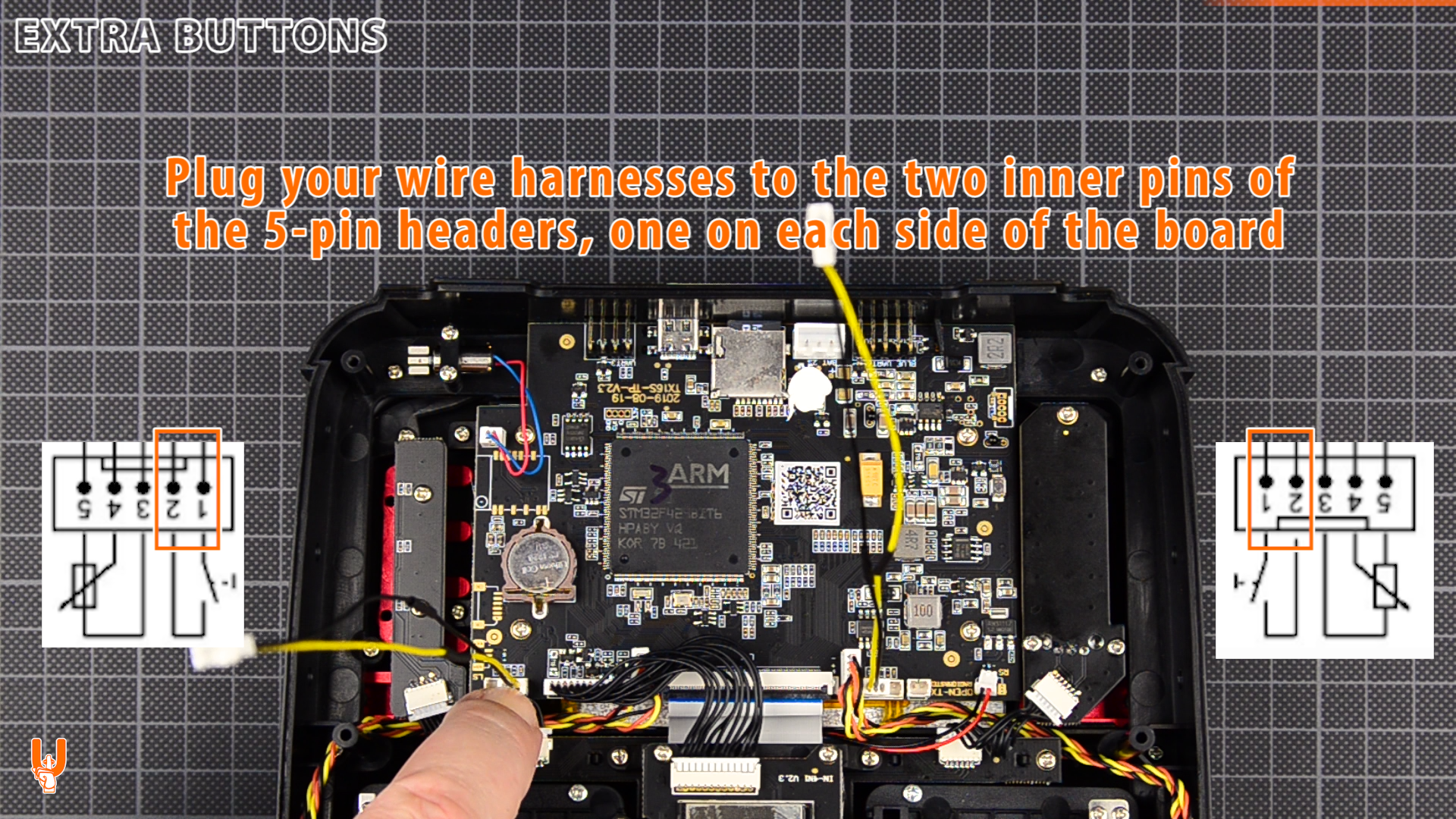

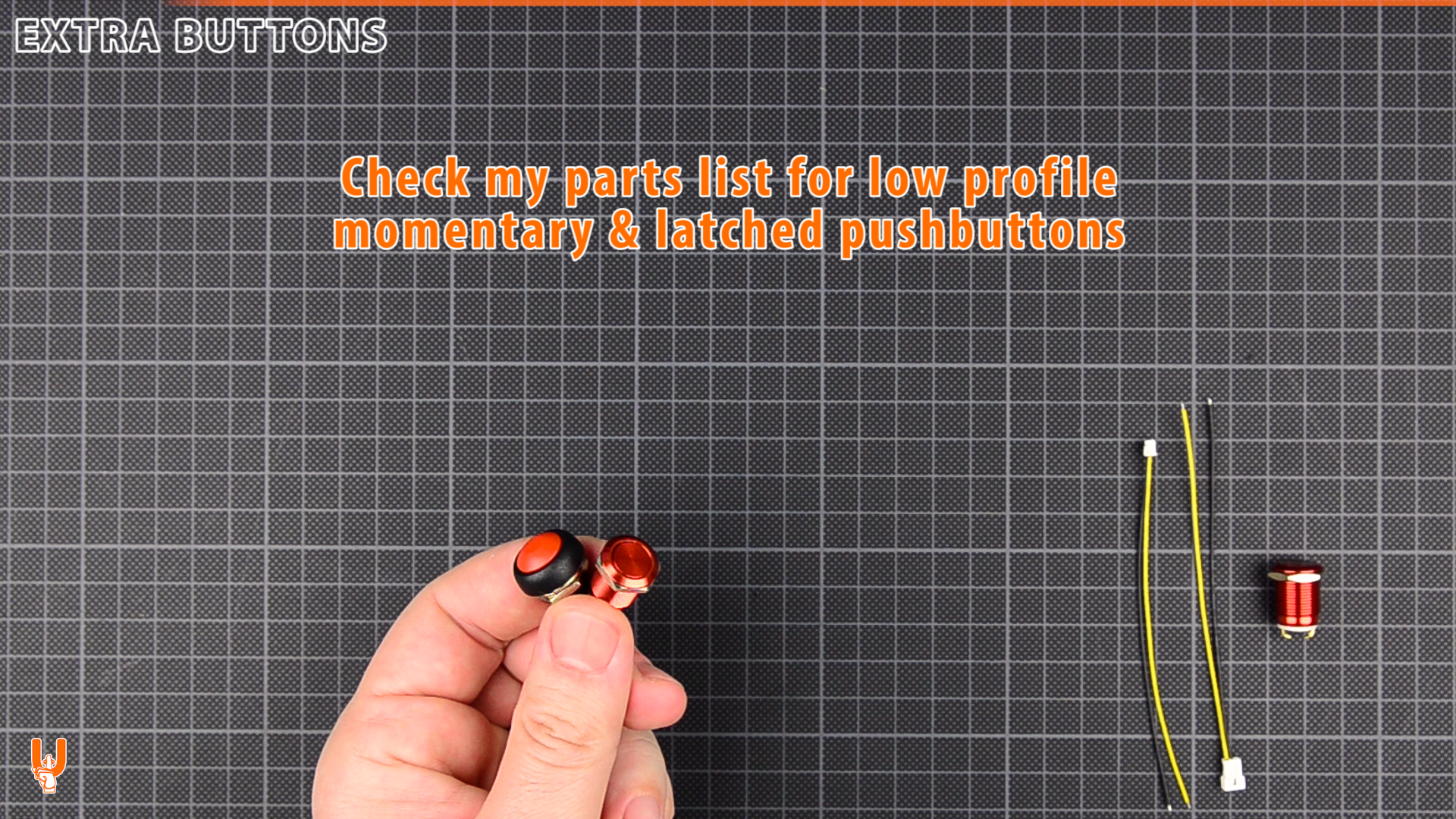

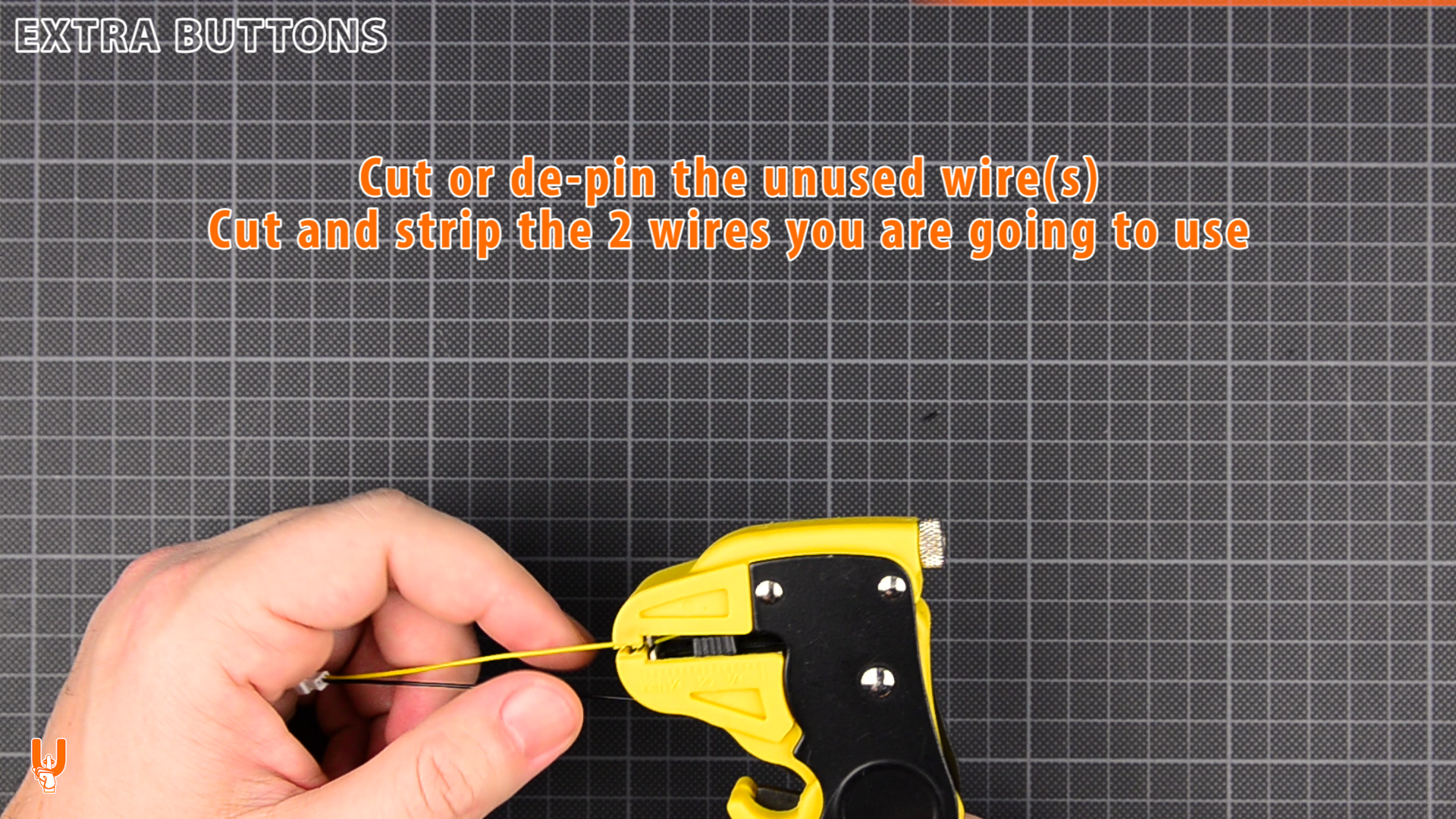

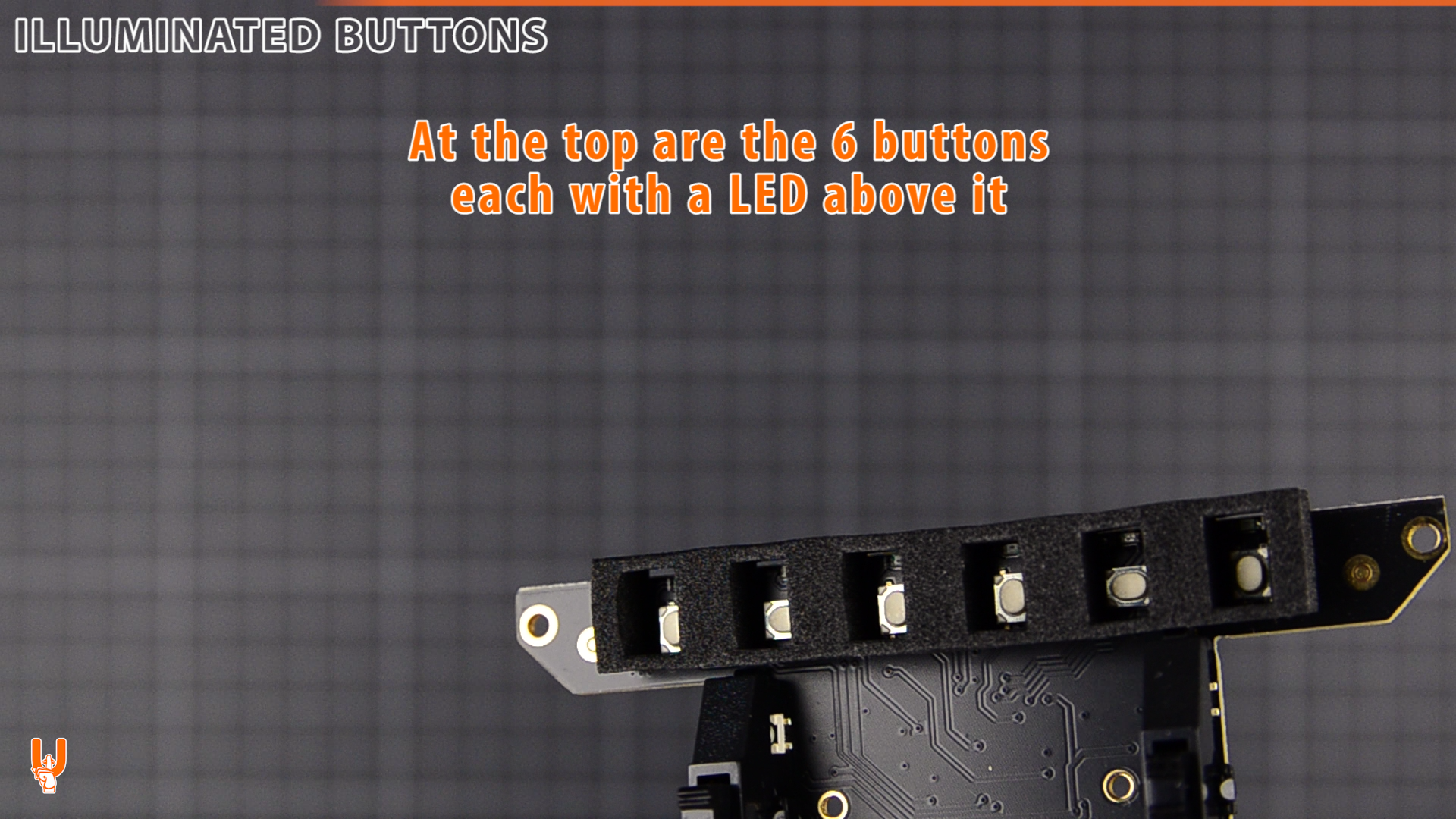

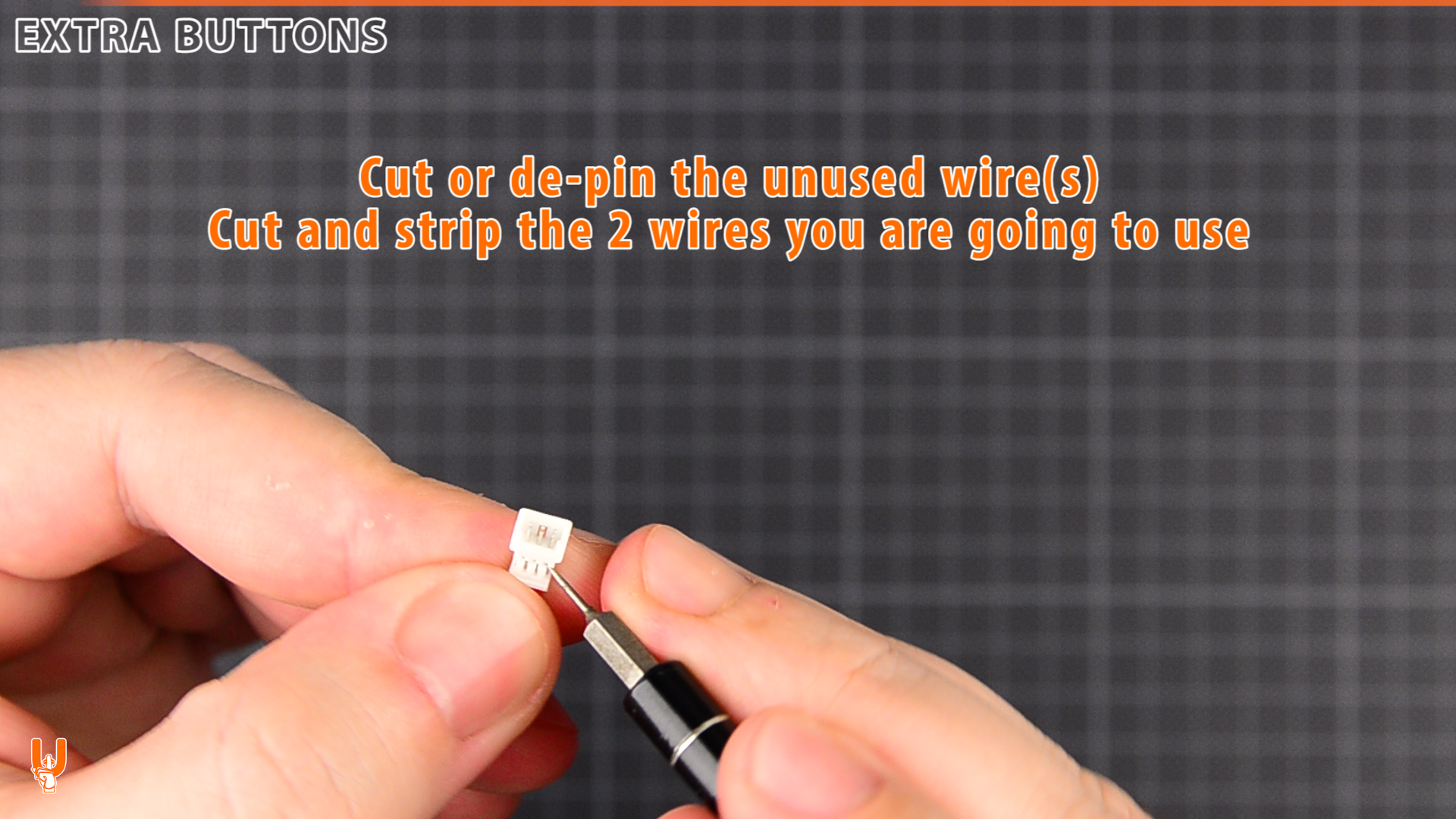

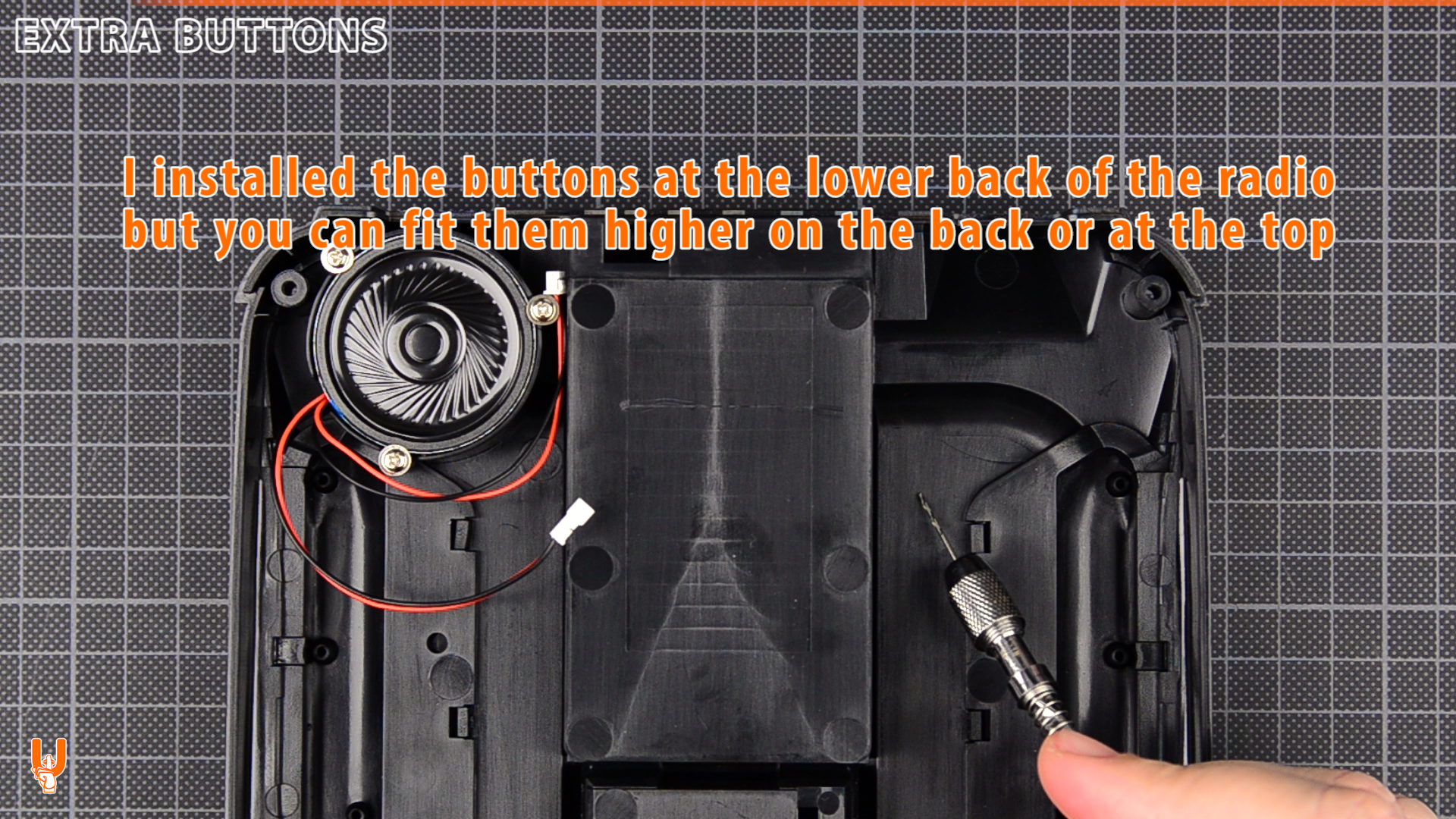

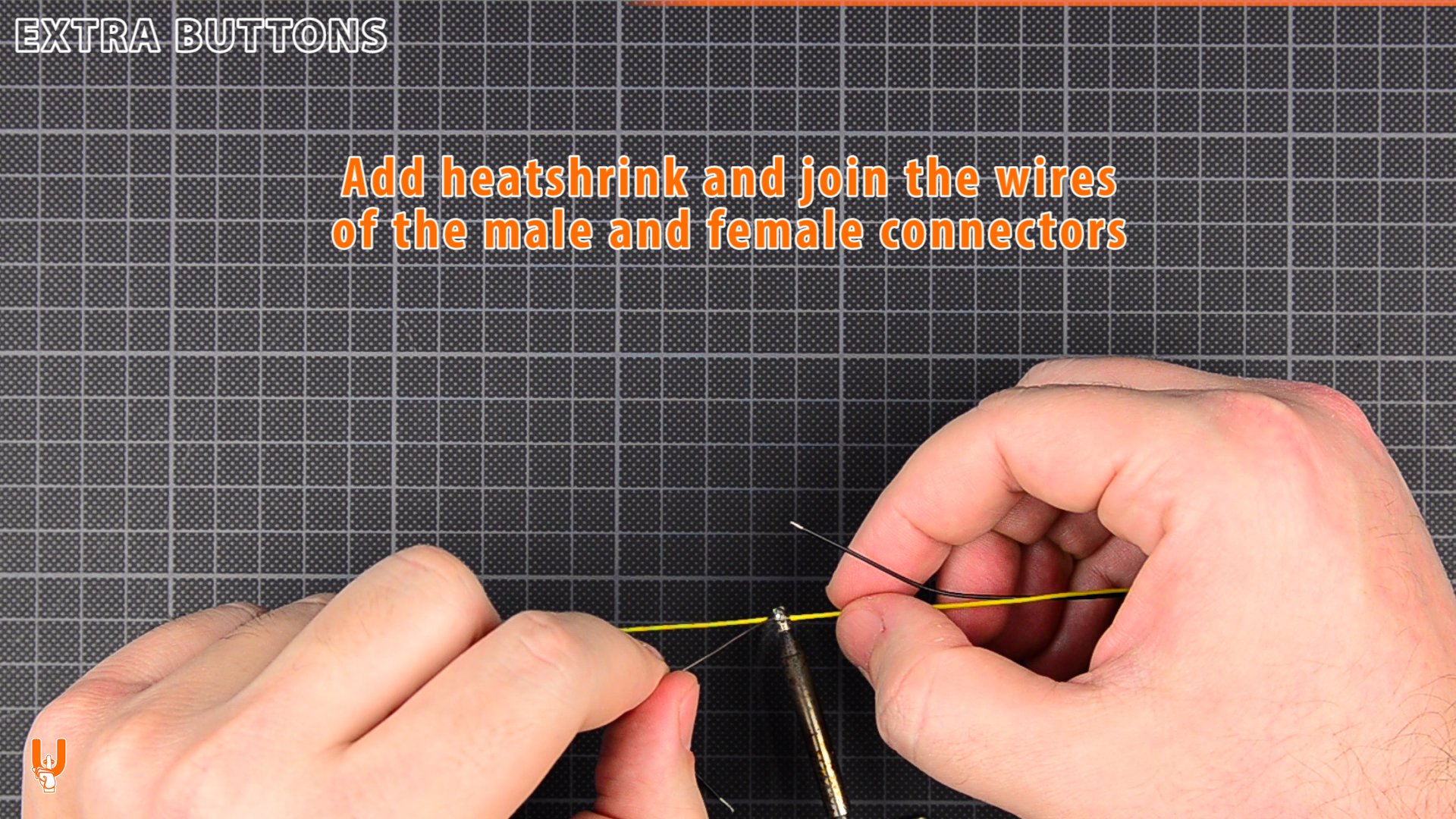

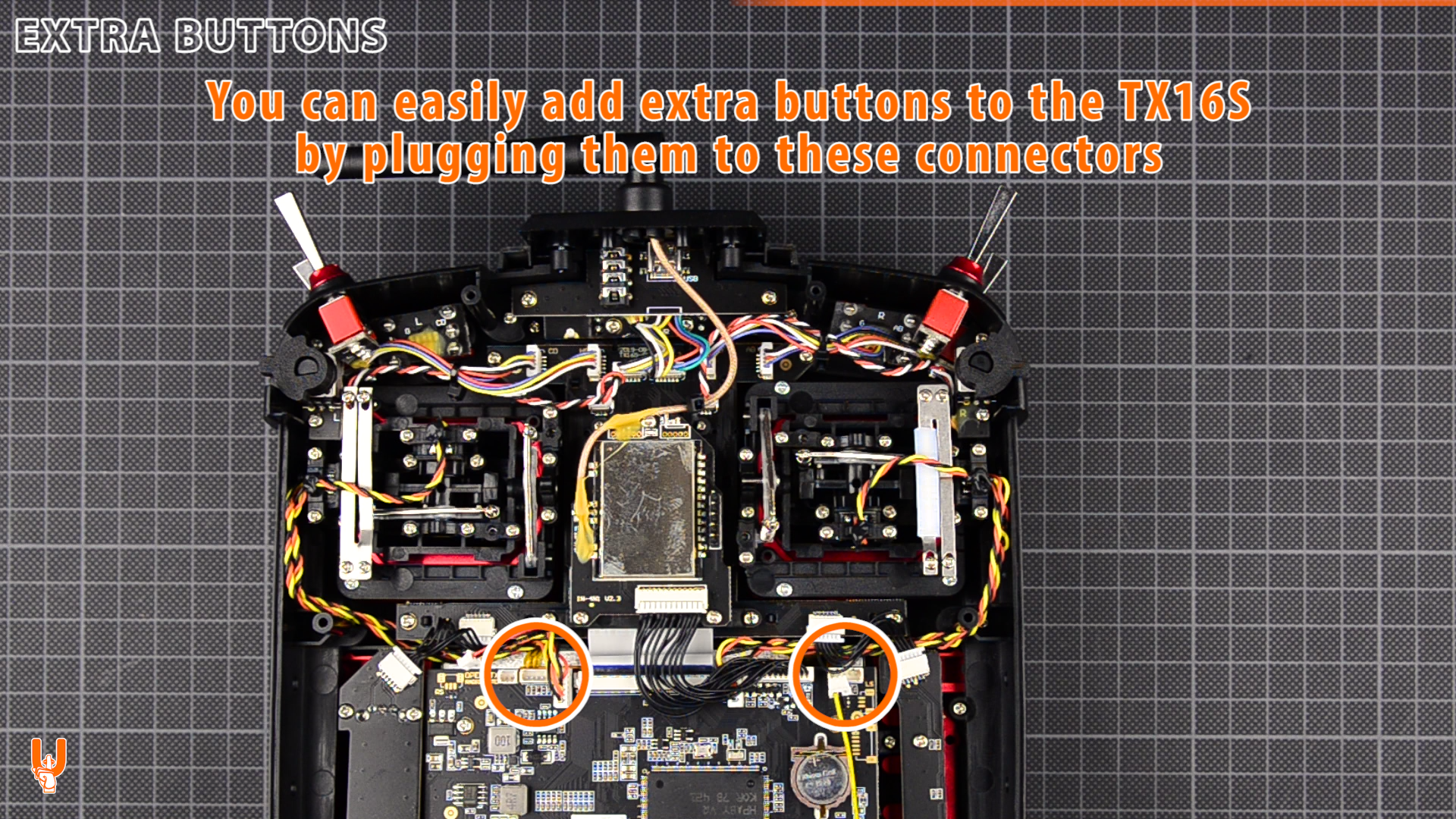

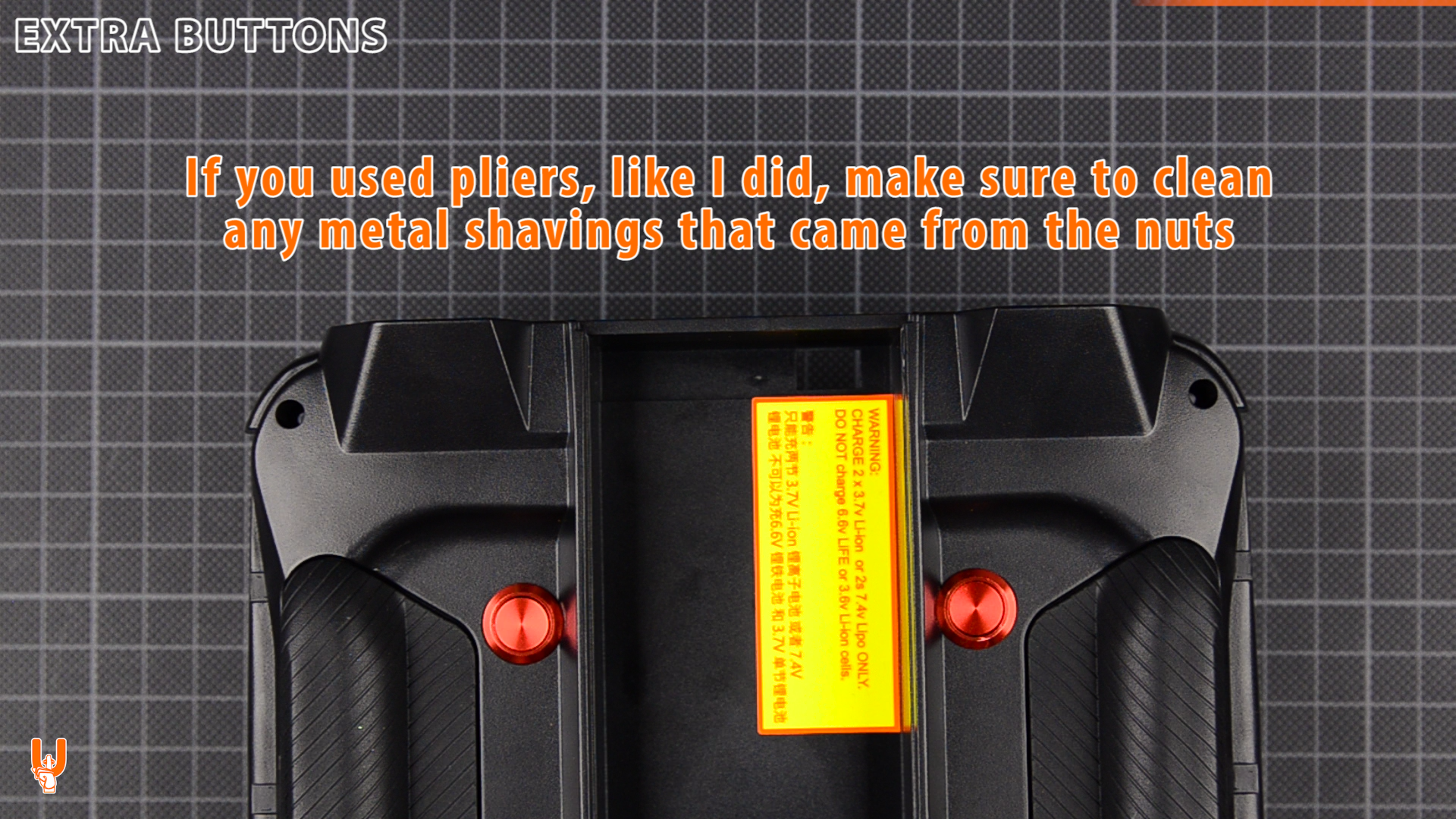

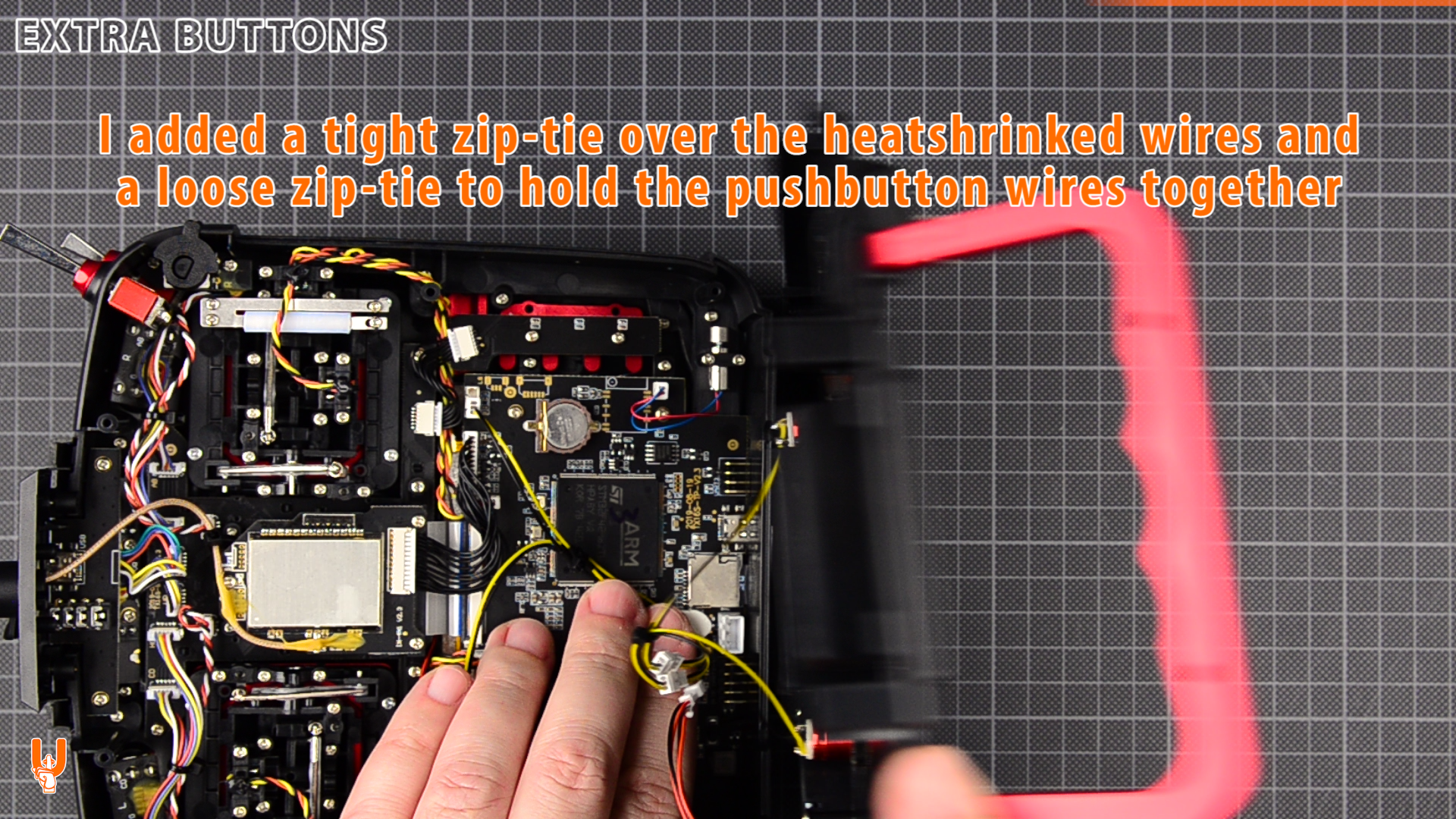

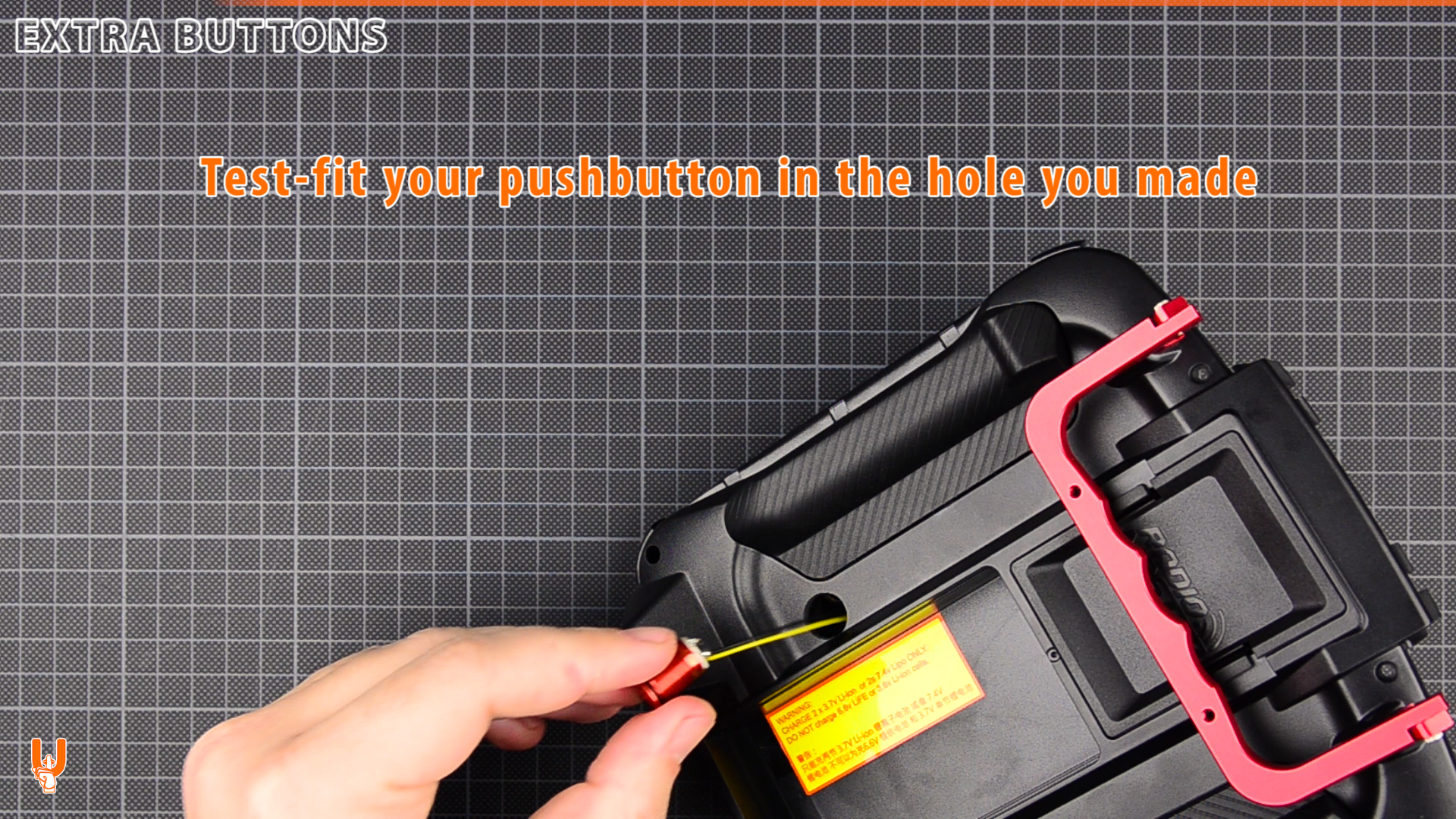

Extra buttons

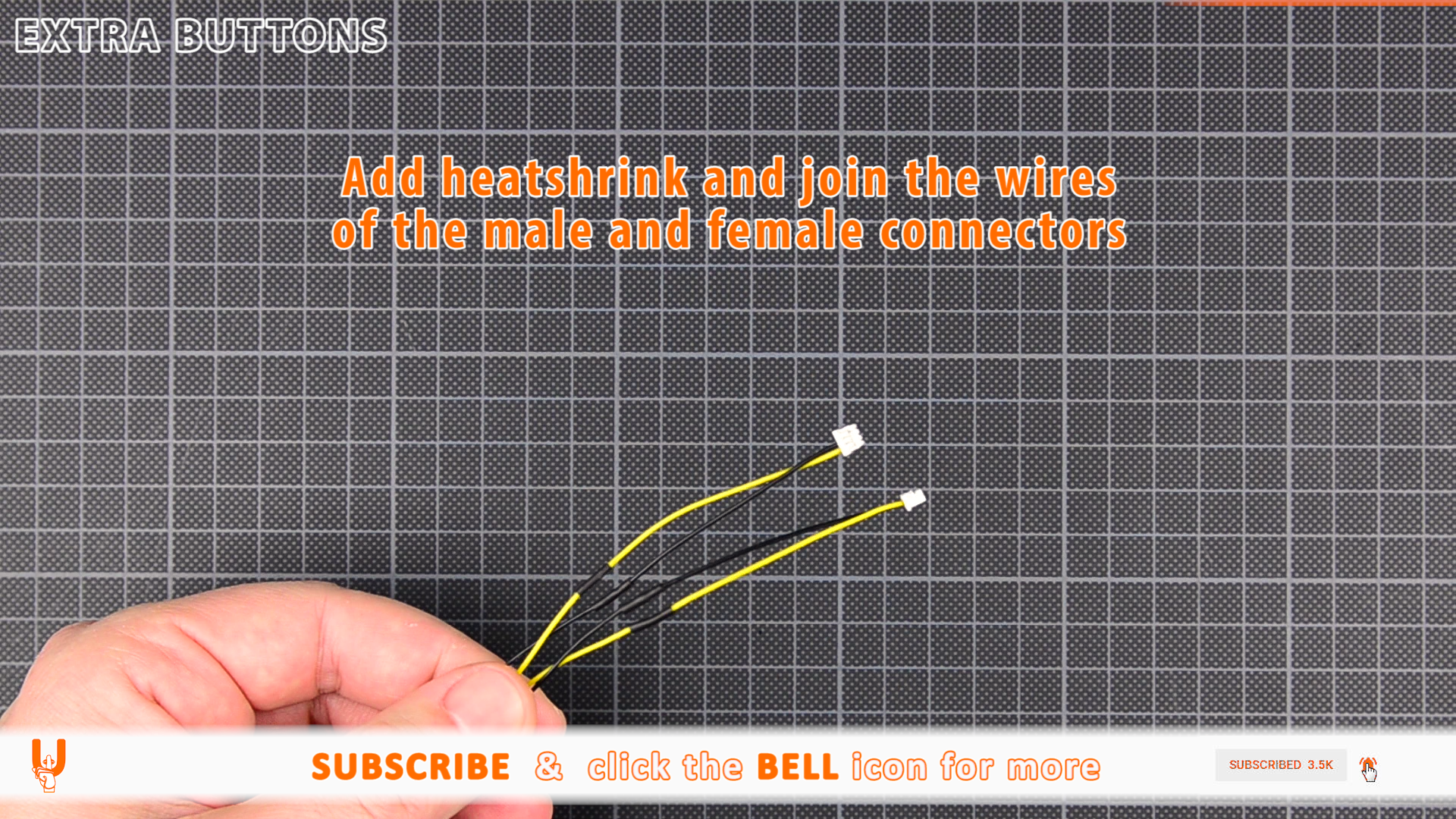

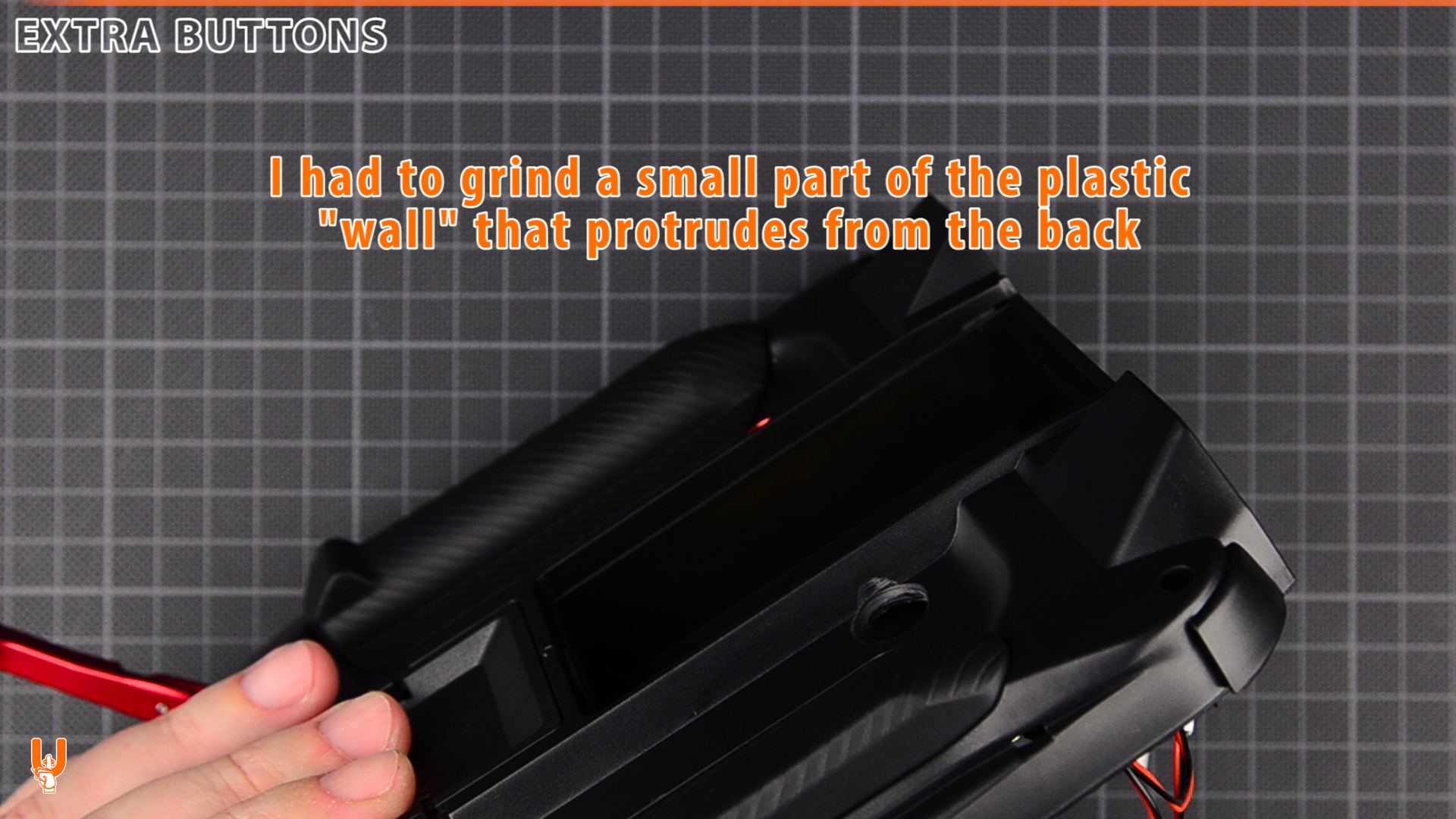

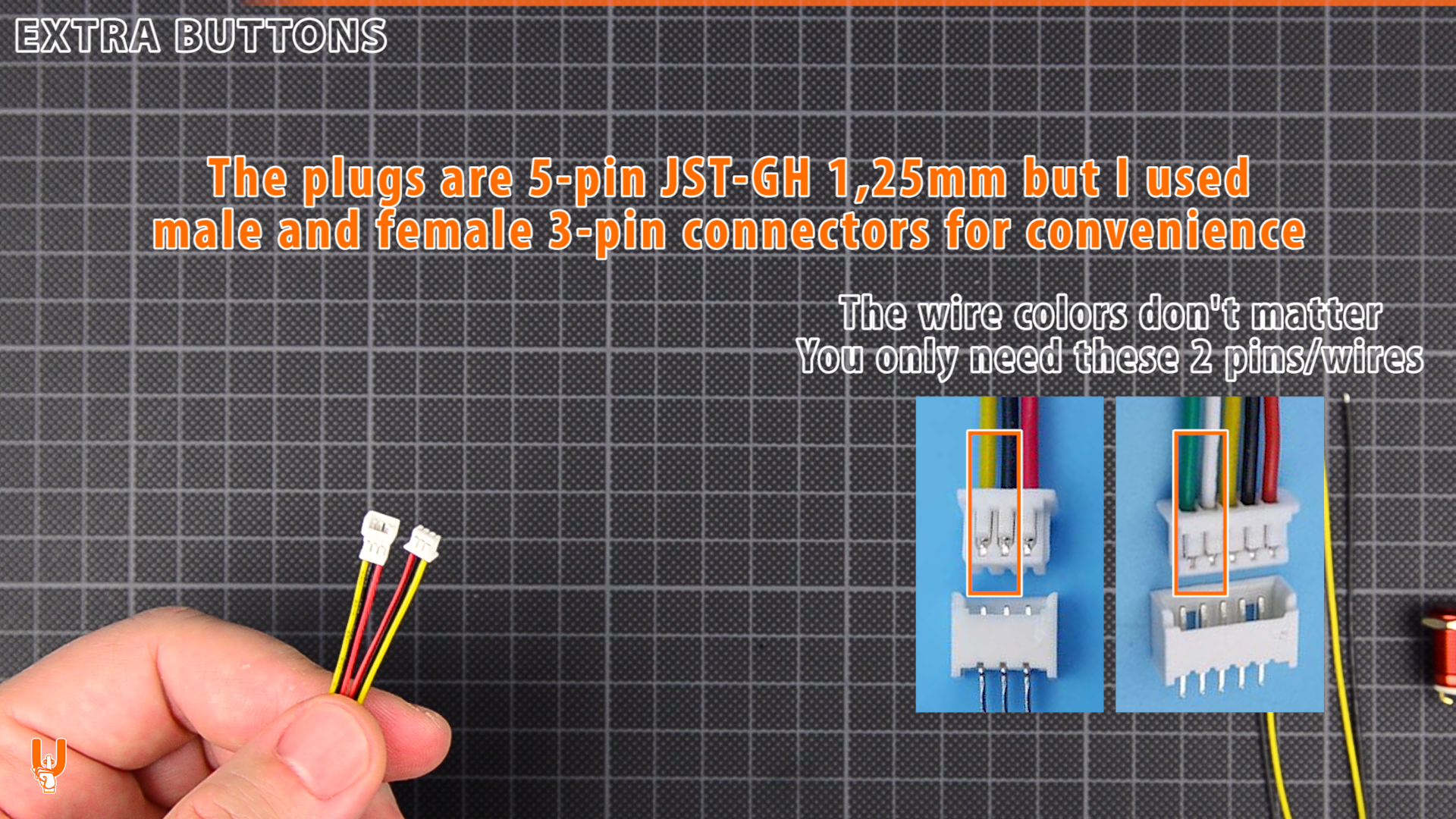

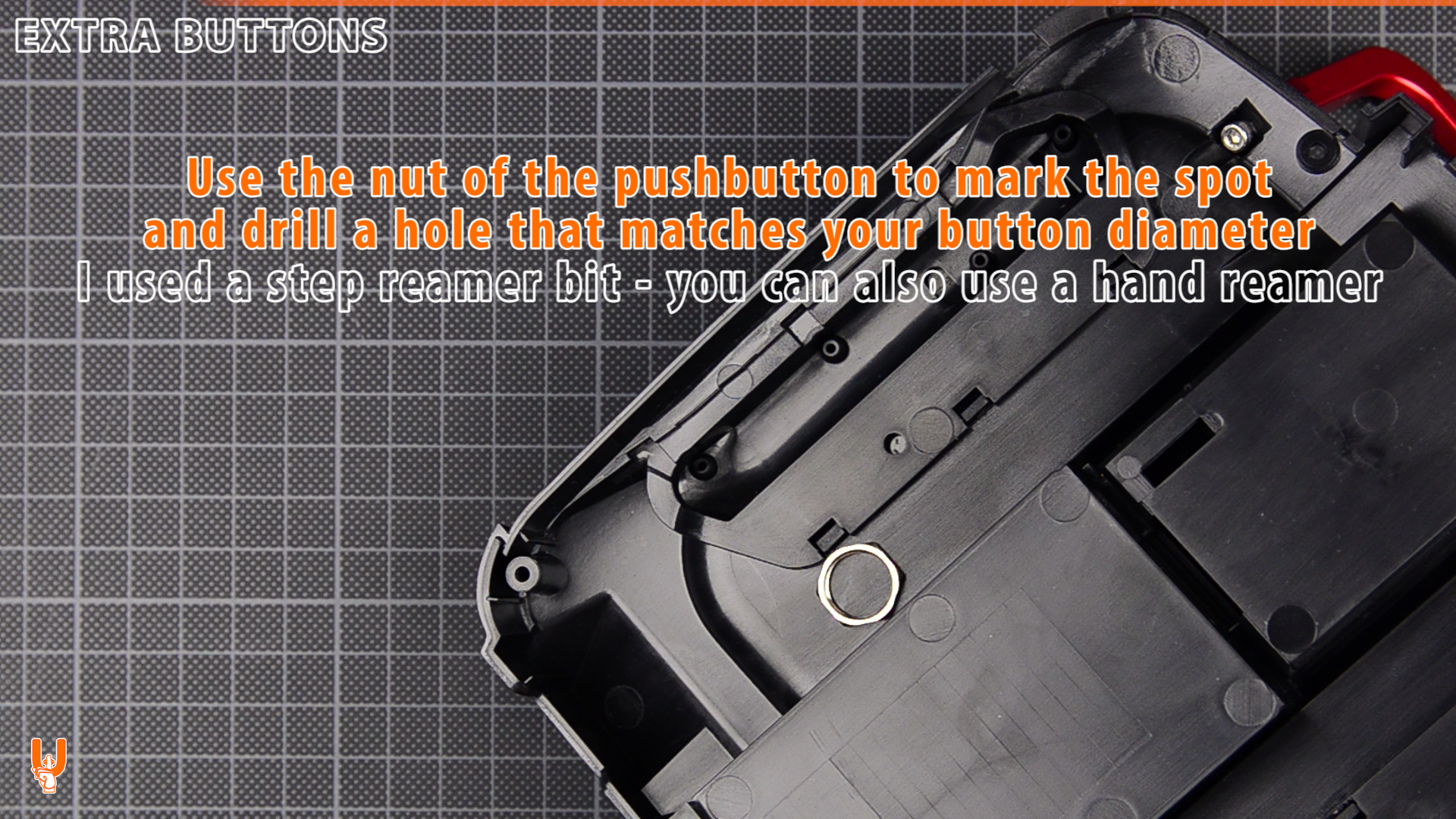

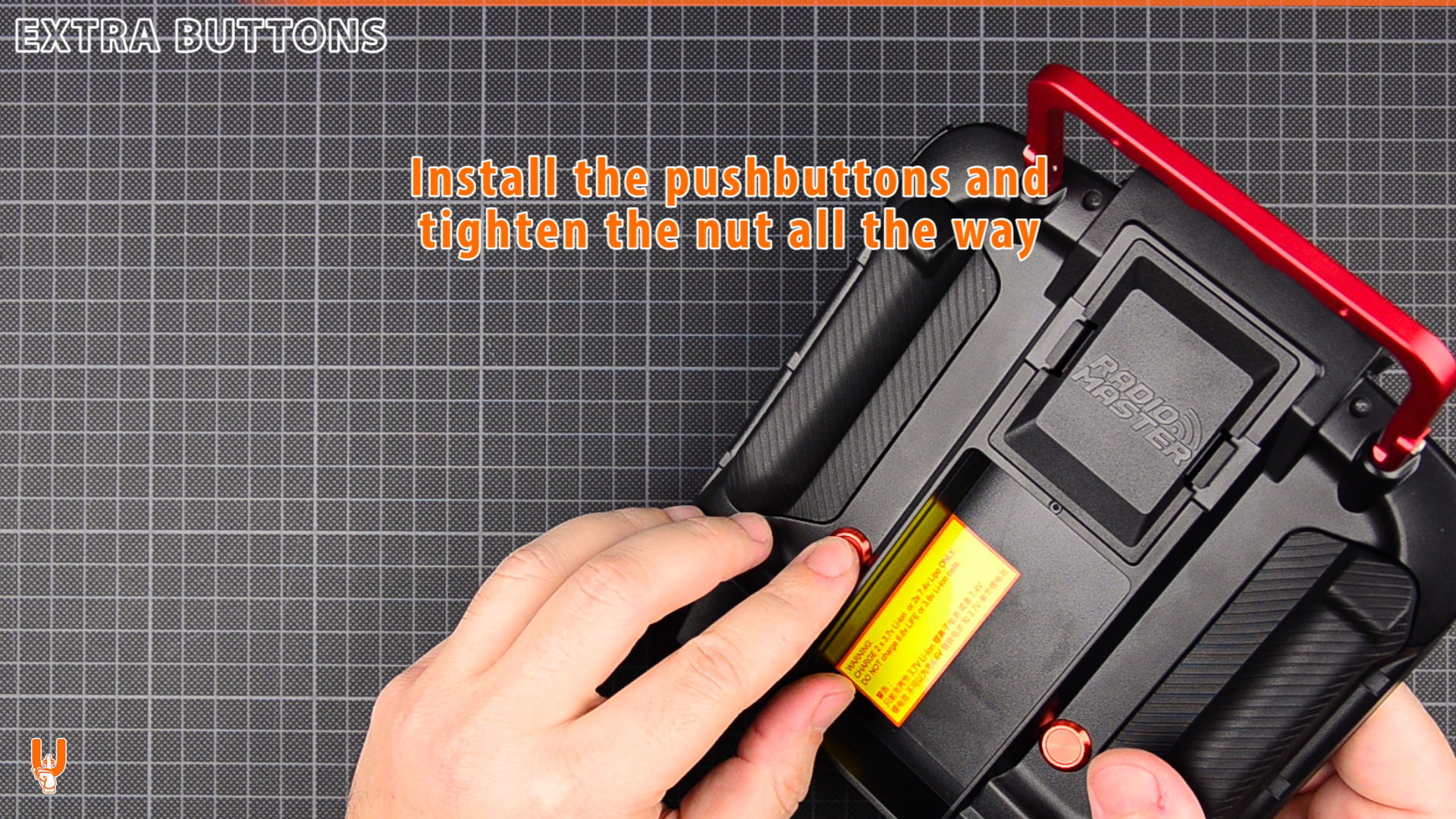

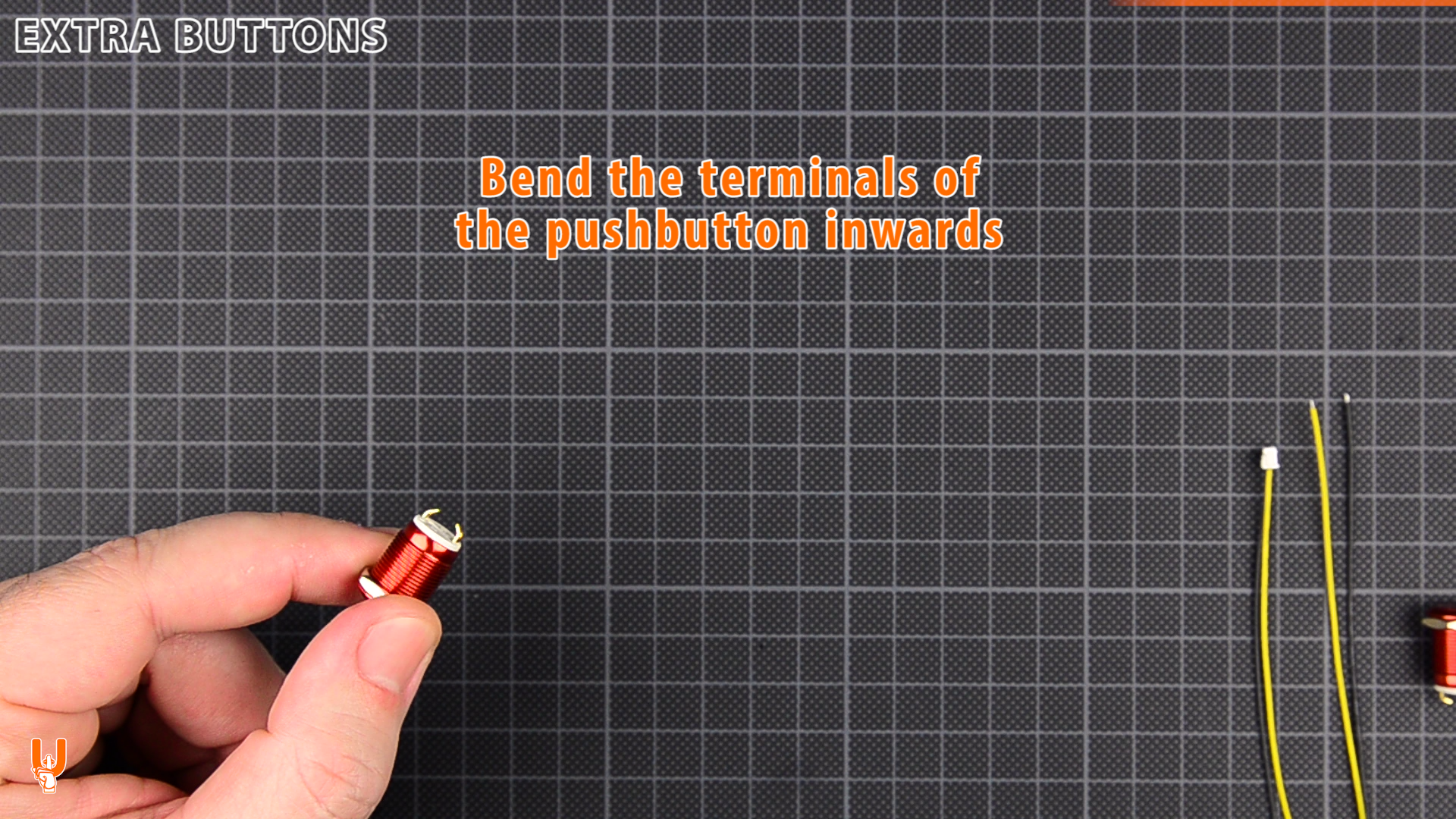

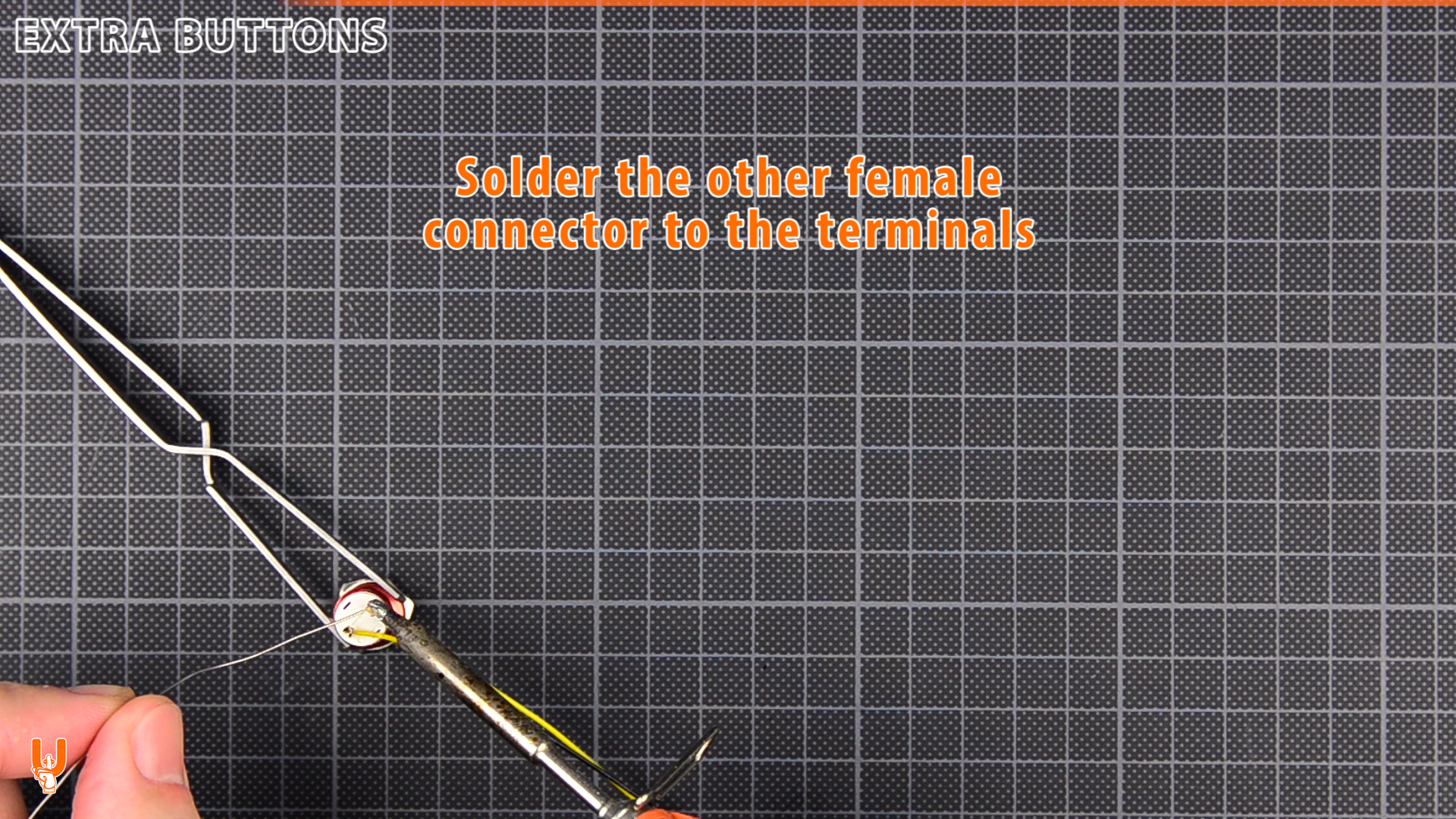

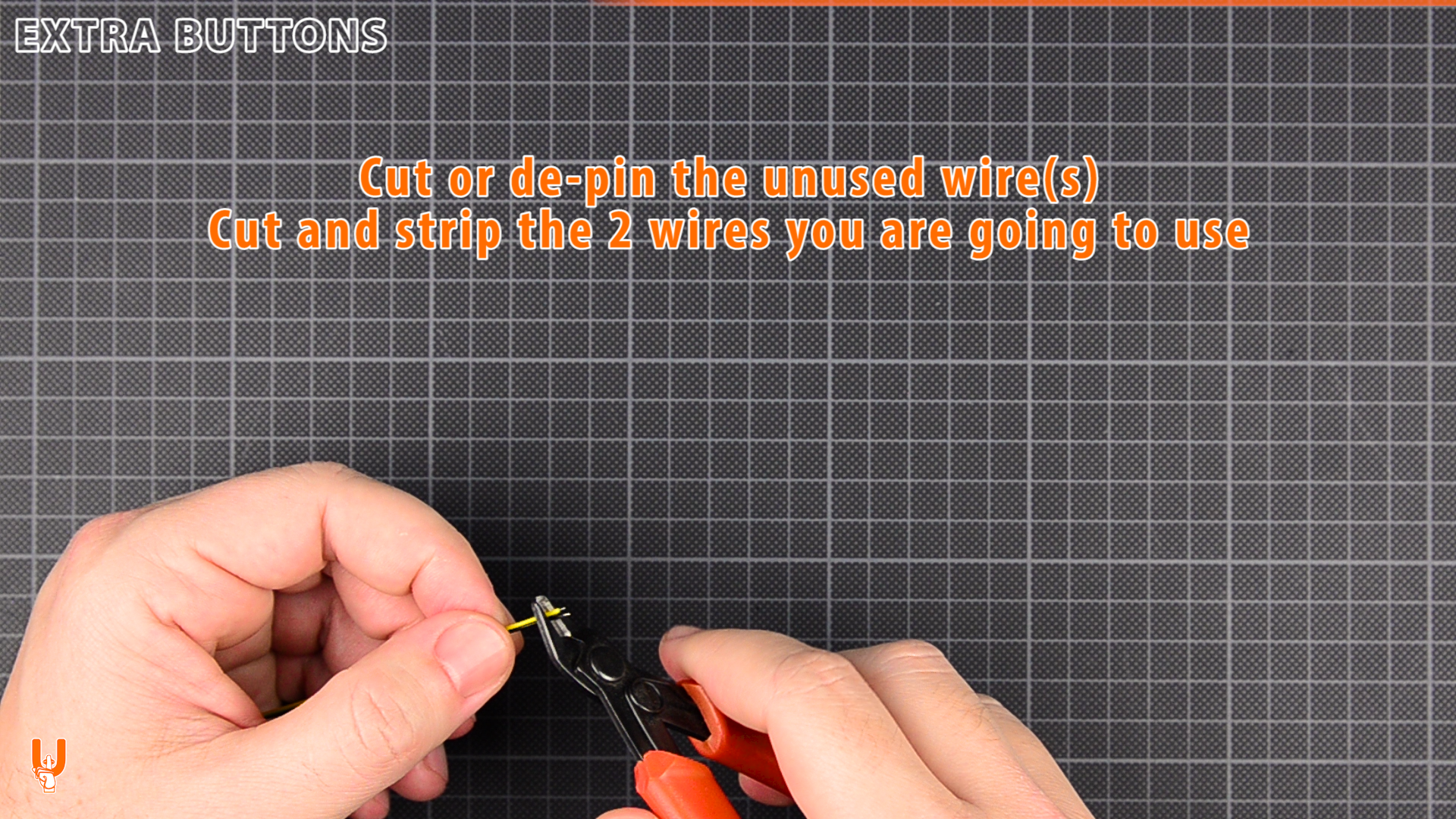

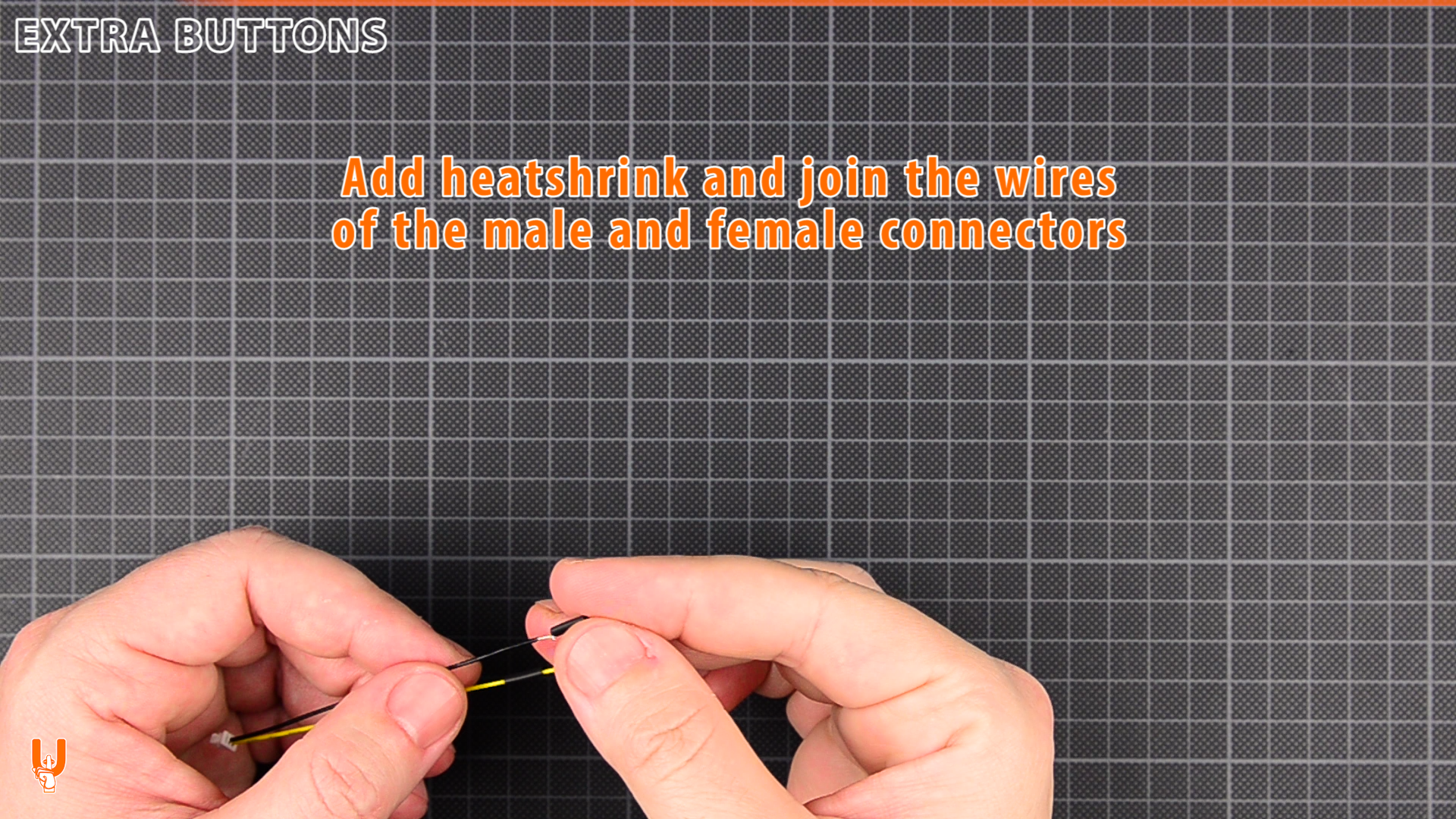

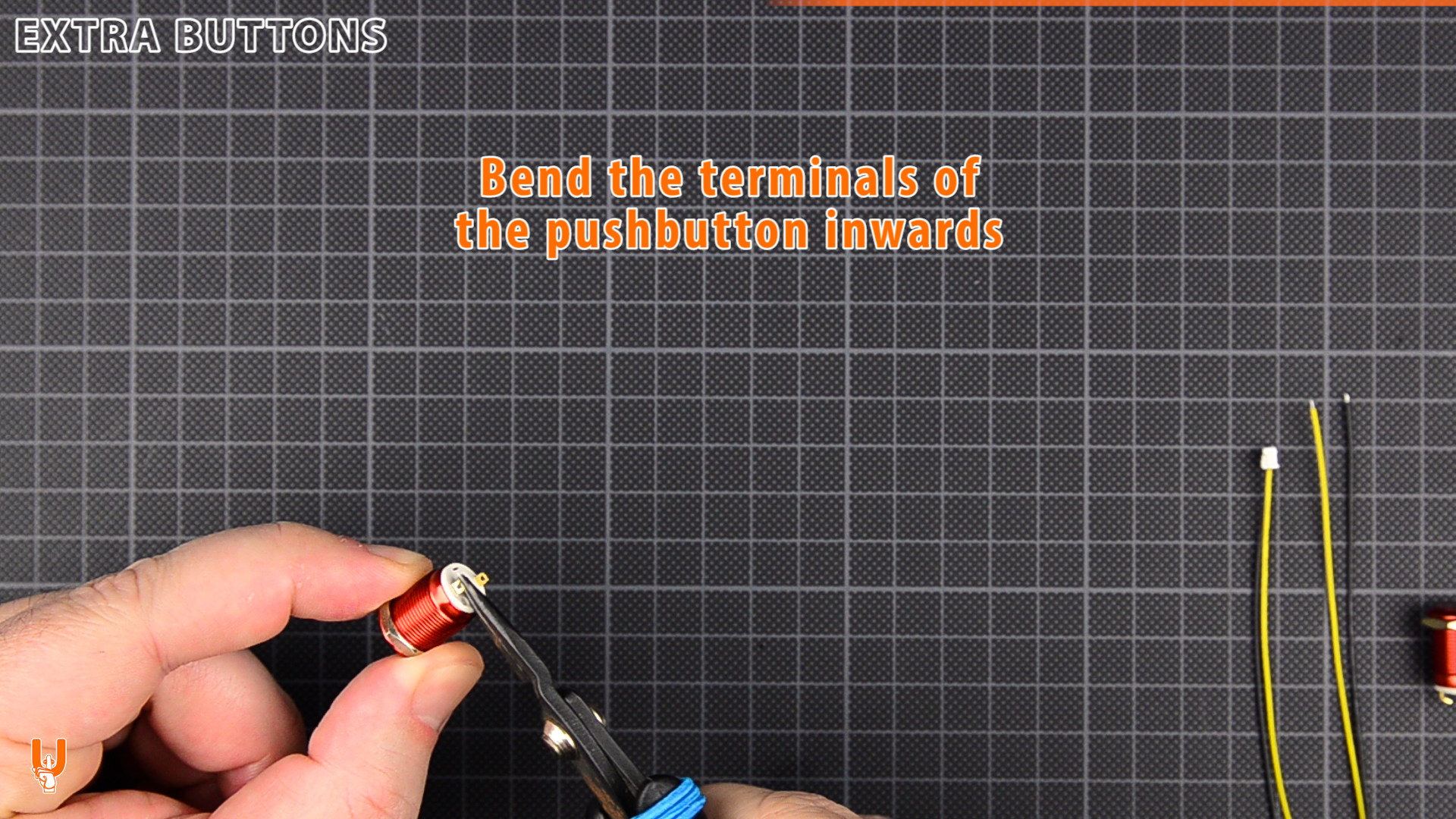

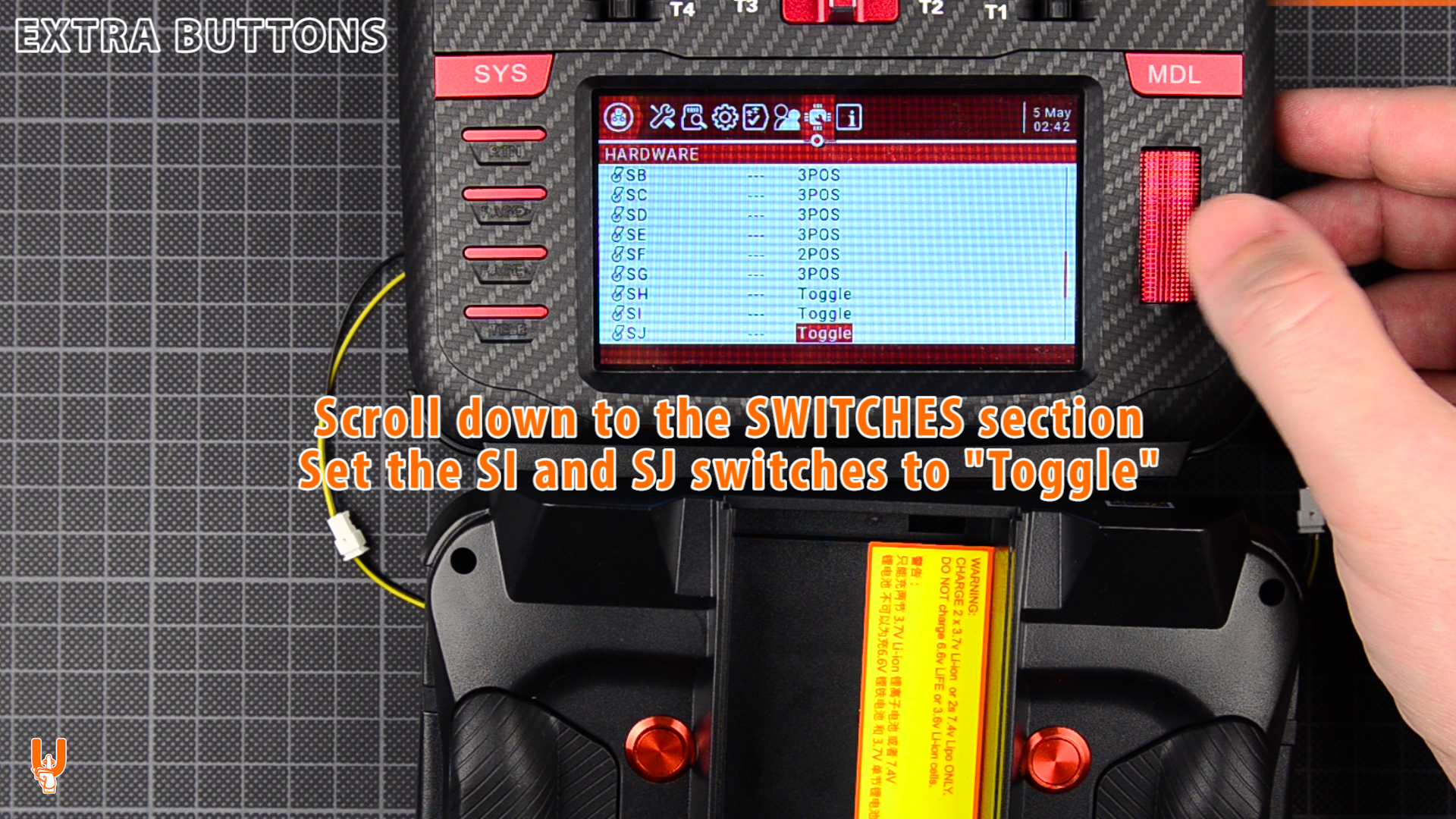

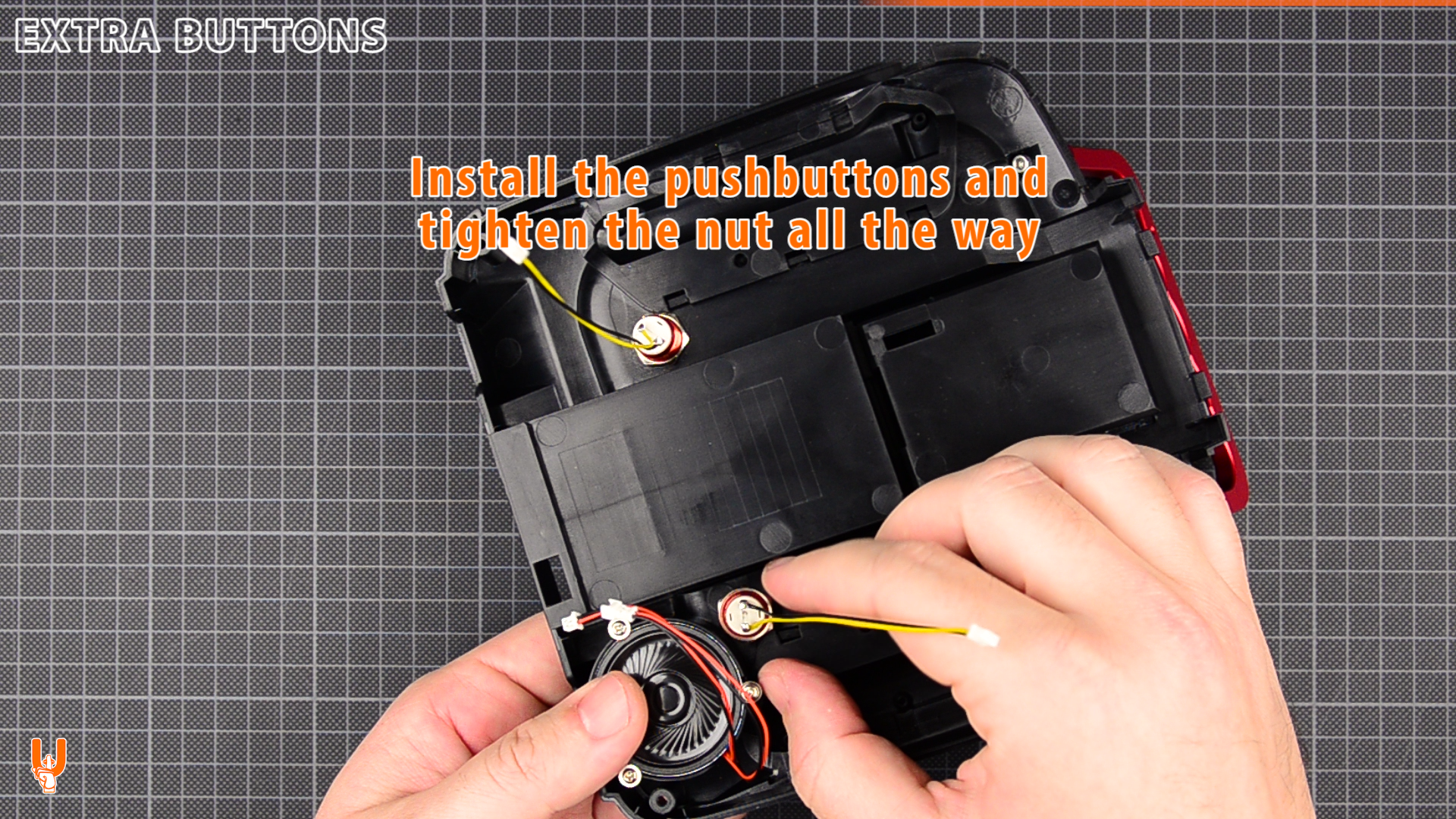

Pushbutton installation

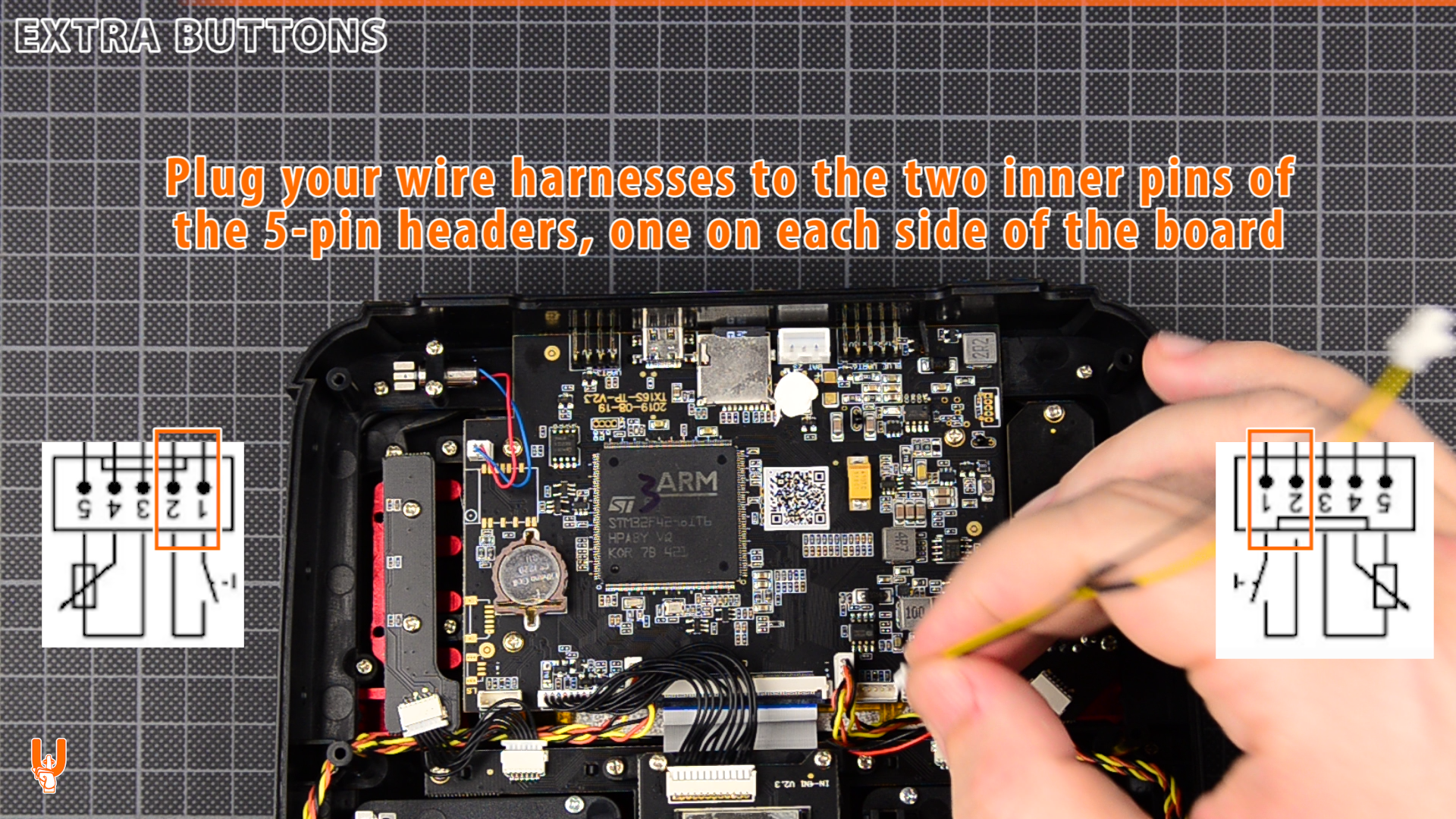

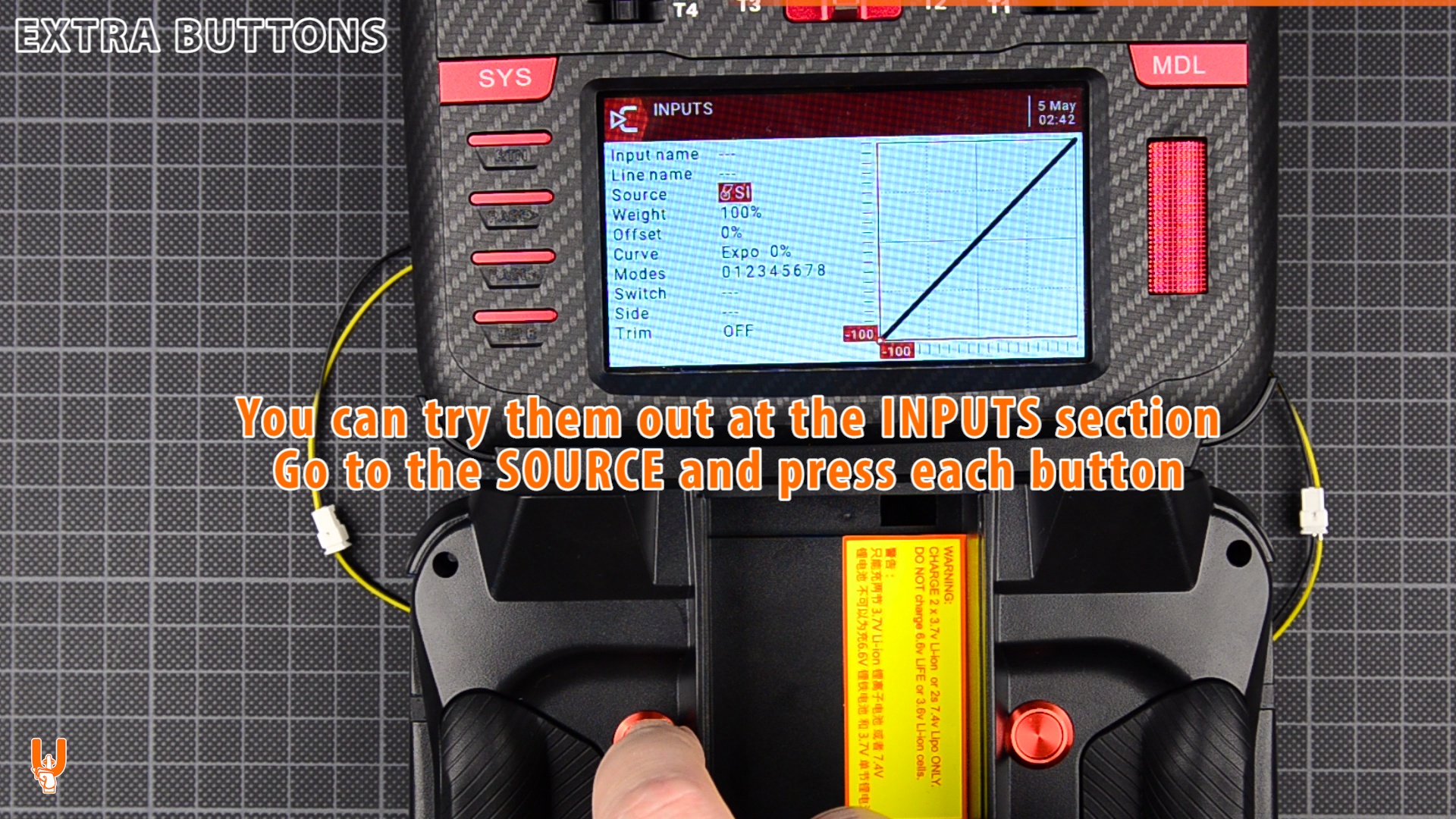

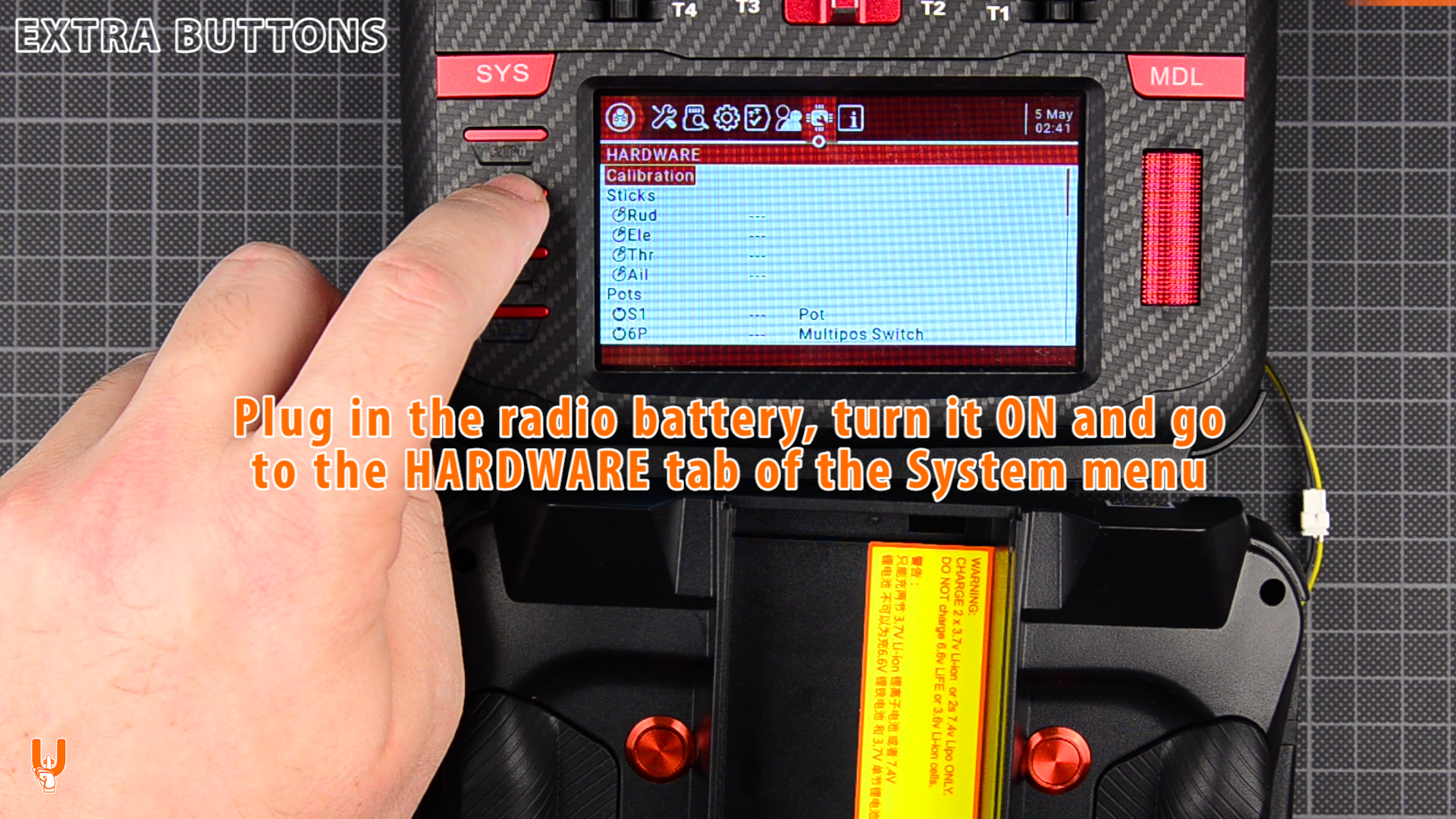

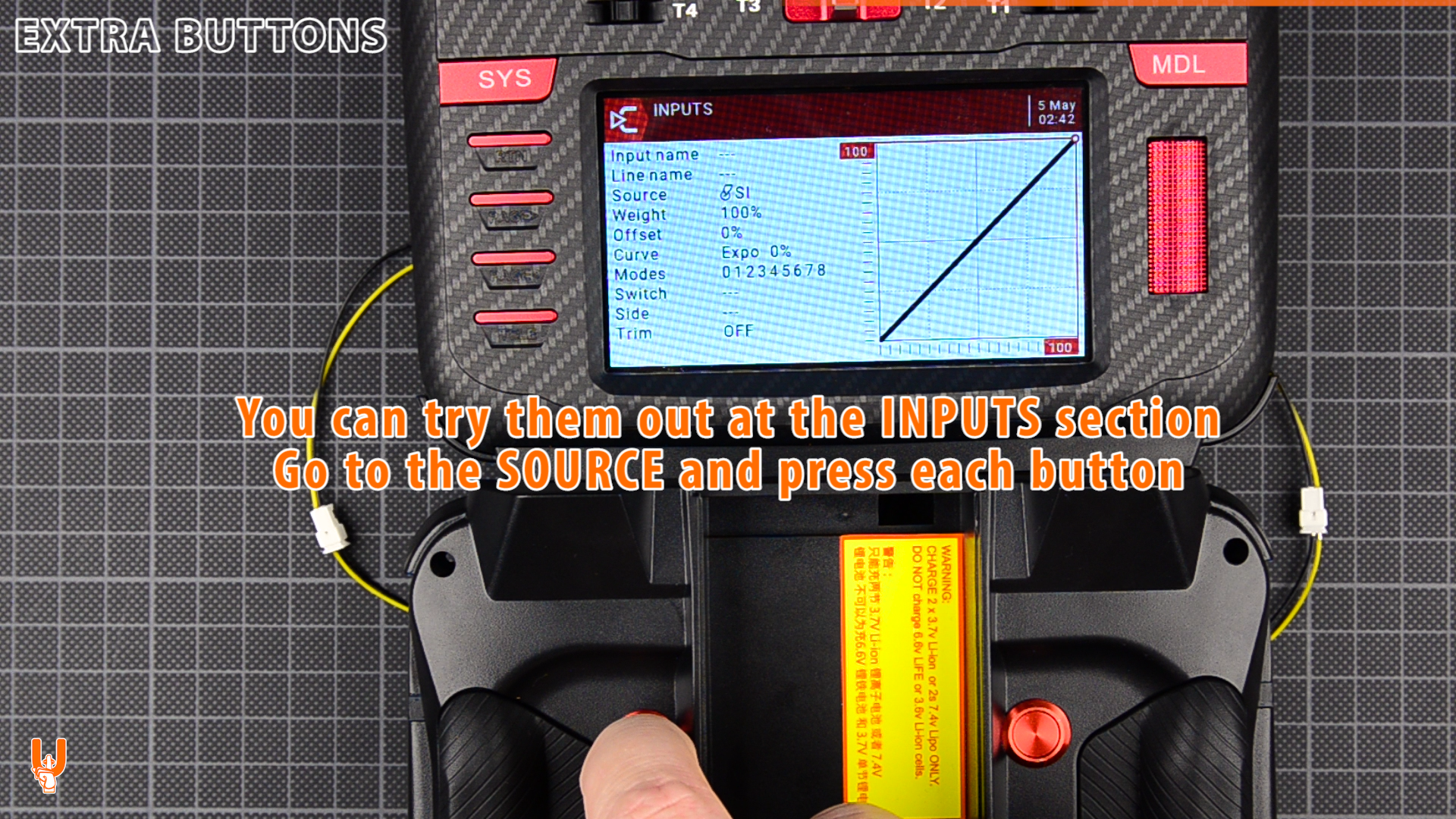

Pushbutton setup

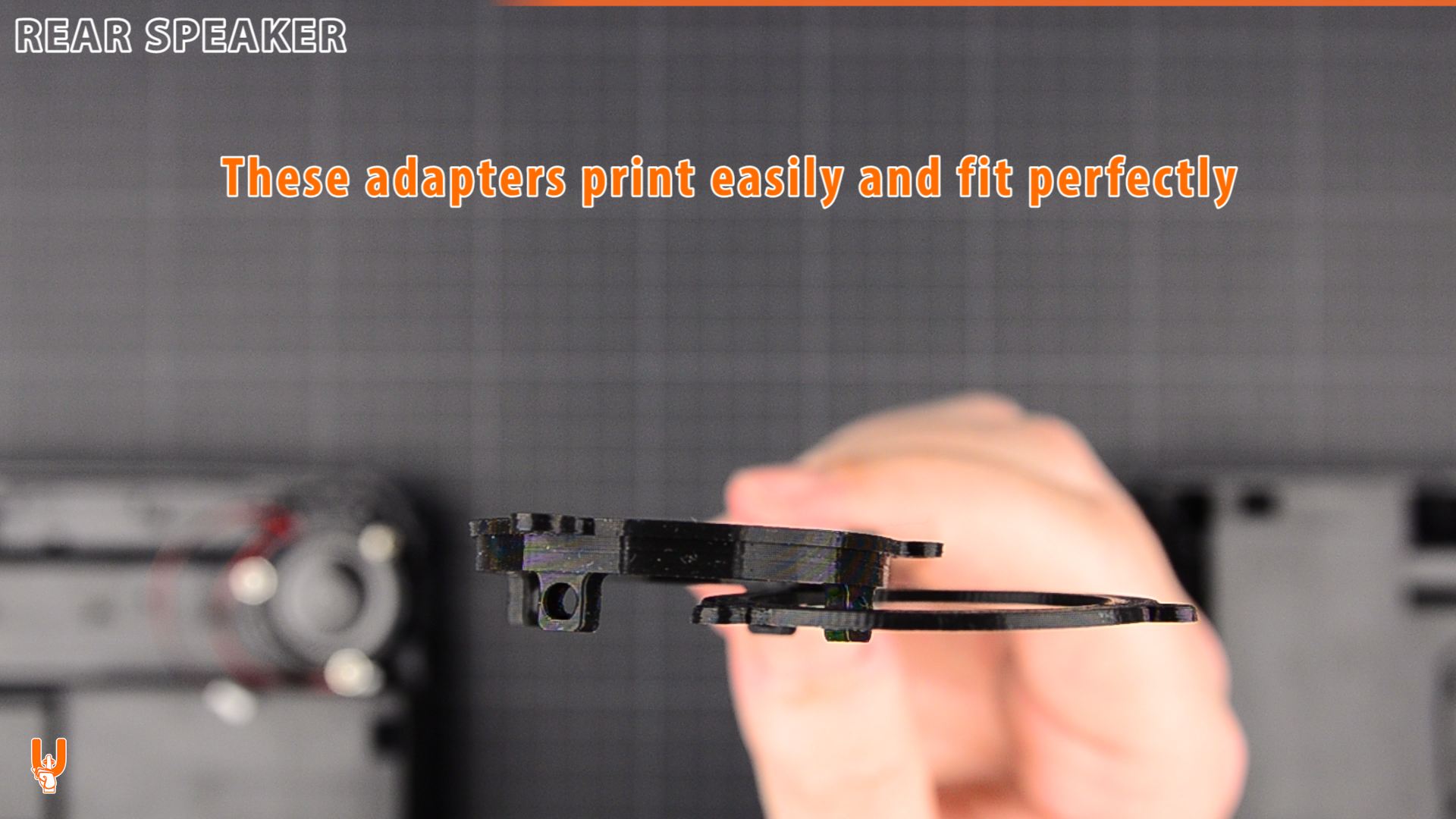

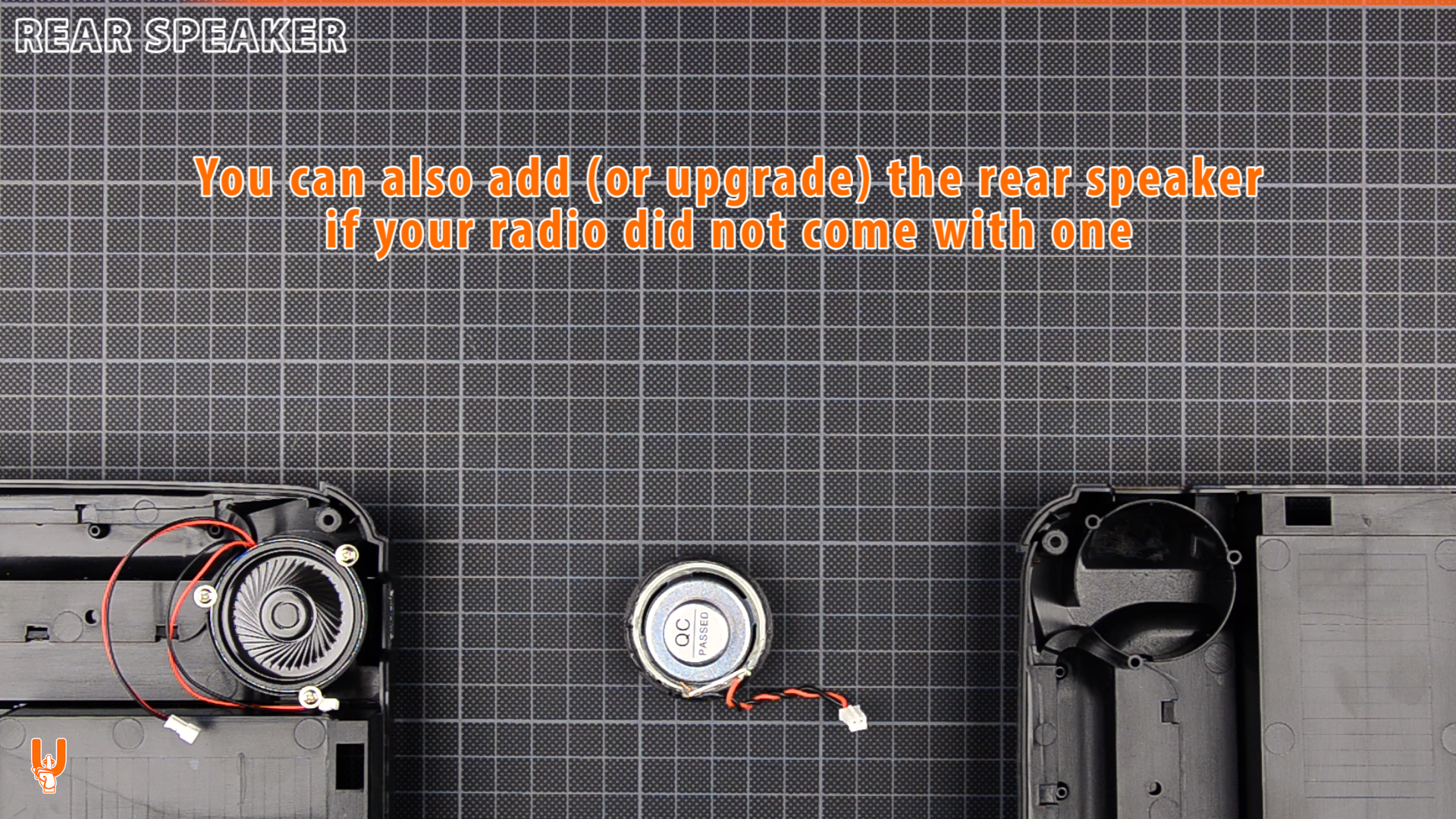

Rear speaker

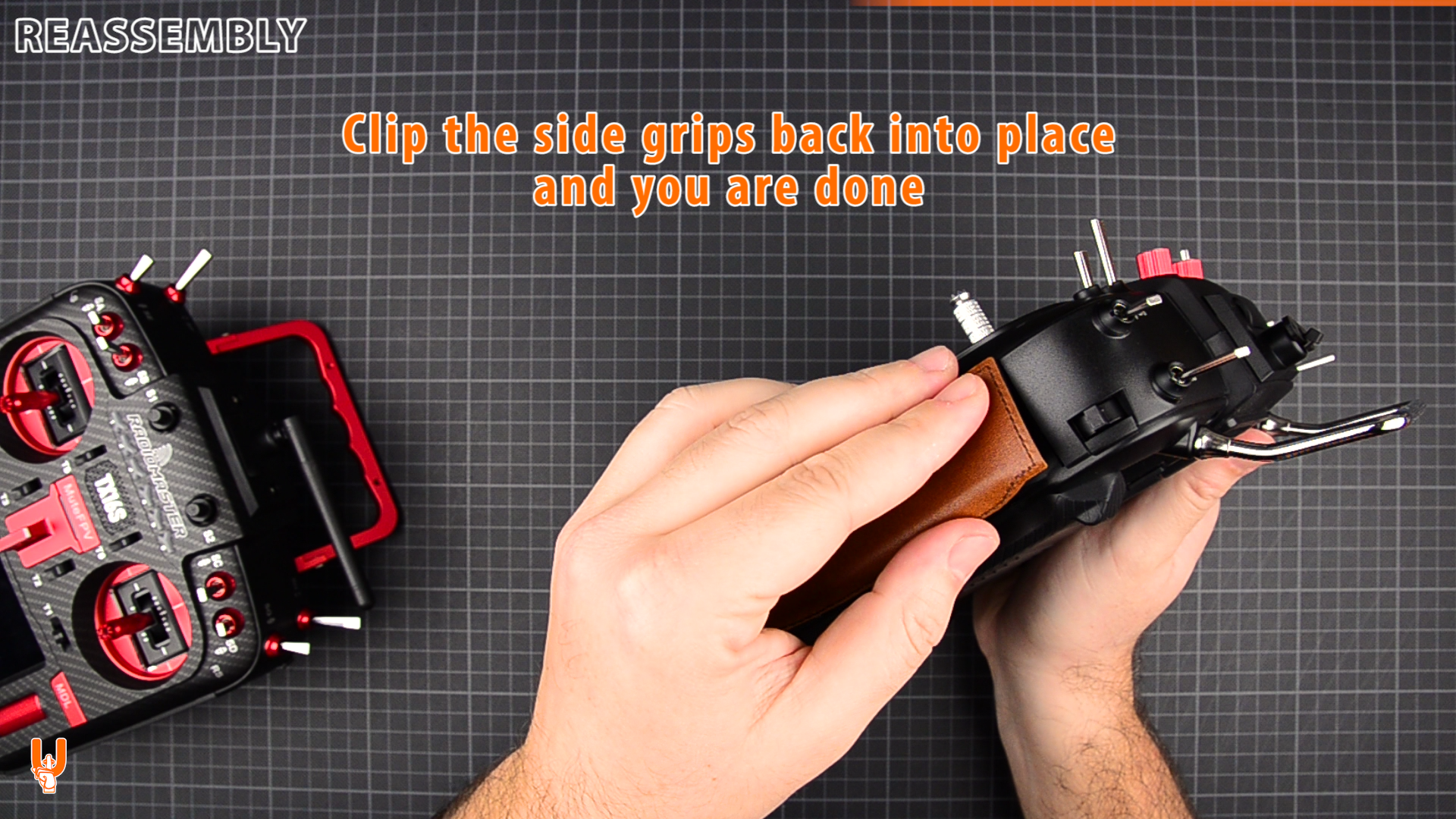

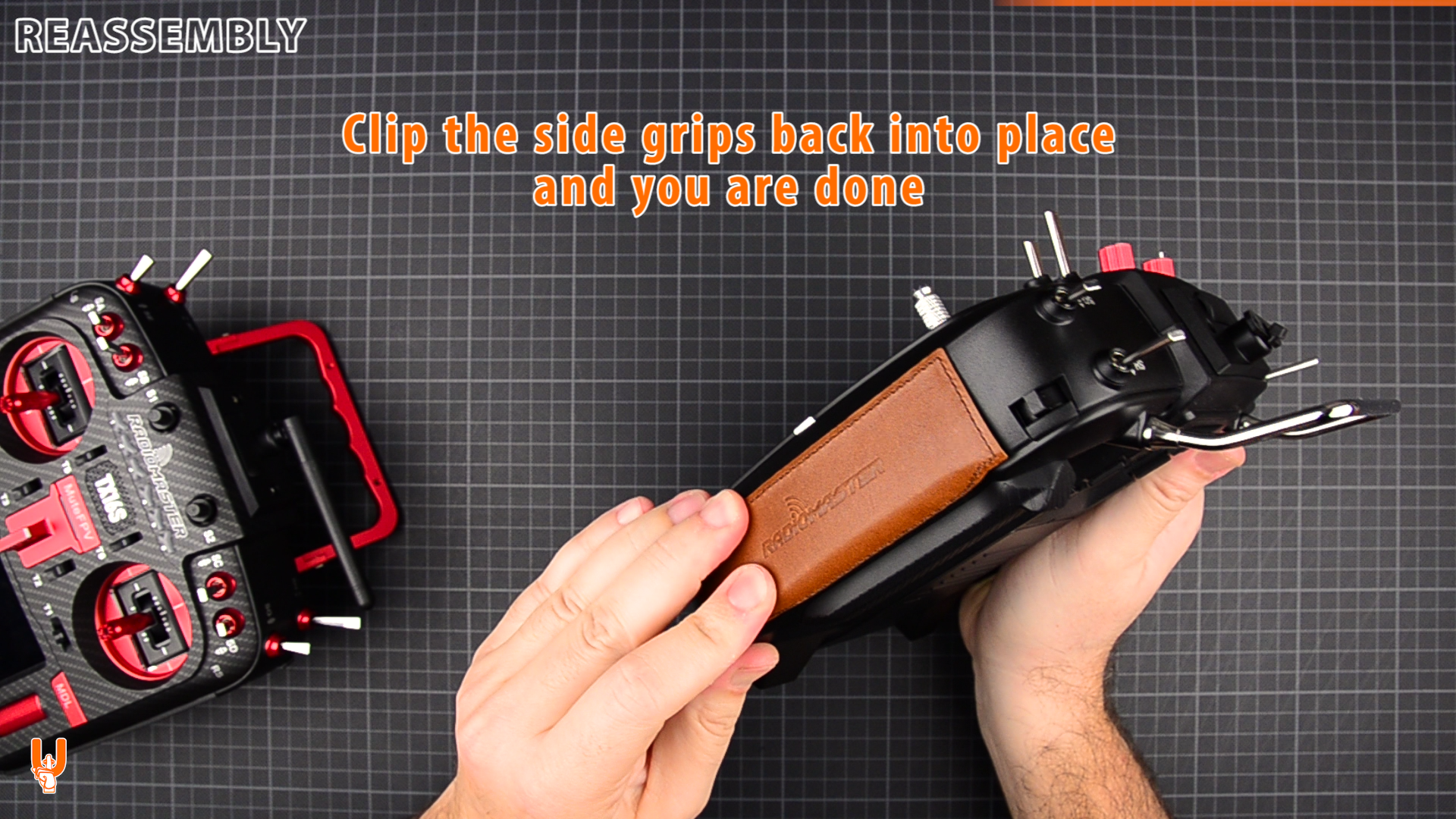

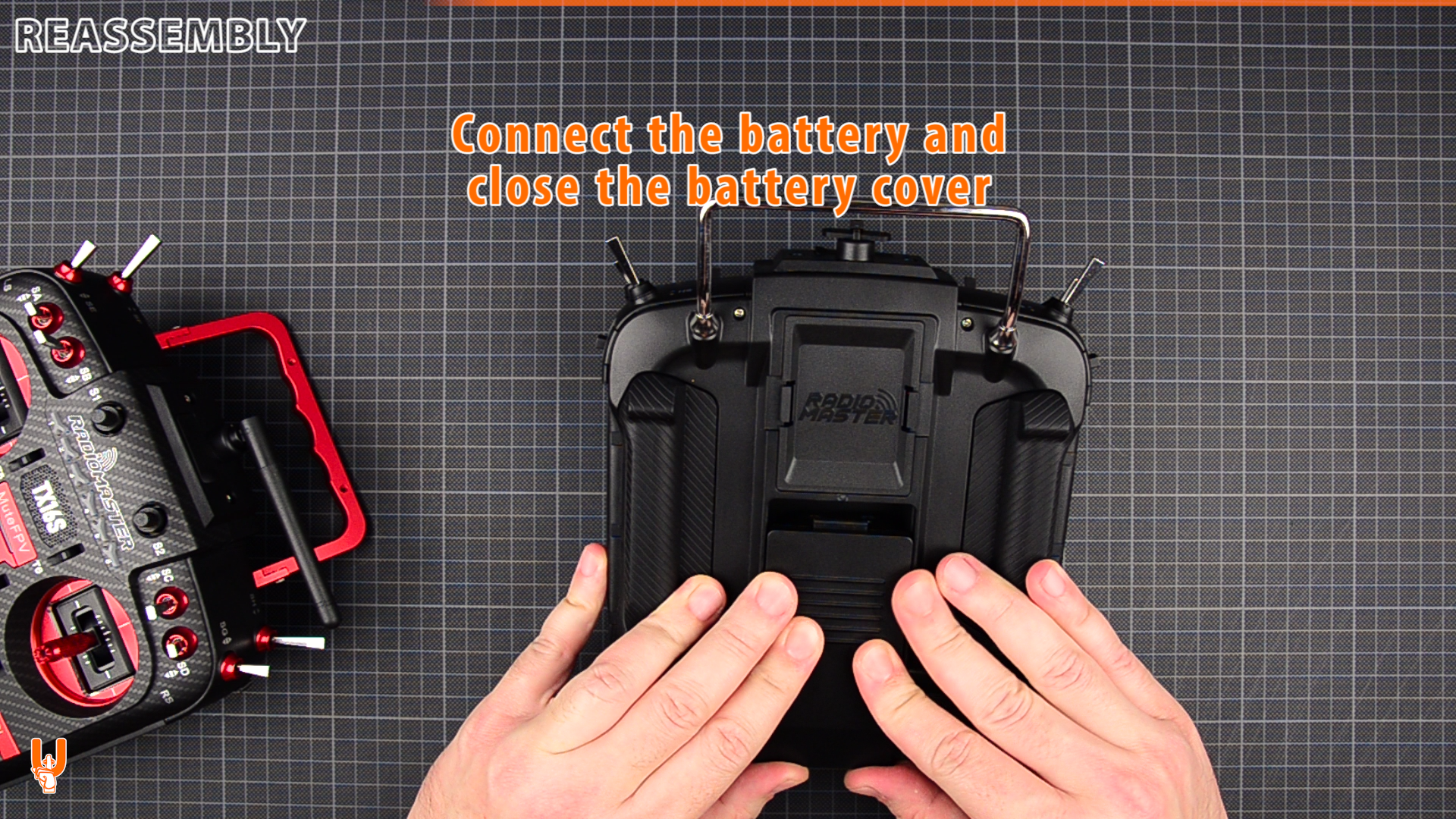

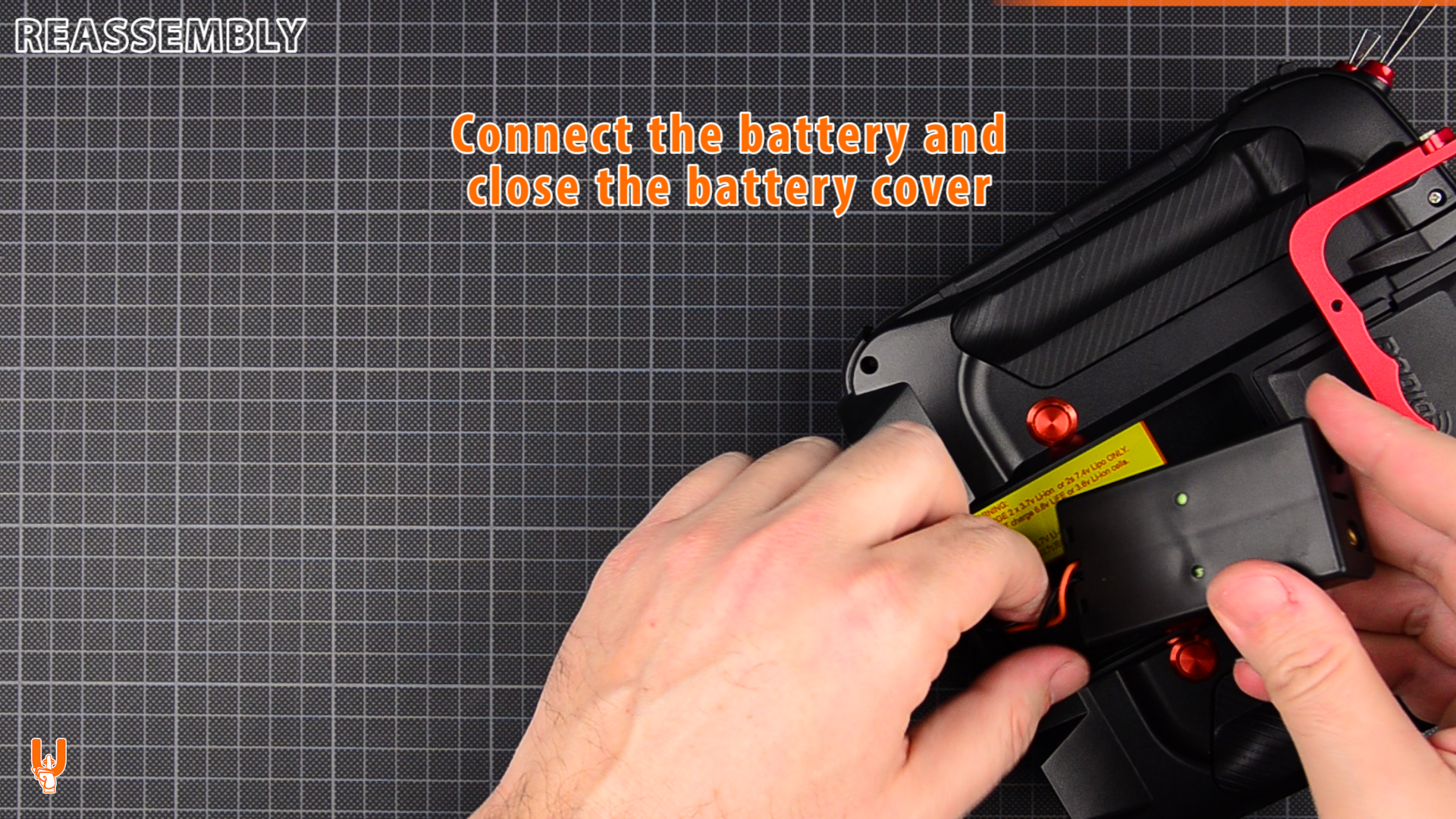

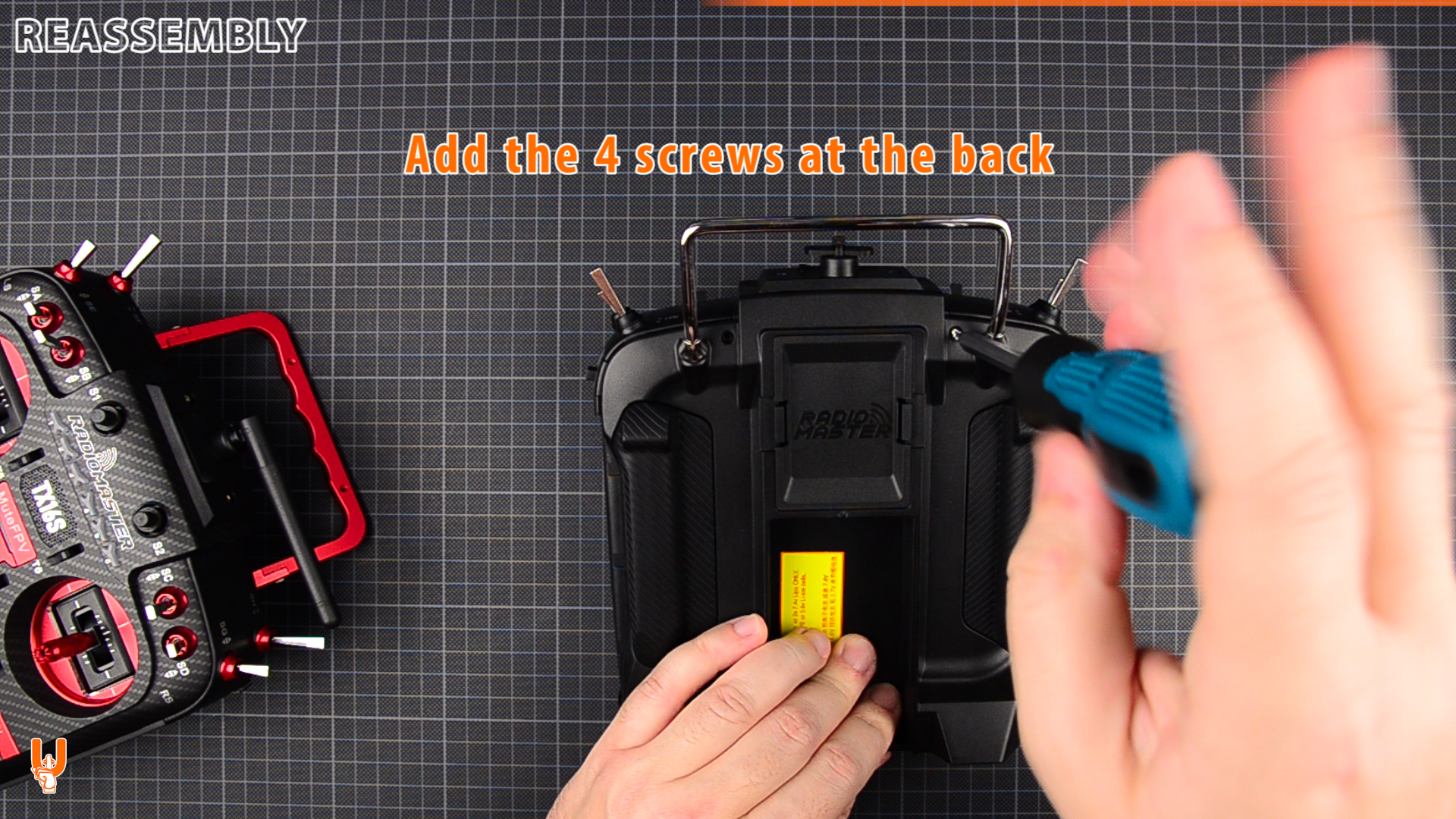

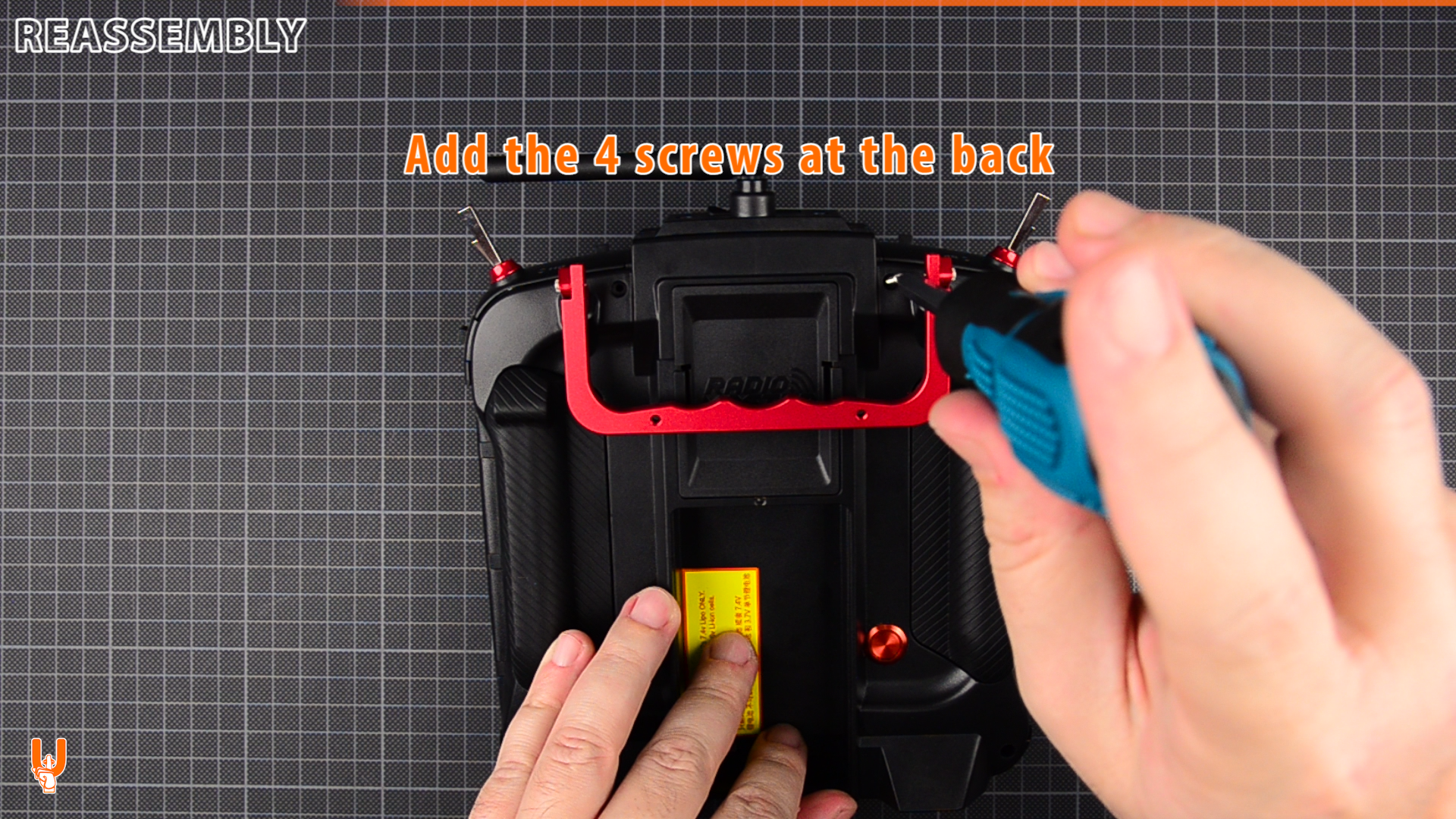

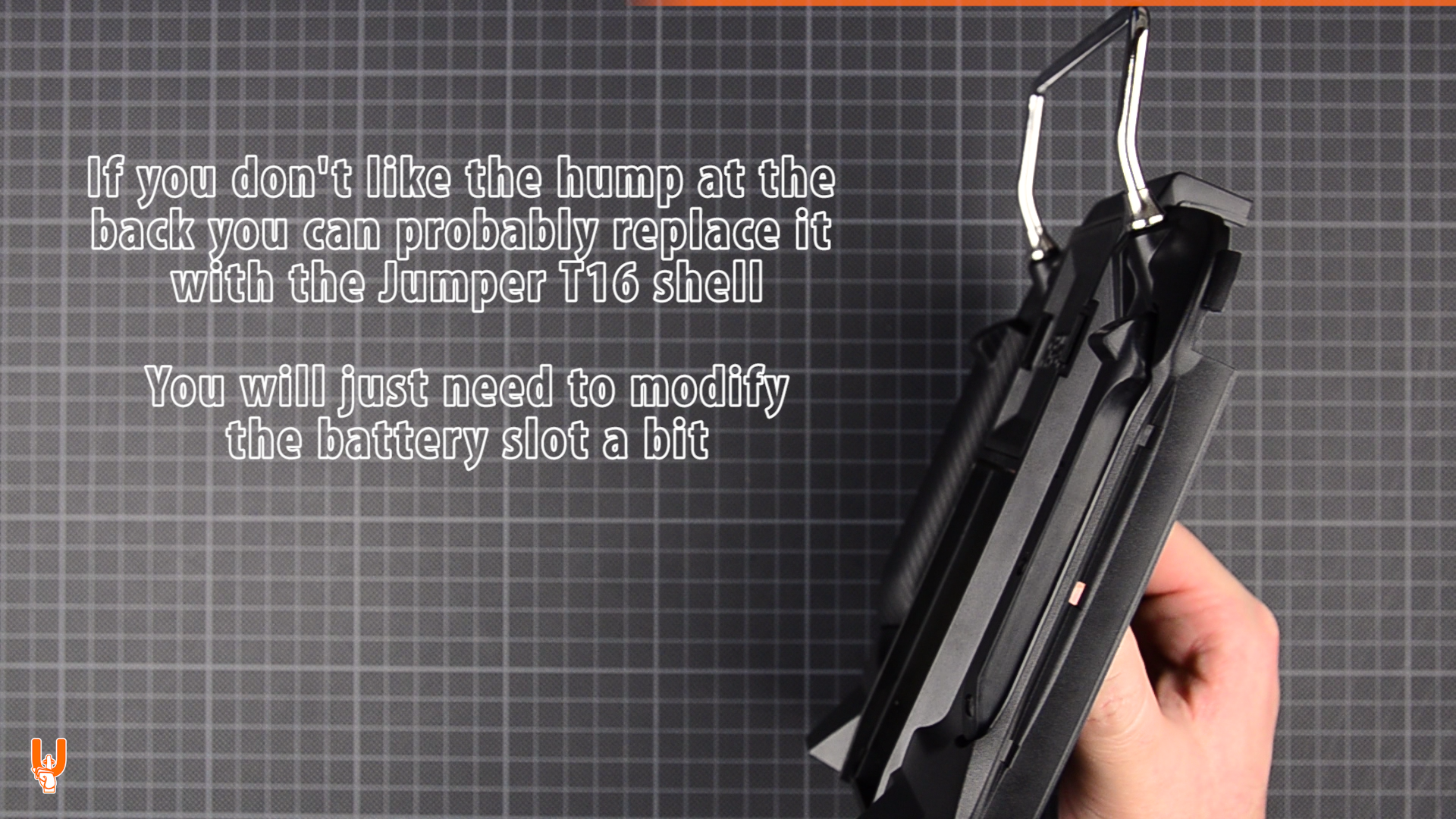

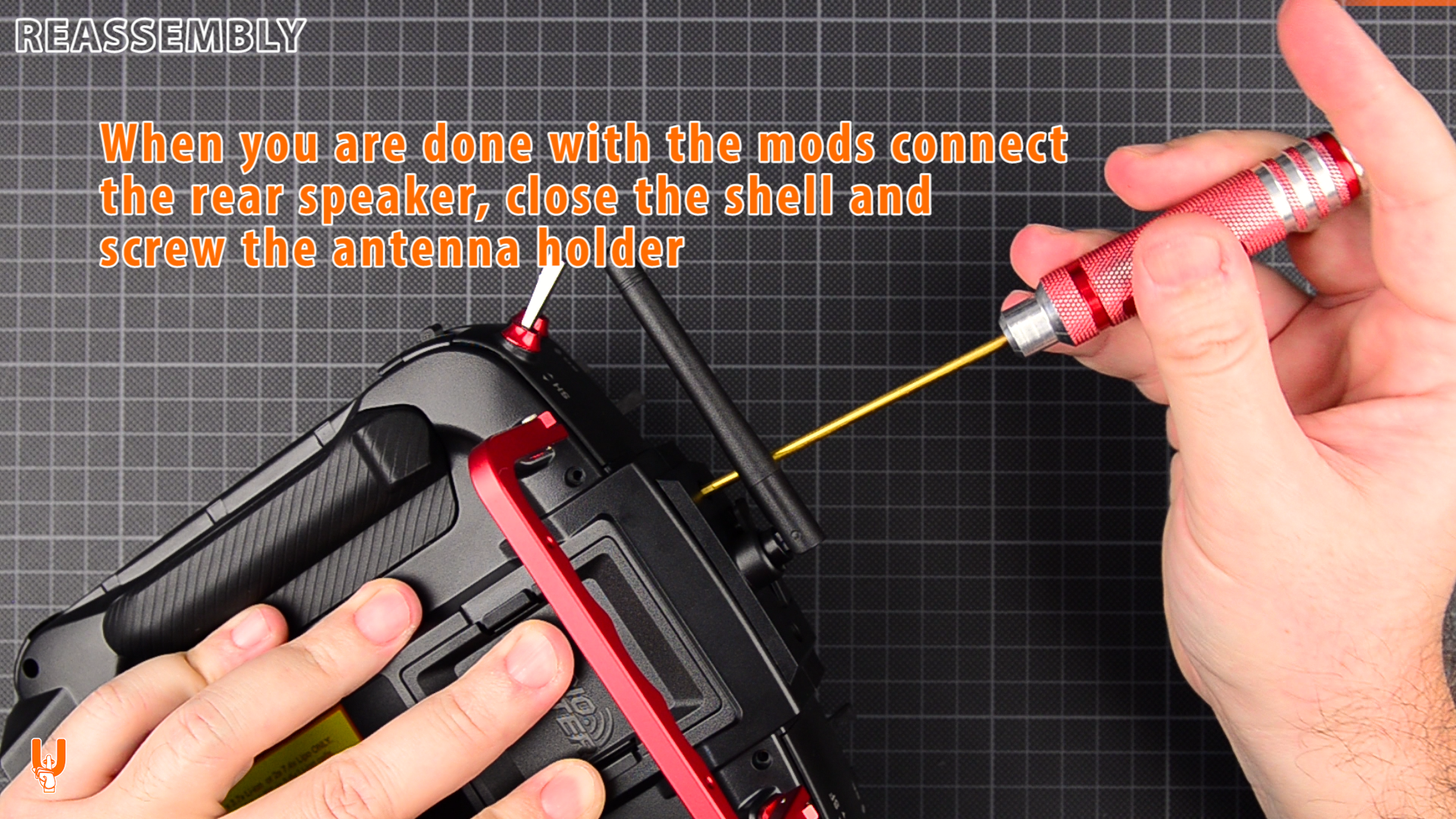

Reassembly


You can watch the full videos (split in 3 parts) here:





..or check the attached screengrabs below


General info sources:
👉 Radiomaster TX16S Playlist: http://mutefpv.com/oxa1i (Youtube)
👉 Radiomaster TX16S Gimbal adjustments: http://mutefpv.com/0kbti (Youtube)
👉 Tinkercad guide: http://mutefpv.com/yx0hd (Youtube)

For other ideas you can also check:
👉 FrSky Taranis mods: http://mutefpv.com/u4ruw (Youtube)
👉 Jumper T16 mods: http://mutefpv.com/5gf79 (Youtube)
👉 Taranis X9D+ Backlight mod: http://mutefpv.com/8sg9q (Youtube)




PART 1:

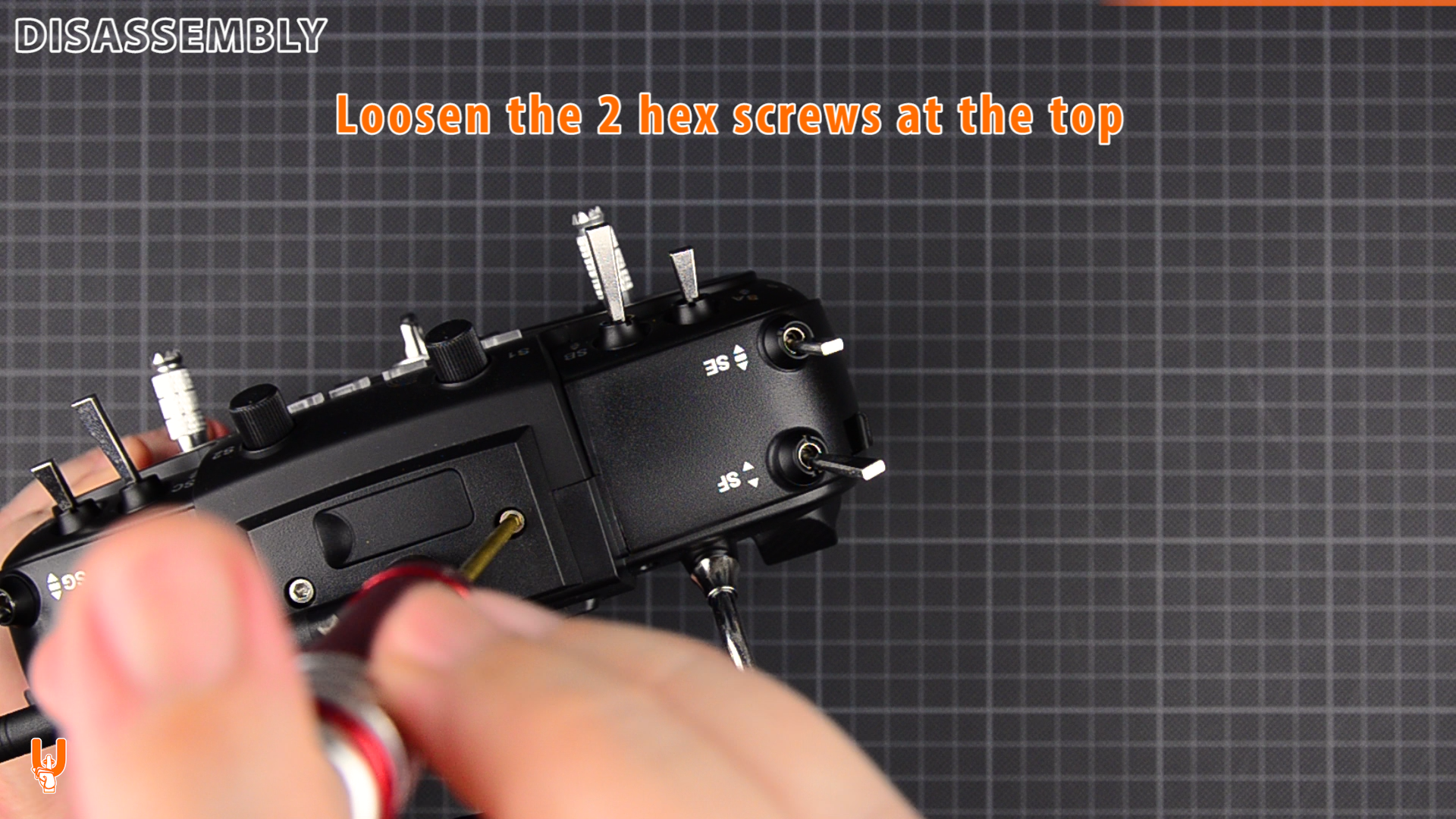

Disassembly
Side sliders

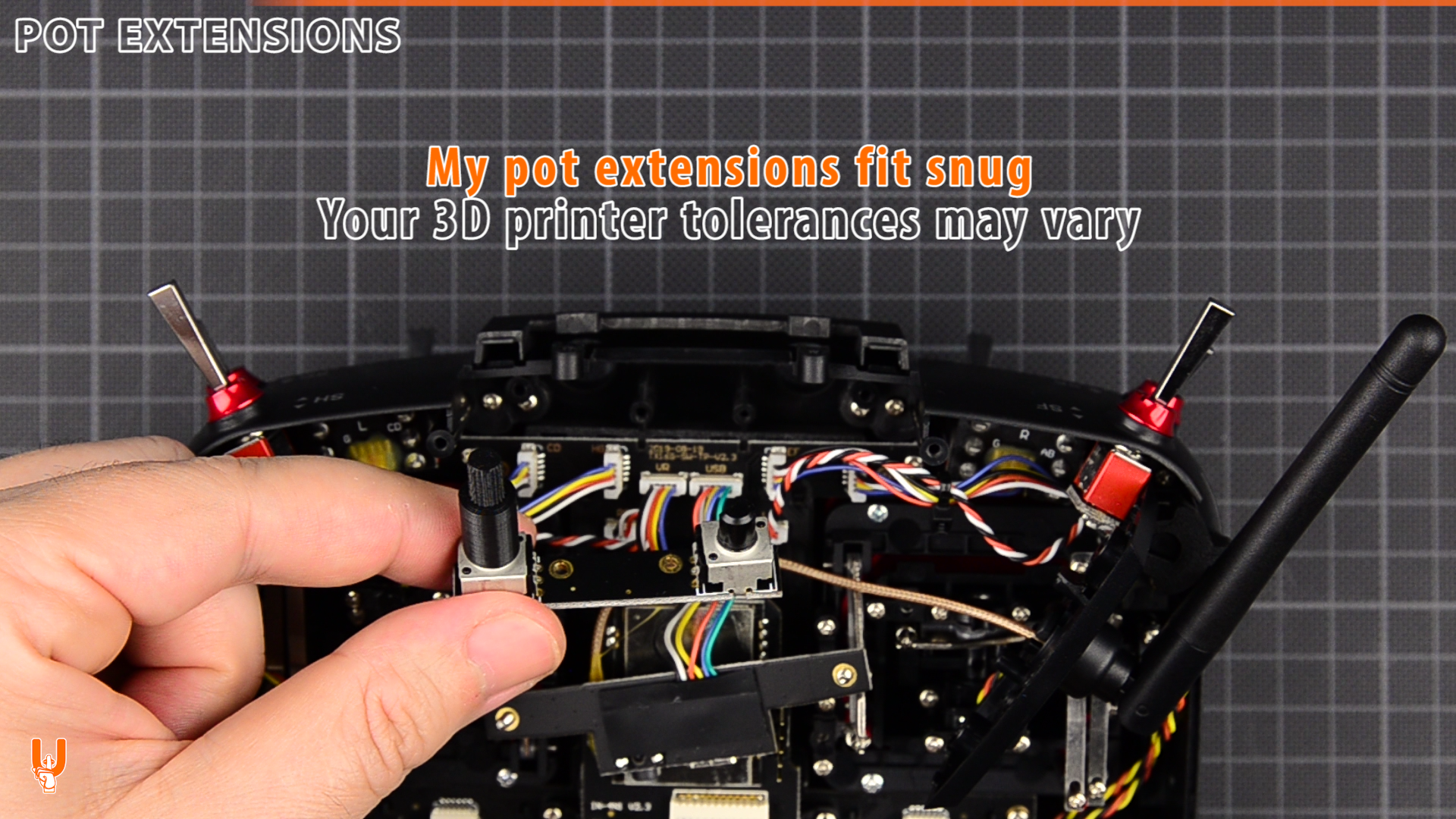

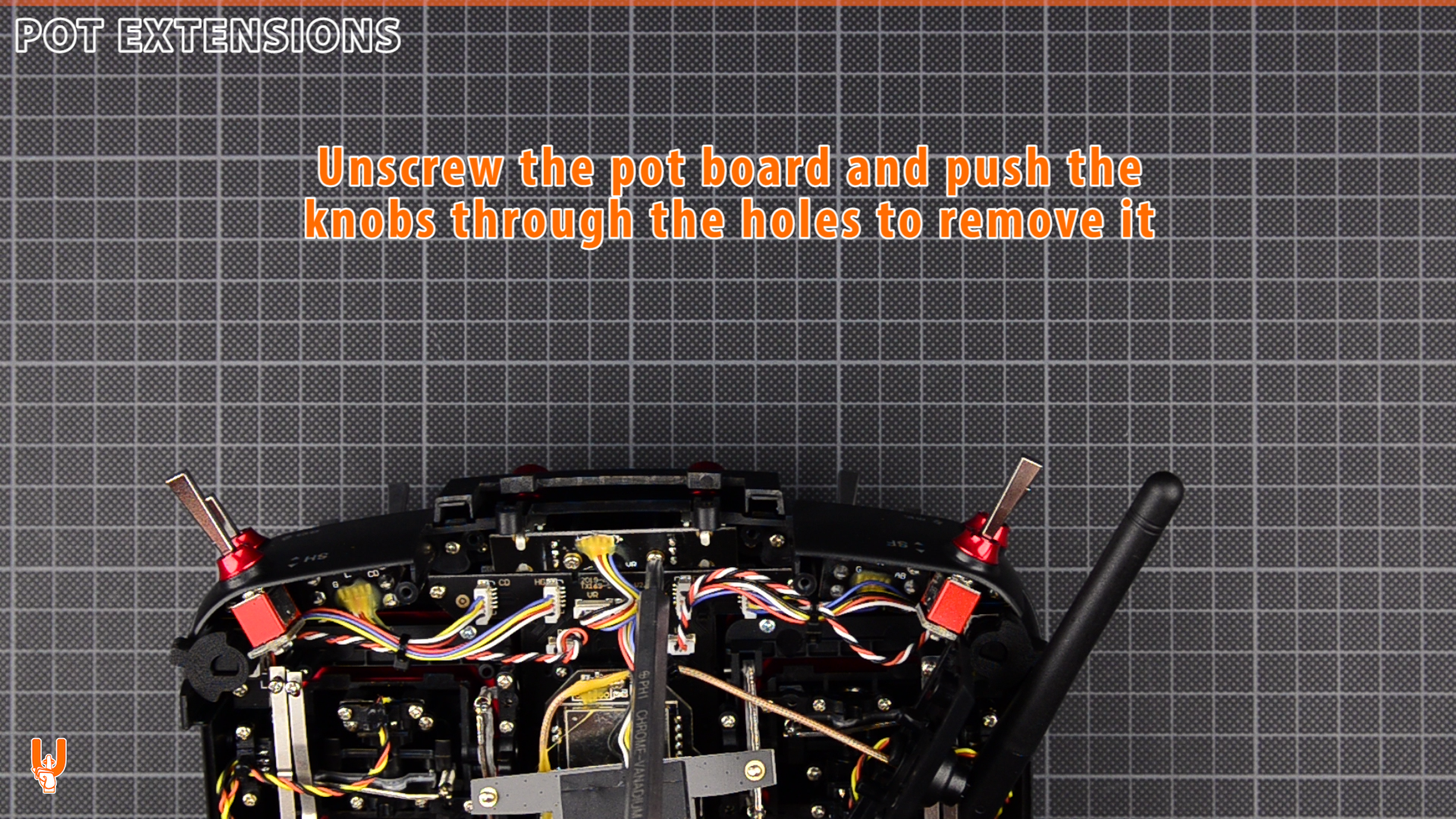

Potentiometer extensions

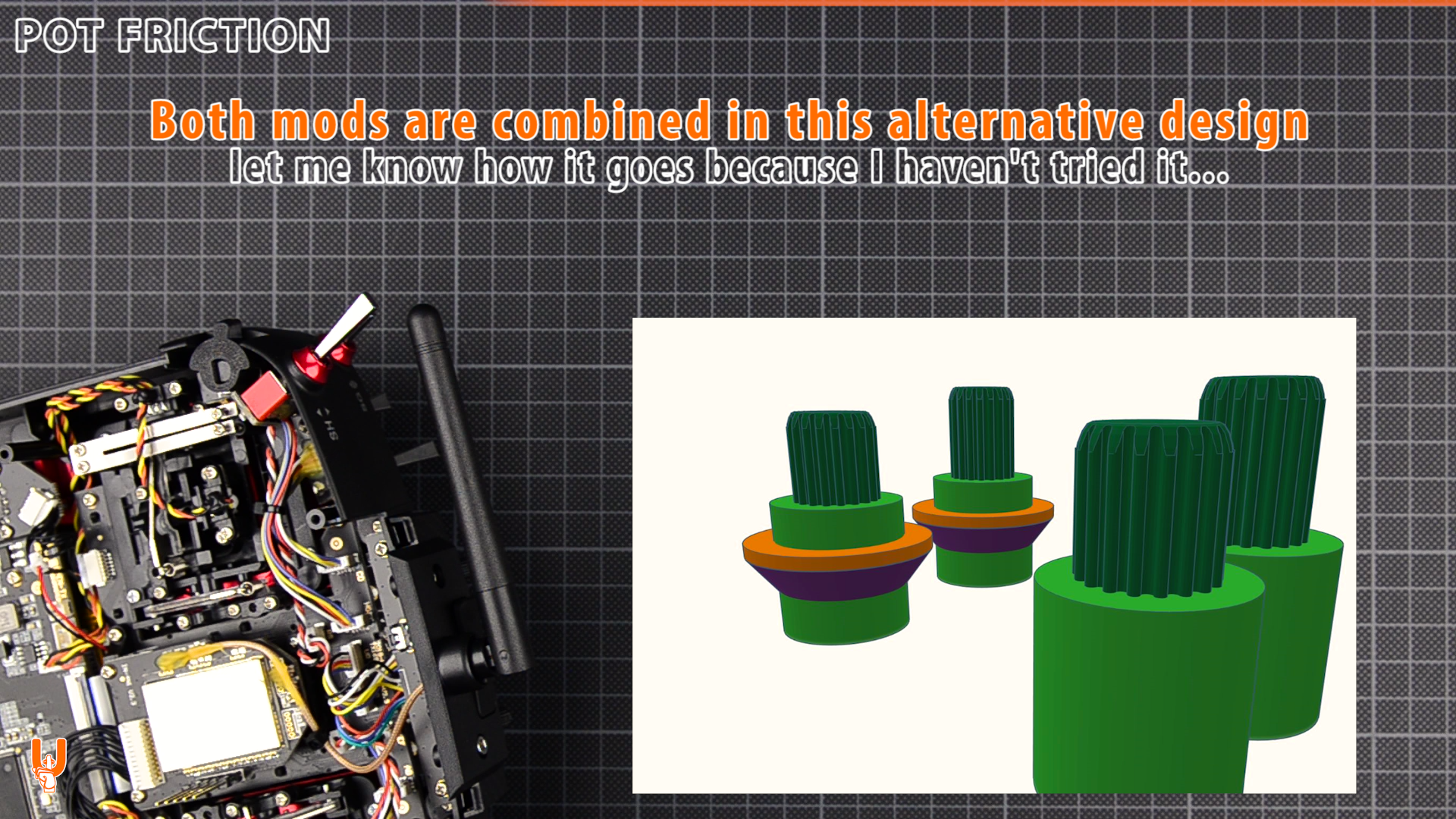

Potentiometer friction

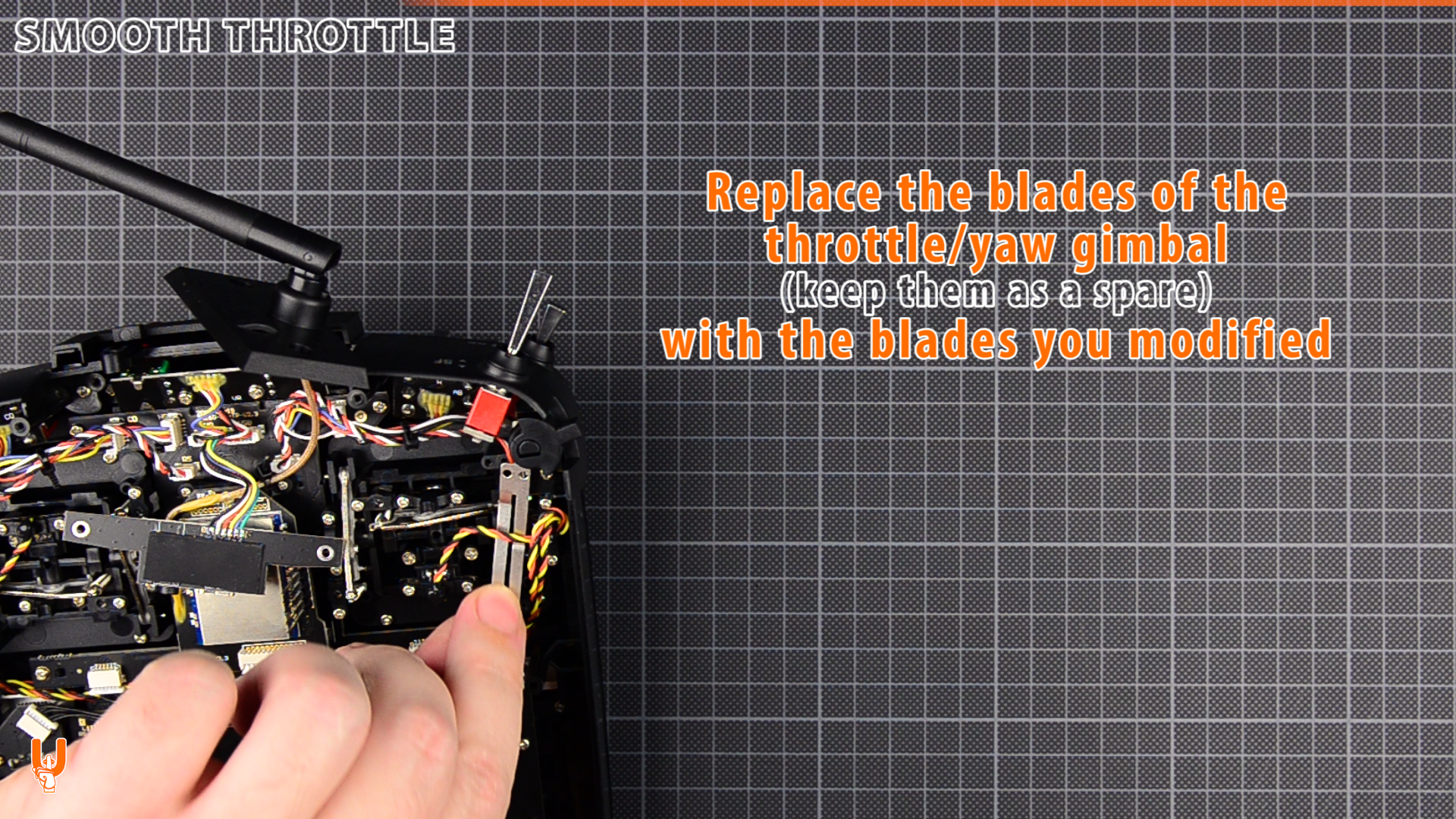

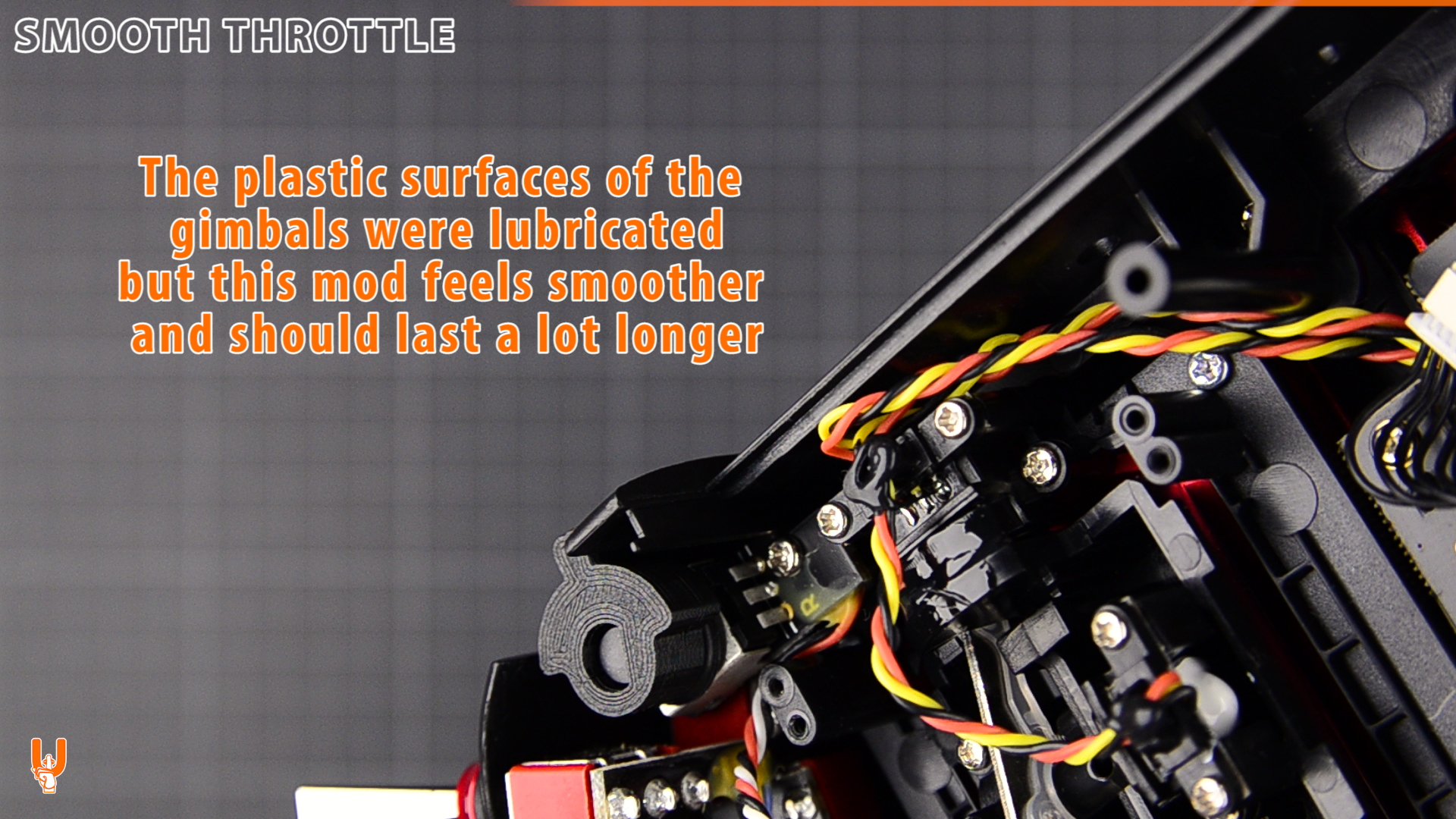

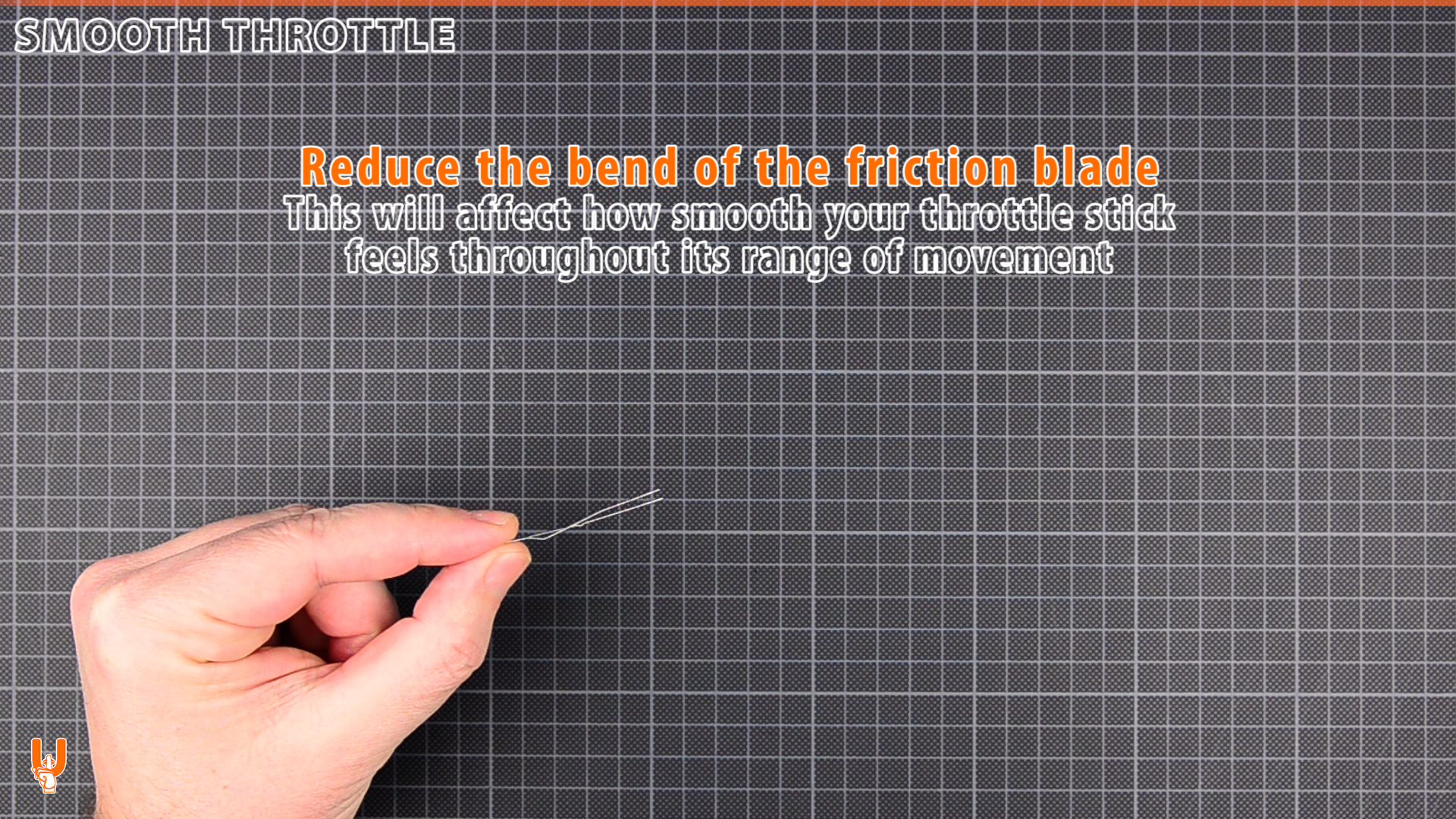

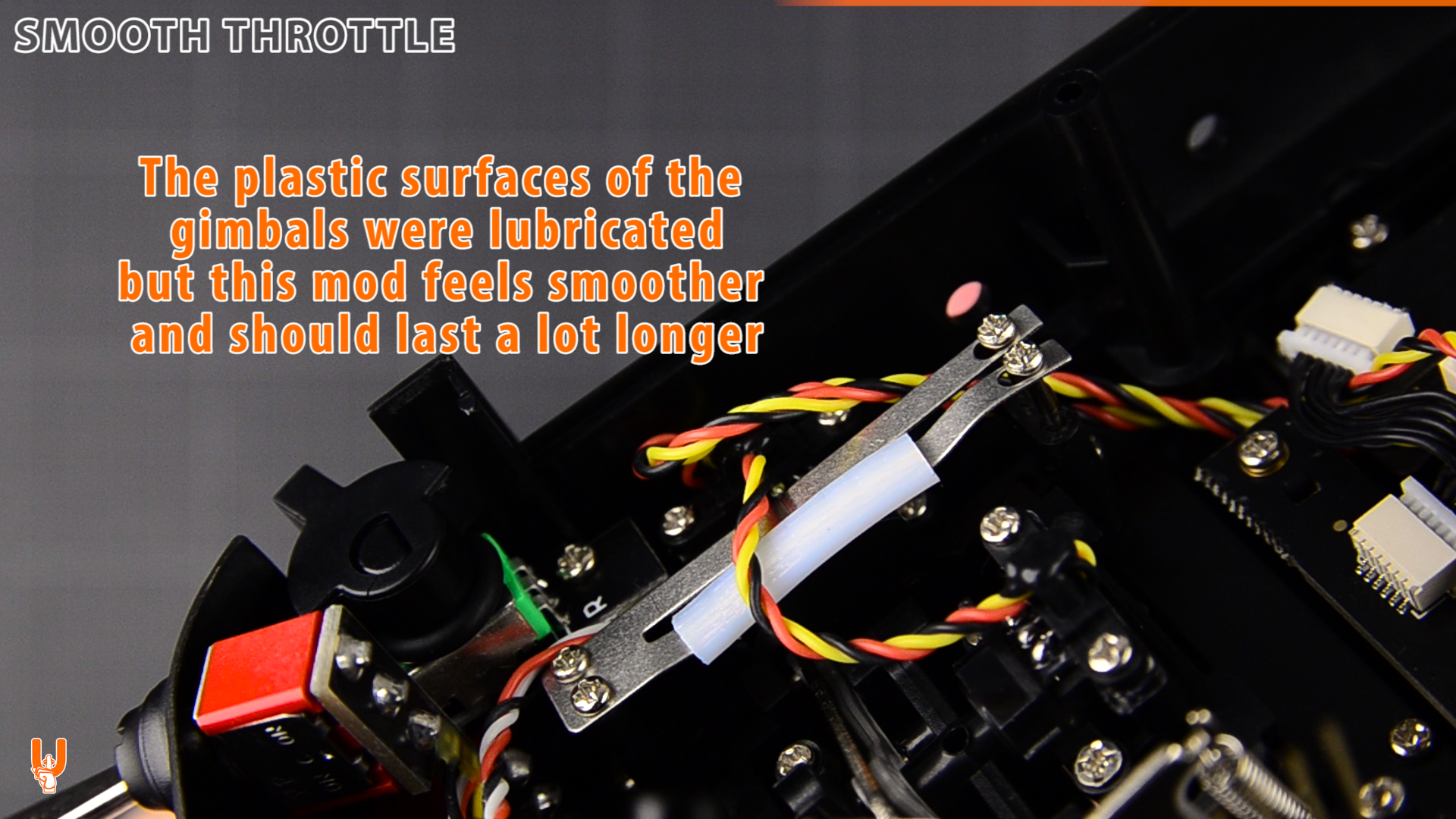

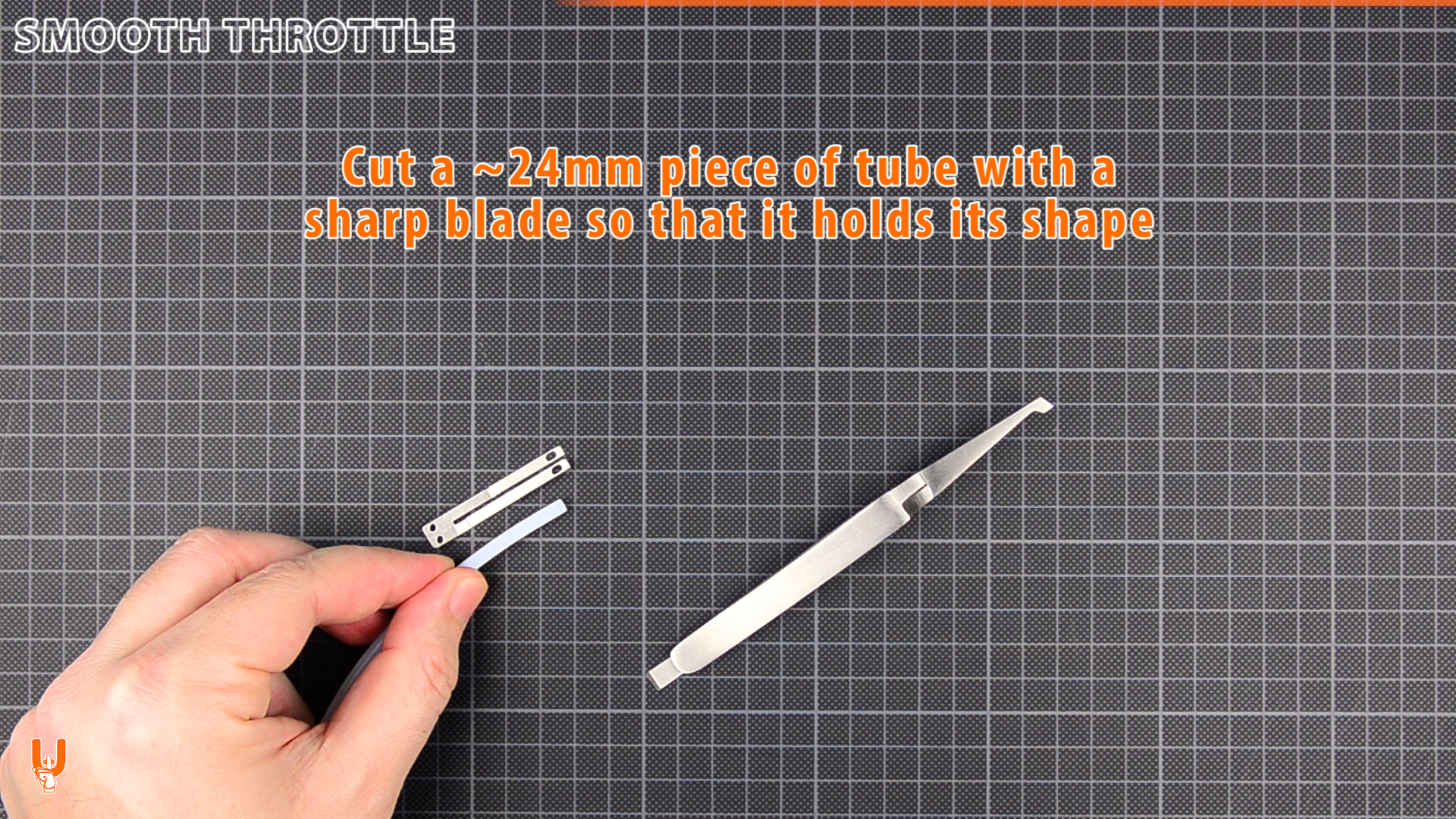

Smooth throttle

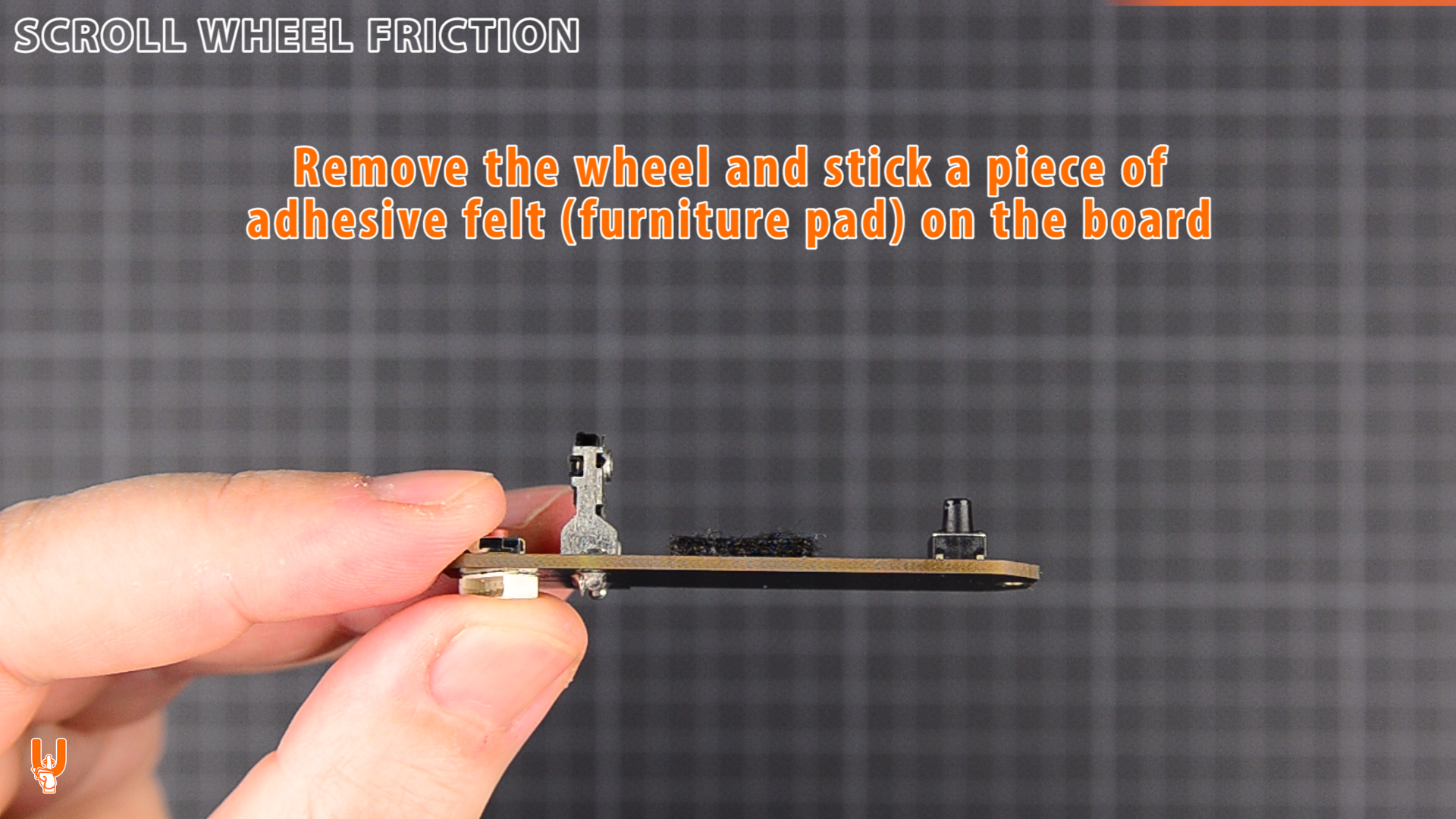

Scroll wheel friction
