QAV250 360 Selfie Stick

by RotoRex | April 6, 2016 | (6) Posted in Projects



The Idea

Ever since I saw the video of an rc plane flying with two keychain cameras revolving around it as it flew, I have always wanted to do something similar. A few weeks ago my friends and I were chatting about this and we came up with the crazy idea to put it onto one of our Lumenier QAV250s. So I designed a 3D printed mount that fit onto the QAV250 and allowed two RunCam 2s to spin freely around the copter.



Flying and Modification

After the first test flights we noticed that it didn’t spin very much. So I took a Ping-Pong ball and split it in half and mounted the halves to the ends of the arms. Then the mount spun way to fast! It was crazy looking in the air and the video made everyone who watched it sick to their stomachs. So we moved the Ping-Pong balls in toward the center gradually and got it to spin at a more acceptable speed.



The Mount

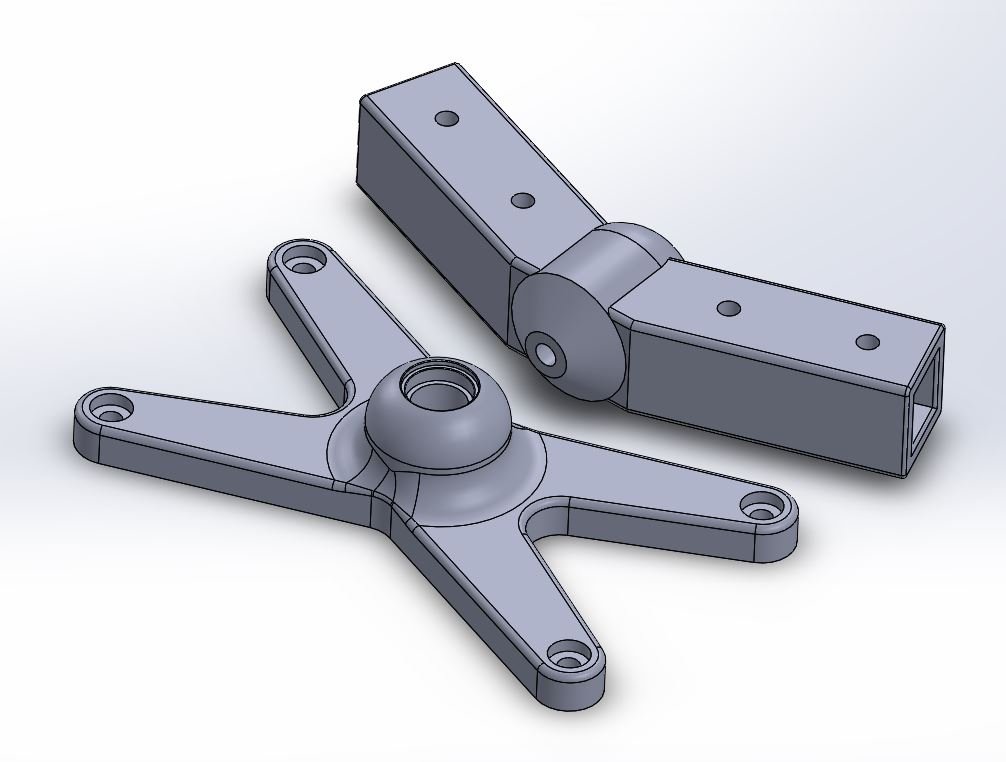

The 3D printed mount is based around two bearings and a shaft that fits inside the bearings. The bearings and the shaft were obtained from servocity.com (links below). On the shaft mounted a simple piece that holds two carbon fiber arms out at 20 degrees. Overall the system is silky smooth and spins even better than I first imagined it would.

Ball Bearings: https://www.servocity.com/html/flanged_ball_bearings.html#.VwUGhU995hE

Standoffs: https://www.servocity.com/html/6-32_aluminum_standoffs__round.html



Conclusion

The project was a lot of fun and we had lots of laughs trying new things with it. Hopefully soon we will take some more footage with it and do some exciting proximity and stunts with it. After that, we will put together another awesome video reel.

Special thanks to FalconViz for letting us use some of your resources and to Luca Passone for letting me use your QAV250 as a test bed for my crazy contraption. If you guys want to find some more awesome material by me and my friends, check us out below.



YouTube

Ryan: https://www.youtube.com/user/1Ryan2010

Luca/Wizard OfPropz: https://www.youtube.com/channel/UCPCLDSdoVGUxhTdAmBua0JA



Instagram

Ryan: https://www.instagram.com/rboekeloo/

Luca/Wizard OfPropz: https://www.instagram.com/wizardofpropz/

Mohamad: https://www.instagram.com/mnkarkadan/

- Find this article & others like it at www.FliteTest.com -
